Transporto priemonė: S 416 HDH; VIN numerio dalis: 629425
Grupė: 62 COWL,FRONT PANEL - 030 FRONT PANEL

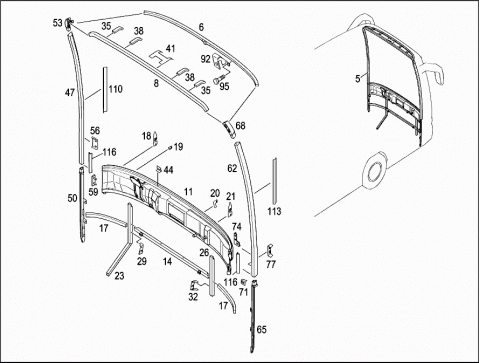

86942

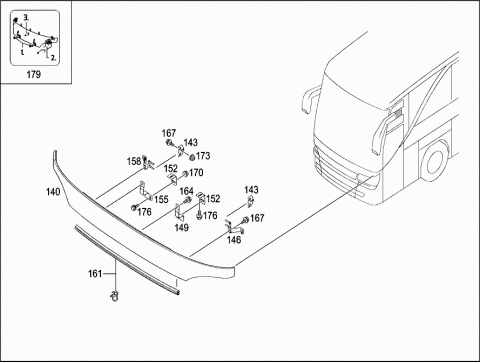

86941
# Kodas Pavadinimas
005 A 6296200502 FRONT PANEL
006 A 6296201430 SUPPORT
008 A 6296220020 BOW
011 A 6296200108 FRONT PANEL
014 A 6296201130 SUPPORT
FRONT COVER
017 A 6296220030 SUPPORT
HEADLAMP
018 A 6296250714 BRACKET
019 A 6296251214 BRACKET
020 A 6296251314 BRACKET
021 A 6296250814 BRACKET
023 A 6296201213 PILLAR
026 A 6296201313 PILLAR
029 A 6296200515 CONSOLE
032 A 6296200615 CONSOLE
035 A 6296220238 INTERMEDIATE PIECE
038 A 6296220338 INTERMEDIATE PIECE
LEFT AND RIGHT
038 A 6296210034 BRACING
LEFT
038 A 6296220338 INTERMEDIATE PIECE
RIGHT
041 A 6296210116 REINFORCEMENT
044 A 6296221714 BRACKET
DRIVER TABLE
047 A 6296212413 CENTRAL PILLAR
LEFT
050 A 6296211613 PILLAR
BOTTOM
053 A 6296212213 PILLAR
TOP
056 A 6296210018 BRACKET
COCKPIT
059 A 6296210111 PLATE
062 A 6296212513 CENTRAL PILLAR
RIGHT
065 A 6296211713 PILLAR
BOTTOM
068 A 6296212313 PILLAR
TOP
071 A 6296210212 ANGLE
FRONT PASSENGER TABLE
074 A 6296210118 BRACKET
FRONT PASSENGER TABLE
077 A 6296222114 BRACKET
FRONT PASSENGER TABLE
092 A 6296200514 BRACKET
WIPER MOTOR
095 N 910105008039 HEXAGON HEAD BOLT
M8X25MM
110 A 6296271412 ANGLE
113 A 6296271512 ANGLE
116 A 6296271212 ANGLE
140 A 6296270174 ORNAMENTAL COVER
143 A 6296201814 BRACKET
146 A 6296200715 CONSOLE
149 A 6296251014 BRACKET
152 A 6296250914 BRACKET
155 A 6296251114 BRACKET
158 A 6296200815 CONSOLE
161 A 0009871762 RUBBER SECTION
164 N 910105008013 HEXAGON HEAD BOLT
M8X12MM
167 N 910105006004 HEXAGON HEAD BOLT
M6X16MM
Repalced by: N 910143006001
167 N 910143006001 HEXALOBULAR BOLT
M6X16MM
170 N 910112008000 NUT
M8
173 N 910112006001 HEXAGON NUT
M6
176 N 910105008026 HEXAGON HEAD BOLT
M8X20MM
179 A 6296280200 GUMMED LABEL
