Transporto priemonė: S 416 HDH; VIN numerio dalis: 629425

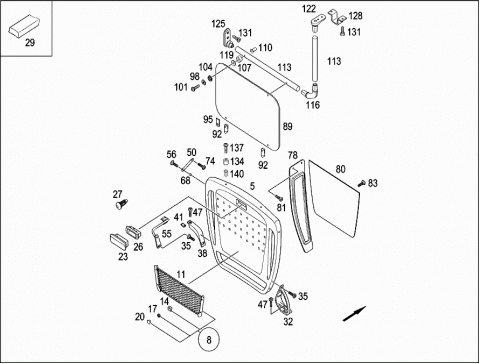

Grupė: 71 PARTITION PANEL
99614
# Kodas Pavadinimas
005 A 6297110001 PARTITION PANEL
005 A 6327110301 PARTITION PANEL
005 A 6327110401 PARTITION PANEL
008 A 6328100149 LUGGAGE NET
008 A 6298100549 LUGGAGE NET
Repalced by: A 6328100149
008 A 6328100149 LUGGAGE NET
011 A 6298140107 LUGGAGE NET
014 A 6298110307 COVERING
017 N 304032003001 NUT
020 A 6299870145 LOCKING CAP
023 A 6298130158 COVER
026 A 6298130258 HOUSING
027 A 6298130028 CLIP
029 A 6299870075 GARNISH STRIP
032 A 6297110045 STAY
035 A 0009901129 SCREW
M 8X22
038 A 6297110145 STAY
041 A 6297110012 ANGLE
047 A 0009901729 SCREW
M 8X40
050 A 6297110612 ANGLE
055 A 6277100031 CONSOLE
056 A 0009901629 SCREW, SPECIAL SHAPE
M8X28
056 A 0039902312 SCREW
M 8X35
068 A 0009912740 SPACER TUBE
068 A 0003280053 SPACER TUBE
074 A 0009901429 SCREW
M 6X35
078 A 6277110023 PANELLING
080 A 6297100018 PANELLING
081 N 000000000530 TAPPING SCREW
4.8X22
083 N 000000000522 SHEET METAL SCREW
089 A 6297110010 GLASS PANE
092 A 6277111534 CONNECTION
095 A 6277110097 PAD
098 A 6277120013 WASHER
101 A 0029900120 SCREW
M 6X20
104 A 0009876941 RUBBER RING
107 A 0009888211 BUFFER
110 N 913024006100 RIVETED NUT
M 6X45
113 A 6279852736 METAL SECTION
116 A 6277104432 CONNECTION
119 A 6277118834 CONNECTION
122 A 6277106032 CONNECTION
125 A 6277100932 CONNECTION
128 A 6299850099 METAL SECTION
131 A 0009901129 SCREW
134 A 0003270153 SPACER SLEEVE
137 N 000912008033 SCREW
140 A 0009844821 RIVETED NUT
M 8X16
