Transporto priemonė: S 416 HDH; VIN numerio dalis: 629425
Grupė: 64 REAR PANEL
| # | Kodas | Pavadinimas |
|---|---|---|

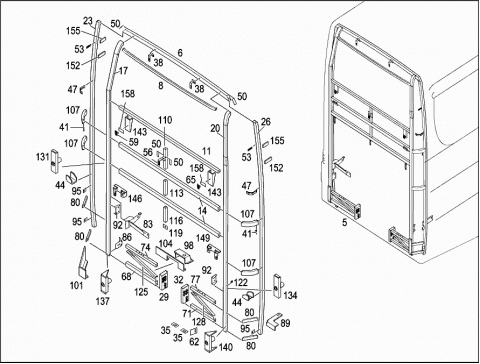

| 005 | A 6296400501 | REAR PANEL |
| 006 | A 6296420506 | FRAME PART |
| 008 | A 6296420406 | FRAME PART |
| HECKSCHEIBE | ||
| 011 | A 6296420106 | FRAME PART |
| HECKSCHEIBE | ||
| 014 | A 6296400028 | SUPPORT |
| CENTRE | ||
| 017 | A 6296401410 | PILLAR |
| LEFT | ||
| 020 | A 6296401510 | PILLAR |
| RIGHT | ||
| 023 | A 6296401210 | PILLAR |
| LEFT | ||
| 026 | A 6296401310 | PILLAR |
| RIGHT | ||
| 029 | A 6296400033 | STAY |
| LEFT | ||
| 032 | A 6276400333 | STAY |
| RIGHT | ||
| 035 | A 6276160808 | PERFORATED PLATE |
| 038 | A 6296400751 | BRACKET |
| DACHHOLM | ||
| 041 | A 6296420065 | WELDING PIECE |
| 044 | A 6296412514 | BRACKET |
| 047 | A 6296411414 | BRACKET |
| 050 | A 6296423111 | PLATE |
| 053 | A 6296411514 | BRACKET |
| 056 | A 6296420209 | BRACKET |
| HECKBLENDE | ||
| 059 | A 6296420409 | BRACKET |
| HECKBLENDE | ||
| 062 | A 6276420911 | PLATE |
| 065 | A 6296420309 | BRACKET |
| HECKBLENDE | ||
| 068 | A 6296400287 | PIPE |
| LEFT | ||
| 071 | A 6296400387 | PIPE |
| RIGHT | ||
| 074 | A 6296400087 | PIPE |
| LEFT | ||
| 077 | A 6296400187 | PIPE |
| RIGHT | ||
| 080 | A 6296430320 | STRUT |
| OUTSIDE | ||
| 083 | A 6296400651 | BRACKET |
| RADIATOR SUPPORT | ||
| 086 | A 6296400951 | BRACKET |
| RADIATOR SUPPORT | ||
| 089 | A 6296410114 | BRACKET |
| 092 | A 6296400451 | BRACKET |
| HECKLEUCHTE | ||
| 095 | A 6296410713 | PLATE |
| 098 | A 6296460031 | CONSOLE |
| PLUG SOCKET | ||
| 101 | A 6296420032 | ANGLE |
| 104 | A 6296420132 | ANGLE |
| 107 | A 6296430220 | STRUT |
| CENTRE | ||
| 110 | A 6296412210 | PILLAR |
| CENTRE | ||
| 113 | A 6296412310 | PILLAR |
| CENTRE | ||
| 116 | A 6296413210 | PILLAR |
| CENTRE | ||
| 119 | A 6296412413 | PLATE |
| 122 | A 6296120324 | BRACKET |
| 125 | A 6296430020 | STRUT |
| LEFT | ||
| 128 | A 6296430120 | STRUT |
| RIGHT | ||
| 131 | A 6296400283 | MOUNTING |
| SKI FIXTURE | ||
| 134 | A 6296400383 | MOUNTING |
| SKI FIXTURE | ||
| 137 | A 6296400083 | MOUNTING |
| SKI FIXTURE | ||
| 140 | A 6296400183 | MOUNTING |
| SKI FIXTURE | ||
| 143 | A 6296420165 | WELDING PIECE |
| 146 | A 6296422109 | BRACKET |
| HECKBLENDE | ||
| 149 | A 6296422209 | BRACKET |
| HECKBLENDE | ||
| 152 | A 6296120969 | GUSSET PLATE |
| 155 | A 6296423511 | PLATE |
| 158 | A 6296370190 | STOP |

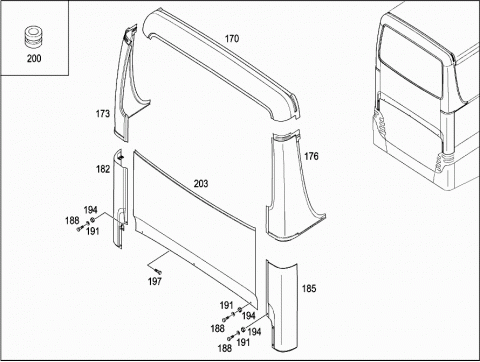

| 170 | A 6296470984 | PANELING |
| 173 | A 6296471184 | SIDE PART |
| LEFT | ||
| 176 | A 6296471284 | SIDE PART |
| RIGHT | ||
| 182 | A 6296471584 | SIDE PART |
| LEFT | ||
| 185 | A 6296471684 | SIDE PART |
| RIGHT | ||
| 188 | N 000912006040 | SCREW |
| M6X20MM | ||
| 191 | N 009021006209 | WASHER |
| 194 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 197 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16MM | ||
| 200 | A 0099977981 | GROMMET |
| 203 | A 6296471884 | PANELING |
| CENTER PART | ||

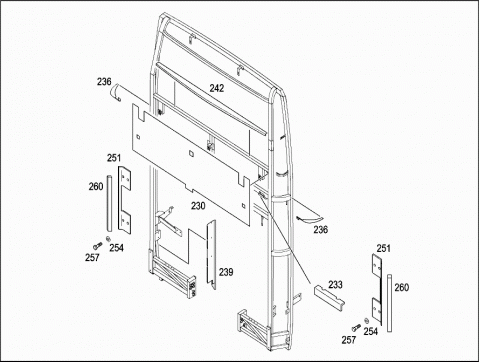

| 230 | A 6296470774 | PARTITION PANEL |
| 233 | A 6296020512 | ANGLE |
| 236 | A 6296470874 | PARTITION PANEL |
| 239 | A 6296471174 | PARTITION PANEL |
| 242 | A 6296471012 | ANGLE |
| 251 | A 6296470078 | RAIL |
| 254 | N 000000003260 | WASHER |
| 257 | N 000912006040 | SCREW |
| M6X20MM | ||
| 260 | A 0006470098 | SEAL |
