Transporto priemonė: S 416 HDH; VIN numerio dalis: 629425

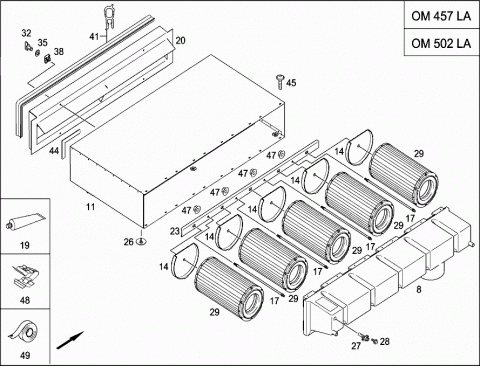

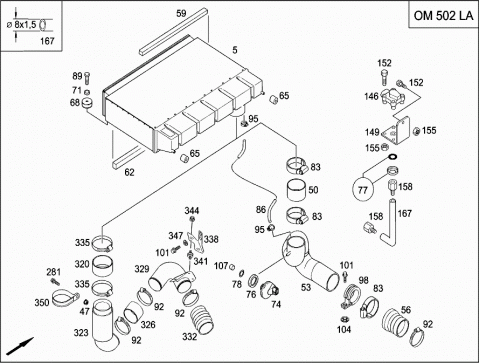

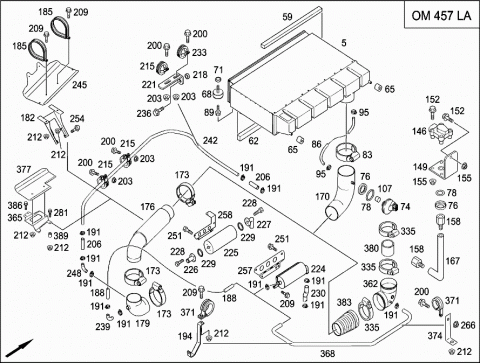

Grupė: 52 SHEET METAL,AIR INTAKE - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0000904701 | AIR CLEANER |
| 005 | A 0000907001 | AIR CLEANER |
| 005 | A 0000907401 | AIR CLEANER |
| ULTRAWEB | ||
| 008 | A 6295201101 | AIR INTAKE PIPE |
| 008 | A 6295201101 | AIR INTAKE PIPE |
| 008 | A 6295201501 | AIR INTAKE PIPE |
| 011 | A 6295200502 | AIR INTAKE CASE |
| 011 | A 6295200502 | AIR INTAKE CASE |
| 014 | A 6295280310 | COVER |
| 014 | A 6295280310 | COVER |
| 017 | A 6295200015 | ROD |
| 017 | A 6295200015 | ROD |
| 019 | A 0069896471 | ADHESIVE |
| LOCTITE 262 | ||
| 019 | A 0069896471 | ADHESIVE |
| LOCTITE 262 | ||
| 020 | A 6295200004 | SCOOP |
| 020 | A 6295200004 | SCOOP |
| 023 | A 6295240612 | STIFFENING |
| 023 | A 6295240612 | STIFFENING |
| 026 | A 0000943865 | PLUG |
| (DUST DISCHARGE VALVE) | ||
| 026 | A 0000943865 | PLUG |
| (DUST DISCHARGE VALVE) | ||
| 027 | A 0051536528 | SENDER UNIT |
| MOISTURE TEMPERATURE SENSOR | ||
| Repalced by: A 0071530128 | ||
| 027 | A 0071530128 | TEMPERATURE SENSOR |
| MOISTURE TEMPERATURE SENSOR | ||
| Repalced by: A 0071531128 | ||
| 027 | A 0071531128 | TEMPERATURE SENSOR |
| MOISTURE TEMPERATURE SENSOR | ||
| 028 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 029 | A 0040941804 | FILTER ELEMENT |
| 029 | A 0040944604 | FILTER ELEMENT |
| ULTRAWEB | ||
| 032 | A 0009846136 | PIVOT |
| 032 | A 0009846136 | PIVOT |
| 035 | A 0029949835 | SNAP RING |
| PLASTIC WINDOWS | ||
| Repalced by: A 0039908740 | ||
| 035 | A 0039908740 | WASHER |
| PLASTIC WINDOWS | ||
| 035 | A 0039908740 | WASHER |
| PLASTIC WINDOWS | ||
| 038 | A 0005250041 | ANGLE |
| RETAINING CLAMP | ||
| Repalced by: A 0019884442 | ||
| 038 | A 0019884442 | FASTENER |
| RETAINING CLAMP | ||
| 038 | A 0019884442 | FASTENER |
| RETAINING CLAMP | ||
| 041 | A 0007570174 | RUBBER SEAL |
| 041 | A 0007570174 | RUBBER SEAL |
| 044 | A 0089873425 | MOSS TYPE RUBBER |
| 044 | A 0089873425 | MOSS TYPE RUBBER |
| 045 | A 0019846329 | HEXALOBULAR BOLT |
| 5X12 | ||
| 045 | A 0019846329 | HEXALOBULAR BOLT |
| 5X12 | ||
| 047 | N 913023008003 | NUT |
| M8 | ||
| 047 | N 913023008003 | NUT |
| M8 | ||
| 048 | A 0009956914 | LINE FASTENER |
| 048 | A 0009956914 | LINE FASTENER |
| 049 | A 0009894584 | INSULATING TAPE |
| 40MM | ||
| 049 | A 0009894584 | INSULATING TAPE |
| 40MM | ||
| 050 | A 0029976352 | HOSE |
| 150X100MM | ||
| 050 | A 0029976352 | HOSE |
| 150X100MM | ||
| 053 | A 6295201201 | AIR INTAKE PIPE |
| Repalced by: A 6295280708 | ||
| 053 | A 6295280708 | AIR INTAKE PIPE |
| CASTING | ||
| 150MM | ||
| 053 | A 6295280708 | AIR INTAKE PIPE |
| CASTING | ||
| 150MM | ||
| 056 | A 6295280082 | HOSE |
| 150/130MM | ||
| 056 | A 6295280082 | HOSE |
| 150/130MM | ||
| 059 | A 6295050386 | SEALING LIP |
| PLASTIC FOAM | ||
| 20X40MM/1040MM | ||
| 059 | A 6295050386 | SEALING LIP |
| PLASTIC FOAM | ||
| 20X40X1040MM | ||
| 059 | A 6295050086 | SEAL |
| PLASTIC FOAM | ||
| 40X30MM | ||
| 062 | A 6295050186 | SEAL |
| PLASTIC FOAM | ||
| 38X45X1095MM | ||
| 062 | A 6295050186 | SEAL |
| PLASTIC FOAM | ||
| 38X45X1095MM | ||
| 065 | A 0009872143 | RUBBER BUSHING |
| 50X45MM | ||
| 065 | A 0009872143 | RUBBER BUSHING |
| 50X45MM | ||
| 068 | A 0009888011 | BUFFER |
| 25X10/M6 | ||
| 068 | A 0009888011 | BUFFER |
| 25X10/M6 | ||
| 071 | A 6299910040 | SPACER SLEEVE |
| 071 | A 6299910040 | SPACER SLEEVE |
| 074 | A 0135422917 | SENDER UNIT |
| 074 | A 0135422917 | SENDER UNIT |
| 076 | A 0004291127 | THRUST RING |
| 14X10X2.6MM | ||
| 076 | A 0004291127 | THRUST RING |
| 14X10X2.6MM | ||
| 077 | A 0000500095 | SEAL RING |
| 078 | A 0269970248 | O-RING |
| 078 | A 0269970248 | O-RING |
| 083 | A 0009951236 | CLAMP |
| 150-170MM | ||
| 083 | A 0009951236 | CLAMP |
| 150-170MM | ||
| 083 | A 0009951236 | CLAMP |
| 150-170MM | ||
| 086 | A 0249975382 | HOSE |
| LEAK LINE | ||
| 5.5X2.5MM | ||
| 086 | A 0249975382 | HOSE |
| LEAK LINE | ||
| 5.5X2.5MM | ||
| 089 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 089 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 092 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 092 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 092 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 095 | A 0069979990 | CLAMP |
| 11,3MM | ||
| 095 | A 0069979990 | CLAMP |
| 11,3MM | ||
| 098 | A 0029953701 | CLAMP |
| 150/25MM | ||
| 098 | A 0029953701 | CLAMP |
| 150/25MM | ||
| 101 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 101 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 104 | A 0049941945 | NUT |
| M8 | ||
| 104 | A 0049941945 | NUT |
| M8 | ||
| 107 | A 0000940276 | FELT WASHER |
| 107 | A 0000940276 | FELT WASHER |
| 107 | A 0000940276 | FELT WASHER |
| 110 | A 4571540304 | COVER |
| 113 | A 4421540104 | COVER WITH AIR INTAKE |
| AIR INTAKE | ||
| Repalced by: A 4071540165 | ||
| 113 | A 4071540165 | COVER |
| 116 | N 000934006006 | NUT |
| M6 | ||
| 116 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 122 | A 0029976552 | HOSE |
| 1600MM | ||
| Repalced by: A 0069977352 | ||
| 122 | A 0069977352 | SUCTION HOSE |
| 1650MM | ||
| 125 | A 0029973752 | HOSE |
| 1200MM | ||
| 125 | A 0069976752 | SUCTION HOSE |
| 1200MM | ||
| 125 | A 0029973852 | HOSE |
| 1420MM | ||
| 125 | A 0069976652 | SUCTION HOSE |
| 1420MM | ||
| 128 | N 000000001468 | CLAMP |
| 60-80X13MM | ||
| Repalced by: N 000000003529 | ||
| 128 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 131 | N 000000003186 | CLAMP |
| 76/25MM | ||
| Repalced by: N 000000006128 | ||
| 131 | N 000000006128 | CLAMP |
| 76/25MM | ||
| 134 | N 000933006058 | SCREW |
| M6X25 | ||
| Repalced by: N 910105006008 | ||
| 134 | N 910105006008 | HEXAGON HEAD BOLT |
| M6X25 | ||
| 134 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 137 | A 0039941545 | NUT |
| M8 | ||
| 137 | A 0049941845 | SPRING-THREAD NUT |
| M8 | ||
| 140 | A 0079973190 | CABLE STRAP |
| 7,8X465MM | ||
| 143 | A 0005280001 | PROTECTIVE GRILLE |
| 146 | A 0115425017 | SENDER UNIT |
| 149 | A 6295200633 | CONSOLE |
| 100MM | ||
| 152 | N 910105005005 | HEXAGON HEAD BOLT |
| M5X35 | ||
| 152 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 155 | N 913023005002 | NUT |
| M5 | ||
| 155 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 158 | A 0029901278 | CONNECTOR |
| 167 | A 0005280009 | PLASTIC PIPE |
| 170 | A 0029976452 | HOSE |
| 173 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| 173 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 173 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 176 | A 6295200902 | RESONATOR |
| 179 | A 0029977552 | HOSE |
| 179 | A 6325280282 | HOSE |
| 182 | A 6345280139 | CONSOLE |
| Repalced by: A 6345280839 | ||
| 182 | A 6345280839 | CONSOLE |
| 185 | A 0029953201 | CLAMP |
| 156/25MM | ||
| 188 | A 0029977052 | HOSE |
| 920MM | ||
| 191 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 194 | A 6298321213 | BRACKET |
| 200 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 200 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 203 | N 910112006003 | HEXAGON NUT |
| M6 | ||
| 206 | A 0029977152 | HOSE |
| 100MM | ||
| 209 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 212 | N 910112008000 | NUT |
| M8 | ||
| 215 | N 916016028200 | CLAMP |
| 28/20MM | ||
| 218 | A 0005010053 | SPACER SLEEVE |
| 221 | A 0005280340 | BRACKET |
| 224 | A 6295500137 | RESONATOR |
| 224 | A 0005200002 | RESONATOR |
| 224 | A 0005200002 | RESONATOR |
| 225 | A 6325200502 | RESONATOR |
| 226 | A 6325281409 | CONNECTION FITTING |
| STRAIGHT | ||
| 227 | A 6325281509 | CONNECTION FITTING |
| 90 DEGREES POSITION | ||
| 228 | N 910105005010 | HEXAGON HEAD BOLT |
| M5X10MM | ||
| 229 | A 0199974948 | O-RING |
| 230 | A 0029971752 | HOSE |
| 28X265MM | ||
| 233 | N 916016012200 | CLAMP |
| 12/15MM | ||
| 236 | N 910105010010 | HEXAGON HEAD BOLT |
| M10X70 | ||
| 239 | A 6295280226 | CONNECTOR |
| 90 DEGREES | ||
| 242 | A 6295280324 | PIPE LINE |
| 245 | A 6295200122 | SCREENING PLATE |
| 248 | A 0049901071 | ELBOW FITTING |
| 251 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 254 | N 910105010006 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 257 | A 6295500254 | MOUNTING PLATE |
| 257 | A 6295500254 | MOUNTING PLATE |
| 258 | A 6325200141 | BRACKET |
| 260 | A 4571540304 | COVER |
| 263 | A 4421540104 | COVER WITH AIR INTAKE |
| AIR INTAKE | ||
| Repalced by: A 4071540165 | ||
| 263 | A 4071540165 | COVER |
| 266 | N 000934006006 | NUT |
| M6 | ||
| 266 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 266 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 269 | A 0029973152 | HOSE |
| 1485MM | ||
| 269 | A 0069977452 | SUCTION HOSE |
| 1485MM | ||
| 269 | A 0039978952 | HOSE |
| 1870MM | ||
| 269 | A 0069977252 | SUCTION HOSE |
| 1870MM | ||
| 272 | A 0029976652 | HOSE |
| 3040MM | ||
| 272 | A 0069977052 | SUCTION HOSE |
| 3040MM | ||
| 275 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 278 | N 000000003186 | CLAMP |
| 76/25MM | ||
| Repalced by: N 000000006128 | ||
| 278 | N 000000006128 | CLAMP |
| 76/25MM | ||
| 278 | N 000000003186 | CLAMP |
| 76/25MM | ||
| Repalced by: N 000000006128 | ||
| 278 | N 000000006128 | CLAMP |
| 76/25MM | ||
| 278 | N 916016015202 | CLAMP |
| 15/15MM | ||
| Repalced by: N 000000005972 | ||
| 278 | N 000000005972 | CLAMP |
| 15/15MM | ||
| 281 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 281 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 281 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 284 | N 910112008000 | NUT |
| M8 | ||
| 284 | N 910112010001 | NUT |
| M10 | ||
| 285 | A 0039941545 | NUT |
| PLUG-IN CLIP | ||
| M8 | ||
| 287 | A 0079973190 | CABLE STRAP |
| 7,8X465MM | ||
| 290 | A 6298321113 | BRACKET |
| 293 | A 0005280001 | PROTECTIVE GRILLE |
| 296 | A 6295041240 | BRACKET |
| 299 | A 0001541280 | CABLE GROMMET |
| 320 | A 0009971053 | HOSE |
| 323 | A 6295202002 | RESONATOR |
| 326 | A 0049972752 | HOSE |
| 329 | A 6295200406 | PIPE ELBOW |
| 332 | A 0249970582 | HOSE |
| 335 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 338 | A 6295281940 | BRACKET |
| 341 | A 0005280185 | RUBBER MOUNTING |
| M10X50X20 | ||
| 344 | N 913023010002 | NUT |
| M10 | ||
| 347 | A 0069901440 | WASHER |
| 32X8.5X3 | ||
| 350 | A 0029953201 | CLAMP |
| A 6325240185 | DAMPING STRIP | |
| CHARGE AIR PIPE | ||
| A 6325240285 | DAMPING STRIP | |
| INTAKE PIPE | ||
| A 0009881073 | WIRE | |
| 1 MM | ||
| 362 | A 6295281208 | AIR INTAKE PIPE |
| Repalced by: A 6295282108 | ||
| 362 | A 6295282108 | AIR INTAKE PIPE |
| 365 | A 6325280039 | CONSOLE |
| 368 | A 6295280882 | HOSE |
| 371 | N 916016028202 | CLAMP |
| 28/15MM | ||
| Repalced by: N 000000000329 | ||
| 371 | N 000000000329 | CLAMP |
| 28/15MM | ||
| Repalced by: N 000000000349 | ||
| 371 | N 000000000349 | CLAMP |
| 34/20MM | ||
| Repalced by: N 000000007539 | ||
| 371 | N 000000007539 | CLAMP |
| 34/20MM | ||
| 371 | N 916016035201 | CLAMP |
| 35/20MM | ||
| Repalced by: N 000000005975 | ||
| 371 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 374 | A 6275460743 | BRACKET |
| 377 | A 6325240028 | COVERING |
| 380 | A 0029976352 | HOSE |
| 383 | A 6295280082 | HOSE |
| 386 | N 910105008013 | HEXAGON HEAD BOLT |
| M8X12 | ||
| 389 | A 0009912740 | SPACER BUSH |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
