Transporto priemonė: S 416 HDH MODELLPFLEGE; VIN numerio dalis: 629625

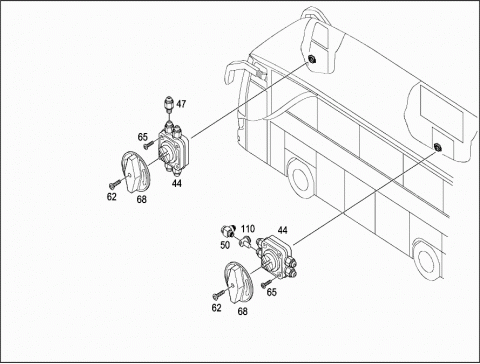

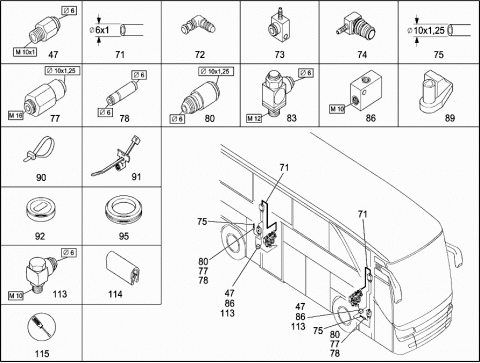

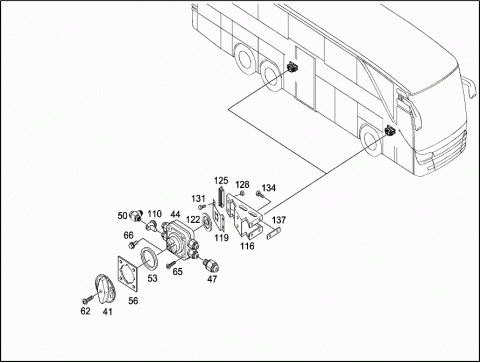

Grupė: 76 DOOR AND WINDOW ACCESSORIES - 001 DOOR CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0007605778 | VALVE |
| 005 | A 0007605778 | VALVE |
| 005 | A 0007607078 | VALVE |
| 011 | A 0007632910 | SWITCH |
| 011 | A 0007632910 | SWITCH |
| 014 | A 0007634210 | SWITCH |
| 3.5 BAR | ||
| 014 | A 0007634210 | SWITCH |
| 3.5 BAR | ||
| 014 | A 0008700481 | PRESSURE SWITCH |
| 017 | A 0007632054 | SEAL |
| 017 | A 0007632054 | SEAL |
| 020 | A 0009973771 | FITTING |
| 020 | A 0009973771 | FITTING |
| 023 | A 0009973871 | FITTING |
| 023 | A 0009973871 | FITTING |
| 026 | A 0007630864 | DAMPER |
| 026 | A 0007630864 | DAMPER |
| 029 | A 0014312331 | TEST CONNECTION |
| M16X1.5/M16X1.5 | ||
| 029 | A 0014312331 | TEST CONNECTION |
| M16X1.5/M16X1.5 | ||
| 032 | A 0049906051 | NUT |
| M16X1.5 RAUFOSS | ||
| 032 | A 0049906051 | NUT |
| M16X1.5 RAUFOSS | ||
| 035 | N 000000003337 | WASHER |
| 5 | ||
| 035 | N 000000003337 | WASHER |
| 5 | ||
| 038 | N 910105005009 | SCREW |
| M 5X55 | ||
| 038 | N 910105005009 | HEXAGON HEAD BOLT |
| M 5X55 | ||
| 041 | A 0009977077 | ROTARY KNOB |
| 041 | A 0009977077 | ROTARY KNOB |
| 044 | A 6287602157 | CONTROL COCK |
| 044 | A 6287602157 | CONTROL COCK |
| 044 | A 6287602157 | CONTROL COCK |
| 047 | A 0039905768 | FITTING |
| 047 | A 0039905768 | FITTING |
| 050 | A 0019971183 | SLEEVE |
| TO 6287602157 | ||
| 050 | A 0019971183 | SLEEVE |
| TO 6287602157 | ||
| 053 | A 0019872460 | RUBBER PAD |
| 053 | A 0019872460 | RUBBER PAD |
| 056 | A 0029872460 | RUBBER PAD |
| 062 | A 0029901020 | SCREW |
| M 5X10 | ||
| Repalced by: N 000000007000 | ||
| 062 | N 000000007000 | SCREW |
| M 5X10 | ||
| 062 | A 0029901020 | SCREW |
| M 5X10 | ||
| Repalced by: N 000000007000 | ||
| 062 | N 000000007000 | SCREW |
| M 5X10 | ||
| 062 | N 000000002208 | SCREW |
| M5X16 | ||
| 062 | N 000000003146 | SCREW |
| M5X25 | ||
| 065 | A 0019909820 | HEXAL. SOCKET CSK. BOLT |
| M 6X10 | ||
| 065 | A 0019909820 | HEXAL. SOCKET CSK. BOLT |
| M6X10 | ||
| 065 | A 0019909820 | HEXAL. SOCKET CSK. BOLT |
| M6X10 | ||
| 065 | N 000000007002 | SCREW |
| M6X12 | ||
| 065 | N 000000007002 | SCREW |
| M6X12 | ||
| 066 | N 000000001474 | HEXALOBULAR BOLT |
| M6X10 | ||
| 068 | A 0009977177 | ROTARY KNOB |
| 068 | A 0009977177 | ROTARY KNOB |
| 071 | A 0009872627 | PLASTIC PIPE |
| 6X1 | ||
| 071 | A 0009872627 | PLASTIC PIPE |
| 6X1 | ||
| 072 | A 0049977889 | ELBOW FITTING |
| 073 | A 6459901278 | CONNECTOR |
| 074 | A 0039977289 | ELBOW FITTING |
| 075 | A 0009873927 | PLASTIC PIPE |
| 10X1.25 | ||
| 075 | A 0009873927 | PLASTIC PIPE |
| 10X1.25 | ||
| 077 | A 0059974036 | VALVE |
| 077 | A 0059974036 | VALVE |
| 078 | A 0007605278 | VALVE |
| 078 | A 0007605278 | VALVE |
| 078 | A 0007605278 | VALVE |
| 080 | A 0009974475 | NOZZLE RESTRICTOR |
| 080 | A 0009974475 | NOZZLE RESTRICTOR |
| 083 | A 0039907068 | FITTING |
| 083 | A 0039907068 | FITTING |
| 086 | A 0008050078 | VALVE |
| SHUTTLE VALVE | ||
| 086 | A 0008050078 | VALVE |
| SHUTTLE VALVE | ||
| 089 | A 0109883378 | RETAINING CLIP |
| 089 | A 0109883378 | RETAINING CLIP |
| 090 | A 0029972490 | CABLE TIE |
| 090 | A 0029972490 | CABLE TIE |
| 090 | A 0029972390 | CABLE TIE |
| 090 | A 0019978390 | CABLE TIE |
| 091 | A 2105461943 | BRACKET |
| 092 | A 0009876441 | GROMMET |
| 092 | A 0009876441 | GROMMET |
| 092 | A 0009876441 | GROMMET |
| 095 | A 0099978581 | GROMMET |
| 095 | A 0099978581 | GROMMET |
| 110 | A 0049904271 | ELBOW FITTING |
| 110 | A 0049904271 | ELBOW FITTING |
| 113 | A 0039906768 | FITTING |
| 113 | A 0039906768 | FITTING |
| 114 | A 0008210088 | EDGE GUARD SECTION |
| 115 | A 0055840238 | ADHESIVE LABEL |
| 116 | A 6297500414 | BRACKET |
| Repalced by: A 6327630414 | ||
| 116 | A 6327630414 | BRACKET |
| 116 | A 6297500414 | BRACKET |
| 116 | A 6297500514 | BRACKET |
| 116 | A 6327630414 | BRACKET |
| 119 | A 6297660219 | PLATE |
| 119 | A 6297660219 | PLATE |
| 122 | A 6297570098 | SEAL |
| Repalced by: A 6327570078 | ||
| 122 | A 6327570078 | SEAL |
| 122 | A 6297570098 | SEAL |
| Repalced by: A 6327570078 | ||
| 122 | A 6327570078 | SEAL |
| 125 | A 0039971686 | PLUG |
| 125 | A 0039971686 | PLUG |
| 128 | N 913023006001 | NUT |
| M 6 | ||
| 128 | N 913023006001 | NUT |
| M 6 | ||
| 128 | N 913023006002 | NUT |
| M6 | ||
| 131 | N 914146006102 | SCREW |
| M 6X16 | ||
| 131 | N 914146006102 | SCREW |
| M6X16 | ||
| 134 | N 910143006000 | SCREW |
| M 6X12 | ||
| 134 | N 910143006000 | SCREW |
| M 6X12 | ||
| 134 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 137 | A 6297540097 | PAD |
| 137 | A 6297540097 | PAD |
