Transporto priemonė: S 416 HDH MODELLPFLEGE; VIN numerio dalis: 629625

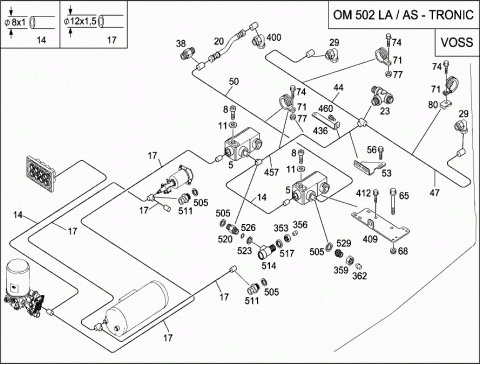

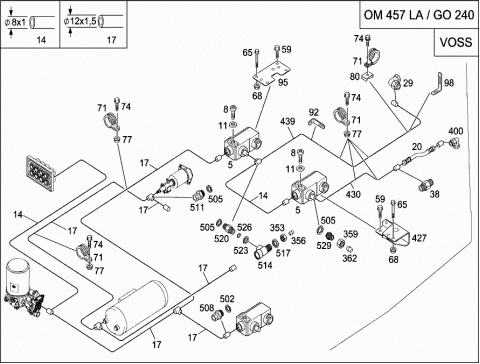

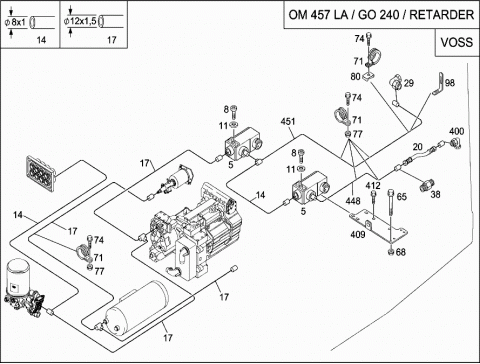

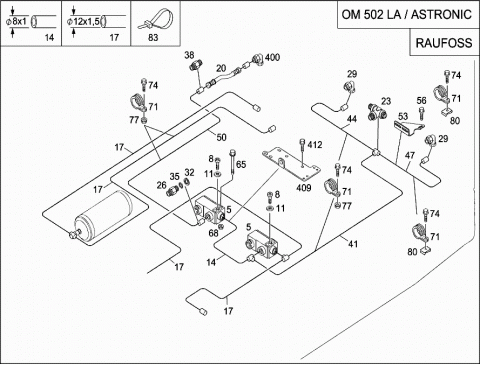

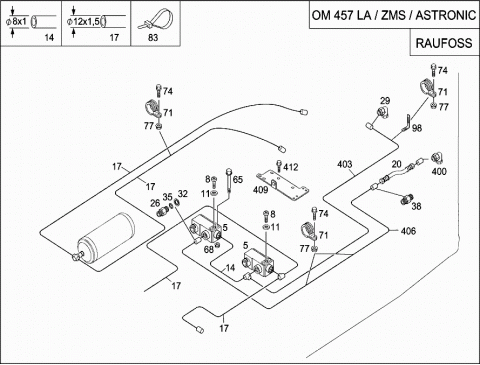

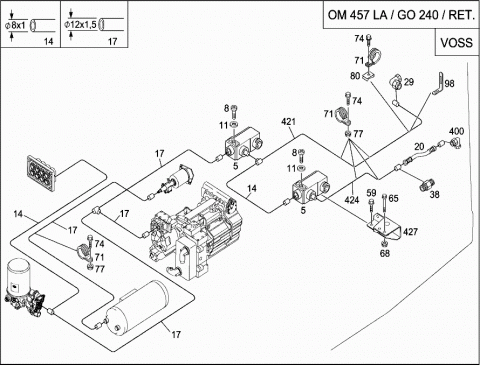

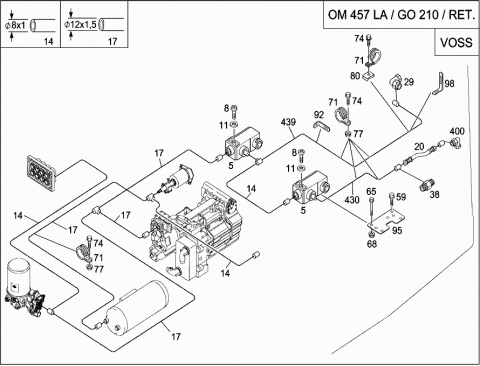

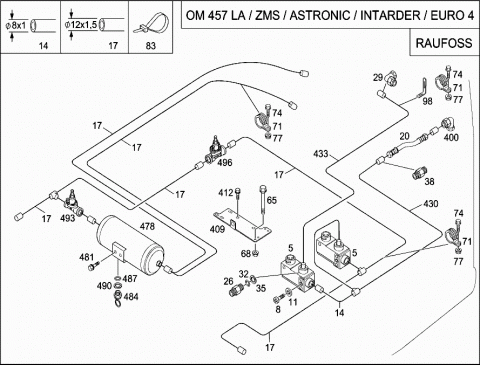

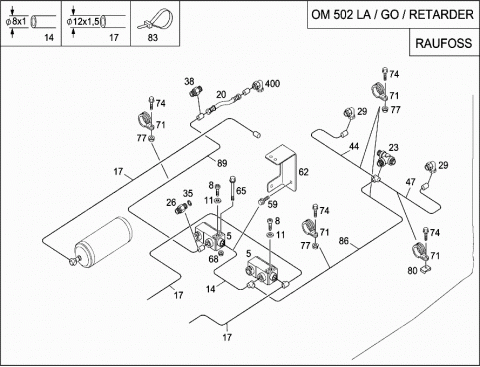

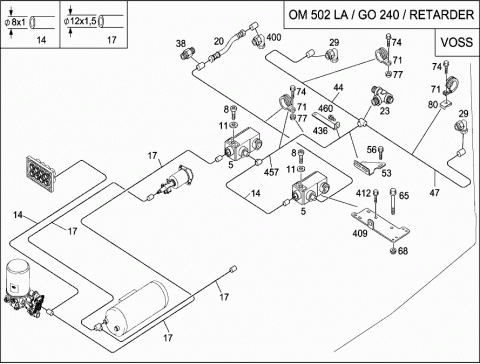

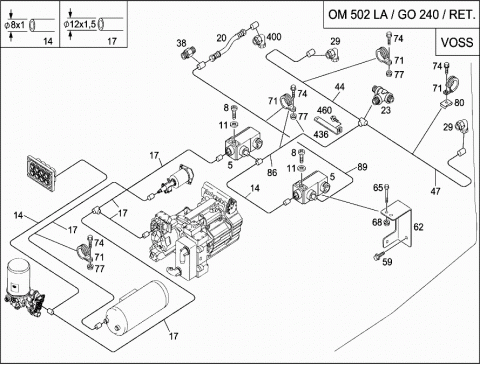

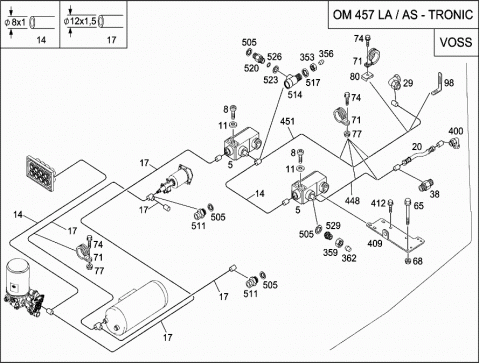

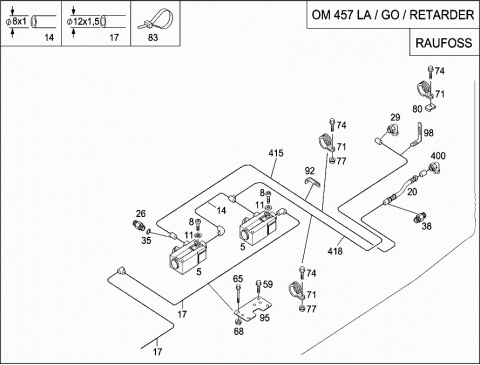

Grupė: 43 EXHAUST BRAKE - 060 ENGINE SHUT-OFF AND EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0009820217 | SOLENOID VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| Repalced by: A 0009975112 | ||
| 005 | A 0009975112 | 3-2-WAY PNEUMATIC VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| 005 | A 0009820217 | SOLENOID VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| Repalced by: A 0009975112 | ||
| 005 | A 0009975112 | 3-2-WAY PNEUMATIC VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| 005 | A 0009820217 | SOLENOID VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| 008 | A 0039908812 | SCREW |
| AT SOLENOID VALVE | ||
| M6X12 TX30 | ||
| 008 | A 0039908812 | SCREW |
| AT SOLENOID VALVE | ||
| M6X12 TX30 | ||
| Repalced by: N 000000001145 | ||
| 008 | N 000000001145 | HEXALOBULAR BOLT |
| AT SOLENOID VALVE | ||
| M6X12 TX30 | ||
| 008 | A 0039908812 | SCREW |
| AT SOLENOID VALVE | ||
| M6X12 TX30 | ||
| 011 | N 007603006106 | SEALING RING |
| AT SOLENOID VALVE | ||
| 6X10 | ||
| 011 | N 007603006106 | SEALING RING |
| AT SOLENOID VALVE | ||
| 6X10 | ||
| 011 | N 007603006106 | SEALING RING |
| AT SOLENOID VALVE | ||
| 6X10 | ||
| 014 | A 0009872727 | PLASTIC PIPE |
| 8X1 | ||
| 014 | A 0009872727 | PLASTIC PIPE |
| 8X1 | ||
| 014 | A 0009872727 | PLASTIC PIPE |
| 8X1 | ||
| 017 | A 0009872827 | PLASTIC PIPE |
| 12X1.5 | ||
| 017 | A 0009872827 | PLASTIC PIPE |
| 12X1.5 | ||
| 017 | A 0009872827 | PLASTIC PIPE |
| 12X1.5 | ||
| 020 | A 0029976952 | HOSE |
| DELIVERY LINE TO POWER CYLINDER | ||
| 020 | A 0029976952 | HOSE |
| DELIVERY LINE TO POWER CYLINDER | ||
| 020 | A 0029976952 | HOSE |
| DELIVERY LINE TO POWER CYLINDER | ||
| 023 | N 003908010002 | T-FITTING |
| Repalced by: N 000000006205 | ||
| 023 | N 000000006205 | FITTING |
| 026 | A 0039908768 | FITTING |
| M12X1.5/M14X1.5 | ||
| 026 | A 0039908768 | FITTING |
| M12X1.5/M14X1.5 | ||
| 029 | A 0039908771 | ELBOW FITTING |
| M16X1.5/M14X1.5 | ||
| 029 | A 0039908771 | ELBOW FITTING |
| M16X1.5/M14X1.5 | ||
| 029 | A 0039908771 | ELBOW FITTING |
| M16X1.5/M14X1.5 | ||
| 032 | A 0009940103 | THRUST RING |
| 18X12.1X2.6 | ||
| 032 | A 0009940103 | THRUST RING |
| 18X12.1X2.6 | ||
| 035 | A 0129971345 | SEAL RING |
| 10X2.2 | ||
| 035 | A 0129971345 | SEAL RING |
| 10X2.2 | ||
| 035 | A 0059974340 | SEAL RING |
| 038 | A 0009971070 | REDUCTION FITTING |
| M12X1.5/M14X1.5 | ||
| 038 | A 0009971070 | REDUCTION FITTING |
| M12X1.5/M14X1.5 | ||
| 038 | A 0029975672 | FITTING |
| M14X1.5/M12X1.5 | ||
| 041 | A 6324303465 | LINE |
| 10MM | ||
| 044 | A 6324300265 | LINE |
| 10MM | ||
| 047 | A 6324300365 | LINE |
| 10MM | ||
| 050 | A 6324303565 | LINE |
| 8X1 | ||
| 053 | A 6324310140 | BRACKET |
| 056 | N 910105008041 | HEXAGON HEAD BOLT |
| BRACKET TO ENGINE | ||
| M8X16 | ||
| Repalced by: N 910143008000 | ||
| 056 | N 910143008000 | HEXALOBULAR BOLT |
| M8X16 | ||
| 059 | N 910105008013 | HEXAGON HEAD BOLT |
| M8X12 | ||
| Repalced by: N 910143008020 | ||
| 059 | N 910143008020 | HEXALOBULAR BOLT |
| M8X12 | ||
| 059 | N 910105008013 | HEXAGON HEAD BOLT |
| M8X12 | ||
| Repalced by: N 910143008020 | ||
| 059 | N 910143008020 | HEXALOBULAR BOLT |
| M8X12 | ||
| 062 | A 6324340340 | BRACKET |
| 065 | N 910105008049 | HEXAGON HEAD BOLT |
| SOLENOID VALVE TO BRACKET | ||
| M8X100 | ||
| Repalced by: N 910143008012 | ||
| 065 | N 910105008023 | HEXAGON HEAD BOLT |
| SOLENOID VALVE TO BRACKET | ||
| CM8X100 | ||
| 065 | N 910105008049 | HEXAGON HEAD BOLT |
| SOLENOID VALVE TO BRACKET | ||
| M8X100 | ||
| Repalced by: N 910143008012 | ||
| 065 | N 910105008023 | HEXAGON HEAD BOLT |
| SOLENOID VALVE TO BRACKET | ||
| CM8X100 | ||
| 065 | N 910105008049 | HEXAGON HEAD BOLT |
| SOLENOID VALVE TO BRACKET | ||
| M8X100 | ||
| Repalced by: N 910143008012 | ||
| 065 | N 910105008023 | HEXAGON HEAD BOLT |
| SOLENOID VALVE TO BRACKET | ||
| CM8X100 | ||
| 068 | N 913023008002 | NUT |
| SOLENOID VALVE TO BRACKET | ||
| M8 | ||
| 068 | N 913023008002 | NUT |
| SOLENOID VALVE TO BRACKET | ||
| M8 | ||
| 068 | N 913023008002 | NUT |
| SOLENOID VALVE TO BRACKET | ||
| M8 | ||
| 071 | N 000000000321 | CLAMP |
| LINE MOUNTING | ||
| RSGU 12/15 | ||
| Repalced by: N 000000007512 | ||
| 071 | N 000000007512 | CLAMP |
| LINE MOUNTING | ||
| RSGU 12/15 | ||
| 071 | N 000000000321 | CLAMP |
| LINE MOUNTING | ||
| RSGU 12/15 | ||
| 071 | N 000000000320 | CLAMP |
| LINE MOUNTING | ||
| RSGU 10/15 | ||
| Repalced by: N 000000007511 | ||
| 071 | N 000000007511 | CLAMP |
| LINE MOUNTING | ||
| RSGU 10/15 | ||
| 071 | N 000000000320 | CLAMP |
| LINE MOUNTING | ||
| RSGU 10/15 | ||
| Repalced by: N 000000007511 | ||
| 071 | N 000000007511 | CLAMP |
| LINE MOUNTING | ||
| RSGU 10/15 | ||
| 071 | N 000000000320 | CLAMP |
| LINE MOUNTING | ||
| RSGU 10/15 | ||
| Repalced by: N 000000007511 | ||
| 071 | N 000000007511 | CLAMP |
| LINE MOUNTING | ||
| RSGU 10/15 | ||
| 071 | N 000000000319 | CLAMP |
| LINE MOUNTING | ||
| RSGU 8/15 | ||
| Repalced by: N 000000007510 | ||
| 071 | N 000000007510 | CLAMP |
| LINE MOUNTING | ||
| RSGU 8/15 | ||
| 071 | N 000000000319 | CLAMP |
| LINE MOUNTING | ||
| RSGU 8/15 | ||
| Repalced by: N 000000007510 | ||
| 071 | N 000000007510 | CLAMP |
| LINE MOUNTING | ||
| RSGU 8/15 | ||
| 071 | N 000000000319 | CLAMP |
| LINE MOUNTING | ||
| RSGU 8/15 | ||
| Repalced by: N 000000007510 | ||
| 071 | N 000000007510 | CLAMP |
| LINE MOUNTING | ||
| RSGU 8/15 | ||
| 071 | N 000000003085 | CLAMP |
| LINE MOUNTING | ||
| RSGU 6/15 | ||
| Repalced by: N 000000007509 | ||
| 071 | N 000000007509 | CLAMP |
| LINE MOUNTING | ||
| RSGU 6/15 | ||
| 074 | N 910105006006 | HEXAGON HEAD BOLT |
| LINE MOUNTING | ||
| M6X20 | ||
| Repalced by: N 000000003765 | ||
| 074 | N 000000003765 | HEXALOBULAR BOLT |
| LINE MOUNTING | ||
| M6X20 | ||
| 074 | N 910105006006 | HEXAGON HEAD BOLT |
| LINE MOUNTING | ||
| M6X20 | ||
| Repalced by: N 000000003765 | ||
| 074 | N 000000003765 | HEXALOBULAR BOLT |
| LINE MOUNTING | ||
| M6X20 | ||
| 074 | N 910105006006 | HEXAGON HEAD BOLT |
| LINE MOUNTING | ||
| M6X20 | ||
| Repalced by: N 000000003765 | ||
| 074 | N 000000003765 | HEXALOBULAR BOLT |
| LINE MOUNTING | ||
| M6X20 | ||
| 077 | N 913023006002 | NUT |
| LINE MOUNTING | ||
| M6 | ||
| Repalced by: N 913023006001 | ||
| 077 | N 913023006001 | NUT |
| LINE MOUNTING | ||
| 077 | N 913023006002 | NUT |
| LINE MOUNTING | ||
| M6 | ||
| Repalced by: N 913023006001 | ||
| 077 | N 913023006001 | NUT |
| LINE MOUNTING | ||
| 077 | N 913023006002 | NUT |
| LINE MOUNTING | ||
| M6 | ||
| Repalced by: N 913023006001 | ||
| 077 | N 913023006001 | NUT |
| LINE MOUNTING | ||
| 080 | A 0049941745 | SPRING NUT |
| LINE MOUNTING | ||
| M6 | ||
| 080 | A 0049941745 | SPRING NUT |
| LINE MOUNTING | ||
| M6 | ||
| 083 | A 0029972490 | CABLE TIE |
| LINE MOUNTING | ||
| 310X5 | ||
| 083 | A 0079973190 | CABLE STRAP |
| LINE MOUNTING | ||
| 7.8X465 | ||
| 086 | A 6324304265 | LINE |
| 1060 LG. | ||
| 089 | A 6324304165 | LINE |
| 830LG. | ||
| 092 | A 6294310940 | BRACKET |
| 095 | A 0004340240 | BRACKET |
| 098 | A 6295041240 | BRACKET |
| 098 | A 6295041240 | BRACKET |

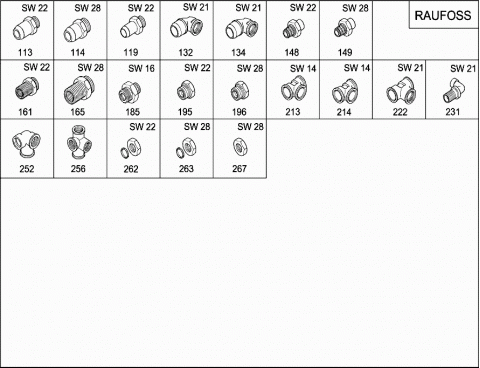

| 113 | A 0039903768 | FITTING |
| 12X1.5/M16X1.5 | ||
| 113 | A 0039903768 | FITTING |
| 12X1.5/M16X1.5 | ||
| 114 | A 0039903868 | FITTING |
| 12X1.5/M22X1.5 | ||
| 119 | A 0039904268 | FITTING |
| 8X1/M16X1.5 | ||
| 119 | A 0039904268 | FITTING |
| 8X1/M16X1.5 | ||
| 132 | A 0039906871 | ELBOW FITTING |
| P5/12X1.5/90GR | ||
| 132 | A 0039906871 | ELBOW FITTING |
| P5/12X1.5/90GR | ||
| 134 | A 0039907071 | ELBOW FITTING |
| P5/8X1MM/90GR | ||
| 134 | A 0039907071 | ELBOW FITTING |
| P5/8X1MM/90GR | ||
| 148 | A 0079976872 | FITTING |
| P5/M16X1.5 | ||
| 148 | A 0079976872 | FITTING |
| P5/M16X1.5 | ||
| 149 | A 0079976972 | FITTING |
| P5/M22X1.5 | ||
| 161 | A 0079977372 | FITTING |
| WITH O-RING | ||
| M16X1.5/M16X1.5 | ||
| 165 | A 0079977672 | FITTING |
| WITH O-RING | ||
| M22X1.5/M16X1.5/M22X1.5 | ||
| 185 | A 0039904968 | FITTING |
| M16X1.5/M16X1.5 | ||
| 185 | A 0039904968 | FITTING |
| M16X1.5/M16X1.5 | ||
| 195 | A 0009901682 | REDUCER |
| WITH O-RING | ||
| M16X1.5/M12X1.5 | ||
| 195 | A 0009901682 | REDUCER |
| WITH O-RING | ||
| M16X1.5/M12X1.5 | ||
| 196 | A 0009901782 | REDUCTION FITTING |
| WITH O-RING | ||
| M22X1.5/M16X1.5 | ||
| 196 | A 0009901782 | REDUCTION FITTING |
| WITH O-RING | ||
| M22X1.5/M16X1.5 | ||
| 213 | A 0009976974 | T-FITTING |
| M16X1.5/M16X1.5/P5 | ||
| 214 | A 0009977074 | T-FITTING |
| M16X1.5/P5/M16X1.5 | ||
| 214 | A 0009977074 | T-FITTING |
| M16X1.5/P5/M16X1.5 | ||
| 222 | A 0009977274 | T-FITTING |
| M16X1.5/M16X1.5/M16X1.5 | ||
| 222 | A 0009977274 | T-FITTING |
| M16X1.5/M16X1.5/M16X1.5 | ||
| 231 | A 0039907671 | PIPE BEND |
| M16X1.5/M16X1.5 | ||
| 231 | A 0039907671 | PIPE BEND |
| M16X1.5/M16X1.5 | ||
| 252 | A 0029900378 | CORNER BLOCK |
| M16X1.5/P5/M16X1.5 | ||
| 256 | A 0029900578 | CORNER BLOCK |
| M16X1.5/M16X1.5/M16X1.5/P5 | ||
| 256 | A 0029900578 | CORNER BLOCK |
| M16X1.5/M16X1.5/M16X1.5/P5 | ||
| 262 | A 0049905851 | NUT |
| WITH O-RING | ||
| M16X1.5 | ||
| 262 | A 0049905851 | NUT |
| WITH O-RING | ||
| M16X1.5 | ||
| 263 | A 0049905951 | NUT |
| WITH O-RING | ||
| M22X1.5 | ||
| 267 | A 0049906151 | NUT |
| M22X1.5 | ||
| 353 | A 0019906154 | UNION NUT |
| AL10/M16X1.5 | ||
| 356 | A 0019970217 | GLAND |
| BL10 | ||
| 359 | A 0019906154 | UNION NUT |
| AL8/M14X1.5 | ||
| 362 | A 0019908867 | CUTTING RING |
| BS8 | ||
| 400 | A 0049902171 | ELBOW FITTING |
| 400 | A 0049902171 | ELBOW FITTING |
| 400 | N 000000006197 | FITTING |
| L 6-ST | ||
| 403 | A 6324303265 | LINE |
| 10MM | ||
| 406 | A 6324303365 | LINE |
| 8MM | ||
| 409 | A 6324340039 | SUPPORT |
| 409 | A 6324340039 | SUPPORT |
| 412 | N 000000005543 | HEXAGON HEAD BOLT |
| SUPPORT TO TRANSMISSION | ||
| M16X1.5X30 | ||
| 412 | N 000000005543 | HEXAGON HEAD BOLT |
| SUPPORT TO TRANSMISSION | ||
| M16X1.5X30 | ||
| 415 | A 6324300365 | LINE |
| 10MM | ||
| 418 | A 6324301765 | COMPRESSED AIR LINE |
| 8MM | ||
| 421 | A 6324301365 | LINE |
| 10MM | ||
| 424 | A 6294301465 | LINE |
| 8MM | ||
| 427 | A 6294340940 | BRACKET |
| Repalced by: A 6294341040 | ||
| 427 | A 6294341040 | BRACKET |
| 430 | A 6324304865 | LINE |
| 790 LG. | ||
| 430 | A 6324304865 | LINE |
| 790 LG. | ||
| 433 | A 6324303265 | LINE |
| 10MM | ||
| 436 | A 6324760336 | BRACKET |
| Repalced by: A 4104330040 | ||
| 436 | A 4104330040 | BRACKET |
| 439 | A 6324304765 | LINE |
| 1280 LG. | ||
| 448 | A 6324304665 | COMPRESSED AIR LINE |
| 8MM | ||
| 451 | A 6324304565 | COMPRESSED AIR LINE |
| 10MM | ||
| 457 | A 6324304065 | COMPRESSED AIR LINE |
| 10MM | ||
| 460 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 478 | A 0004300503 | RESERVOIR |
| (AIR RESERVOIR),ALUMINUM VERSION | ||
| 7L | ||
| 481 | N 910105012013 | HEXAGON HEAD BOLT |
| AIR RESERVOIR | ||
| M12X1.5X25 | ||
| 484 | A 0004323007 | VALVE |
| (DRAIN VALVE) | ||
| 487 | A 0009940203 | THRUST RING |
| 29X22.1X2.6 | ||
| 490 | A 0129971445 | SEAL RING |
| 20.3X2.4 | ||
| 493 | A 0014296544 | OVERFLOW VALVE |
| 6.5BAR | ||
| 496 | A 0034290644 | OVERFLOW VALVE |
| 7.3BAR | ||
| 502 | A 0059974440 | SEAL RING |
| OL-M22 | ||
| 505 | A 0059974340 | SEAL RING |
| OL-M16 | ||
| 508 | A 0019973171 | FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/M22X1.5 | ||
| 511 | A 0019972871 | FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/M16X1.5 | ||
| 514 | A 0059978572 | FITTING |
| M16X1.5/M16X1.5/M16X1.5 | ||
| 517 | N 080705016003 | NUT |
| M16X1.5 | ||
| Repalced by: N 000000006642 | ||
| 517 | N 000000006642 | NUT |
| M16X1.5 | ||
| 520 | N 000000006352 | FITTING |
| AT T-FITTING | ||
| M16X1.5 | ||
| 523 | A 0004290927 | THRUST RING |
| 22X16X2.6 | ||
| 526 | A 0009971548 | O-RING |
| 15X2.05 | ||
| 529 | A 0029979572 | FITTING |
| PRESSURE LINE TO SOLENOID VALVE | ||
| M16X1.5 | ||
| 532 | A 0039979689 | COUPLER PLUG |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| Repalced by: A 0039976889 | ||
| 532 | A 0039976889 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| 535 | A 0039978189 | CONNECTION PIECE |
| NG12/12X1.5/8X1 | ||
| 538 | A 0029909070 | T-FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 12X1.5/12X1.5/12X1.5 | ||
| 541 | A 0049974689 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/12X1.5 | ||
| 541 | A 0039976689 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1.5 | ||
| Repalced by: A 0059972689 | ||
| 541 | A 0059972689 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1.5 | ||
| 544 | A 0039975189 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/8X1 | ||
| 544 | A 0039975089 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1 | ||
| Repalced by: A 0049976989 | ||
| 544 | A 0049976989 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1 | ||
| 544 | A 0059976589 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| Repalced by: A 0039975289 | ||
| 544 | A 0039975289 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| 547 | A 0009974734 | UNION SCREW |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/M16X1.5 | ||
| 550 | A 0039979589 | CONNECTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5/12X1.5 | ||
| 553 | A 0039978289 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5/12X1.5 | ||
| 562 | A 0149973545 | REPAIR KIT O-RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8 | ||
| 562 | A 0229978145 | RS O-RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
