Transporto priemonė: S 416 HDH MODELLPFLEGE; VIN numerio dalis: 629625

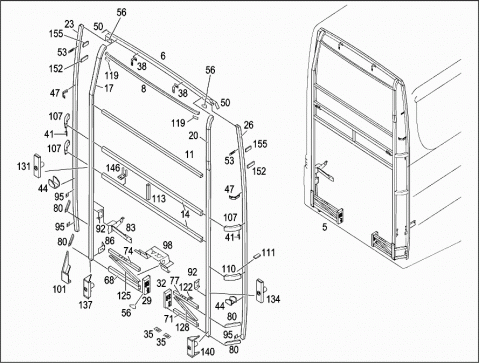

Grupė: 64 REAR PANEL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6296401101 | REAR PANEL |
| COMPLETE | ||
| 006 | A 6296420506 | FRAME PART |
| 008 | A 6296420246 | SUPPORT |
| REAR WINDOW PANE | ||
| 011 | A 6296420106 | FRAME PART |
| REAR WINDOW PANE | ||
| 014 | A 6296400228 | SUPPORT |
| CENTRE | ||
| 017 | A 6296402610 | PILLAR |
| LEFT | ||
| 020 | A 6296402710 | PILLAR |
| RIGHT | ||
| 023 | A 6296403110 | PILLAR |
| LEFT | ||
| 026 | A 6296403210 | PILLAR |
| RIGHT | ||
| 029 | A 6296400033 | STAY |
| LEFT | ||
| 032 | A 6276400333 | STAY |
| RIGHT | ||
| 035 | A 6276160808 | PERFORATED PLATE |
| 038 | A 6296422309 | BRACKET |
| DACHHOLM | ||
| 041 | A 6296420065 | WELDING PIECE |
| 044 | A 6296412514 | BRACKET |
| 047 | A 6296411414 | BRACKET |
| 050 | A 6296423111 | PLATE |
| 053 | A 6296411514 | BRACKET |
| 056 | A 6326410016 | REINFORCEMENT |
| HECKBLENDE | ||
| 068 | A 6296400287 | PIPE |
| LEFT | ||
| 071 | A 6296400387 | PIPE |
| RIGHT | ||
| 074 | A 6296400014 | CROSS MEMBER |
| LEFT | ||
| 077 | A 6296400114 | CROSS MEMBER |
| RIGHT | ||
| 080 | A 6296430320 | STRUT |
| OUTSIDE | ||
| 083 | A 6296400651 | BRACKET |
| COOLING WATER EXPANSION | ||
| 086 | A 6296400951 | BRACKET |
| COOLING WATER EXPANSION | ||
| 092 | A 6296400451 | BRACKET |
| HECKLEUCHTE | ||
| 095 | A 6296410713 | PLATE |
| 098 | A 6296460231 | CONSOLE |
| PLUG SOCKET | ||
| 101 | A 6296420032 | ANGLE |
| 107 | A 6296430220 | STRUT |
| CENTRE | ||
| 110 | A 6296430920 | STRUT |
| RIGHT | ||
| 111 | A 6296410119 | PLATE |
| 113 | A 6296412310 | PILLAR |
| CENTRE | ||
| 119 | A 6296412813 | PLATE |
| 122 | A 6296120324 | BRACKET |
| 125 | A 6296430020 | STRUT |
| LEFT | ||
| 128 | A 6296430120 | STRUT |
| RIGHT | ||
| 131 | A 6296400283 | MOUNTING |
| SKI FIXTURE | ||
| 134 | A 6296400383 | MOUNTING |
| SKI FIXTURE | ||
| 137 | A 6296400083 | MOUNTING |
| 140 | A 6296400183 | MOUNTING |
| SKI FIXTURE | ||
| 146 | A 6296460014 | BRACKET |
| ENGINE COMPARTMENT FLAP | ||
| 152 | A 6296120969 | GUSSET PLATE |
| 155 | A 6296423511 | PLATE |

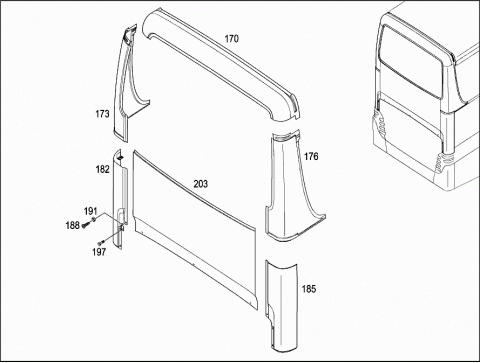

| 170 | A 6296470984 | PANELING |
| 173 | A 6296473384 | SIDE PART |
| LEFT | ||
| 176 | A 6296473484 | SIDE PART |
| RIGHT | ||
| 182 | A 6296473084 | SIDE PART |
| LEFT | ||
| 185 | A 6296473184 | SIDE PART |
| RIGHT | ||
| 188 | A 0009902029 | SCREW |
| M 6X25 | ||
| 191 | A 0069901040 | WASHER |
| 197 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16MM | ||
| 203 | A 6296473284 | REAR STYLING CONV. KIT |
| CENTRAL PART | ||
| 230 | A 6296471612 | ANGLE |
| LEFT | ||
| 230 | A 6296471712 | ANGLE |
| RIGHT | ||
| 233 | A 6296020512 | ANGLE |
| 236 | A 6296471674 | PARTITION PANEL |
| 239 | A 6296471412 | ANGLE |
| TOP | ||
| 242 | A 6296471512 | ANGLE |
| BOTTOM | ||
| Repalced by: A 6296471912 | ||
| 242 | A 6296471912 | ATTACHMENT ANGLE BRACKET |
| BOTTOM | ||
| 251 | A 6296470078 | RAIL |
| BOTTOM | ||
| 254 | N 000000003260 | WASHER |
| 257 | N 000912006040 | SCREW |
| M6X20MM | ||
| 260 | A 0006470098 | SEAL |
