Transporto priemonė: S 417 HDH; VIN numerio dalis: 629422
Grupė: 92 SEATS - 040 REAR SEAT
| # | Kodas | Pavadinimas |
|---|---|---|

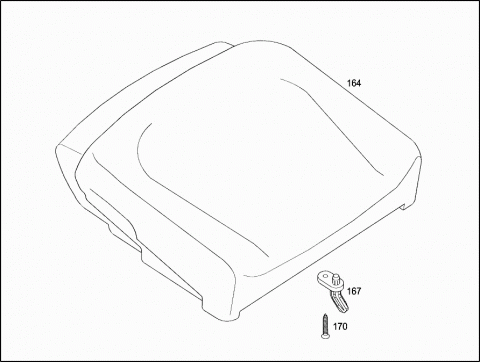

| 164 | A 6329500261 | CUSHION |
| SEAT CUSHION(INTEGRATED LEG PADDING),REAR,RIGHT WALL-SIDE,SPACE FOR HANDICAPPED PERSON | ||
| 167 | A 6299590214 | BRACKET |
| 170 | N 000000006408 | SCREW |
| 4,2X16MM | ||

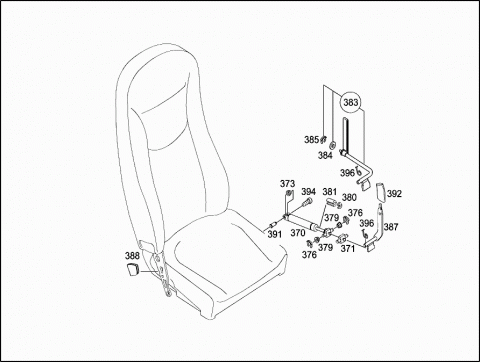

| 370 | A 6329700064 | STAY |
| DIA., | ||
| 21MM | ||
| 371 | A 0009590120 | SUPPORT |
| BEARING BRACKET | ||
| M 8X1 | ||
| 373 | A 6299590117 | BUSHING |
| REAR | ||
| 376 | A 0009911725 | WASHER |
| 379 | A 6299590017 | BUSHING |
| FRONT | ||
| 380 | A 3029590117 | WASHER |
| 10,2X22X5MM | ||
| 381 | A 0009590221 | STOP |
| 5MM | ||
| 381 | A 0009590321 | STOP |
| 13,6MM | ||
| 381 | A 0009590421 | STOP |
| 22,5MM | ||
| 381 | A 0009590521 | STOP |
| 32,5MM | ||
| 383 | A 6299504754 | LEVER |
| REAR,SPACE FOR HANDICAPPED PERSON,LEFT | ||
| 383 | A 6299504854 | LEVER |
| REAR,SPACE FOR HANDICAPPED PERSON,RIGHT | ||
| 384 | N 000125008443 | WASHER |
| 8,4MM | ||
| 385 | A 0009911725 | WASHER |
| 387 | A 6299501154 | LEVER |
| LEFT,IN THE REAR | ||
| 387 | A 6299501254 | LEVER |
| RIGHT,IN THE REAR | ||
| 388 | A 0009985540 | STOP BUFFER |
| BACKREST | ||
| 391 | A 6299730320 | SUPPORT |
| AT REAR ON GAS-OPERATED SPRING | ||
| 392 | A 6299590028 | CAP |
| 394 | A 0029906522 | SCREW |
| 396 | A 6299590264 | SPRING |
| LEFT | ||
| 396 | A 6299590364 | SPRING |
| RIGHT |
