Transporto priemonė: S 431 DT; VIN numerio dalis: 410001

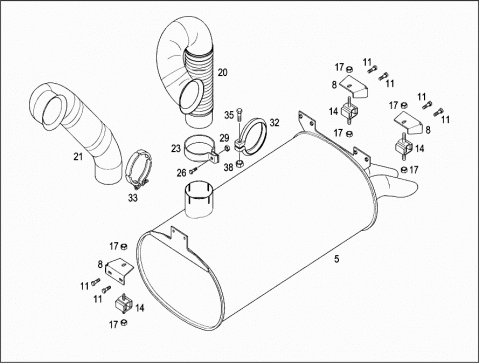

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6294910300 | EXHAUST MUFFLER |
| 008 | A 6294910041 | BRACKET |
| 011 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 014 | A 0004910285 | RUBBER MOUNTING |
| 017 | N 913023010002 | NUT |
| M10 | ||
| 020 | A 4104900110 | EXHAUST PIPE |
| 021 | A 6294901910 | EXHAUST PIPE |
| Repalced by: A 6294902310 | ||
| 021 | A 6294902310 | EXHAUST PIPE |
| 022 | A 6294902310 | EXHAUST PIPE |
| 023 | A 6294910040 | CLAMP |
| 023 | A 0004921240 | CLAMP |
| EXHAUST SYSTEM | ||
| D=124,5MM | ||
| 023 | A 0004921240 | CLAMP |
| EXHAUST SYSTEM | ||
| D=124,5MM | ||
| Repalced by: A 6554920140 | ||
| 023 | A 6554920140 | CLAMP |
| EXHAUST SYSTEM | ||
| D=124,5MM | ||
| 026 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| 026 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| Repalced by: N 910105010007 | ||
| 026 | N 910105010007 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| 029 | N 910113012002 | HEXAGON NUT |
| M12X1,5 | ||
| 029 | N 910113012002 | HEXAGON NUT |
| M12X1,5 | ||
| Repalced by: N 910112010001 | ||
| 029 | N 910112010001 | NUT |
| M10 | ||
| 032 | A 9429970090 | CLAMP |
| D=165 | ||
| Repalced by: A 0009956302 | ||
| 032 | A 0009956302 | CLAMP |
| D=165 | ||
| 033 | A 0009959702 | CLAMP |
| D=162 | ||
| 035 | N 910105008060 | HEXAGON HEAD BOLT |
| M8X35MM | ||
| 038 | N 913023008003 | NUT |
| M8 | ||
| 093 | A 0014903014 | CATALYST |
| 093 | A 0024904814 | CATALYST |
| 095 | A 0061530428 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 098 | A 0005460522 | CLAMPING RING |
| 105 | A 6324900010 | EXHAUST PIPE |
| Repalced by: A 6324900910 | ||
| 105 | A 6324900910 | EXHAUST PIPE |
| 108 | A 6324900310 | EXHAUST PIPE |
| 110 | A 6324900017 | ANGLE |
| 110 | A 6324900017 | ANGLE |
| Repalced by: A 6324900417 | ||
| 110 | A 6324900417 | ANGLE |
| 113 | A 6324900117 | ANGLE |
| 113 | A 6324900117 | ANGLE |
| Repalced by: A 6324900517 | ||
| 113 | A 6324900517 | ANGLE |
| 128 | A 9429970290 | CLAMP |
| Repalced by: A 0009958602 | ||
| 128 | A 0009958602 | CLAMP |
| D=148 | ||
| 128 | A 0009958602 | CLAMP |
| D=148 | ||
| 131 | A 6344920740 | CLAMP |
| EXHAUST SYSTEM | ||
| D=143,5MM | ||
| 134 | A 0009980246 | INSULATION |
| 134 | A 0009980246 | INSULATION |
| Repalced by: A 0009980846 | ||
| 134 | A 0009980846 | DASHPOT |
| 137 | A 0005040153 | SPACER SLEEVE |
| 140 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16MM | ||
| 149 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80MM | ||
| 151 | N 913023010002 | NUT |
| M10 | ||
| 155 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40MM | ||
| 161 | N 910112010001 | NUT |
| M10 | ||
| 167 | A 0004920780 | FLANGE GASKET |
| D=129MM | ||
| 170 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 170 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| Repalced by: A 0189901101 | ||
| 170 | A 0189901101 | SCREW |
| M10X35MM | ||
| 173 | N 913023010002 | NUT |
| M10 | ||
| 173 | N 913023010002 | NUT |
| M10 | ||
| Repalced by: A 0009902852 | ||
| 173 | A 0009902852 | NUT FOR TAPPING SCREW |
| M10 | ||
| 176 | A 6294910030 | PROTECTIVE PLATE |
| FOR NOX SENSOR | ||
| 179 | A 6299910040 | SPACER SLEEVE |
| 182 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 185 | N 910112006001 | HEXAGON NUT |
| M6 | ||
