Transporto priemonė: S 431 DT; VIN numerio dalis: 410001
Grupė: 62 FRONT PANEL - 030 COWL

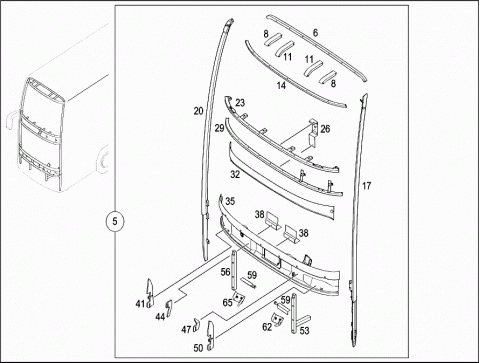

86920

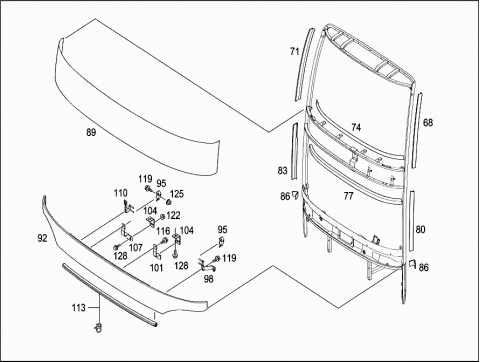

86921
# Kodas Pavadinimas
005 A 4106200002 FRONT PANEL
006 A 4106220020 BOW
008 A 4106220038 INTERMEDIATE PIECE
011 A 4106220138 INTERMEDIATE PIECE
014 A 4106200330 SUPPORT
017 A 4106200313 PILLAR
LEFT
020 A 4106200413 PILLAR
RIGHT
023 A 4106200030 SUPPORT
026 A 4106200015 CONSOLE
Repalced by: A 4106220031
026 A 4106220031 CONSOLE
029 A 4106200430 SUPPORT
032 A 4106200040 PARTITION PANEL
035 A 4106200008 FRONT PANEL
038 A 6296221714 BRACKET
041 A 6296250814 BRACKET
044 A 6296251314 BRACKET
047 A 6296251214 BRACKET
050 A 6296250714 BRACKET
053 A 4106200013 PILLAR
056 A 4106200213 PILLAR
059 A 4106200012 ANGLE
062 A 4106200315 CONSOLE
065 A 4106200415 CONSOLE
068 A 4106270312 ANGLE
071 A 4106270412 ANGLE
074 A 4106270612 ANGLE
077 A 4106270512 ANGLE
080 A 4106270112 ANGLE
083 A 4106270212 ANGLE
086 A 6296271212 ANGLE
089 A 4106270008 COVERING
092 A 6296270174 ORNAMENTAL COVER
095 A 6296201814 BRACKET
098 A 6296200715 CONSOLE
101 A 6296251014 BRACKET
104 A 6296250914 BRACKET
107 A 6296251114 BRACKET
110 A 6296200815 CONSOLE
113 A 0009871762 RUBBER SECTION
116 N 910105008013 HEXAGON HEAD BOLT
M8X12MM
119 N 910105006004 HEXAGON HEAD BOLT
M6X16MM
Repalced by: N 910143006001
119 N 910143006001 HEXALOBULAR BOLT
M6X16MM
122 N 910112008000 NUT
M8
125 N 910112006001 HEXAGON NUT
M6
128 N 910105008026 HEXAGON HEAD BOLT
M8X20MM
