Transporto priemonė: S 431 DT; VIN numerio dalis: 410001
Grupė: 71 PARTITION PANEL

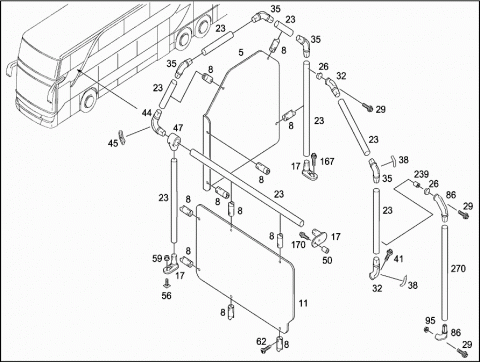

99610

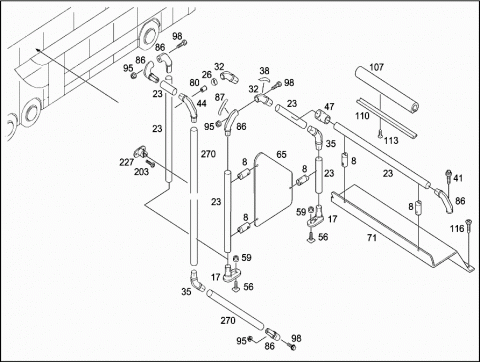

99611

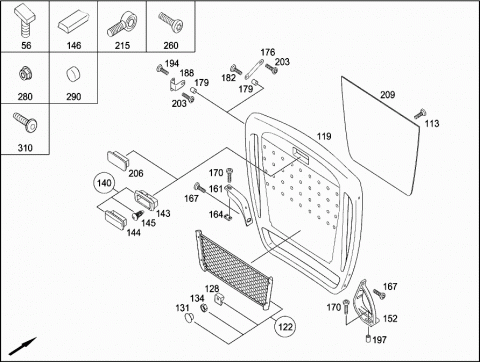

99612

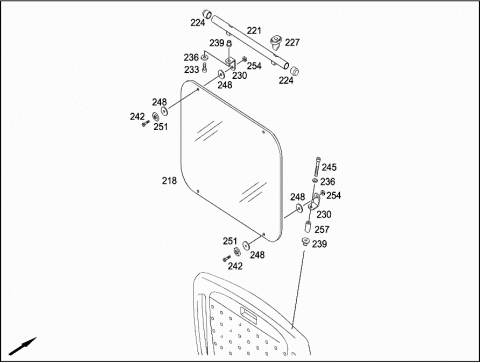

99618
# Kodas Pavadinimas
005 A 4107130101 PARTITION PANEL
008 A 6277111534 CONNECTION
011 A 4107130001 PARTITION PANEL
017 A 6277106032 CONNECTION
023 A 6279852736 METAL SECTION
026 A 6277118834 CONNECTION
029 A 0029908022 SCREW
M8X30
032 A 6277103732 CONNECTION
45 DEGREES
035 A 6277103332 CONNECTION
45 DEGREES
038 A 6277116734 CAP
45 DEGREES
041 A 0009902029 SCREW
044 A 6277104432 CONNECTION
90 DEGREES
045 A 6277117334 CAP
90 DEGREES
047 A 6277102532 CONNECTION
050 A 0003270153 SPACER SLEEVE
056 A 0009902902 SCREW
Repalced by: A 0019908121
056 A 0019908121 SCREW WITH ANCHOR END
059 N 913023008000 NUT
062 N 000000000464 TAPPING SCREW
065 A 4107130201 PARTITION PANEL
071 A 4107130301 PARTITION PANEL
080 N 913024008100 RIVET NUT
086 A 6277104832 CONNECTION
90 DEGREES
087 A 6277117334 CAP
90 DEGREES
095 N 910112008000 NUT
098 N 000912008008 SCREW
107 A 6277100324 COVERING
110 A 6277110534 CONNECTION
113 N 000000000522 SHEET METAL SCREW
113 Q 0011032202 SHEET METAL SCREW
116 N 000000000528 SHEET METAL SCREW
119 A 6297110401 PARTITION PANEL
119 A 6297110401 PARTITION PANEL
119 A 6327110301 PARTITION PANEL
119 A 6327110301 PARTITION PANEL
119 A 6297110001 PARTITION PANEL
122 A 6298100549 LUGGAGE NET
Repalced by: A 6328100149
122 A 6328100149 LUGGAGE NET
122 A 6298100549 LUGGAGE NET
Repalced by: A 6328100149
122 A 6328100149 LUGGAGE NET
122 A 6328100149 LUGGAGE NET
TOTAL RANGE OF DELIVERY
128 A 6298110307 COVERING
128 A 6298110307 COVERING
128 A 6298110307 COVERING
131 A 6299870145 LOCKING CAP
131 A 6299870145 LOCKING CAP
131 A 6299870145 LOCKING CAP
134 N 304032003001 NUT
134 N 304032003001 HEXAGON NUT
134 N 304032003001 HEXAGON NUT
140 A 6298101130 ASHTRAY
143 A 6298130258 HOUSING
143 A 6298130258 HOUSING
144 A 6298130158 COVER
144 A 6298130158 COVER
145 A 6298130028 CLIP
145 A 6298130028 CLIP
146 A 6299870075 GARNISH STRIP
146 A 6299870075 GARNISH STRIP
146 A 6299870175 GARNISH STRIP
152 A 6297110045 STAY
152 A 6297110045 STAY
152 A 6297110045 STAY
161 A 6297110145 STAY
161 A 6297110145 STAY
161 A 6297110145 STAY
164 A 6297110012 ANGLE
164 A 6297110012 ANGLE
164 A 6297110012 ANGLE
167 A 0009901129 SCREW
167 A 0009901129 SCREW
167 A 0009901129 SCREW
167 A 0009901129 SCREW
170 A 0009901729 SCREW
170 A 0009901729 SCREW
170 A 0009901729 SCREW
170 N 000000002192 HEXALOBULAR BOLT
176 A 6297110612 ANGLE
176 A 6297110612 ANGLE
179 A 0009912740 SPACER BUSH
179 A 0009912740 SPACER BUSH
182 A 0009901629 SCREW, SPECIAL SHAPE
182 A 0009901629 SCREW, SPECIAL SHAPE
182 A 0039902312 SCREW
188 A 6297110314 BRACKET
194 N 000000001388 HEXALOBULAR BOLT
197 A 6299591117 BUSHING
9X14
197 A 0003280053 SPACER TUBE
9X15
197 A 0003280053 SPACER TUBE
9X15
203 A 0009901429 SCREW
203 A 0009901429 SCREW
203 A 0009901429 SCREW
206 A 6297110069 ORNAMENTAL COVER
209 A 6297100018 PANELLING
215 A 0009900323 SCREW
218 A 6297110110 GLASS PANE
221 A 6279852736 METAL SECTION
224 A 6277117434 TUBE PROTECTIVE CAP
227 A 6277106932 CONNECTION
230 A 6277111034 CONNECTION
233 A 0039909212 SCREW
M8X25 T45
236 A 0009943710 LOCK
239 A 0009844821 RIVETED NUT
M8X16
242 A 0029900120 SCREW
M6X20
245 N 000912008033 SCREW
M8X60
248 A 0009876941 RUBBER RING
251 A 6277120013 WASHER
254 A 0009901289 NUT
M6
257 A 0003270153 SPACER SLEEVE
260 A 0009902029 SCREW
270 A 0018150952 GRAB RAIL
280 N 913023008003 NUT
290 N 913018013202 PROTECTIVE CAP
310 A 0009901929 SCREW
