Transporto priemonė: S 431 DT; VIN numerio dalis: 410001
Grupė: 97 SEAT ACCESSORIES
| # | Kodas | Pavadinimas |
|---|---|---|

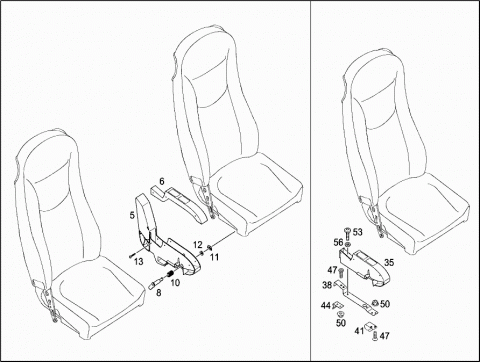

| 005 | A 6298140041 | PARCEL RACK |
| CENTRAL CONSOLE | ||
| 006 | A 6298100036 | COVERING |
| CENTRAL CONSOLE | ||
| 008 | A 6298140063 | LATCH |
| 010 | A 6298140067 | SPRING |
| 011 | A 6298140033 | CLAMPING PIECE |
| 012 | A 6299900040 | WASHER |
| 013 | N 000000000461 | TAPPING SCREW |
| 4.8X16 | ||
| 016 | A 6068100040 | COAT HOOK |
| LEFT | ||
| 016 | A 6068100140 | COAT HOOK |
| RIGHT | ||
| 017 | A 6069750256 | GRAB HANDLE |
| 018 | A 6069750356 | GRAB HANDLE |
| 020 | A 6069750056 | GRAB HANDLE |
| 021 | A 6069750156 | GRAB HANDLE |
| 023 | A 6069750227 | COVER |
| LEFT | ||
| 023 | A 6069750427 | COVER |
| LEFT | ||
| 023 | A 6069750627 | COVER |
| LEFT | ||
| 023 | A 6069750827 | COVER |
| LEFT | ||
| 024 | A 6069750327 | COVER |
| RIGHT | ||
| 024 | A 6069750527 | COVER |
| RIGHT | ||
| 024 | A 6069750727 | COVER |
| RIGHT | ||
| 024 | A 6069750927 | COVER |
| RIGHT | ||
| 029 | A 0059904912 | SCREW |
| 6X37 | ||
| 035 | A 6298104105 | PARCEL RACK |
| 038 | A 6298100006 | ANGLE |
| 041 | A 6299230225 | CLIP |
| 044 | A 6299230125 | CLIP |
| 047 | A 0019909620 | SCREW |
| M 5X12 | ||
| 050 | N 910112005000 | NUT |
| M5 | ||
| 053 | N 000000001526 | HEXALOBULAR BOLT |
| M 5X12 | ||
| 056 | N 000000003337 | WASHER |
| 062 | A 6298100130 | ASHTRAY |
| WITH SEAT BACK, SCREWED ON | ||
| 065 | A 6298130158 | COVER |
| 068 | A 6298130258 | HOUSING |
| 071 | A 6298130036 | FRAME |
| 125 | A 6298460706 | CONTAINER |
| LEFT | ||
| 125 | A 6298460706 | CONTAINER |
| LEFT | ||
| 125 | A 6298460806 | CONTAINER |
| RIGHT | ||
| 125 | A 6298460806 | CONTAINER |
| RIGHT | ||
| 126 | A 6298400291 | MOUNT |
| BOTTOM LEFT | ||
| 126 | A 6298400391 | MOUNT |
| BOTTOM RIGHT | ||
| 126 | A 6298400091 | FIXTURE |
| TOP LEFT | ||
| 126 | A 6298400191 | FIXTURE |
| TOP RIGHT | ||
| 127 | A 6299590017 | BUSHING |
| 128 | N 000471008000 | RETAINING RING |
| 129 | A 0008460034 | SPRING |
| LEFT | ||
| 129 | A 0008460134 | SPRING |
| RIGHT | ||
| 130 | A 6298400214 | BRACKET |
| 132 | N 000000001799 | HEXALOBULAR BOLT |
| M8X16 | ||
| 133 | N 913023008003 | NUT |
| M8 | ||
| 278 | A 6299730038 | MOUNTING PART |
| 281 | A 6299700079 | PAD |
| LEFT | ||
| 284 | A 6299700179 | PAD |
| RIGHT | ||
| 287 | A 6299730434 | SPRING |
| LEFT | ||
| 290 | A 6299730534 | SPRING |
| RIGHT | ||
| 293 | A 0009877345 | LOCKING CAP |
| 296 | A 6299730096 | UNDERLAYER |
| 299 | N 304035010001 | NUT |
| M 10 | ||
| 302 | A 6299730196 | UNDERLAYER |
| 305 | A 6297930015 | PIN |
| THREADED | ||
| 308 | N 000000000128 | ROLL PIN |
| 8X35 | ||
| 311 | N 000917005003 | NUT |
| M 5 | ||
| 314 | A 6299730313 | PIN |
| THREADED | ||
| 316 | N 910112008000 | NUT |
| M8 | ||
| 317 | N 006797006142 | TOOTHED WASHER |
| 319 | A 6329700164 | STAY |
| MAXIMUM | ||
| 10/27MM | ||
| 320 | A 6329700069 | BOWDEN CABLE |
| 321 | A 6329400314 | BRACKET |
| 322 | A 6329761514 | BRACKET |
| 324 | A 6329920403 | BUSHING |
| 16X12/10X3X3MM | ||
| 324 | A 6329920303 | BUSHING |
| 16X12/10X4X2,5MM | ||
| 325 | A 0009911725 | WASHER |
| 326 | A 6329900216 | THREADED PIN W STUD |
| 327 | A 6329920503 | BUSHING |
| 16X10X8MM | ||
| 329 | A 6329910116 | BEARING BOLT |
| 330 | A 6329700527 | COVER |
| LEG PADDING COVER | ||
| 330 | A 6329700527 | COVER |
| LEG PADDING COVER | ||
| 330 | A 6329700427 | COVER |
| LEG PADDING COVER,SOFTLINE | ||
| 330 | A 6329700227 | COVER |
| LEG PADDING COVER,LUXLINE | ||
| 330 | A 6329700327 | COVER |
| LEG PADDING COVER,LUXLINE LEATHER | ||
| 332 | A 0019901302 | HEXAL. SOCKET CSK. BOLT |
| M8X25 | ||
| 333 | N 000000001526 | HEXALOBULAR BOLT |
| M5X12 | ||
| 335 | N 910105008041 | SCREW |
| M8X16 | ||
| 341 | A 6329701626 | ADJUSTMENT |
| 342 | A 6329920403 | BUSHING |
| 16X12/10X3X3MM | ||
| 343 | A 6329940060 | SHAFT RETAINER |
| 345 | A 6329930120 | TORSION SPRING |
| 347 | A 6329400914 | BRACKET |
| 348 | A 6329761914 | BRACKET |
| 350 | A 6329700816 | PADDING |
| THIN UPHOLSTERY | ||
| 351 | A 6299700204 | ARMREST LESS COVER |
| LEFT | ||
| 351 | A 6299700304 | ARMREST LESS COVER |
| RIGHT | ||
| 353 | A 6299930320 | SPRING |
| LEFT | ||
| 353 | A 6299930420 | SPRING |
| RIGHT | ||
| 356 | A 6299730305 | SPACER |
| 359 | N 912010010000 | LOCK PLATE |
| 362 | N 000000002868 | ROLL PIN |
| 6 X 40 | ||
| 365 | N 910105010002 | SCREW |
| M 10X50 | ||
| 368 | N 000000003386 | WASHER |
| 10 | ||
| 371 | N 001481003504 | ROLL PIN |
| 3.5X40 | ||
| 374 | A 6299730228 | CAP |
| 435 | A 6069700030 | FOLDING ARMREST |
| FOLDING,LEFT,WIDE | ||
| 435 | A 6069700130 | FOLDING ARMREST |
| FOLDING,RIGHT,WIDE | ||
| 435 | A 6069700230 | FOLDING ARMREST |
| FOLDING,LEFT,NARROW | ||
| 435 | A 6069700330 | FOLDING ARMREST |
| FOLDING,RIGHT,NARROW | ||
| 436 | A 6069700601 | ARMREST |
| FIXED,LEFT,NARROW | ||
| 436 | A 6069700701 | ARMREST |
| FIXED,RIGHT,NARROW | ||
| 438 | A 6069730120 | BEARING AXIS |
| 43.0MM | ||
| 438 | A 6069730220 | BEARING AXIS |
| 37.0MM | ||
| 438 | A 6069730320 | BEARING AXIS |
| 26.4MM | ||
| 440 | A 0009923807 | THREADED BUSHING |
| 442 | A 0099900982 | SLIDING DISK |
| 444 | A 0039905282 | THREADED UNION |
| 446 | A 0169978545 | SEAL RING |
| 448 | N 000000000921 | ROLL PIN |
| 450 | N 000000001090 | ROLL PIN |
| 452 | N 000000001610 | ROLL PIN |
| 454 | A 0109908604 | SCREW W SOCKET DRIVE |
| M10X70MM | ||
| 456 | N 000000002851 | HEXALOBULAR BOLT |
| M10X50MM | ||
| 458 | N 000000001181 | HEXALOBULAR BOLT |
| M5X16MM | ||
| 460 | A 0009826009 | COVER CAP |
| 490 | A 6068100249 | BAG |
| FABRIC TRIM | ||
| 490 | A 6068100349 | BAG |
| FABRIC TRIM | ||
| 490 | A 6068100549 | BAG |
| LEATHER TRIM | ||
| 490 | A 6068100449 | BAG |
| LEATHER TRIM | ||
| 492 | A 6068100049 | LUGGAGE NET |
| 495 | A 0069902212 | HEXAL. PAN HEAD SCREW |
| 496 | A 0009825009 | COVER CAP |
| 570 | A 6068600083 | SEAT BELT RETRACTOR |
| 573 | A 6068600069 | SEAT BELT LOCK |
| LEFT | ||
| 573 | A 6068600169 | SEAT BELT LOCK |
| RIGHT | ||
| 575 | A 6068600269 | SEAT BELT LOCK |
| 578 | A 6299590171 | SCREW |
| M10X14 | ||
| 579 | A 0029906622 | SCREW |
| M8X12 | ||
| 582 | A 6068600085 | SEAT BELT |
| SHORT BAFFLE,LEFT | ||
| 582 | A 6068600185 | SEAT BELT |
| SHORT BAFFLE,RIGHT | ||
| 583 | A 6068600285 | SEAT BELT |
| LONG BAFFLE,LEFT | ||
| 583 | A 6068600385 | SEAT BELT |
| LONG BAFFLE,RIGHT | ||
| 665 | A 6069700114 | MOUNT |
| RIGHT | ||
| 665 | A 6069700014 | MOUNT |
| LEFT | ||
| 667 | A 6326890603 | MAGNET FOR LID |
| 668 | A 6069590170 | SLIDING VALVE |
| 670 | A 6299590017 | BUSHING |
| 672 | A 0019933420 | TORSION SPRING |
| 672 | A 0019933320 | TORSION SPRING |
| 674 | A 0109931501 | PRESSURE SPRING |
| 676 | A 0099901582 | WASHER W RECESSED HOLE |
| 678 | A 0009911725 | WASHER |
| 679 | A 0019897985 | ADHESIVE TAPE |
| 680 | A 6068490135 | BRACKET |
| 680 | A 6068490035 | BRACKET |
| 681 | A 6068400014 | BRACKET |
| 681 | A 6068400114 | BRACKET |
| 682 | A 0009841637 | LINK BLOCK |
| 684 | N 000000001479 | HEXALOBULAR BOLT |
| 686 | N 000000001152 | HEXALOBULAR BOLT |
| 690 | A 6068660020 | GARBAGE CONTAINER |
| LEFT | ||
| 690 | A 6068660120 | GARBAGE CONTAINER |
| RIGHT | ||
| 700 | A 6069700060 | FOOTREST |
| 703 | A 6069760031 | CONSOLE |
| 706 | A 6069760060 | FOOTREST |
| 709 | A 6069760022 | COVER |
| 710 | A 6069760122 | COVER |
| 712 | A 6069760074 | PADDING |
| UPPER SHELL | ||
| 712 | A 6069760174 | PADDING |
| ENCAPSULATION ELEMENT | ||
| 715 | A 6069760077 | TUBE STRUT |
| 718 | A 6069510611 | GUIDE PLATE |
| 720 | A 6299590171 | SCREW |
| 723 | A 0009919501 | INDEX BOLT |
| 726 | A 0059909740 | WASHER |
| 728 | A 0069901340 | WASHER |
| 730 | A 0109931101 | PRESSURE SPRING |
| 733 | A 6299910001 | PIN |
| 736 | A 6299910101 | PIN |
| 738 | A 6299930101 | SPRING |
| 740 | A 0009919601 | INDEX BOLT |
| 810 | A 6068100400 | SET OF PLATES |
| 815 | A 6068100500 | SET OF PLATES |
| 844 | A 0009826909 | COVER CAP |
| 847 | A 6069730401 | BEARING BRACKET |
| LEFT | ||
| 847 | A 6069730501 | BEARING BRACKET |
| RIGHT | ||
| 850 | A 6069700001 | ARMREST |
| LEFT | ||
| 850 | A 6069700101 | ARMREST |
| RIGHT | ||
| 853 | A 6069700005 | ARMREST |
| LEFT | ||
| 853 | A 6069700105 | ARMREST |
| RIGHT | ||
| 856 | A 6069700024 | PIVOT BEARING |
| LEFT | ||
| 856 | A 6069700124 | PIVOT BEARING |
| RIGHT | ||
| 859 | A 6069730289 | COVER, ARMREST |
| 862 | A 6069700016 | PADDING |
| 865 | A 6069730001 | BEARING BRACKET |
| LEFT | ||
| 865 | A 6069730101 | BEARING BRACKET |
| RIGHT | ||
| 867 | A 6069930007 | SPRING STEEL SHEET |
| 869 | A 0109906304 | CAPSCREW W HEXAL. DRIVE |
| 875 | A 6069510121 | COVER |
| LEFT | ||
| 875 | A 6069510221 | COVER |
| RIGHT | ||
| 880 | A 6068600269 | SEAT BELT LOCK |
| 882 | A 0019932020 | TORSION SPRING |
| 884 | A 0009987640 | BUFFER STOP |
| 886 | A 6299590171 | SCREW |
| M10X14 | ||
| 888 | A 0109906404 | CAPSCREW W HEXAL. DRIVE |
| M8X20 | ||
| 890 | A 6069910016 | BEARING BOLT |
| 892 | N 000000003250 | WASHER |
| 895 | A 6069730089 | COVER |
| LEFT | ||
| 895 | A 6069730189 | COVER |
| RIGHT | ||
| 895 | A 6069730489 | COVER |
| LEFT | ||
| 895 | A 6069730589 | COVER |
| RIGHT | ||
| 900 | A 0008104669 | BADGE |
