Transporto priemonė: S 431 DT; VIN numerio dalis: 410001

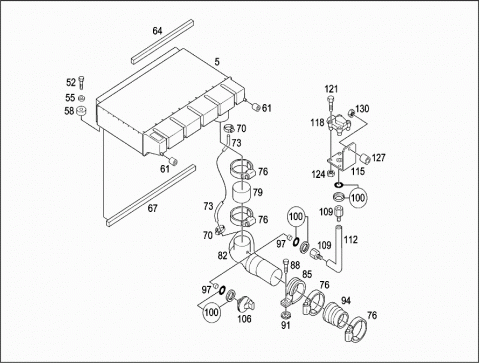

Grupė: 52 SHEET METAL,AIR INTAKE - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0000904701 | AIR CLEANER |
| 005 | A 0000907001 | AIR CLEANER |
| 005 | A 0000907401 | AIR CLEANER |
| ULTRAWEB | ||
| 008 | A 6295201101 | AIR INTAKE PIPE |
| 008 | A 6295201501 | AIR INTAKE PIPE |
| 011 | A 6295200502 | AIR INTAKE CASE |
| 014 | A 6295280310 | COVER |
| 017 | A 6295200015 | ROD |
| 020 | A 6295200004 | SCOOP |
| 023 | A 6295240612 | STIFFENING |
| 026 | A 0000943865 | PLUG |
| (DUST DISCHARGE VALVE) | ||
| 027 | A 0051536528 | SENDER UNIT |
| MOISTURE TEMPERATURE SENSOR | ||
| Repalced by: A 0071530128 | ||
| 027 | A 0071530128 | TEMPERATURE SENSOR |
| MOISTURE TEMPERATURE SENSOR | ||
| Repalced by: A 0071531128 | ||
| 027 | A 0071531128 | TEMPERATURE SENSOR |
| MOISTURE TEMPERATURE SENSOR | ||
| 028 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 029 | A 0040941804 | FILTER ELEMENT |
| 029 | A 0040944604 | FILTER ELEMENT |
| 032 | A 0009846136 | PIVOT |
| 035 | A 0029949835 | SNAP RING |
| PLASTIC WINDOWS | ||
| Repalced by: A 0039908740 | ||
| 035 | A 0039908740 | WASHER |
| PLASTIC WINDOWS | ||
| 035 | A 0039908740 | WASHER |
| 038 | A 0005250041 | ANGLE |
| RETAINING CLAMP | ||
| Repalced by: A 0019884442 | ||
| 038 | A 0019884442 | FASTENER |
| RETAINING CLAMP | ||
| 041 | A 0007570174 | RUBBER SEAL |
| 044 | A 0089873425 | MOSS TYPE RUBBER |
| 045 | A 0019846329 | HEXALOBULAR BOLT |
| 5X12 | ||
| 047 | N 913023008003 | NUT |
| M8 | ||
| 048 | A 0009956914 | LINE FASTENER |
| 049 | A 0009894584 | INSULATING TAPE |
| 40MM | ||
| 052 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 055 | A 6299910040 | SPACER SLEEVE |
| 058 | A 0009888011 | BUFFER |
| D 25X10 | ||
| 061 | A 0009872143 | RUBBER BUSHING |
| D=50X45MM | ||
| 064 | A 6295050086 | SEAL |
| PLASTIC FOAM | ||
| 30X40X1095 | ||
| 064 | A 6295050386 | SEALING LIP |
| PLASTIC FOAM | ||
| 20X40MM/LG1040 | ||
| 067 | A 6295050186 | SEAL |
| PLASTIC FOAM | ||
| 38X45X1095 MM | ||
| 070 | A 0069979990 | CLAMP |
| 073 | A 0249975382 | HOSE |
| 5.5X2.5 MM | ||
| 076 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 076 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 076 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 076 | A 0009951236 | CLAMP |
| 150-170MM | ||
| 079 | A 0029976352 | HOSE |
| 150X100MM | ||
| 082 | A 6295280708 | AIR INTAKE PIPE |
| D=150 MM | ||
| 082 | A 4105200001 | AIR INTAKE PIPE |
| D=150 MM | ||
| 085 | A 0029953701 | CLAMP |
| 150/25MM | ||
| 088 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 091 | A 0049941945 | NUT |
| 094 | A 6295280082 | HOSE |
| D150/130MM | ||
| 097 | A 0000940276 | FELT WASHER |
| 100 | A 0000500095 | SEAL RING |
| 106 | A 0135422917 | CONTACT SENSOR |
| 109 | A 0029901278 | CONNECTOR |
| FSS SENSOR | ||
| 112 | A 0005280009 | PLASTIC PIPE |
| FSS SENSOR | ||
| 115 | A 6295200633 | CONSOLE |
| 118 | A 0115425017 | SENDER UNIT |
| 121 | N 910105005005 | HEXAGON HEAD BOLT |
| M5X35 | ||
| 124 | N 913023005002 | NUT |
| M5 | ||
| 127 | A 0003270353 | SPACER SLEEVE |
| 130 | N 913023006002 | NUT |
| M6 | ||
| A 0019979590 | LOOM TIE | |
| 136 | A 4105200002 | AIR INTAKE CASE |
| ALUMINUM | ||
| 136 | A 4105280002 | INTAKE CASE |
| PLASTIC | ||
| 136 | A 4105280002 | INTAKE CASE |
| PLASTIC | ||
| 139 | A 6295050086 | SEAL |
| 30X40X1040MM | ||
| 142 | A 0039941545 | NUT |
| M8 | ||
| 142 | A 0049941845 | SPRING-THREAD NUT |
| M8 | ||
| 145 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 145 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 145 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 145 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 145 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 148 | A 6279850349 | "Z" SECTION |
| 170 MM | ||
| 151 | N 000000000767 | CLAMP |
| 70/25MM | ||
| Repalced by: N 000000006127 | ||
| 151 | N 000000006127 | CLAMP |
| 70/25MM | ||
| Repalced by: N 000000007523 | ||
| 151 | N 000000007523 | CLAMP |
| 70/25MM | ||
| 154 | A 0029974752 | HOSE |
| 1200MM | ||
| 154 | A 0029974752 | HOSE |
| 1200MM | ||
| 154 | A 0069977552 | SUCTION HOSE |
| 1200MM | ||
| 157 | A 0029973152 | HOSE |
| 1485 MM | ||
| 157 | A 0029973152 | HOSE |
| 1485MM | ||
| 157 | A 0069977452 | SUCTION HOSE |
| 1485MM | ||
| 160 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 163 | A 4571540304 | COVER |
| 166 | N 000933006058 | SCREW |
| M6X25 | ||
| 169 | N 000934006006 | NUT |
| M6 | ||
| 169 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 169 | N 910112005000 | HEXAGON NUT |
| M5 | ||
| 172 | A 4071540165 | COVER |
| 175 | A 5421540004 | COVER |
| 175 | A 5421540204 | COVER |
| 178 | A 0029976552 | HOSE |
| 1600 MM | ||
| 181 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 184 | N 910112008000 | NUT |
| M8 | ||
| 187 | A 0003270353 | SPACER SLEEVE |
| 190 | A 4105280144 | MOUNTING BOW |
| 193 | A 0005280001 | PROTECTIVE GRILLE |
| 196 | A 0009912440 | SPACER TUBE |
| 199 | N 000000003250 | WASHER |
| 202 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 205 | A 6295041240 | BRACKET |
| 208 | A 0001541280 | CABLE GROMMET |
| 211 | A 4105280082 | HOSE |
| 1860 MM | ||
| 214 | N 916016045200 | CLAMP |
| 45/20MM | ||
| Repalced by: N 000000004044 | ||
| 214 | N 000000004044 | CLAMP |
| 45/20MM | ||
| Repalced by: N 000000007517 | ||
| 214 | N 000000007517 | CLAMP |
| 45/20MM | ||
| 217 | N 000000002774 | CLAMP |
| 35-50X13MM | ||
| A 0079973190 | CABLE STRAP | |
| 7,8X465MM | ||
