Transporto priemonė: TOURINO EURO 4; VIN numerio dalis: 444303

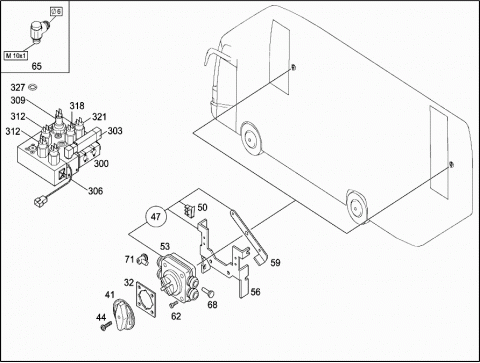

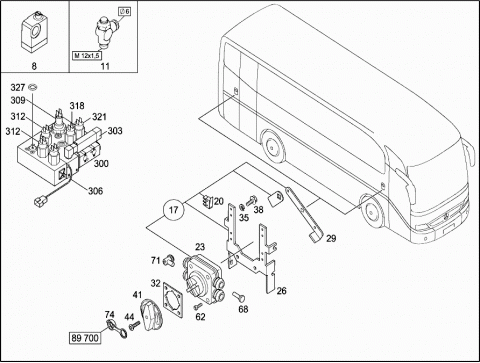

Grupė: 76 DOOR AND WINDOW ACCESSORIES - 060 DOOR CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0034319906 | VALVE |
| QUICK BREATHER VALVE | ||
| 011 | A 0039907068 | FITTING |
| OUTLET THROTTLE | ||
| 017 | A 6277600457 | CONTROL COCK |
| 020 | A 0055458714 | SWITCH |
| MICRO-SWITCH | ||
| 023 | A 6287602157 | CONTROL COCK |
| 026 | A 0007632114 | BRACKET |
| 029 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 029 | A 0007663224 | ACTUATING LEVER |
| 032 | A 0029872460 | RUBBER PAD |
| 035 | A 0009943610 | LOCK |
| WASHER | ||
| S6 | ||
| 038 | N 910105006007 | SCREW |
| M6X10 | ||
| 041 | A 0009977077 | ROTARY KNOB |
| 041 | A 0009977177 | ROTARY KNOB |
| 044 | A 0029901020 | SCREW |
| M5X10 | ||
| 047 | A 6277600857 | EMERGENCY COCK |
| 050 | A 0055458714 | SWITCH |
| MICRO-SWITCH | ||
| 053 | A 6287602157 | CONTROL COCK |
| 056 | A 0007661469 | BRACKET |
| 059 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 059 | A 0007663224 | ACTUATING LEVER |
| 062 | A 0019909820 | HEXAL. SOCKET CSK. BOLT |
| M6X10 | ||
| 065 | A 0039906768 | FITTING |
| A 0059977440 | SEAL RING | |
| 17,5X12,2MM | ||
| 068 | A 0009973101 | PLUG |
| 071 | A 0049904271 | ELBOW FITTING |
| A 0009976001 | PLUG | |
| 074 | A 0007580055 | CAP |
| 300 | A 0007606178 | VALVE |
| DOOR CONTROL | ||
| 303 | A 0009971712 | DIRECTIONAL CONTROL VALVE |
| 5/2 | ||
| 306 | A 0008200585 | CONTROL ELECTRONICS |
| Repalced by: A 0008201085 | ||
| 306 | A 0008201085 | CONTROL ELECTRONICS |
| 309 | A 0008005878 | VALVE |
| 312 | A 0065452714 | SWITCH |
| 318 | A 0065452814 | SWITCH |
| 321 | A 0065452914 | SWITCH |
| 327 | A 0209976645 | O-RING |
| A 4447600204 | PULL | |
| OUTSIDE | ||
| A 4447600304 | PULL | |
| INSIDE | ||
