Transporto priemonė: TOURINO EURO 4; VIN numerio dalis: 444303

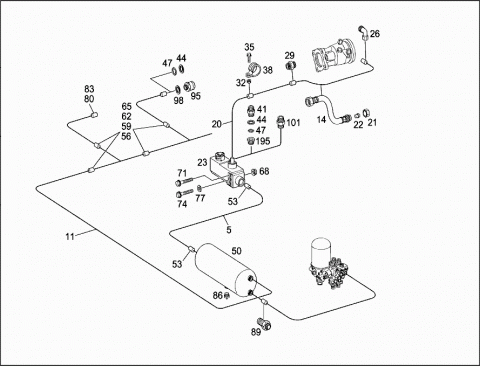

Grupė: 43 EXHAUST BRAKE - 060 ENGINE SHUT-OFF AND EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0009872727 | PLASTIC PIPE |
| 8X1 | ||
| 011 | A 0009872827 | PLASTIC PIPE |
| 12X1,5 | ||
| 014 | A 0029976952 | HOSE |
| DN4 | ||
| 020 | A 4444205228 | COMPRESSED AIR LINE |
| 020 | A 6294340329 | LINE |
| D6 | ||
| 020 | A 4444207726 | LINE |
| 840 LG. | ||
| 021 | A 0019907054 | UNION NUT |
| M12X1,5/6MM | ||
| Repalced by: N 915017006100 | ||
| 021 | N 915017006100 | NUT |
| AL 6 | ||
| 021 | A 0019906554 | NUT |
| M14X1,5 | ||
| 022 | A 0019907467 | GLAND |
| BS6 | ||
| 022 | A 0019908867 | CUTTING RING |
| 023 | A 0009820217 | SOLENOID VALVE |
| 3/2 | ||
| Repalced by: A 0009975112 | ||
| 023 | A 0009975112 | 3-2-WAY PNEUMATIC VALVE |
| 3/2 | ||
| 026 | A 0049902171 | ELBOW FITTING |
| FROM FITTING TO POWER CYLINDER | ||
| M12X1,5/M14X1,5 | ||
| 026 | N 000000006197 | FITTING |
| FROM FITTING TO POWER CYLINDER | ||
| L6-ST | ||
| 029 | A 0009971070 | REDUCTION FITTING |
| M12X1,5/M14X1,5 | ||
| 029 | A 0029975672 | FITTING |
| M12X1,5/M14X1,5 | ||
| 032 | N 913023006001 | NUT |
| M6 | ||
| 035 | N 000000003765 | HEXALOBULAR BOLT |
| M6X20 10.9 | ||
| 038 | N 916016010201 | CLAMP |
| 10/15 | ||
| Repalced by: N 000000000320 | ||
| 038 | N 000000000320 | CLAMP |
| RSGU 10/15 | ||
| Repalced by: N 000000007511 | ||
| 038 | N 000000007511 | CLAMP |
| RSGU 10/15 | ||
| 038 | N 000000000319 | CLAMP |
| 8/15 | ||
| 038 | N 000000007509 | CLAMP |
| RSGU 6/15 | ||
| 041 | A 0039908768 | FITTING |
| M12X1,5/M14X1,5 | ||
| 044 | A 0009940103 | THRUST RING |
| 18X12.1X2.6 | ||
| 044 | A 0059974440 | SEAL RING |
| OL-M22 | ||
| 044 | A 0009940203 | THRUST RING |
| RETARDER | ||
| 29X22.1X2.6 | ||
| 047 | A 0019970845 | SEAL RING |
| 10X2.2 | ||
| 047 | A 0009870446 | O-RING |
| RETARDER | ||
| 20.3X2.4 | ||
| 050 | A 0034320901 | RESERVOIR |
| 10L | ||
| Repalced by: A 0064326301 | ||
| 050 | A 0064326301 | COMPRESSED AIR RESERVOIR |
| 10L | ||
| 053 | A 0039975189 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/8X1 | ||
| 053 | A 0039975089 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1 | ||
| Repalced by: A 0049976989 | ||
| 053 | A 0049976989 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1 | ||
| 056 | A 0029977889 | COUPLING |
| 12X1,5X17,9MM | ||
| 059 | A 0039979689 | COUPLER PLUG |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| Repalced by: A 0039976889 | ||
| 059 | A 0039976889 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| 062 | A 0029909070 | T-FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 12X1.5/12X1.5/12X1.5 | ||
| 065 | N 915052009000 | BANJO UNION |
| 9/16 | ||
| 068 | N 913023008002 | NUT |
| M8 | ||
| 071 | N 910143008019 | HEXALOBULAR BOLT |
| M8X60 | ||
| 074 | A 0039908812 | SCREW |
| M6X12 TX30 | ||
| 077 | N 007603006106 | SEALING RING |
| 6X10-CU | ||
| 077 | N 007603006108 | SEALING RING |
| 6.5X9.5MM | ||
| 080 | N 000000004899 | BANJO BOLT |
| CLUTCH | ||
| A12 | ||
| 083 | N 007603016105 | SEALING RING |
| 16X20-CU | ||
| 086 | A 0004321107 | DRAIN VALVE |
| DRAIN | ||
| VOSS | ||
| 086 | A 0004322107 | DRAIN VALVE |
| DRAIN | ||
| VOSS | ||
| 086 | A 0004322407 | DRAIN VALVE |
| WIRA | ||
| 089 | A 0009971770 | FITTING |
| 092 | A 0019972872 | FITTING |
| Repalced by: A 0029906071 | ||
| 092 | A 0029906071 | FITTING |
| 095 | A 0019973171 | FITTING |
| M22X1.5/12X1.5 | ||
| 098 | A 0059974340 | SEAL RING |
| OL-M16 | ||
| 101 | N 000000006189 | FITTING |
| WITH SEAL RING | ||
| M16X1.5 | ||
| 104 | A 0009974734 | UNION SCREW |
| M16X1.5 | ||
| 107 | A 0149973545 | REPAIR KIT O-RING |
| NG8 | ||
| 107 | A 0229978145 | RS O-RING |
| NG12 | ||
| 195 | A 0009901682 | REDUCER |
| WITH O-RING | ||
| M16X1.5/M12X1.5 RAUFOSS | ||
