Transporto priemonė: TOURINO EURO 4; VIN numerio dalis: 444303

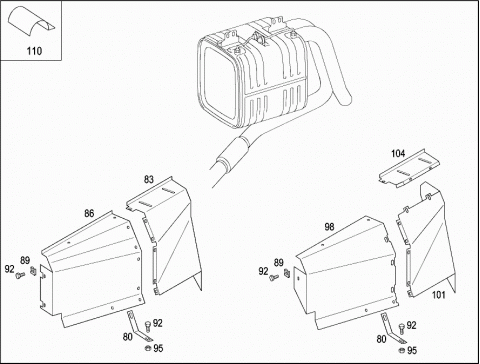

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0004906614 | CATALYST |
| 008 | A 4444900510 | EXHAUST PIPE |
| 011 | A 4444900410 | EXHAUST PIPE |
| 014 | A 4444920060 | END PIECE |
| 017 | A 4444911241 | BRACKET |
| 020 | A 4444911341 | BRACKET |
| 023 | A 4444911541 | BRACKET |
| 024 | A 4444912541 | BRACKET |
| TO THREE-WAY CATALYTIC CONVERTER | ||
| 026 | A 4444911141 | BRACKET |
| 032 | A 6209970590 | CLAMP |
| 035 | A 4374920240 | CLAMP |
| 036 | A 0009959002 | CLAMP |
| 038 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 041 | A 6524920040 | CLAMP |
| 044 | A 0009980246 | INSULATION |
| 044 | A 0009980846 | DASHPOT |
| 047 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40MM | ||
| 047 | N 910105008010 | HEXAGON HEAD BOLT |
| CLAMP TO EXHAUST PIPE | ||
| M8X40MM | ||
| Repalced by: N 910105008018 | ||
| 047 | N 910105008018 | HEXAGON HEAD BOLT |
| CLAMP TO EXHAUST PIPE | ||
| M8X40MM | ||
| 050 | N 913023008003 | NUT |
| M8 | ||
| 050 | N 913023008002 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| M8 | ||
| 053 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 056 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40MM | ||
| 059 | N 913023010002 | NUT |
| M10 | ||
| 062 | N 910105010012 | HEXAGON HEAD BOLT |
| M10X65MM | ||
| 065 | N 910106010012 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 068 | A 0004920980 | FLANGE GASKET |
| 071 | N 071555090502 | CLAMP |
| 080 | A 4444911441 | BRACKET |
| 083 | A 4444912130 | PROTECTIVE PLATE |
| 086 | A 4444912230 | PROTECTIVE PLATE |
| 089 | A 0049941645 | SPRING NUT |
| M6 | ||
| 092 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 092 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 095 | N 913023006002 | NUT |
| M6 | ||
| 098 | A 4444912530 | PROTECTIVE PLATE |
| 101 | A 4444912430 | PROTECTIVE PLATE |
| 104 | A 4444912330 | PROTECTIVE PLATE |
| 110 | A 4446820009 | INSULATION |
| EXHAUST PIPE | ||
| 113 | A 0024905114 | CATALYST |
| 116 | A 0061530428 | SENDER UNIT |
| TEMPERATURE SENSOR | ||
| 119 | A 4444900710 | EXHAUST PIPE |
| ON ENGINE END | ||
| 122 | A 4444900610 | EXHAUST PIPE |
| AT MUFFLER | ||
| 125 | A 4444900127 | END PIECE |
| EXHAUST PIPE | ||
| 128 | A 4444911941 | BRACKET |
| 131 | A 4444911741 | BRACKET |
| 134 | A 4444912630 | PROTECTIVE PLATE |
| 137 | A 4444911641 | BRACKET |
| 140 | A 4444911841 | BRACKET |
| 143 | A 4444912041 | BRACKET |
| 146 | A 4444910027 | CLAMP |
| 152 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 155 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30MM | ||
| 158 | N 910105005002 | HEXAGON HEAD BOLT |
| M5X16MM | ||
| 161 | A 4444912341 | BRACKET |
| 164 | A 4444900240 | BRACKET |
| 167 | A 4444900140 | BRACKET |
| 170 | N 910105008006 | HEXAGON HEAD BOLT |
| M8X60MM | ||
| Repalced by: N 910105008064 | ||
| 170 | N 910105008064 | HEXAGON HEAD BOLT |
| M8X65MM | ||
| 173 | A 6343176141 | BRACKET |
