Transporto priemonė: TOURINO EURO 4; VIN numerio dalis: 444303
Grupė: 97 SEAT ACCESSORIES
| # | Kodas | Pavadinimas |
|---|---|---|

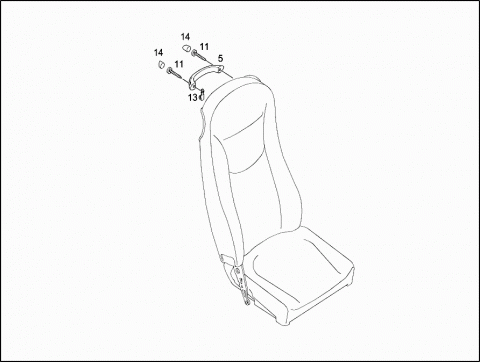

| 005 | A 6298100054 | HANDLE |
| 005 | A 6298100354 | HANDLE |
| 011 | A 0059904912 | SCREW |
| 6X37MM | ||
| 013 | A 6298140101 | CLOTHES-HOOK |
| LEFT | ||
| 013 | A 6298140201 | CLOTHES-HOOK |
| RIGHT | ||
| 014 | A 6298140118 | CAP |
| 014 | A 6298140218 | CAP |
| 014 | A 6298140318 | CAP |

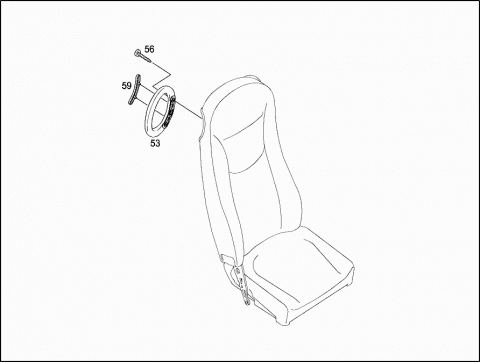

| 053 | A 6298100454 | HANDLE |
| 053 | A 6298150036 | GRAB HANDLE |
| WITH ANTI-VANDALISM BACK SHELL | ||
| 053 | A 6298100554 | HANDLE |
| 053 | A 6298150136 | GRAB HANDLE |
| WITH ANTI-VANDALISM BACK SHELL | ||
| 053 | A 6298100654 | HANDLE |
| 053 | A 6298150236 | GRAB HANDLE |
| WITH ANTI-VANDALISM BACK SHELL | ||
| 053 | A 0008102354 | GRAB HANDLE |
| 053 | A 0008151836 | GRAB HANDLE |
| WITH ANTI-VANDALISM BACK SHELL | ||
| 056 | N 000000000473 | TAPPING SCREW |
| 6,3X32MM | ||
| 059 | A 6298140318 | CAP |

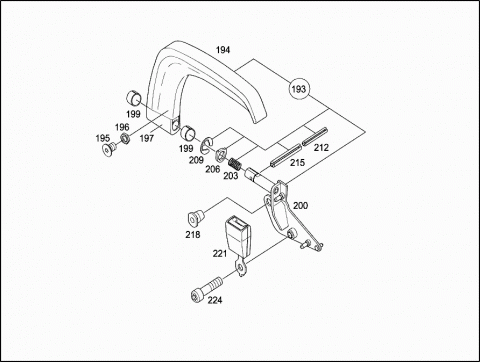

| 193 | A 6299700203 | ARMBRACE |
| ON SIDE OF AISLE,LEFT | ||
| 193 | A 6299700303 | ARMBRACE |
| ON SIDE OF AISLE,RIGHT | ||
| 194 | A 6299700003 | ARMREST LESS COVER |
| ON SIDE OF AISLE,LEFT | ||
| 194 | A 6299700103 | ARMREST LESS COVER |
| ON SIDE OF AISLE,RIGHT | ||
| 195 | A 0019908620 | SCREW |
| M8X12MM | ||
| 196 | N 304035008003 | HEXAGON NUT |
| M8 | ||
| 197 | A 6299730028 | CAP |
| LEFT | ||
| 197 | A 6299730128 | CAP |
| RIGHT | ||
| 199 | A 6299590120 | BUSHING |
| 200 | A 6299700038 | SUPPORT |
| LEFT | ||
| 200 | A 6299700138 | SUPPORT |
| RIGHT | ||
| 203 | A 0009930202 | SPRING |
| 206 | A 6299730117 | BUSHING |
| 209 | N 000471020000 | RETAINING RING |
| Repalced by: N 006799015003 | ||
| 209 | N 006799015003 | CIRCLIP |
| 212 | N 000000000921 | ROLL PIN |
| 3,5X22MM | ||
| 215 | N 000000000922 | ROLL PIN |
| 6X22MM | ||
| 218 | A 6299590315 | PIN |
| 20,5X35MM | ||
| 221 | A 6298600069 | FASTENER |
| 224 | A 6299510071 | SCREW |
| M10X32MM | ||
| 234 | A 0019908120 | SCREW W HEXAGON SOCKET |
| M8X16MM | ||
| 239 | A 6299590417 | BUSHING |
| 242 | A 6299590115 | PIN |
| SHORT | ||

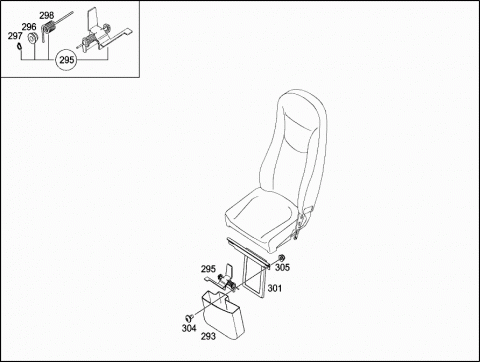

| 293 | A 6298460806 | CONTAINER |
| REAR SEAT BENCH,LEFT | ||
| 293 | A 6298460706 | CONTAINER |
| REAR SEAT BENCH,RIGHT | ||
| 295 | A 6298400091 | FIXTURE |
| LEFT | ||
| 295 | A 6298400191 | FIXTURE |
| RIGHT | ||
| 296 | A 6299590017 | BUSHING |
| 297 | N 000471008000 | LOCK RING |
| 298 | A 0008460034 | SPRING |
| LEFT | ||
| 298 | A 0008460134 | SPRING |
| RIGHT | ||
| 301 | A 6298400214 | BRACKET |
| 304 | N 000000001799 | SCREW |
| M8X16 | ||
| 305 | N 913023008003 | NUT |
| M8 | ||
| 316 | N 910112008000 | NUT |
| M8 | ||
| 319 | A 6329700164 | STAY |
| MAXIMUM | ||
| 10/27MM | ||
| 320 | A 6329700069 | BOWDEN CABLE |
| 321 | A 6329400314 | BRACKET |
| 322 | A 6329761514 | BRACKET |
| 324 | A 6329920403 | BUSHING |
| 16X12/10X3X3MM | ||
| 324 | A 6329920303 | BUSHING |
| 16X12/10X4X2,5MM | ||
| 325 | A 0009911725 | WASHER |
| 326 | A 6329900216 | THREADED PIN W STUD |
| 327 | A 6329920503 | BUSHING |
| 16X10X8MM | ||
| 329 | A 6329910116 | BEARING BOLT |
| 330 | A 6329700527 | COVER |
| LEG PADDING COVER | ||
| 330 | A 6329700527 | COVER |
| LEG PADDING COVER | ||
| 330 | A 6329700427 | COVER |
| LEG PADDING COVER,SOFTLINE | ||
| 330 | A 6329700227 | COVER |
| LEG PADDING COVER,LUXLINE | ||
| 330 | A 6329700327 | COVER |
| LEG PADDING COVER,LUXLINE LEATHER | ||
| 332 | A 0019901302 | HEXAL. SOCKET CSK. BOLT |
| M8X25 | ||
| 333 | N 000000001526 | HEXALOBULAR BOLT |
| M5X12 | ||
| 335 | N 910105008041 | SCREW |
| M8X16 | ||
| 341 | A 6329701626 | ADJUSTMENT |
| 342 | A 6329920403 | BUSHING |
| 16X12/10X3X3MM | ||
| 343 | A 6329940060 | SHAFT RETAINER |
| 345 | A 6329930120 | TORSION SPRING |
| 347 | A 6329400914 | BRACKET |
| 348 | A 6329761914 | BRACKET |
| 350 | A 6329700816 | PADDING |
| THIN UPHOLSTERY | ||
| 359 | A 6299500111 | PLATE |
| LEFT | ||
| 359 | A 6299500211 | PLATE |
| RIGHT | ||
| 362 | A 6299590171 | SCREW |
| M10X14MM | ||
| 365 | A 0059900048 | WASHER |
| 368 | N 913023010002 | NUT |
| M10 | ||

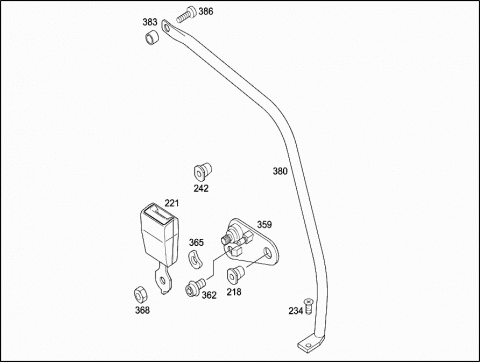

| 380 | A 6299700001 | ARMREST |
| AISLE-SIDE,LEFT,FIXED,WITH BELT | ||
| 380 | A 6299700001 | ARMREST |
| AISLE-SIDE,LEFT,FIXED,WITHOUT BELT | ||
| 380 | A 6299700101 | ARMREST |
| AISLE-SIDE,RIGHT,FIXED,WITHOUT BELT | ||
| 383 | A 6299591117 | BUSHING |
| 9X14MM | ||
| 386 | A 0089908404 | SCREW |
| M10X40 T50 | ||
| 500 | A 6298600085 | SAFETY BELT |
| STANDARD SEAT,LEFT OR RIGHT | ||
| 503 | A 6299590115 | PIN |
| SHORT | ||
| 506 | A 6298600185 | SAFETY BELT |
| REAR SEAT BENCH,LEFT | ||
| 509 | A 6298600032 | CLAMP |
| REAR SEAT,OUTSIDE LEFT | ||
| 515 | A 6299590315 | PIN |
| LONG | ||
| 521 | A 0029906622 | SCREW |
| M 8X12 | ||
