Transporto priemonė: TOURINO EURO 4; VIN numerio dalis: 444303

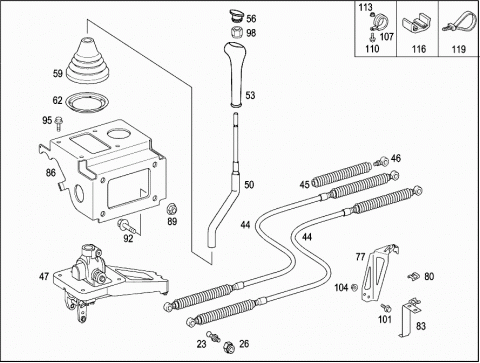

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4442680268 | PLATE |
| 008 | A 0002686540 | BRACKET |
| LOWER PART | ||
| 011 | A 0002686640 | BRACKET |
| UPPER PART | ||
| 014 | A 4442681340 | BRACKET |
| 017 | A 4442681540 | BRACKET |
| Repalced by: A 4442681840 | ||
| 017 | A 4442681840 | BRACKET |
| 023 | N 071803013102 | BALL PIVOT |
| M8 | ||
| 023 | A 6279910015 | BALL PIVOT |
| M10 | ||
| 026 | N 913023008003 | NUT |
| M8 | ||
| 026 | N 910113010001 | NUT |
| M10 | ||
| 029 | A 0109972181 | GROMMET |
| 032 | A 6292680150 | BUSHING |
| 035 | N 910105010009 | SCREW |
| M10X25MM | ||
| 038 | A 0029901822 | SCREW |
| 041 | N 910105008039 | SCREW |
| M8X25MM | ||
| 044 | A 0002600751 | CABLE |
| TRANSMISSION GEARSHIFT | ||
| 7050MM | ||
| 044 | A 0002606651 | CABLE |
| TRANSMISSION GEARSHIFT | ||
| 6950MM | ||
| 045 | A 0002684397 | BOOT |
| 046 | A 0002689089 | BALL JOINT |
| 047 | A 0002685501 | HOUSING |
| 050 | A 6272600139 | SHIFT LEVER |
| Repalced by: A 4442600039 | ||
| 050 | A 4442600039 | SHIFT LEVER |
| 053 | A 6202680042 | KNOB |
| 056 | A 6202680457 | COVER |
| 059 | A 6272680097 | BOOT |
| 062 | A 6272640057 | RING |
| 065 | N 000000003250 | WASHER |
| 068 | N 910105008010 | SCREW |
| M8X40MM | ||
| 071 | N 913023008003 | NUT |
| M8 | ||
| 077 | A 4442681640 | BRACKET |
| 080 | A 6276121236 | BRACKET |
| 083 | A 4442681740 | BRACKET |
| 086 | A 4442680536 | CONSOLE |
| 086 | A 4442680636 | CONSOLE |
| 089 | N 913023012002 | NUT |
| M12X1,5 | ||
| 092 | N 910105012007 | SCREW |
| M12X1,5X30MM | ||
| 092 | N 910105012020 | SCREW |
| M12X1,5X35MM | ||
| 095 | N 910105008039 | SCREW |
| M8X25MM | ||
| 098 | N 910113010002 | HEXAGON NUT |
| M10X1 | ||
| 101 | N 910105008039 | SCREW |
| M8X25MM | ||
| 104 | N 910112008000 | NUT |
| M8 | ||
| 107 | N 916016016200 | CLAMP |
| 16/15 | ||
| Repalced by: N 000000000323 | ||
| 107 | N 000000000323 | CLAMP |
| 16/15 | ||
| Repalced by: A 0019951842 | ||
| 107 | A 0019951842 | MOUNTING CLAMP |
| 16/15 | ||
| 107 | N 916016028202 | CLAMP |
| 28/15 | ||
| Repalced by: N 000000000329 | ||
| 107 | N 000000000329 | CLAMP |
| 28/15 | ||
| Repalced by: A 0019951842 | ||
| 107 | A 0019951842 | MOUNTING CLAMP |
| 28/15 | ||
| 110 | N 910105006006 | SCREW |
| M6X20MM | ||
| 113 | N 910112006001 | NUT |
| M6 | ||
| 116 | A 0119889678 | CLIP |
| 119 | A 0029975890 | CABLE TIE |
| 7.4-8.4X355-375 | ||
