Transporto priemonė: TOURISMO 15 RHD; VIN numerio dalis: 632036

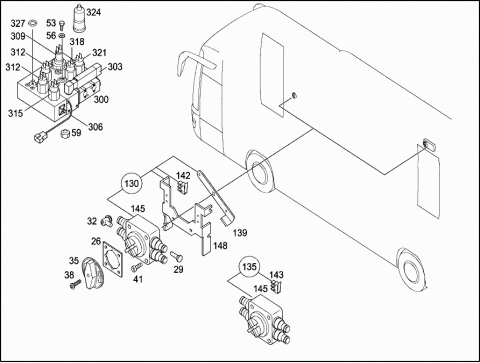

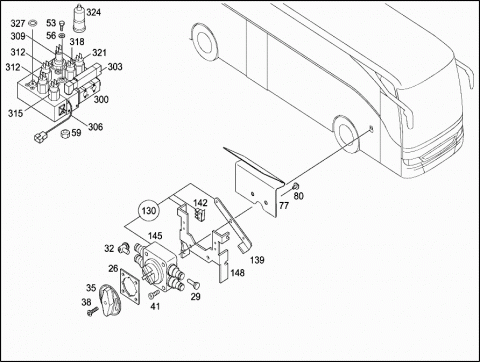

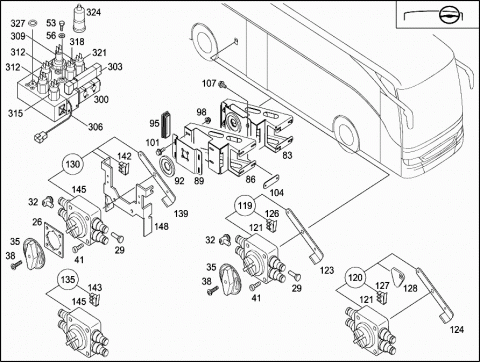

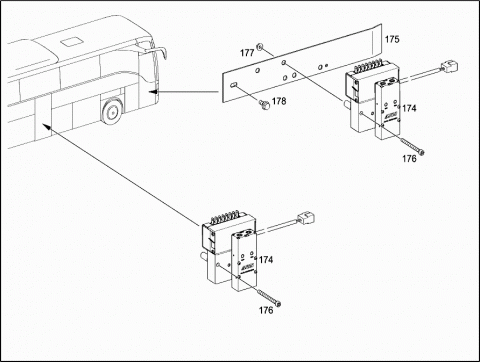

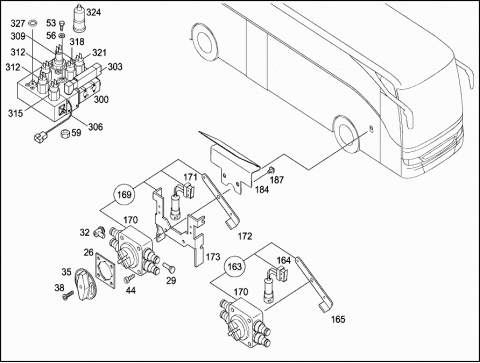

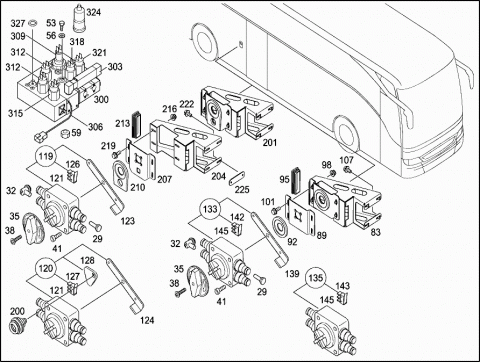

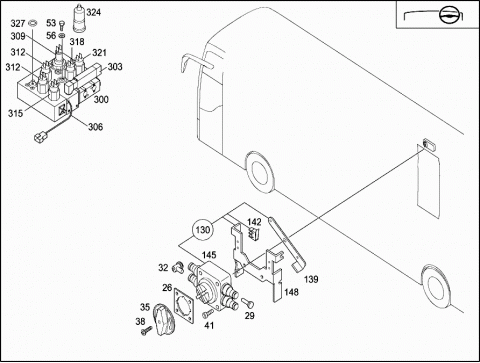

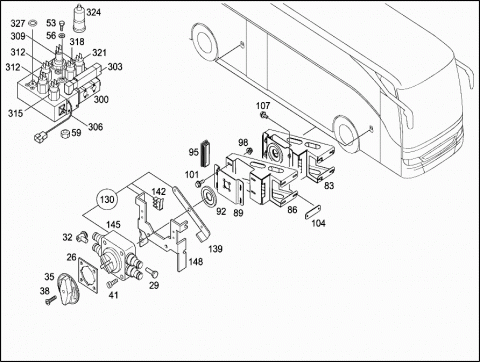

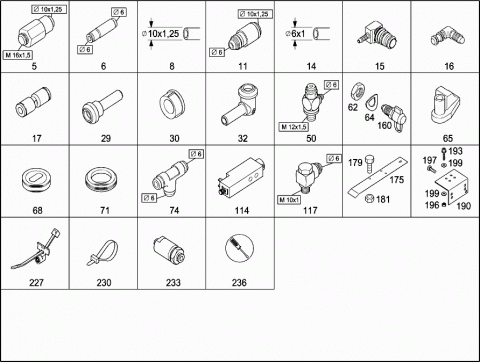

Grupė: 76 DOOR AND WINDOW ACCESSORIES - 060 DOOR CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0059974036 | VALVE |
| 005 | A 0059974036 | VALVE |
| 006 | A 0007605278 | VALVE |
| DIA., | ||
| 6MM | ||
| 008 | A 0009873927 | PLASTIC PIPE |
| 10X1,25X2200MM | ||
| 008 | A 0009873927 | PLASTIC PIPE |
| 10X1,25X2200MM | ||
| 011 | A 0009974475 | NOZZLE RESTRICTOR |
| 6/10 | ||
| 011 | A 0009974475 | NOZZLE RESTRICTOR |
| 6/10 | ||
| 014 | A 0009872627 | PLASTIC PIPE |
| 6X1 | ||
| 014 | A 0009872627 | PLASTIC PIPE |
| 6X1X4500MM | ||
| 015 | A 0039977289 | ELBOW FITTING |
| 015 | A 0039977289 | ELBOW FITTING |
| 016 | A 0039976589 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/6X1 | ||
| Repalced by: A 0049977889 | ||
| 016 | A 0049977889 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/6X1 | ||
| 016 | A 0049977889 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/6X1 | ||
| 016 | A 0049977889 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/6X1 | ||
| 017 | A 0019979289 | COUPLING |
| 026 | A 0029872460 | RUBBER PAD |
| 026 | A 0029872460 | RUBBER PAD |
| 029 | A 0009973101 | PLUG |
| 029 | A 0009973101 | PLUG |
| 030 | A 0019981050 | PLUG |
| 032 | A 0049904271 | ELBOW FITTING |
| 032 | A 0049904271 | ELBOW FITTING |
| 032 | A 0049904271 | ELBOW FITTING |
| 035 | A 0009977077 | ROTARY KNOB |
| 035 | A 0009977077 | ROTARY KNOB |
| 035 | A 0009977177 | ROTARY KNOB |
| 035 | A 0009977177 | ROTARY KNOB |
| 038 | N 000000007000 | SCREW |
| M5X10MM | ||
| 038 | A 0029901020 | SCREW |
| M5X10MM | ||
| 038 | A 0029901020 | SCREW |
| M5X10MM | ||
| 038 | A 0029901020 | SCREW |
| M5X10MM | ||
| 038 | N 000000003146 | SCREW |
| M5X25 | ||
| 038 | N 000000002208 | SCREW |
| M5X16 | ||
| 041 | N 000000007002 | SCREW |
| M6X10MM | ||
| 041 | A 0019909820 | HEXAL. SOCKET CSK. BOLT |
| M6X10MM | ||
| 044 | N 000000001474 | HEXALOBULAR BOLT |
| M6X10 | ||
| 044 | N 000000001474 | HEXALOBULAR BOLT |
| M6X10 | ||
| 050 | A 0039907068 | FITTING |
| OUTLET THROTTLE | ||
| M12X1;5/6 | ||
| 050 | A 0039907068 | FITTING |
| OUTLET THROTTLE | ||
| M12X1;5/6 | ||
| 053 | N 304017006028 | SCREW |
| M6X50MM | ||
| 053 | N 910105006013 | HEXAGON HEAD BOLT |
| M6X50MM | ||
| 053 | N 910105006009 | HEXAGON HEAD BOLT |
| 053 | N 304017006028 | SCREW |
| M6X50MM | ||
| 056 | N 000125006449 | WASHER |
| M6X50MM | ||
| 056 | N 000125006449 | WASHER |
| M6X50MM | ||
| 059 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 059 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 062 | A 0049906051 | NUT |
| M16X1.5 RAUFOSS | ||
| 062 | A 0049906051 | NUT |
| M16X1.5 RAUFOSS | ||
| 064 | A 0009943810 | LOCK |
| 065 | A 0109883378 | RETAINING CLIP |
| 065 | A 0109883378 | RETAINING CLIP |
| 068 | A 0009876441 | RUBBER RING |
| 068 | A 0009876441 | GROMMET |
| 071 | A 0099978581 | GROMMET |
| 071 | A 0099978581 | GROMMET |
| 074 | A 0049907170 | T-FITTING |
| 074 | A 0049907170 | T-FITTING |
| 077 | A 6297520021 | COVERING |
| 080 | N 000000001474 | HEXALOBULAR BOLT |
| M6X10 | ||
| 083 | A 6297500514 | BRACKET |
| 17 X 40 MM | ||
| 083 | A 6297500514 | BRACKET |
| 17 X 40 MM | ||
| 086 | A 6297500414 | BRACKET |
| Repalced by: A 6327630414 | ||
| 086 | A 6327630414 | BRACKET |
| 086 | A 6297500414 | BRACKET |
| Repalced by: A 6327630414 | ||
| 086 | A 6327630414 | BRACKET |
| 089 | A 6297660219 | PLATE |
| 089 | A 6297660219 | PLATE |
| 092 | A 6297570098 | SEAL |
| Repalced by: A 6327570078 | ||
| 092 | A 6327570078 | SEAL |
| 092 | A 6297570098 | SEAL |
| Repalced by: A 6327570078 | ||
| 092 | A 6327570078 | SEAL |
| 095 | A 0039971686 | PLUG |
| 095 | A 0039971686 | PLUG |
| 098 | N 913023006002 | NUT |
| M6 | ||
| 098 | N 913023006002 | NUT |
| M6 | ||
| 101 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 101 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 101 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 101 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 104 | A 6297540097 | PAD |
| 104 | A 6297540097 | PAD |
| 107 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 107 | N 910105006002 | SCREW |
| M6X12MM | ||
| 114 | A 0007604978 | LOCKING VALVE |
| 117 | A 0039906768 | FITTING |
| 119 | A 6297600057 | CONTROL COCK |
| 119 | A 6297600057 | CONTROL COCK |
| 120 | A 0007604657 | EMERGENCY VALVE |
| 120 | A 0007604657 | EMERGENCY VALVE |
| 121 | A 6287602157 | CONTROL COCK |
| 121 | A 6287602157 | CONTROL COCK |
| 123 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 123 | A 0007663224 | ACTUATING LEVER |
| 123 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 123 | A 0007663224 | ACTUATING LEVER |
| 124 | A 0007663224 | ACTUATING LEVER |
| 124 | A 0007663224 | ACTUATING LEVER |
| 126 | A 0055458717 | SWITCH |
| MICRO-SWITCH | ||
| 126 | A 0055458717 | SWITCH |
| MICRO-SWITCH | ||
| 126 | A 0055458714 | SWITCH |
| MICRO-SWITCH | ||
| 127 | A 0138208610 | QUICK BREAK SWITCH |
| MICRO-SWITCH | ||
| 127 | A 0138208610 | QUICK BREAK SWITCH |
| MICRO-SWITCH | ||
| 128 | A 0007270047 | SHACKLE |
| MICRO-SWITCH | ||
| 128 | A 0007270047 | SHACKLE |
| MICRO-SWITCH | ||
| 130 | A 6277600857 | EMERGENCY COCK |
| STANDARD | ||
| 130 | A 6277600857 | EMERGENCY COCK |
| STANDARD | ||
| 130 | A 6277600857 | EMERGENCY COCK |
| STANDARD | ||
| 130 | A 6277600857 | EMERGENCY COCK |
| STANDARD | ||
| 130 | A 6277600857 | EMERGENCY COCK |
| STANDARD | ||
| 133 | A 6277600857 | EMERGENCY COCK |
| STANDARD | ||
| 135 | A 0007604457 | EMERGENCY VALVE |
| STANDARD | ||
| 135 | A 0007604457 | EMERGENCY VALVE |
| STANDARD | ||
| 139 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 139 | A 0007663224 | ACTUATING LEVER |
| 139 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 139 | A 0007663224 | ACTUATING LEVER |
| 139 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 139 | A 0007663224 | ACTUATING LEVER |
| 142 | A 0055458714 | SWITCH |
| 142 | A 0055458714 | SWITCH |
| 143 | A 0138208510 | QUICK BREAK SWITCH |
| 143 | A 0138208510 | QUICK BREAK SWITCH |
| 143 | A 0138208510 | QUICK BREAK SWITCH |
| 145 | A 6287602157 | CONTROL COCK |
| 145 | A 6287602157 | CONTROL COCK |
| 148 | A 0007661469 | BRACKET |
| 148 | A 0007661469 | BRACKET |
| 148 | A 0007661469 | BRACKET |
| 160 | A 0014312331 | TEST CONNECTION |
| M16X1.5/M16X1.5 | ||
| 160 | A 0014312331 | TEST CONNECTION |
| M16X1.5/M16X1.5 | ||
| 163 | A 0007605557 | EMERGENCY VALVE |
| 164 | A 0148200410 | QUICK BREAK SWITCH |
| 165 | A 0007663224 | ACTUATING LEVER |
| 169 | A 6327600257 | CONTROL COCK |
| P67 | ||
| 169 | A 6327600257 | CONTROL COCK |
| 169 | A 6327600257 | CONTROL COCK |
| P67 | ||
| 170 | A 6287602157 | CONTROL COCK |
| 170 | A 6287602157 | CONTROL COCK |
| 171 | A 0038210151 | SWITCH |
| 171 | A 0038210151 | SWITCH |
| 171 | A 0038210151 | SWITCH |
| 172 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 172 | A 0007663224 | ACTUATING LEVER |
| 172 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 172 | A 0007663224 | ACTUATING LEVER |
| 172 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 172 | A 0007663224 | ACTUATING LEVER |
| 173 | A 0007661469 | BRACKET |
| 173 | A 0007661469 | BRACKET |
| 173 | A 0007661469 | BRACKET |
| 174 | A 0007600761 | ACTUATION |
| 175 | A 6327630114 | BRACKET |
| DOOR CONTROL | ||
| 175 | A 6327630114 | BRACKET |
| DOOR CONTROL | ||
| 176 | N 000000007113 | CAP BOLT |
| M5X60 | ||
| 177 | N 910112005000 | HEXAGON NUT |
| M5 | ||
| 178 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 179 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 179 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 179 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 179 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 181 | N 913023006002 | NUT |
| M6 | ||
| 184 | A 6327660425 | ESCUTCHEON |
| 184 | A 6327660425 | ESCUTCHEON |
| 187 | N 000000001474 | HEXALOBULAR BOLT |
| M6X10 | ||
| 187 | N 000000001474 | HEXALOBULAR BOLT |
| M6X10 | ||
| 190 | A 6327640014 | BRACKET |
| DOOR CONTROL | ||
| 193 | A 0039909312 | SCREW |
| M4X50 | ||
| 196 | N 304032004002 | HEXAGON NUT |
| M4 | ||
| 197 | N 000000002108 | HEXALOBULAR BOLT |
| M5 | ||
| 199 | A 0009944210 | LOCK |
| WASHER | ||
| 200 | A 0007500850 | LOCK HOUSING |
| 201 | A 6297501214 | BRACKET |
| 201 | A 6297501214 | BRACKET |
| 204 | A 6297500414 | BRACKET |
| Repalced by: A 6327630414 | ||
| 204 | A 6327630414 | BRACKET |
| 204 | A 6297500414 | BRACKET |
| Repalced by: A 6327630414 | ||
| 204 | A 6327630414 | BRACKET |
| 207 | A 6297660569 | BRACKET |
| 207 | A 6297660569 | BRACKET |
| 210 | A 6297570298 | SEAL |
| Repalced by: A 6327570178 | ||
| 210 | A 6327570178 | SEAL |
| 210 | A 6297570298 | SEAL |
| Repalced by: A 6327570178 | ||
| 210 | A 6327570178 | SEAL |
| 213 | A 0039971686 | PLUG |
| 120X40X3MM | ||
| 213 | A 0039971686 | PLUG |
| 120X40X3MM | ||
| 216 | N 913023006002 | NUT |
| M6 | ||
| 216 | N 913023006002 | NUT |
| M6 | ||
| 219 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 219 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 219 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 219 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 222 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 222 | N 910105006002 | SCREW |
| M6X12MM | ||
| 225 | A 6297540097 | PAD |
| 225 | A 6297540097 | PAD |
| 227 | A 2105461943 | BRACKET |
| 230 | A 0029972390 | CABLE TIE |
| 4.5-5.2X186-200 | ||
| 230 | A 0019978390 | CABLE TIE |
| 279MM | ||
| 230 | A 0079975690 | CABLE STRAP |
| 4.5-5.2X186-200 | ||
| 233 | A 0008053169 | FILTER |
| 233 | A 0008053169 | FILTER |
| 236 | A 0055840238 | ADHESIVE LABEL |
| 300 | A 0007606178 | VALVE |
| DOOR CONTROL | ||
| 300 | A 0007607578 | SOLENOID VALVE |
| DOOR CONTROL | ||
| Repalced by: A 0007608378 | ||
| 300 | A 0007608378 | VALVE |
| DOOR CONTROL | ||
| 300 | A 0007608378 | VALVE |
| DOOR CONTROL | ||
| 300 | A 0007608378 | VALVE |
| DOOR CONTROL | ||
| 303 | A 0009971712 | DIRECTIONAL CONTROL VALVE |
| 5/2 | ||
| 303 | A 0009971712 | DIRECTIONAL CONTROL VALVE |
| 5/2 | ||
| 306 | A 0008200585 | CONTROL ELECTRONICS |
| TO A 000 760 75 78 | ||
| Repalced by: A 0008201085 | ||
| 306 | A 0008201085 | CONTROL ELECTRONICS |
| TO A 000 760 75 78 | ||
| 306 | A 0008201085 | CONTROL ELECTRONICS |
| TO A 000 760 83 78 | ||
| 306 | A 0008201085 | CONTROL ELECTRONICS |
| TO A 000 760 83 78 | ||
| 309 | A 0008005878 | VALVE |
| ADJUSTABLE | ||
| 4,2 BAR | ||
| 309 | A 0008005878 | VALVE |
| ADJUSTABLE | ||
| 4,2 BAR | ||
| 312 | A 0065452714 | SWITCH |
| BREAK PULSE | ||
| 4,5 BAR | ||
| 312 | A 0065452714 | SWITCH |
| BREAK PULSE | ||
| 4,5 BAR | ||
| 315 | A 0065453014 | SWITCH |
| MAKE PULSE | ||
| 4,5 BAR | ||
| 315 | A 0065453014 | SWITCH |
| MAKE PULSE | ||
| 4,5 BAR | ||
| 318 | A 0065452814 | SWITCH |
| MAKE PULSE | ||
| 2,0 BAR | ||
| 318 | A 0065452814 | SWITCH |
| MAKE PULSE | ||
| 2,0 BAR | ||
| 321 | A 0065452914 | SWITCH |
| MAKE PULSE | ||
| 3,0 BAR | ||
| 321 | A 0065452914 | SWITCH |
| MAKE PULSE | ||
| 3,0 BAR | ||
| 324 | A 0009983323 | PROTECTIVE CAP |
| 324 | A 0009983323 | PROTECTIVE CAP |
| 327 | A 0209976645 | O-RING |
| 327 | A 0209976645 | O-RING |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
