Transporto priemonė: TOURISMO 15 RHD; VIN numerio dalis: 632036

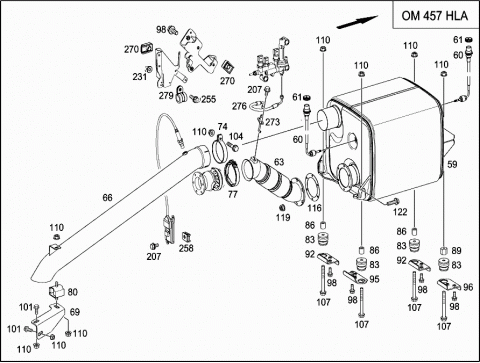

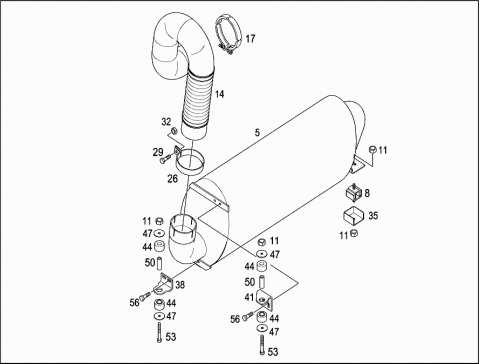

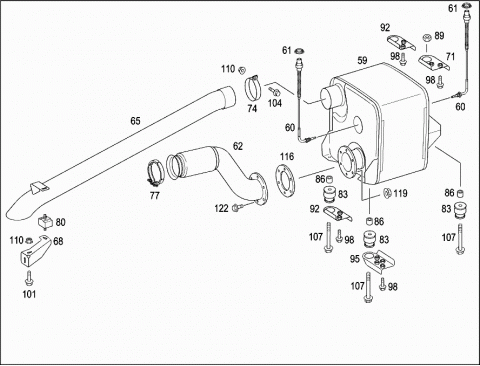

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6294900301 | EXHAUST MUFFLER |
| VST | ||
| 008 | A 0004910285 | RUBBER MOUNTING |
| 011 | N 913023010002 | NUT |
| M10 | ||
| 014 | A 6294900910 | EXHAUST PIPE |
| Repalced by: A 6294902010 | ||
| 014 | A 6294902010 | EXHAUST PIPE |
| 017 | A 9429970290 | CLAMP |
| Repalced by: A 0004921240 | ||
| 017 | A 0004921240 | CLAMP |
| Repalced by: A 6554920140 | ||
| 017 | A 6554920140 | CLAMP |
| 026 | A 6294910040 | CLAMP |
| Repalced by: A 0004921240 | ||
| 026 | A 0004921240 | CLAMP |
| Repalced by: A 6554920140 | ||
| 026 | A 6554920140 | CLAMP |
| 029 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| Repalced by: N 910105010007 | ||
| 029 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 032 | N 910113012002 | HEXAGON NUT |
| M12X1,5 | ||
| Repalced by: N 910112010001 | ||
| 032 | N 910112010001 | NUT |
| M10 | ||
| 035 | A 6294920230 | PROTECTIVE PLATE |
| 038 | A 6294910115 | CONSOLE |
| 041 | A 6294910215 | CONSOLE |
| 044 | A 0004920087 | BUFFER |
| 047 | A 0069905640 | WASHER |
| 50X11X3MM | ||
| 050 | A 0004910053 | SPACER TUBE |
| 053 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80MM | ||
| 056 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 059 | A 0014902814 | CATALYST |
| 059 | A 0014904914 | CATALYST |
| NOX SENSOR | ||
| 060 | A 0061530428 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 061 | A 0005460522 | CLAMPING RING |
| 062 | A 6334901010 | EXHAUST PIPE |
| Repalced by: A 6334901610 | ||
| 062 | A 6334901610 | EXHAUST PIPE |
| 063 | A 6334901310 | EXHAUST PIPE |
| 065 | A 6334900327 | TAILPIPE |
| 066 | A 6334900527 | TAILPIPE |
| 068 | A 6334910042 | BRACKET |
| 068 | A 6334910042 | BRACKET |
| 069 | A 6334910142 | BRACKET |
| 071 | A 6334900017 | ANGLE |
| 110X83MM | ||
| 074 | A 6334920140 | CLAMP |
| EXHAUST SYSTEM | ||
| 077 | A 0009958602 | CLAMP |
| D=148 | ||
| 080 | A 0004910285 | RUBBER MOUNTING |
| 083 | A 0009980246 | INSULATION |
| 083 | A 0009980246 | INSULATION |
| Repalced by: A 0009980846 | ||
| 083 | A 0009980846 | DASHPOT |
| 086 | A 0009927050 | SPACER SLEEVE |
| 089 | A 0039903150 | NUT |
| 092 | A 6324900117 | ANGLE |
| 110X69MM | ||
| 092 | A 6324900117 | ANGLE |
| 110X69MM | ||
| Repalced by: A 6324900517 | ||
| 092 | A 6324900517 | ANGLE |
| 110X69MM | ||
| 095 | A 6334900117 | ANGLE |
| 130X69MM | ||
| 095 | A 6334900117 | ANGLE |
| 130X69MM | ||
| Repalced by: A 6334900517 | ||
| 095 | A 6334900517 | ANGLE |
| 130X69MM | ||
| 096 | A 6334900017 | ANGLE |
| Repalced by: A 6334900417 | ||
| 096 | A 6334900417 | ANGLE |
| 098 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 101 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20MM | ||
| 101 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20MM | ||
| 101 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 104 | N 910105010008 | HEXAGON HEAD BOLT |
| M10X45MM | ||
| 107 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80MM | ||
| Repalced by: N 910105010044 | ||
| 107 | N 910105010044 | HEXAGON HEAD BOLT |
| M10X90MM | ||
| 110 | N 910112010001 | NUT |
| M10 | ||
| 110 | N 910112010001 | NUT |
| M10 | ||
| 116 | A 0004920780 | FLANGE GASKET |
| D=129 | ||
| 119 | N 913023010002 | NUT |
| M10 | ||
| 119 | N 913023010002 | NUT |
| M10 | ||
| Repalced by: A 0009902852 | ||
| 119 | A 0009902852 | NUT FOR TAPPING SCREW |
| M10 | ||
| 122 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 122 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| Repalced by: A 0189901101 | ||
| 122 | A 0189901101 | SCREW |
| M10X35MM | ||
| 207 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 231 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 255 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 258 | A 0049941645 | SPRING NUT |
| 270 | A 0049941945 | NUT |
| 273 | A 0001400668 | WATER NOZZLE |
| REDUCING AGENT | ||
| 276 | A 4571402055 | DELIVERY LINE |
| 279 | N 916016012200 | CLAMP |
| 12/15 | ||
| Repalced by: N 000000000321 | ||
| 279 | N 000000000321 | CLAMP |
| 12/15 | ||
| Repalced by: N 000000007512 | ||
| 279 | N 000000007512 | CLAMP |
| 12/15 | ||
