Transporto priemonė: TOURISMO 15 RHD; VIN numerio dalis: 632036

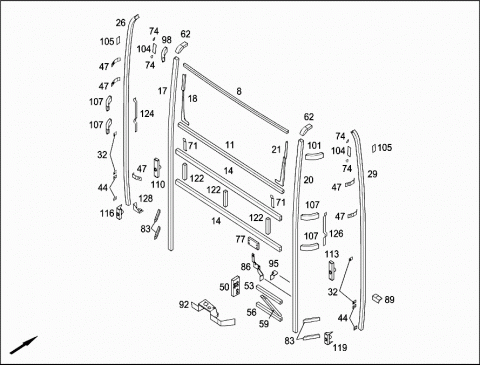

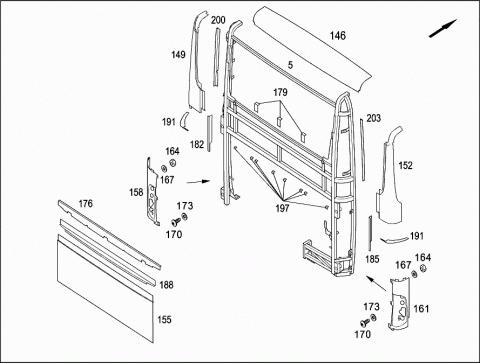

Grupė: 64 REAR PANEL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6326400401 | REAR PANEL |
| COMPLETE | ||
| 008 | A 6326420106 | FRAME PART |
| ROOF CROSS MEMBER | ||
| 011 | A 6326420006 | FRAME PART |
| CENTRAL TOP | ||
| 014 | A 6296420006 | FRAME PART |
| CENTRAL | ||
| 017 | A 6326401210 | PILLAR |
| LEFT | ||
| 018 | A 6336440012 | ANGLE |
| LEFT | ||
| 020 | A 6326401310 | PILLAR |
| RIGHT | ||
| 021 | A 6336440112 | ANGLE |
| RIGHT | ||
| 026 | A 6326401410 | PILLAR |
| LEFT | ||
| 029 | A 6326401510 | PILLAR |
| RIGHT | ||
| 032 | A 6296411613 | PLATE |
| 044 | A 6296410713 | PLATE |
| 047 | A 6326410014 | BRACKET |
| 050 | A 6296400233 | STAY |
| 053 | A 6296420615 | GIRDER PART |
| 056 | A 6296420415 | GIRDER PART |
| 059 | A 6296430420 | STRUT |
| 062 | A 6336400068 | REST |
| LEFT AND RIGHT | ||
| 071 | A 6326470078 | RAIL |
| 074 | A 6326410016 | REINFORCEMENT |
| 077 | A 6296422411 | PLATE |
| 083 | A 6296430320 | STRUT |
| 086 | A 6296411314 | BRACKET |
| RIGHT | ||
| 089 | A 6296400051 | BRACKET |
| RADIATOR MOUNTING | ||
| 092 | A 6296460131 | CONSOLE |
| 095 | A 6296410714 | BRACKET |
| 098 | A 6326430020 | STRUT |
| LEFT | ||
| 101 | A 6326430120 | STRUT |
| RIGHT | ||
| 104 | A 6326410310 | REINFORCEMENT |
| 50X125MM | ||
| 105 | A 6326410116 | REINFORCEMENT |
| 40X140MM | ||
| 107 | A 6296430220 | STRUT |
| 110 | A 6296400283 | MOUNTING |
| SKI-BOX | ||
| 113 | A 6296400383 | MOUNTING |
| SKI-BOX | ||
| 116 | A 6296400083 | MOUNTING |
| 119 | A 6296400183 | MOUNTING |
| 122 | A 6296410410 | PILLAR |
| 124 | A 6326470178 | RAIL |
| 126 | A 6326470278 | RAIL |
| Repalced by: A 6326470178 | ||
| 126 | A 6326470178 | RAIL |
| 128 | A 6296410514 | BRACKET |
| 146 | A 6336470184 | PANELING |
| DOME SHAPED SECTION | ||
| 149 | A 6326470009 | PANELLING |
| SIDE PART,REAR LEFT | ||
| 152 | A 6326470109 | PANELLING |
| SIDE PART,REAR RIGHT | ||
| 155 | A 6326471884 | REAR STYLING CONV. KIT |
| 158 | A 6336470284 | SIDE PART |
| LEFT | ||
| 161 | A 6336470384 | SIDE PART |
| RIGHT | ||
| 164 | N 304032008006 | HEXAGON NUT |
| M8 | ||
| 167 | N 000000003250 | WASHER |
| 170 | A 0009902029 | SCREW |
| M6X25 T30 | ||
| 173 | A 0069901040 | WASHER |
| 176 | A 6326472412 | ANGLE |
| 179 | A 6326470212 | ANGLE |
| 182 | A 6326471812 | ANGLE |
| LEFT | ||
| 185 | A 6326471912 | ANGLE |
| RIGHT | ||
| 188 | A 6326471712 | ANGLE |
| 191 | A 6326470374 | PARTITION PANEL |
| 197 | A 6296020512 | ANGLE |
| 20MM | ||
| 200 | A 6326472212 | ANGLE |
| LEFT | ||
| 203 | A 6326472312 | ANGLE |
| RIGHT | ||
