Transporto priemonė: TOURISMO 15 RHD; VIN numerio dalis: 632036

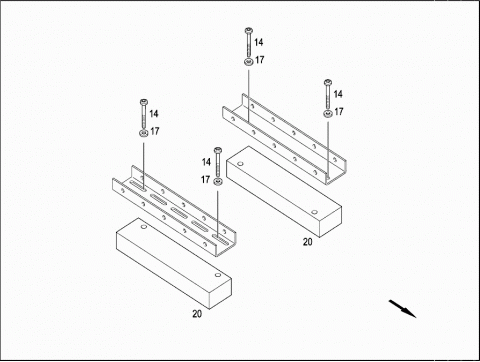

Grupė: 92 SEATS - 040 REAR SEAT BENCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 014 | A 0009902129 | SCREW |
| M10X80 T50 | ||
| 014 | A 0009902229 | SCREW |
| M10X10 T50 | ||
| 017 | N 000000003386 | WASHER |
| 020 | A 6299210097 | UNDERLAYER |
| 020 | A 6299210197 | UNDERLAYER |
| 050 | A 6299210111 | PLATE |
| 050 | A 6299210211 | PLATE |
| 053 | A 6299201262 | CONSOLE |
| LEFT | ||
| 053 | A 6299201262 | CONSOLE |
| LEFT | ||
| 056 | A 6299201362 | CONSOLE |
| RIGHT | ||
| 056 | A 6299201362 | CONSOLE |
| RIGHT | ||
| 059 | A 6299502674 | TAKE-UP DEVICE |
| LEFT,FOR ADJUSTMENT | ||
| 059 | A 6299502674 | TAKE-UP DEVICE |
| LEFT,FOR ADJUSTMENT | ||
| 059 | A 6299500474 | TAKE-UP DEVICE |
| LEFT,FOR ADJUSTMENT | ||
| 059 | A 6299502874 | TAKE-UP DEVICE |
| LEFT,WITHOUT ADJUSTMENT | ||
| 059 | A 6299502874 | TAKE-UP DEVICE |
| LEFT,WITHOUT ADJUSTMENT | ||
| 059 | A 6299502874 | TAKE-UP DEVICE |
| LEFT,WITHOUT ADJUSTMENT | ||
| 062 | A 6299500574 | TAKE-UP DEVICE |
| RIGHT,FOR ADJUSTMENT | ||
| 062 | A 6299502774 | TAKE-UP DEVICE |
| RIGHT,FOR ADJUSTMENT | ||
| 062 | A 6299502774 | TAKE-UP DEVICE |
| RIGHT,FOR ADJUSTMENT | ||
| 062 | A 6299502774 | TAKE-UP DEVICE |
| RIGHT,FOR ADJUSTMENT | ||
| 062 | A 6299502974 | TAKE-UP DEVICE |
| RIGHT,WITHOUT ADJUSTMENT | ||
| 062 | A 6299502974 | TAKE-UP DEVICE |
| RIGHT,WITHOUT ADJUSTMENT | ||
| 065 | A 0019908120 | SCREW W HEXAGON SOCKET |
| M8X16 | ||
| 068 | A 0039903712 | SCREW |
| M8X16 T40 | ||
| 071 | N 000000003250 | WASHER |
| 074 | N 910112008000 | NUT |
| M8 | ||
| 077 | A 0039903712 | SCREW |
| M8X16 T40 | ||
| 077 | A 0009902129 | SCREW |
| M10X80 T50 | ||
| 080 | N 000000003250 | WASHER |
| 080 | N 000125010538 | WASHER |
| 206 | A 6299500361 | SEAT CUSHION |
| SPACE FOR A HANDICAPPED PERSON,REAR,WALL-SIDE | ||
| 475MM X 450MM | ||
| 206 | A 6329500261 | CUSHION |
| SEAT CUSHION(INTEGRATED LEG PADDING),REAR,RIGHT WALL-SIDE,SPACE FOR HANDICAPPED PERSON | ||
| 209 | A 6299590214 | BRACKET |
| 209 | A 6299590214 | BRACKET |
| 212 | A 0009908310 | COUNTERSUNK WOOD SCREW |
| 4,1X16MM | ||
| Repalced by: N 000000006408 | ||
| 212 | N 000000006408 | SCREW |
| 4,2X16MM | ||
| 212 | N 000000006408 | SCREW |
| 4,2X16MM | ||
| 370 | A 6329700064 | STAY |
| DIA., | ||
| 21MM | ||
| 370 | A 6329700064 | STAY |
| DIA., | ||
| 21MM | ||
| 371 | A 0009590120 | SUPPORT |
| BEARING BRACKET | ||
| M 8X1 | ||
| 373 | A 6299590117 | BUSHING |
| REAR | ||
| 373 | A 6299590117 | BUSHING |
| REAR | ||
| 376 | A 0009911725 | WASHER |
| 376 | A 0009911725 | WASHER |
| 379 | A 6299590017 | BUSHING |
| FRONT | ||
| 379 | A 6299590017 | BUSHING |
| FRONT | ||
| 380 | A 3029590117 | WASHER |
| 10,2X22X5MM | ||
| 381 | A 0009590221 | STOP |
| 5MM | ||
| 381 | A 0009590321 | STOP |
| 13,6MM | ||
| 381 | A 0009590421 | STOP |
| 22,5MM | ||
| 381 | A 0009590521 | STOP |
| 32,5MM | ||
| 383 | A 6299504754 | LEVER |
| REAR,SPACE FOR HANDICAPPED PERSON,LEFT | ||
| 383 | A 6299504854 | LEVER |
| REAR,SPACE FOR HANDICAPPED PERSON,RIGHT | ||
| 384 | N 000125008443 | WASHER |
| 8,4MM | ||
| 385 | A 0009911725 | WASHER |
| 387 | A 6299501154 | LEVER |
| LEFT,IN THE REAR | ||
| 387 | A 6299501254 | LEVER |
| RIGHT,IN THE REAR | ||
| 388 | A 0009985540 | STOP BUFFER |
| BACKREST | ||
| 388 | A 0009985540 | STOP BUFFER |
| BACKREST | ||
| 391 | A 6299730320 | SUPPORT |
| AT REAR ON GAS-OPERATED SPRING | ||
| 391 | A 6299730320 | SUPPORT |
| AT REAR ON GAS-OPERATED SPRING | ||
| 392 | A 6299590028 | CAP |
| 394 | A 0029906522 | SCREW |
| 394 | A 0029906522 | SCREW |
| 396 | A 6299590264 | SPRING |
| LEFT | ||
| 396 | A 6299590264 | SPRING |
| LEFT | ||
| 396 | A 6299590364 | SPRING |
| RIGHT | ||
| 396 | A 6299590364 | SPRING |
| RIGHT | ||
