Transporto priemonė: TOURO REISEBUS AUF IBC; VIN numerio dalis: 634203
Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|

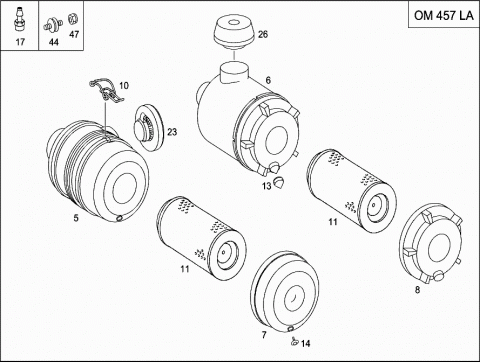

| 005 | A 0180946202 | AIR CLEANER |
| 006 | A 0180944202 | AIR CLEANER |
| 007 | A 0010943603 | FILTER BOWL |
| 008 | A 0010949606 | COVER |
| 010 | A 0000941255 | FASTENER |
| 011 | A 0040942204 | FILTER ELEMENT |
| 011 | A 0040941704 | FILTER CARTRIDGE |
| 013 | A 0000943465 | VALVE |
| 014 | A 0000943865 | PLUG |
| (DUST DISCHARGE VALVE) | ||
| 017 | A 0000940267 | THREADED NIPPLE |
| 021 | N 916016028200 | CLAMP |
| 28/20MM | ||
| Repalced by: N 000000006228 | ||
| 021 | N 000000006228 | CLAMP |
| 28/20MM | ||
| 021 | N 916016050201 | CLAMP |
| 50/20MM | ||
| Repalced by: N 000000004045 | ||
| 021 | N 000000004045 | CLAMP |
| 50/20MM | ||
| 021 | N 000000003186 | CLAMP |
| 76/25MM | ||
| Repalced by: N 000000006128 | ||
| 021 | N 000000006128 | CLAMP |
| 76/25MM | ||
| 021 | N 000000002135 | CLAMP |
| 105/25MM | ||
| 021 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 021 | N 000000000324 | CLAMP |
| 18/15MM | ||
| 021 | N 916016025201 | CLAMP |
| 25/15MM | ||
| Repalced by: N 000000006124 | ||
| 021 | N 000000006124 | CLAMP |
| 25/15MM | ||
| Repalced by: A 0019951642 | ||
| 021 | A 0019951642 | MOUNTING CLAMP |
| 25/15MM | ||
| 023 | A 0000900043 | COVER |
| 024 | A 6345280404 | SCOOP |
| 026 | A 0005280405 | COVER |
| 029 | A 0029970452 | HOSE |
| 032 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 032 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 032 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 035 | N 000000000668 | CLAMP |
| 25-40X12MM | ||
| 035 | N 000000000673 | CLAMP |
| 60-80X13MM | ||
| 035 | N 000000001468 | CLAMP |
| 60-80X13MM | ||
| 035 | N 000000000680 | CLAMP |
| 150-170X12MM | ||

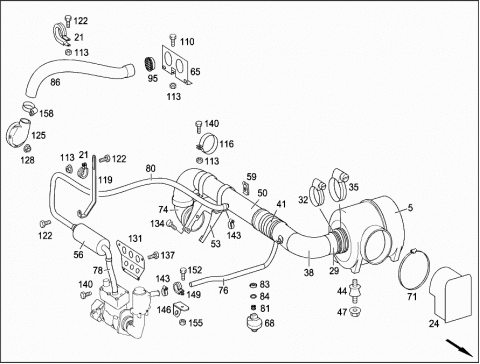

| 038 | A 6345201001 | AIR INTAKE PIPE |
| 041 | A 0249970882 | HOSE |
| 044 | A 0005280185 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| M10X50X20 | ||
| 044 | A 6285040212 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| 047 | N 913023010002 | NUT |
| ATTACHMENT,AIR FILTER | ||
| M10 | ||
| 050 | A 6345200901 | AIR INTAKE PIPE |
| 053 | A 6295280739 | SUPPORT |
| 053 | A 6345280139 | CONSOLE |
| Repalced by: A 6345280839 | ||
| 053 | A 6345280839 | CONSOLE |
| 056 | A 6295500137 | BOX |
| 056 | A 0005200002 | RESONATOR |
| 059 | A 0039941545 | LOCK |
| Repalced by: A 0029942145 | ||
| 059 | A 0029942145 | NUT |
| 065 | A 6345280540 | BRACKET |
| MOUNTING FOR INTAKE PIPE | ||
| 068 | A 0135422917 | SENDER UNIT |
| 071 | N 000000002136 | CLAMP |
| 180-200X12MM | ||
| 074 | A 0029975552 | HOSE |
| (INTAKE HOSE) | ||
| 076 | A 6345280482 | HOSE |
| (INTAKE HOSE) | ||
| 078 | A 0029971752 | HOSE |
| (INTAKE HOSE) | ||
| 080 | A 0029975652 | HOSE |
| 1090MM | ||
| 081 | A 0000940276 | WASHER |
| FELT | ||
| 083 | A 0004291127 | THRUST RING |
| 14X10X2.6MM | ||
| 084 | A 0269970248 | O-RING |
| 086 | A 0029973852 | HOSE |
| 1420MM | ||
| 086 | A 0029973852 | HOSE |
| 1420MM | ||
| 086 | A 0069976652 | SUCTION HOSE |
| 1420MM | ||
| 086 | A 0029974752 | HOSE |
| 1200MM | ||
| 089 | A 0029973252 | HOSE |
| 2385MM | ||
| 089 | A 0029974052 | HOSE |
| 2500MM | ||
| 095 | A 0005280001 | PROTECTIVE GRILLE |

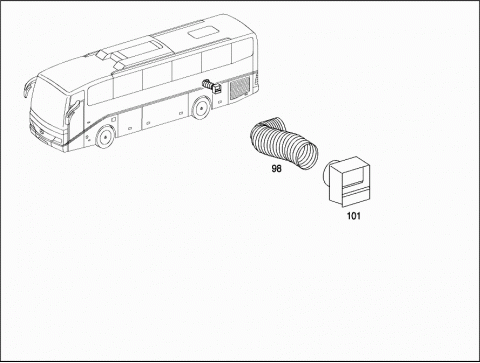

| 098 | A 6348300025 | PIPE SOCKET |
| 101 | A 6348300053 | INTAKE BOX |
| 104 | A 4071540165 | COVER |
| 107 | A 0001541280 | CABLE GROMMET |
| 110 | N 910105008045 | HEXAGON HEAD BOLT |
| M8X55 | ||
| 113 | N 913023008003 | NUT |
| M8 | ||
| 116 | A 0005280043 | CLAMP |
| 119 | A 6345041940 | BRACKET |
| 122 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 125 | A 4571540304 | COVER |
| 128 | N 910112006002 | HEXAGON NUT |
| M6 | ||
| 131 | A 6295500254 | MOUNTING PLATE |
| 134 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 137 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 140 | N 910105008060 | HEXAGON HEAD BOLT |
| M8X35 | ||
| 143 | N 000000000667 | CLAMP |
| 20-32X12MM | ||
| 143 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 146 | A 0004313740 | BRACKET |
| 149 | N 000000006228 | CLAMP |
| 28/20MM | ||
| 149 | N 000000000329 | CLAMP |
| 28/15MM | ||
| Repalced by: A 0019951842 | ||
| 149 | A 0019951842 | MOUNTING CLAMP |
| 28/15MM | ||
| 152 | N 910105006008 | HEXAGON HEAD BOLT |
| M6X25 | ||
| 152 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 155 | N 913023006002 | NUT |
| M6 | ||
| 158 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
