Transporto priemonė: TOURO REISEBUS AUF IBC; VIN numerio dalis: 634203

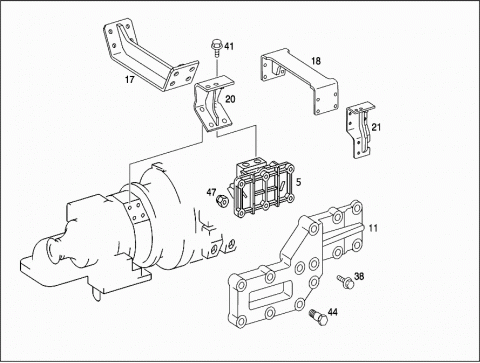

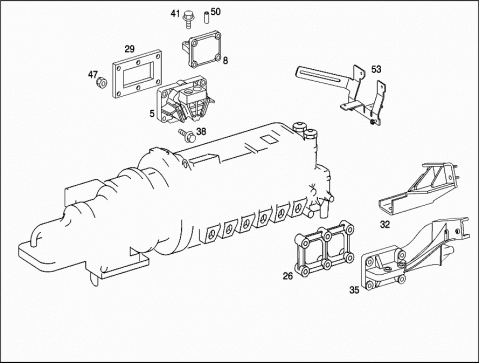

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6282401417 | RUBBER MOUNTING |
| Repalced by: A 6282402117 | ||
| 005 | A 6282402117 | RUBBER MOUNTING |
| LEFT AND RIGHT,FRONT AND REAR | ||
| 005 | A 6282402117 | RUBBER MOUNTING |
| LEFT AND RIGHT,FRONT AND REAR | ||
| 008 | A 6342420601 | ENGINE SUPPORT |
| REAR LEFT | ||
| 008 | A 6342420701 | ENGINE SUPPORT |
| REAR RIGHT | ||
| 011 | A 6342421001 | ENGINE SUPPORT |
| LEFT FRONT | ||
| 011 | A 6342421101 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 017 | A 6342400105 | SUPPORTING ARM |
| BELL HOUSING | ||
| 018 | A 6342400250 | SUPPORTING ARM |
| BELL HOUSING | ||
| 020 | A 6342401740 | BRACKET |
| LEFT SUPPORTING ARM | ||
| 020 | A 6342401840 | BRACKET |
| RIGHT SUPPORTING ARM | ||
| 021 | A 6342402040 | BRACKET |
| LEFT SUPPORTING ARM | ||
| 021 | A 6342402140 | BRACKET |
| RIGHT SUPPORTING ARM | ||
| 022 | A 6342400401 | ENGINE SUPPORT |
| LEFT | ||
| 023 | A 6342400501 | ENGINE SUPPORT |
| RIGHT | ||
| 023 | A 6342402101 | ENGINE SUPPORT |
| RIGHT | ||
| 024 | A 6342400102 | ENGINE SUPPORT |
| REAR LEFT | ||
| 025 | A 9402400218 | RUBBER MOUNTING |
| REAR | ||
| 025 | A 6292400218 | RUBBER MOUNTING |
| REAR LEFT | ||
| 026 | A 6342411284 | SHIM |
| REAR LEFT | ||
| 026 | A 6342411384 | SHIM |
| REAR LEFT | ||
| 029 | A 6342411484 | SHIM |
| REAR RIGHT | ||
| 032 | A 6345000731 | BRACKET |
| REAR LEFT | ||
| 035 | A 4572000440 | BRACKET |
| REAR LEFT | ||
| 038 | N 910105014012 | HEXAGON HEAD BOLT |
| REAR RIGHT,ENGINE SUSPENSION | ||
| M14X1,5X30MM | ||
| 038 | N 910105014005 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION | ||
| M14X1,5X40MM | ||
| Repalced by: N 000000005514 | ||
| 038 | N 000000005514 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION | ||
| M14X1,5X40MM | ||
| Repalced by: N 910105014005 | ||
| 038 | N 910105014005 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION | ||
| M14X1,5X40MM | ||
| 038 | N 910105014013 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION,RIGHT FRONT | ||
| M14X1,5X35MM | ||
| 038 | N 910105014022 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION,RIGHT FRONT | ||
| M14X1.5X120 | ||
| Repalced by: N 000000005722 | ||
| 038 | N 000000005722 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION,RIGHT FRONT | ||
| M14X1,5X120MM | ||
| 038 | N 910105014029 | HEXAGON HEAD BOLT |
| REAR RIGHT,ENGINE SUSPENSION | ||
| M14X1,5X50MM | ||
| 038 | N 910105014019 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION | ||
| M14X1,5X60MM | ||
| Repalced by: N 000000005721 | ||
| 038 | N 000000005721 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION | ||
| M14X1.5X60 | ||
| 038 | N 910105014036 | HEXAGON HEAD BOLT |
| REAR LEFT,ENGINE SUSPENSION | ||
| M14X1,5X70MM | ||
| 038 | N 910105014009 | HEXAGON HEAD BOLT |
| REAR LEFT AND FRONT RIGHT | ||
| M14X1,5X70MM | ||
| Repalced by: N 000000005717 | ||
| 038 | N 000000005717 | HEXAGON HEAD BOLT |
| REAR LEFT AND FRONT RIGHT | ||
| M14X1.5X70-10.9 | ||
| Repalced by: N 910105014009 | ||
| 038 | N 910105014009 | HEXAGON HEAD BOLT |
| REAR LEFT AND FRONT RIGHT | ||
| M14X1,5X70MM | ||
| 038 | N 910105014017 | HEXAGON HEAD BOLT |
| REAR LEFT AND FRONT RIGHT | ||
| M14X1,5X80MM | ||
| 038 | N 910105014016 | HEXAGON HEAD BOLT |
| ENGINE FRONT LEFT SUSPENSION | ||
| M14X1,5X90MM | ||
| 038 | N 910105014011 | HEXAGON HEAD BOLT |
| ENGINE FRONT LEFT SUSPENSION | ||
| M14X1,5X50MM | ||
| 038 | N 910105014018 | HEXAGON HEAD BOLT |
| REAR LEFT,ENGINE SUSPENSION | ||
| M14X1,5X100MM | ||
| Repalced by: N 000000005720 | ||
| 038 | N 000000005720 | HEXAGON HEAD BOLT |
| REAR LEFT,ENGINE SUSPENSION | ||
| M14X1,5X100MM | ||
| 038 | N 910105014020 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION | ||
| M14X1.5X110 | ||
| 038 | N 910105014014 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION | ||
| M14X1,5X140MM | ||
| 038 | N 910105016004 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION | ||
| M16X1,5X40MM | ||
| 038 | N 910105016004 | HEXAGON HEAD BOLT |
| M16X1,5X40MM | ||
| Repalced by: N 000000005535 | ||
| 038 | N 000000005535 | HEXAGON HEAD BOLT |
| M16X1,5X40MM | ||
| 041 | N 910105018023 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION | ||
| M18X1.5X55 | ||
| Repalced by: N 000000005723 | ||
| 041 | N 000000005723 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION | ||
| M18X1,5X55MM | ||
| 041 | N 910105018026 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION,RIGHT FRONT | ||
| M18X1.5X70 | ||
| Repalced by: N 000000005565 | ||
| 041 | N 000000005565 | HEXAGON HEAD BOLT |
| ENGINE SUSPENSION,RIGHT FRONT | ||
| M18X1,5X70MM | ||
| 041 | N 910105018026 | HEXAGON HEAD BOLT |
| LEFT,FRONT AND REAR | ||
| M18X1.5X70 | ||
| Repalced by: N 000000005565 | ||
| 041 | N 000000005565 | HEXAGON HEAD BOLT |
| LEFT,FRONT AND REAR | ||
| M18X1,5X70MM | ||
| 041 | N 910105018028 | HEXAGON HEAD BOLT |
| LEFT AND RIGHT FRONT | ||
| M18X1,5X90MM | ||
| Repalced by: N 000000005725 | ||
| 041 | N 000000005725 | HEXAGON HEAD BOLT |
| LEFT AND RIGHT FRONT | ||
| M18X1,5X90MM | ||
| 041 | N 910105018020 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORTING ARM | ||
| M18X1,5X35MM | ||
| Repalced by: N 000000005561 | ||
| 041 | N 000000005561 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORTING ARM | ||
| M18X1,5X35MM | ||
| 041 | N 910105018022 | HEXAGON HEAD BOLT |
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 041 | N 000000005563 | HEXAGON HEAD BOLT |
| M18X1,5X50MM | ||
| 041 | N 910105018022 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORTING ARM | ||
| M18X1.5X50 | ||
| Repalced by: N 910105018026 | ||
| 041 | N 910105018026 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORTING ARM | ||
| M18X1.5X70 | ||
| Repalced by: N 000000005565 | ||
| 041 | N 000000005565 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORTING ARM | ||
| M18X1,5X70MM | ||
| 041 | N 910105016007 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORTING ARM | ||
| M16X1,5X45MM | ||
| Repalced by: N 000000005538 | ||
| 041 | N 000000005538 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORTING ARM | ||
| M16X1,5X45MM | ||
| 044 | A 6349900114 | SCREW |
| ENGINE FRONT LEFT SUSPENSION | ||
| 044 | A 6349900014 | SCREW |
| ENGINE SUSPENSION,RIGHT FRONT | ||
| 047 | N 913023014003 | NUT |
| ENGINE SUSPENSION | ||
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 047 | N 000000005662 | NUT |
| ENGINE SUSPENSION | ||
| M14X1,5 | ||
| Repalced by: N 913023014003 | ||
| 047 | N 913023014003 | NUT |
| ENGINE SUSPENSION | ||
| M14X1.5 | ||
| 047 | N 913023016001 | NUT |
| ENGINE SUSPENSION | ||
| M16X1,5 | ||
| Repalced by: N 000000005738 | ||
| 047 | N 000000005738 | NUT |
| ENGINE SUSPENSION | ||
| M16X1,5 | ||
| 050 | N 000007012103 | CYLINDRICAL PIN |
| REAR LEFT,ENGINE SUSPENSION | ||
| M6X32MM | ||
| 053 | A 6342401340 | BRACKET |
| PRE-MUFFLER | ||
| 064 | N 910105018018 | HEXAGON HEAD BOLT |
| M18X1,5X45MM | ||
| Repalced by: N 000000005559 | ||
| 064 | N 000000005559 | HEXAGON HEAD BOLT |
| M18X1,5X45MM | ||
| 066 | N 910105018020 | HEXAGON HEAD BOLT |
| M18X1,5X35MM | ||
| Repalced by: N 000000005561 | ||
| 066 | N 000000005561 | HEXAGON HEAD BOLT |
| M18X1,5X35MM | ||
| 066 | N 910105018020 | HEXAGON HEAD BOLT |
| M18X1,5X35MM | ||
| Repalced by: N 000000005561 | ||
| 066 | N 000000005561 | HEXAGON HEAD BOLT |
| M18X1,5X35MM | ||
| 068 | N 910105014006 | HEXAGON HEAD BOLT |
| M14X1,5X65MM | ||
| Repalced by: N 000000005716 | ||
| 068 | N 000000005716 | HEXAGON HEAD BOLT |
| M14X1.5X65 | ||
| 068 | N 910105014009 | HEXAGON HEAD BOLT |
| M14X1,5X70MM | ||
| Repalced by: N 000000005717 | ||
| 068 | N 000000005717 | HEXAGON HEAD BOLT |
| M14X1.5X70-10.9 | ||
| Repalced by: N 910105014009 | ||
| 068 | N 910105014009 | HEXAGON HEAD BOLT |
| M14X1,5X70MM | ||
| 068 | N 910105014011 | HEXAGON HEAD BOLT |
| M14X1,5X50MM | ||
| Repalced by: N 000000005517 | ||
| 068 | N 000000005517 | HEXAGON HEAD BOLT |
| M14X1,5X50MM | ||
| 070 | N 913023014003 | NUT |
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 070 | N 000000005662 | NUT |
| M14X1,5 | ||
| Repalced by: N 913023014003 | ||
| 070 | N 913023014003 | NUT |
| M14X1.5 | ||
| 072 | N 910105014013 | HEXAGON HEAD BOLT |
| M14X1,5X35MM | ||
| Repalced by: N 000000005519 | ||
| 072 | N 000000005519 | HEXAGON HEAD BOLT |
| M14X1,5X35MM | ||
| Repalced by: N 910105014013 | ||
| 072 | N 910105014013 | HEXAGON HEAD BOLT |
| M14X1,5X35MM | ||
| 074 | N 910105014007 | HEXAGON HEAD BOLT |
| M14X1,5X25MM | ||
| Repalced by: N 000000005515 | ||
| 074 | N 000000005515 | HEXAGON HEAD BOLT |
| M14X1,5X25MM | ||
| 076 | N 910105014012 | HEXAGON HEAD BOLT |
| M14X1,5X30MM | ||
| Repalced by: N 000000005518 | ||
| 076 | N 000000005518 | HEXAGON HEAD BOLT |
| M14X1.5X30 | ||
| 078 | N 910105014008 | HEXAGON HEAD BOLT |
| M14X1,5X55MM | ||
| Repalced by: N 000000005516 | ||
| 078 | N 000000005516 | HEXAGON HEAD BOLT |
| M14X1,5X55MM | ||
| 090 | A 6342401501 | ENGINE SUPPORT |
| STEEL | ||
| 093 | N 000000005519 | HEXAGON HEAD BOLT |
| M14X1,5X35MM | ||
| Repalced by: N 910105014013 | ||
| 093 | N 910105014013 | HEXAGON HEAD BOLT |
| M14X1,5X35MM | ||
| 096 | N 000000005561 | HEXAGON HEAD BOLT |
| M18X1,5X35MM | ||
| 099 | A 6342401401 | ENGINE SUPPORT |
| CASTING | ||
| 102 | N 000000005718 | HEXAGON HEAD BOLT |
| M14X1,5X45MM | ||
| 105 | N 000000005563 | HEXAGON HEAD BOLT |
| M18X1,5X50MM | ||
| 108 | A 6345020029 | SUPPORTING PLATE |
| ONLY REQUIRED IF NECESSARY | ||
| 12MM | ||
| 111 | A 6342400801 | ENGINE SUPPORT |
| LEFT FRONT | ||
| 114 | A 6342400901 | ENGINE SUPPORT |
| RIGHT FRONT | ||
