Transporto priemonė: TOURO REISEBUS AUF IBC; VIN numerio dalis: 634203

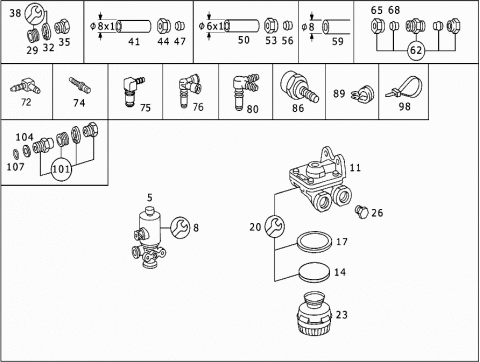

Grupė: 43 EXHAUST BRAKE - 060 ENGINE SHUT-OFF AND EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0049979336 | VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| WABCO | ||
| 008 | A 0004207755 | REPAIR KIT |
| 011 | A 0044297644 | VALVE |
| (QUICK-RELEASE VALVE) | ||
| WABCO | ||
| 014 | A 0004290345 | DIAPHRAGM |
| QUICK-RELEASE | ||
| 017 | A 0159970448 | SEAL RING |
| QUICK-RELEASE | ||
| 020 | A 0004200971 | REPAIR KIT |
| QUICK-RELEASE VALVE | ||
| 023 | A 0004302470 | MUFFLER |
| WABCO | ||
| 026 | A 0029973030 | SCREW PLUG |
| QUICK-RELEASE VALVE,CONNECTION: | ||
| "22" M22X1.5 | ||
| 026 | A 0029973130 | SCREW PLUG |
| QUICK-RELEASE VALVE,CONNECTION: | ||
| "23" M16X1.5 | ||
| 029 | A 0009940747 | SEAL RING |
| FOR LINE CONNECTION | ||
| TO M 16 | ||
| 029 | A 0009940147 | SEAL RING |
| FOR LINE CONNECTION | ||
| TO M 22 | ||
| 032 | A 0009941248 | LOCK |
| Repalced by: A 0009945448 | ||
| 032 | A 0009945448 | LOCK |
| FOR LINE CONNECTION | ||
| TO M 16 | ||
| 032 | A 0009941448 | LOCK |
| FOR LINE CONNECTION | ||
| TO M 22 | ||
| 035 | A 0009973734 | UNION SCREW |
| FOR LINE CONNECTION | ||
| TO M 16 | ||
| 035 | A 0009970934 | UNION SCREW |
| FOR LINE CONNECTION | ||
| TO M 22 | ||
| 038 | A 6739970145 | TS SEALING RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 22 | ||
| 038 | A 6739970045 | REPAIR KIT |
| Repalced by: A 0309971748 | ||
| 038 | A 0309971748 | REPAIR KIT |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 041 | A 0004291201 | LINE |
| BRASS | ||
| 8 X 1 MM | ||
| 044 | N 915017008100 | UNION NUT |
| CONSTANTLY-OPEN THROTTLE VALVE LINE | ||
| 047 | N 003861008005 | GLAND |
| CONSTANTLY-OPEN THROTTLE VALVE LINE | ||
| 050 | A 0004291101 | LINE |
| BRASS | ||
| 6 X 1 MM | ||
| 053 | N 915017006100 | UNION NUT |
| WIRING HARNESS FOR EXHAUST FLAP | ||
| 056 | A 0019901667 | GLAND |
| WIRING HARNESS FOR EXHAUST FLAP | ||
| 059 | A 0009872727 | PLASTIC PIPE |
| 6X8MM | ||
| 062 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 065 | N 915017008100 | UNION NUT |
| 068 | N 003861008005 | GLAND |
| 072 | A 0029908571 | ELBOW FITTING |
| 074 | A 0009906678 | CONNECTOR |
| 074 | A 0009906778 | CONNECTOR |
| 075 | A 0049905371 | ELBOW FITTING |
| 075 | A 0019908071 | ELBOW FITTING |
| 076 | A 0079975372 | FITTING |
| SOLENOID VALVE,CONNECTION: | ||
| "10" | ||
| 080 | A 0029908871 | ELBOW FITTING |
| 086 | N 915059006002 | FITTING |
| 086 | A 0029978272 | FITTING |
| 089 | N 916016006206 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 089 | N 916016008204 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 098 | A 0059971590 | CABLE TIE |
| LINE MOUNTING | ||
| Repalced by: A 0029975890 | ||
| 098 | A 0029975890 | CABLE TIE |
| LINE MOUNTING | ||
| 7.4-8.4X355-375 | ||
| 101 | A 0119970072 | FITTING |
| RETARDER CONTROL | ||
| 104 | A 0004290227 | THRUST RING |
| RETARDER CONTROL | ||
| 107 | A 0139972248 | O-RING |
| RETARDER CONTROL | ||
| 20X2.5 | ||
| 227 | A 0009820217 | SOLENOID VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| 230 | A 0039908812 | SCREW |
| (3/2-WAY SOLENOID VALVE) | ||
| M6X12 TX30 | ||
| 233 | N 007603006108 | SEALING RING |
| (3/2-WAY SOLENOID VALVE) | ||
| 6,5X9,5 | ||
| 236 | N 910105008046 | HEXAGON HEAD BOLT |
| (3/2-WAY SOLENOID VALVE) | ||
| M8X110 | ||
| Repalced by: N 910143008013 | ||
| 236 | N 910143008013 | HEXALOBULAR BOLT |
| (3/2-WAY SOLENOID VALVE) | ||
| M8X110 | ||
| 239 | N 913023008003 | NUT |
| (3/2-WAY SOLENOID VALVE) | ||
| M8 | ||
| 242 | A 0009940103 | THRUST RING |
| (3/2-WAY SOLENOID VALVE) | ||
| 18X12.1X2.6 | ||
| 245 | A 0019875046 | SEAL RING |
| (3/2-WAY SOLENOID VALVE) | ||
| 251 | A 0019972971 | FITTING |
| NG8/M12X1.5 | ||
| 275 | A 6344326040 | BRACKET |
| 278 | N 000000005482 | HEXAGON HEAD BOLT |
| M16X30 | ||
| 284 | A 0029976952 | HOSE |
| 287 | A 0049902171 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 290 | A 0049900568 | FITTING |
| 302 | N 000000003085 | CLAMP |
| 6/15 | ||
| Repalced by: N 000000007509 | ||
| 302 | N 000000007509 | CLAMP |
| 6/15 | ||
| 302 | N 000000000319 | CLAMP |
| 8/15 | ||
| Repalced by: N 000000007510 | ||
| 302 | N 000000007510 | CLAMP |
| 8/15 | ||
| 302 | A 0029953101 | CLAMP |
| RSGU S 18/15 | ||
| Repalced by: A 0019952842 | ||
| 302 | A 0019952842 | MOUNTING CLAMP |
| RSGU S 18/15 | ||
| 305 | N 910105005002 | HEXAGON HEAD BOLT |
| M5X16 | ||
| 305 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 308 | N 913023006001 | NUT |
| M6 | ||
| 314 | A 6344208331 | COMPRESSED AIR LINE |
| 317 | A 6344208231 | COMPRESSED AIR LINE |
| 318 | N 915017006100 | NUT |
| 318 | A 0019906554 | NUT |
| 319 | A 0019907467 | GLAND |
| 319 | A 0019908867 | CUTTING RING |

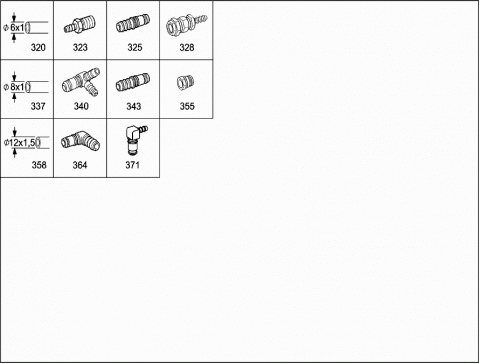

| 320 | A 0009872627 | PLASTIC PIPE |
| 6X1 | ||
| 323 | A 0019973472 | FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| M 12/ 4 MM | ||
| 325 | A 0059977889 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 325 | A 0059977889 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 328 | N 915059006002 | FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 337 | A 0009872727 | PLASTIC PIPE |
| 8X1MM | ||
| 340 | A 0039978889 | CONNECTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 343 | A 0049976989 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1 | ||
| 355 | A 0009974734 | UNION SCREW |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/M16X1.5 | ||
| 358 | A 0009872827 | PLASTIC PIPE |
| 12X1,5MM | ||
| 364 | A 0049974689 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/12X1.5 | ||
| 371 | A 0039978289 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
