Transporto priemonė: TOURO REISEBUS AUF IBC; VIN numerio dalis: 634203
Grupė: 95 MULTIBLE OCCUPANCY SEAT - 030 PASSENGER SEATS, DOUBLE OCCUPANCY SEAT

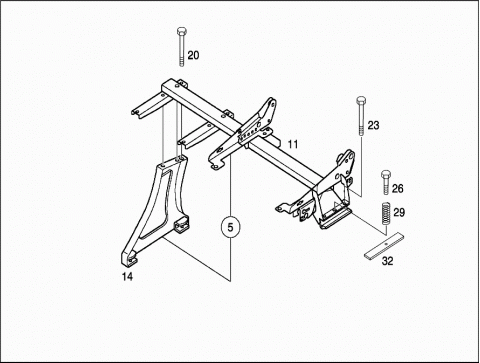

126827

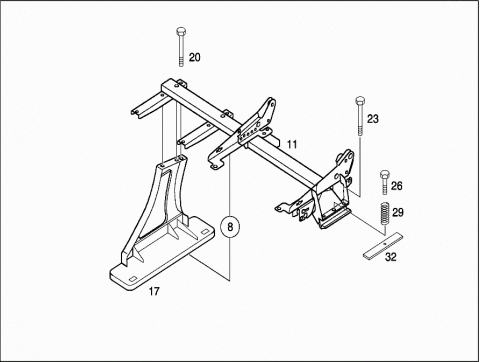

126828

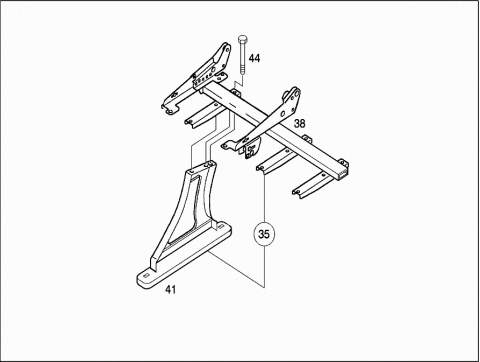

126829

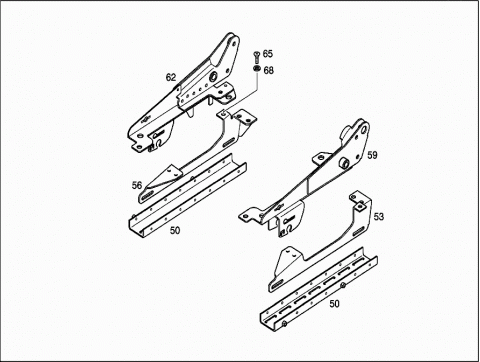

126830
# Kodas Pavadinimas
005 A 6299501138 SEAT FRAME
LEFT, COMPLETE
005 A 6299501238 SEAT FRAME
RIGHT,COMPLETE
005 A 6299501238 SEAT FRAME
RIGHT,COMPLETE
008 A 6299501938 SEAT FRAME
008 A 6299502038 SEAT FRAME
011 A 6299500220 SEAT FRAMEWORK
CENTER,LEFT
875MM
011 A 6299500320 SEAT FRAMEWORK
CENTER,RIGHT
875MM
014 A 6299500017 SEAT BASE
LEFT CLAMPED
014 A 6299500017 SEAT BASE
LEFT CLAMPED
014 A 6299500117 SEAT BASE
RIGHT CLAMPED
014 A 6299500117 SEAT BASE
RIGHT CLAMPED
017 A 6299503517 SEAT BASE
LEFT
TO A 629 950 19 38
017 A 6299503617 SEAT BASE
RIGHT
TO A 629 950 20 38
020 A 6299590171 SCREW
M10X40
023 N 304017008021 SCREW
M8X20
026 A 0019907020 SCREW
M8X33
029 A 0009930051 SPRING
032 A 6299590311 PLATE
035 A 6299501338 SEAT FRAME
RIGHT,COMPLETE
038 A 6299504920 SEAT FRAMEWORK
RIGHT
041 A 6299503717 SEAT BASE
LEFT
041 A 6299503817 SEAT BASE
RIGHT
044 A 6299590171 SCREW
M10X40
050 A 6299210095 RAIL
SEAT MOUNTING
053 A 6299201062 CONSOLE
LEFT
056 A 6299201162 CONSOLE
RIGHT
059 A 6299500474 TAKE-UP DEVICE
LEFT,FOR ADJUSTMENT
Repalced by: A 6299502674
059 A 6299502674 TAKE-UP DEVICE
LEFT,FOR ADJUSTMENT
062 A 6299500574 TAKE-UP DEVICE
RIGHT,FOR ADJUSTMENT
Repalced by: A 6299502774
062 A 6299502774 TAKE-UP DEVICE
RIGHT,FOR ADJUSTMENT
065 A 0019908120 SCREW W HEXAGON SOCKET
M 8 X 16
065 A 0039903712 SCREW
M 8 X 6
068 N 009021008213 WASHER
Repalced by: N 000000003250
068 N 000000003250 WASHER
