Transporto priemonė: TRAVEGO 16 RHD 3 - ACHSER; VIN numerio dalis: 632005

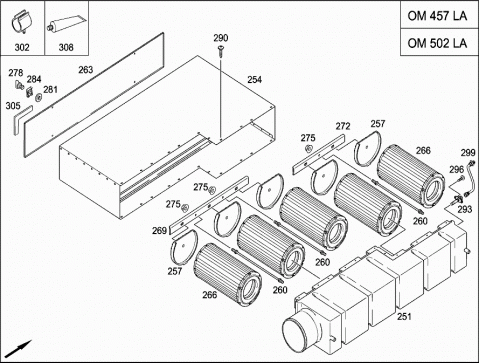

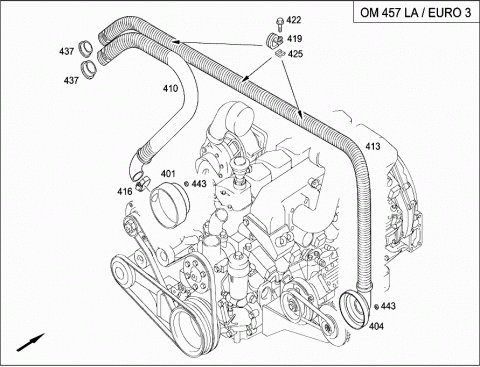

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 023 | N 000000002136 | CLAMP |
| 180-200X12MM | ||
| 032 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| 032 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 032 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 041 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 065 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 068 | N 000000000671 | CLAMP |
| 40-60X12MM | ||
| Repalced by: N 000000003528 | ||
| 068 | N 000000003528 | CLAMP |
| 45-65X13MM | ||
| 068 | N 000000002774 | CLAMP |
| 35-50X13MM | ||
| 080 | A 0135422917 | CONTACT SENSOR |
| 104 | A 0005280406 | AIR CLEANER |
| 107 | A 0009891311 | FILTER ELEMENT |
| 110 | A 0020940006 | COVER |
| 113 | A 0029976852 | HOSE |
| 116 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 119 | A 6295240192 | SEAL |
| 122 | A 0009872143 | RUBBER BUSHING |
| D=50X45MM | ||
| 125 | A 0009888011 | BUFFER |
| 25X10MM;M6 | ||
| 128 | A 6299910040 | SPACER SLEEVE |
| 134 | A 0004291127 | THRUST RING |
| 14X10X2.6MM | ||
| 137 | A 0269970248 | O-RING |
| 140 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 143 | N 000125006449 | WASHER |
| 6MM | ||
| 146 | A 6295200902 | RESONATOR |
| 150 | A 6325280282 | HOSE |
| 153 | A 6325280039 | CONSOLE |
| 155 | A 6325200001 | AIR INTAKE PIPE |
| 158 | A 0029953201 | CLAMP |
| 156/25MM | ||
| 158 | A 0029953201 | CLAMP |
| 156/25MM | ||
| 167 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 170 | N 910112008000 | NUT |
| M8 | ||
| 182 | A 0005200002 | RESONATOR |
| 182 | A 0005200002 | RESONATOR |
| 185 | A 0029971752 | HOSE |
| 187 | A 6325200502 | RESONATOR |
| 187 | A 6325200502 | RESONATOR |
| 189 | A 6325281409 | CONNECTION FITTING |
| STRAIGHT | ||
| 189 | A 6325281409 | CONNECTION FITTING |
| STRAIGHT | ||
| 191 | A 6325281509 | CONNECTION FITTING |
| 90 DEGREES POSITION | ||
| 191 | A 6325281509 | CONNECTION FITTING |
| 90 DEGREES POSITION | ||
| 193 | N 910105005010 | HEXAGON HEAD BOLT |
| M5X10 | ||
| 193 | N 910105005010 | HEXAGON HEAD BOLT |
| M5X10 | ||
| 195 | A 0199974948 | O-RING |
| 195 | A 0199974948 | O-RING |
| 198 | A 6325240028 | COVERING |
| 212 | A 0009888111 | RUBBER MOUNTING |
| 215 | A 6295200702 | RESONATOR |
| 218 | A 0029976352 | HOSE |
| 150X100MM | ||
| 221 | A 6295280082 | HOSE |
| 227 | A 6325280182 | HOSE |
| 230 | A 6325280082 | HOSE |
| 1600MM | ||
| 242 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 245 | A 6295500254 | MOUNTING PLATE |
| 246 | A 6325200141 | BRACKET |
| 248 | A 0000906901 | AIR CLEANER |
| 251 | A 6295201401 | AIR INTAKE PIPE |
| 254 | A 6325200002 | AIR INTAKE CASE |
| 257 | A 6295280310 | COVER |
| 260 | A 6295200015 | ROD |
| 263 | A 6295240028 | COVERING |
| 266 | A 0040941804 | FILTER ELEMENT |
| 269 | A 6295240012 | STIFFENING |
| 272 | A 6295240112 | STIFFENING |
| 275 | N 913023008003 | NUT |
| M8 | ||
| 278 | A 0009846136 | PIVOT |
| 281 | A 0039908740 | WASHER |
| 284 | A 0005250041 | ANGLE |
| RETAINING CLAMP | ||
| Repalced by: A 0019884442 | ||
| 284 | A 0019884442 | FASTENER |
| RETAINING CLAMP | ||
| 290 | A 0019846329 | HEXALOBULAR BOLT |
| 5X12 | ||
| 293 | A 0051536528 | TEMPERATURE SENSOR |
| Repalced by: A 0071530128 | ||
| 293 | A 0071530128 | TEMPERATURE SENSOR |
| Repalced by: A 0071531128 | ||
| 293 | A 0071531128 | TEMPERATURE SENSOR |
| 296 | N 000000001145 | HEXALOBULAR BOLT |
| M6X12 TX30 | ||
| 299 | A 6295401306 | CABLE HARNESS |
| 302 | A 0009956914 | LINE FASTENER |
| 305 | A 0089873425 | MOSS TYPE RUBBER |
| 308 | A 0069896471 | ADHESIVE |
| LOCTITE262 | ||
| 317 | A 6295280522 | COVERING |
| 320 | A 0099874251 | RUBBER SEAL |
| Repalced by: A 0029891698 | ||
| 320 | A 0029891698 | SEALING STRIP |
| 326 | A 0049941445 | SPRING-THREAD NUT |
| M6 | ||
| Repalced by: A 0049941645 | ||
| 326 | A 0049941645 | SPRING NUT |
| M6 | ||
| 327 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 327 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 329 | N 000000002267 | CLAMP |
| 186/25 | ||
| 332 | N 910112010001 | NUT |
| M10 | ||
| 353 | A 6285280640 | BRACKET |
| 353 | A 6295280640 | BRACKET |
| 356 | A 6295280740 | BRACKET |
| 359 | A 6325200041 | BRACKET |
| FILTER | ||
| 368 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 371 | N 910105008013 | HEXAGON HEAD BOLT |
| M8X12 | ||
| 374 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 377 | A 0009902769 | WASHER |
| 8.4X30X1.6 | ||
| 380 | A 6295280080 | GASKET |
| 383 | A 0009912740 | SPACER BUSH |
| 386 | A 0049941945 | NUT |
| M8 | ||
| 389 | A 6325200402 | AIR INTAKE CASE |
| 392 | A 6325200202 | AIR INTAKE CASE |
| 395 | A 0049972452 | HOSE |
| 398 | A 6325280024 | PIPE LINE |
| D28 | ||
| 399 | A 6325280482 | INTAKE HOSE |
| 401 | A 4571540304 | COVER |
| CAST VERSION | ||
| 404 | A 4071540165 | COVER |
| 407 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 410 | A 0029974752 | HOSE |
| 1200MM | ||
| 410 | A 0029974752 | HOSE |
| 1200MM | ||
| 410 | A 0069977552 | SUCTION HOSE |
| 1200MM | ||
| 413 | A 0029973252 | HOSE |
| 2385MM | ||
| 413 | A 0029973252 | HOSE |
| 2385MM | ||
| 413 | A 0069977152 | SUCTION HOSE |
| 2385MM | ||
| 416 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 419 | N 000000003186 | CLAMP |
| 76/25 | ||
| Repalced by: N 000000006128 | ||
| 419 | N 000000006128 | CLAMP |
| 76/25 | ||
| 422 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 425 | A 0039941545 | NUT |
| 428 | N 910112008000 | NUT |
| M8 | ||
| 428 | N 913023008003 | NUT |
| M8 | ||
| 431 | N 000000003268 | CLAMP |
| 60/25 | ||
| Repalced by: N 000000006126 | ||
| 431 | N 000000006126 | CLAMP |
| 60/25 | ||
| 434 | A 0079973190 | CABLE STRAP |
| 7.8X465 | ||
| 434 | A 0029975890 | CABLE TIE |
| 7.4-8.4X355-375 | ||
| 434 | A 0029975890 | CABLE TIE |
| 7.4-8.4X355-375 | ||
| 437 | A 0005280001 | PROTECTIVE GRILLE |
| 440 | A 0001541280 | CABLE GROMMET |
| 443 | N 913023006002 | NUT |
| M6 | ||
| 446 | N 000933006058 | SCREW |
| M6X25 | ||
| Repalced by: N 910105006008 | ||
| 446 | N 910105006008 | HEXAGON HEAD BOLT |
| M6X25 | ||
| 449 | A 0029973152 | HOSE |
| (INTAKE HOSE) | ||
| 1485MM | ||
| 449 | A 0069977452 | SUCTION HOSE |
| 1485MM | ||
| 452 | A 0029973752 | HOSE |
| (INTAKE HOSE) | ||
| 1200MM | ||
| 452 | A 0069976752 | SUCTION HOSE |
| 1200MM | ||
| 500 | A 0049970053 | HOSE |
| D28/38 | ||
| 503 | A 6325280041 | BRACKET |
| 506 | A 6295281740 | BRACKET |
| 509 | A 0015018382 | HOSE |
| D28 | ||
| 512 | N 000000002774 | CLAMP |
| 35-50X13MM | ||
| 515 | N 000000003528 | CLAMP |
| 45-65X13MM | ||
| 518 | A 0000940276 | FELT WASHER |
| 521 | A 0129977745 | O-RING |
| 524 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 527 | N 000000005975 | CLAMP |
| 35/20MM | ||
