Transporto priemonė: TRAVEGO 16 RHD 3 - ACHSER; VIN numerio dalis: 632005

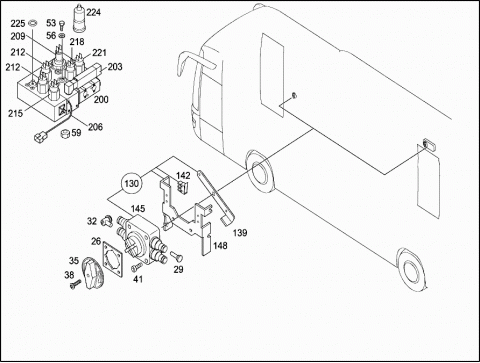

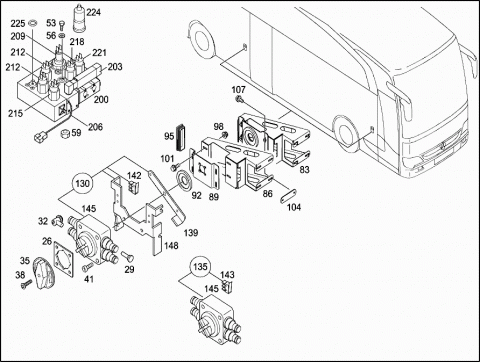

Grupė: 76 DOOR AND WINDOW ACCESSORIES - 060 DOOR CONTROL

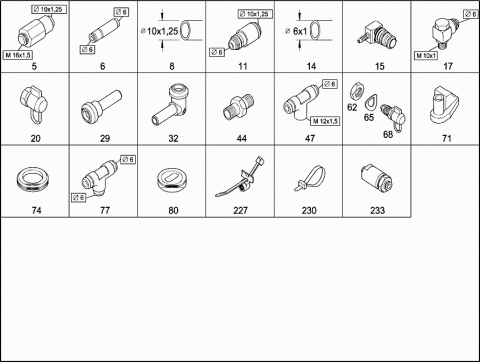

| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0059974036 | VALVE |
| 005 | A 0059974036 | VALVE |
| 006 | A 0007605278 | VALVE |
| DIA., | ||
| 6MM | ||
| 008 | A 0009873927 | PLASTIC PIPE |
| 011 | A 0009974475 | NOZZLE RESTRICTOR |
| 014 | A 0009872627 | PLASTIC PIPE |
| 015 | A 0039977289 | ELBOW FITTING |
| 017 | A 0039907068 | FITTING |
| OUTLET THROTTLE | ||
| 020 | A 0029901978 | CONNECTOR |
| 026 | A 0029872460 | RUBBER PAD |
| 029 | A 0009973101 | PLUG |
| 032 | A 0049904271 | ELBOW FITTING |
| 035 | A 0009977077 | ROTARY KNOB |
| 035 | A 0009977177 | ROTARY KNOB |
| WITH HEX.SOCKET | ||
| 038 | A 0029901020 | SCREW |
| M5X10 | ||
| 041 | A 0019909820 | HEXAL. SOCKET CSK. BOLT |
| M6X10 T30 | ||
| 044 | A 0009972071 | FITTING |
| M12X1.5 | ||
| 047 | A 0009907470 | T-FITTING |
| 053 | N 304017006028 | SCREW |
| M6X50 | ||
| 053 | N 910105006013 | HEXAGON HEAD BOLT |
| M6X50 | ||
| 056 | N 000125006449 | WASHER |
| 6-200HV | ||
| 059 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 062 | A 0049906051 | NUT |
| M16X1.5 RAUFOSS | ||
| 065 | A 0009943810 | LOCK |
| 068 | A 0014312331 | TEST CONNECTION |
| PNEUMATIC | ||
| M16X1.5/M16X1.5 | ||
| 071 | A 0109883378 | RETAINING CLIP |
| 074 | A 0099978581 | GROMMET |
| 077 | A 0049907170 | T-FITTING |
| 080 | A 0009876441 | RUBBER RING |
| 083 | A 6297500514 | BRACKET |
| 17 X 40 MM | ||
| 083 | A 6327500114 | BRACKET |
| 086 | A 6297500414 | BRACKET |
| Repalced by: A 6327630414 | ||
| 086 | A 6327630414 | BRACKET |
| 086 | A 6327500014 | BRACKET |
| 089 | A 6297660219 | PLATE |
| 092 | A 6297570098 | SEAL |
| Repalced by: A 6327570078 | ||
| 092 | A 6327570078 | SEAL |
| 095 | A 0039971686 | PLUG |
| 120X40X3MM | ||
| 098 | N 913023006002 | NUT |
| M6 | ||
| 101 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 101 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 104 | A 6297540097 | PAD |
| 107 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 130 | A 6277600857 | EMERGENCY COCK |
| 135 | A 0007604457 | EMERGENCY VALVE |
| STANDARD | ||
| 139 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 139 | A 0007663224 | ACTUATING LEVER |
| 142 | A 0055458714 | SWITCH |
| MICRO-SWITCH | ||
| 143 | A 0138208510 | QUICK BREAK SWITCH |
| 145 | A 6287602157 | CONTROL COCK |
| 148 | A 0007661469 | BRACKET |
| 200 | A 0007606178 | VALVE |
| DOOR CONTROL | ||
| 200 | A 0007607578 | SOLENOID VALVE |
| DOOR CONTROL | ||
| Repalced by: A 0007608378 | ||
| 200 | A 0007608378 | VALVE |
| DOOR CONTROL | ||
| 203 | A 0009971712 | DIRECTIONAL CONTROL VALVE |
| 5/2 | ||
| 206 | A 0008200585 | CONTROL ELECTRONICS |
| TO A 000 760 75 78 | ||
| Repalced by: A 0008201085 | ||
| 206 | A 0008201085 | CONTROL ELECTRONICS |
| TO A 000 760 75 78 | ||
| 206 | A 0008201085 | CONTROL ELECTRONICS |
| TO A 000 760 83 78 | ||
| 209 | A 0008005878 | VALVE |
| ADJUSTABLE | ||
| 4,2BAR | ||
| 212 | A 0065452714 | SWITCH |
| BREAK PULSE | ||
| 4,5BAR | ||
| 215 | A 0065453014 | SWITCH |
| MAKE PULSE | ||
| 4,5BAR | ||
| 218 | A 0065452814 | SWITCH |
| MAKE PULSE | ||
| 2,0BAR | ||
| 221 | A 0065452914 | SWITCH |
| MAKE PULSE | ||
| 3,0BAR | ||
| 224 | A 0009983323 | PROTECTIVE CAP |
| 225 | A 0209976645 | O-RING |
| 227 | A 2105461943 | BRACKET |
| 230 | A 0019978390 | CABLE TIE |
| 279MM | ||
| 230 | A 0029972390 | CABLE TIE |
| 233 | A 0008053169 | FILTER |
