Transporto priemonė: TRAVEGO 16 RHD 3 - ACHSER; VIN numerio dalis: 632005

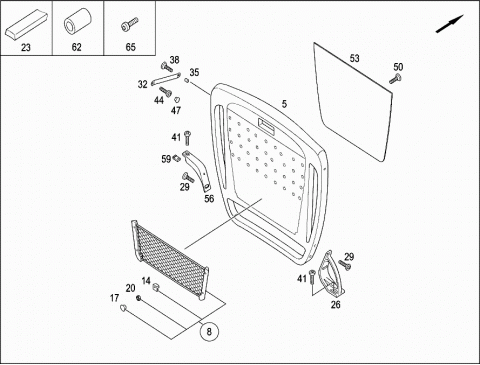

Grupė: 71 PARTITION PANEL - 180 GRIP RAILS AND PARTITION PANELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6327110301 | PARTITION PANEL |
| 008 | A 6328100149 | LUGGAGE NET |
| 008 | A 6298100549 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| Repalced by: A 6328100149 | ||
| 008 | A 6328100149 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| 014 | A 6298110307 | COVERING |
| 017 | A 6299870145 | LOCKING CAP |
| 020 | N 304032003001 | NUT |
| 023 | A 6299870075 | GARNISH STRIP |
| YELLOW | ||
| 026 | A 6297110045 | STAY |
| LEFT AND RIGHT | ||
| 029 | A 0009901129 | SCREW |
| M8X22 T40 | ||
| 032 | A 6297110612 | ANGLE |
| 035 | A 0009912740 | SPACER BUSH |
| L=11MM | ||
| 038 | A 0009901629 | SCREW |
| M8X28 T40 | ||
| 041 | A 0009901729 | SCREW |
| M8X40 T40 | ||
| 044 | A 0009901429 | SCREW |
| M6X35 T30 | ||
| 047 | A 6297110090 | CAP |
| D=18MM | ||
| 050 | Q 0011032202 | SHEET METAL SCREW |
| 3,9X16 | ||
| 053 | A 6297100018 | PANELLING |
| 056 | A 6297110145 | STAY |
| LEFT AND RIGHT | ||
| 059 | A 6297110012 | ANGLE |
| 062 | A 0003280053 | SPACER TUBE |
| L=18MM | ||
| 065 | A 0039902312 | SCREW |
| M8X35MM | ||
| 150 | A 6327110210 | PANE F PARTITION |
| 160 | A 6277118834 | CONNECTION |
| 170 | A 6277117434 | TUBE PROTECTIVE CAP |
| 180 | A 6277106932 | CONNECTION |
| 280 | A 6277111034 | CONNECTION |
| 290 | A 6277120013 | WASHER |
| 300 | A 6299110017 | BUSHING |
| 310 | A 0009844821 | RIVETED NUT |
| 320 | A 0009876941 | RUBBER RING |
| 330 | A 0009902029 | SCREW |
| 340 | A 0009921339 | THREADED BUSHING |
| 350 | A 0029900120 | SCREW |
| 360 | A 0009901629 | SCREW, SPECIAL SHAPE |
| 370 | A 0009901729 | SCREW |
