Transporto priemonė: TRAVEGO 17 SHD 3 - ACHSER; VIN numerio dalis: 632287

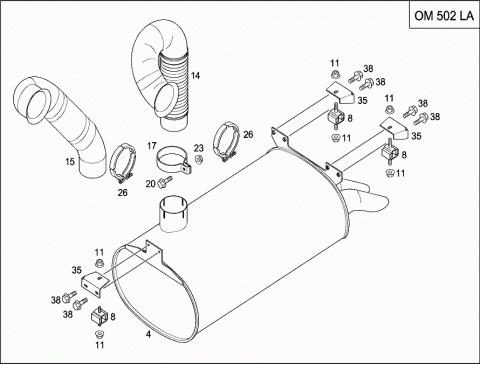

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6294910700 | MUFFLER |
| 008 | A 0004910285 | RUBBER MOUNTING |
| 011 | N 913023010002 | NUT |
| M10 | ||
| 014 | A 6294900810 | EXHAUST PIPE |
| D 120 | ||
| 014 | A 6294901910 | EXHAUST PIPE |
| D 120 | ||
| 015 | A 6294902310 | EXHAUST PIPE |
| E3 | ||
| 017 | A 6294910040 | CLAMP |
| Repalced by: A 0004921240 | ||
| 017 | A 0004921240 | CLAMP |
| D=124,5MM | ||
| Repalced by: A 6554920140 | ||
| 017 | A 6554920140 | CLAMP |
| 020 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| Repalced by: N 910105010007 | ||
| 020 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 023 | N 910113012002 | HEXAGON NUT |
| M12X1,5 | ||
| Repalced by: N 910112010001 | ||
| 023 | N 910112010001 | NUT |
| M12X1,5 | ||
| 026 | A 0009956302 | CLAMP |
| Repalced by: A 0009959702 | ||
| 026 | A 0009959702 | CLAMP |
| 035 | A 6294910041 | BRACKET |
| 038 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 077 | A 0009958602 | CLAMP |
| D=148 | ||
| 077 | A 0009958602 | CLAMP |
| D=148 | ||
| 089 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40MM | ||
| 089 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40MM | ||
| 092 | N 910112010001 | NUT |
| M10 | ||
| 092 | N 910112010001 | NUT |
| M10 | ||
| 095 | A 0024902314 | CATALYST |
| FOR NOX SENSOR | ||
| 095 | A 0024904814 | CATALYST |
| FOR NOX SENSOR | ||
| 098 | A 0061530428 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 098 | A 0061530428 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 101 | A 0005460522 | CLAMPING RING |
| 101 | A 0005460522 | CLAMPING RING |
| 112 | A 6324900417 | ANGLE |
| 112 | A 6324900417 | ANGLE |
| 115 | A 6324900517 | ANGLE |
| 115 | A 6324900517 | ANGLE |
| 132 | A 6344920740 | CLAMP |
| EXHAUST SYSTEM | ||
| D=143,5 | ||
| 132 | A 6344920740 | CLAMP |
| EXHAUST SYSTEM | ||
| D=143,5 | ||
| 135 | A 0009980846 | DASHPOT |
| 135 | A 0009980846 | DASHPOT |
| 138 | A 0005040153 | SPACER SLEEVE |
| 138 | A 0005040153 | SPACER SLEEVE |
| 141 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16MM | ||
| 141 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16MM | ||
| 150 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80MM | ||
| 150 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80MM | ||
| 159 | N 913023010002 | NUT |
| M10 | ||
| 165 | A 0004920780 | FLANGE GASKET |
| D=129 | ||
| 165 | A 0004920780 | FLANGE GASKET |
| D=129 | ||
| 168 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| Repalced by: A 0189901101 | ||
| 168 | A 0189901101 | SCREW |
| M10X35MM | ||
| 168 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| Repalced by: A 0189901101 | ||
| 168 | A 0189901101 | SCREW |
| M10X35MM | ||
| 171 | N 913023010002 | NUT |
| M10 | ||
| Repalced by: A 0009902852 | ||
| 171 | A 0009902852 | NUT FOR TAPPING SCREW |
| M10 | ||
| 171 | N 913023010002 | NUT |
| M10 | ||
| Repalced by: A 0009902852 | ||
| 171 | A 0009902852 | NUT FOR TAPPING SCREW |
| M10 | ||
| 174 | A 6324900010 | EXHAUST PIPE |
| Repalced by: A 6324900910 | ||
| 174 | A 6324900910 | EXHAUST PIPE |
| 174 | A 6324900910 | EXHAUST PIPE |
| 177 | A 6324900310 | EXHAUST PIPE |
| TAIL PIPE | ||
| 177 | A 6324900310 | EXHAUST PIPE |
| TAIL PIPE | ||
| 180 | A 6294910030 | PROTECTIVE PLATE |
| FOR NOX SENSOR | ||
| 180 | A 6294910030 | PROTECTIVE PLATE |
| FOR NOX SENSOR | ||
| 183 | A 6299910040 | SPACER SLEEVE |
| 183 | A 6299910040 | SPACER SLEEVE |
| 186 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 186 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 189 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 189 | N 910112006001 | HEXAGON NUT |
| M6 | ||
