Transporto priemonė: TRAVEGO RHD; VIN numerio dalis: 632245

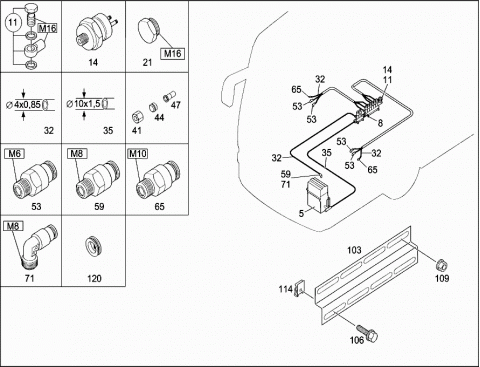

Grupė: 57 CENTRAL LUBRICATION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0015710101 | PUMP |
| KFB1-S2+924 | ||
| 008 | A 0005701510 | LUBRICANT DISPENSER |
| 011 | A 0049903971 | ELBOW FITTING |
| 014 | A 0035450614 | SWITCH |
| 021 | A 0005710756 | SCREW PLUG |
| M16X1.5/SW19 | ||
| 032 | A 0179977082 | HOSE |
| 4X0,85 | ||
| 035 | A 0179977182 | HOSE |
| 10X1,5 | ||
| 041 | A 0029905968 | FITTING |
| M16X1.5/TO:10X1.5/SW17 | ||
| 044 | A 0019903667 | SEAL CONE |
| TO:10X1.5 | ||
| 047 | A 0005730753 | PIN BUSHING |
| TO:10X1.5 | ||
| 053 | A 0019974170 | CONNECTION FITTING |
| M6-KEG/SW10 | ||
| 059 | A 0019973970 | CONNECTION FITTING |
| M8X1-KEG/SW10 | ||
| 065 | A 0019974370 | CONNECTION FITTING |
| M10X1-KEG/SW10 | ||
| 071 | A 0019974270 | CONNECTION FITTING |
| M8X1-KEG/SW9 | ||
| 103 | A 6279850349 | "Z" SECTION |
| FRONT DISTRIBUTOR | ||
| L=170 MM | ||
| 106 | N 910143008002 | HEXALOBULAR BOLT |
| M8X25 | ||
| 106 | N 000000001479 | HEXALOBULAR BOLT |
| M6X30 | ||
| 109 | N 913023006001 | NUT |
| M6 | ||
| 114 | A 0049941645 | SPRING NUT |
| M6 | ||
| 114 | A 0049941945 | NUT |
| M8 | ||
| 120 | A 0089978381 | GROMMET |
| FOR BORE | ||
| 23MM |
