Transporto priemonė: TRAVEGO RHD; VIN numerio dalis: 632245

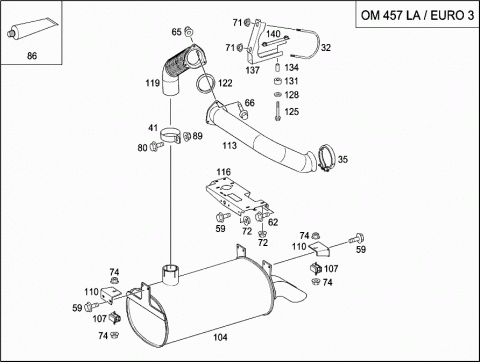

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0024902314 | CATALYST |
| FOR NOX SENSOR | ||
| 006 | A 0061530428 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 007 | A 0005460522 | CLAMPING RING |
| 008 | A 6324900410 | EXHAUST PIPE |
| 012 | A 6324900810 | EXHAUST PIPE |
| 014 | A 6324900310 | EXHAUST PIPE |
| TAIL PIPE | ||
| 017 | A 6324900417 | ANGLE |
| 020 | A 6324900517 | ANGLE |
| 023 | A 6324910315 | CONSOLE |
| 026 | A 6324910417 | ANGLE |
| 029 | A 6324910517 | ANGLE |
| 032 | A 6324910027 | CLAMP |
| 032 | A 0004920127 | MOUNTING BRACKET |
| 035 | A 9429970290 | CLAMP |
| 035 | A 0009958602 | CLAMP |
| D148 | ||
| 041 | A 6344920740 | CLAMP |
| 041 | A 6554920140 | CLAMP |
| 044 | A 0009980846 | DASHPOT |
| 047 | A 0005040153 | SPACER TUBE |
| 050 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 053 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16 | ||
| 056 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40 | ||
| 059 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 062 | N 000000005555 | HEXAGON HEAD BOLT |
| M16X25 | ||
| 065 | N 910112012001 | HEXAGON NUT |
| M12X1.5 | ||
| 066 | N 910105012021 | HEXAGON HEAD BOLT |
| M12X1.5X50 | ||
| 068 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 071 | N 910112008000 | NUT |
| M8 | ||
| 072 | N 913023008003 | NUT |
| M8 | ||
| 074 | N 910112010000 | HEXAGON NUT |
| M10 | ||
| 074 | N 913023010002 | NUT |
| M10 | ||
| 077 | A 0004920780 | FLANGE GASKET |
| D=129 | ||
| 080 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 080 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35 | ||
| Repalced by: A 0189901101 | ||
| 080 | A 0189901101 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 083 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80 | ||
| 086 | A 0079893571 | ADHESIVE |
| THREAD LOCK | ||
| 50G | ||
| 089 | N 910112010001 | NUT |
| M10 | ||
| 089 | N 913023010002 | NUT |
| M10 | ||
| Repalced by: A 0009902852 | ||
| 089 | A 0009902852 | NUT FOR TAPPING SCREW |
| M10 | ||
| 092 | A 6294910030 | PROTECTIVE PLATE |
| FOR NOX SENSOR | ||
| 095 | A 6299910040 | SPACER SLEEVE |
| 098 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 101 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 104 | A 6294910700 | MUFFLER |
| 107 | A 0004910285 | RUBBER MOUNTING |
| 110 | A 6294910041 | BRACKET |
| 113 | A 6324901110 | EXHAUST PIPE |
| 116 | A 6294910015 | CONSOLE |
| 119 | A 6294901210 | EXHAUST PIPE |
| 122 | A 6294920080 | FLANGE GASKET |
| D140/116X18 | ||
| 125 | N 910105008017 | HEXAGON HEAD BOLT |
| M8X45 | ||
| 128 | N 000000003250 | WASHER |
| 131 | A 0004921082 | VIBRATION DAMPER |
| 134 | A 0004920050 | PILOT BUSHING |
| 137 | A 0004920641 | BRACKET |
| EXHAUST PIPE | ||
| 140 | A 6344900044 | FASTENING PLATE |
