Transporto priemonė: TRAVEGO RHD-L; VIN numerio dalis: 632247

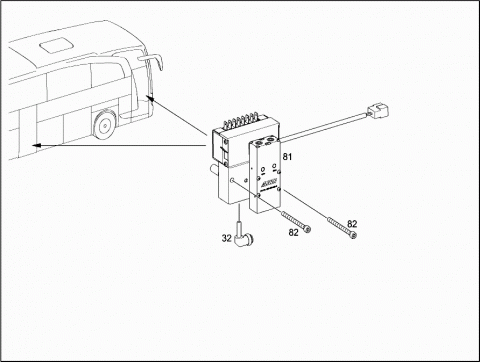

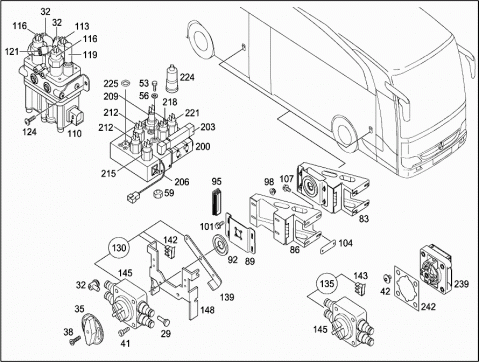

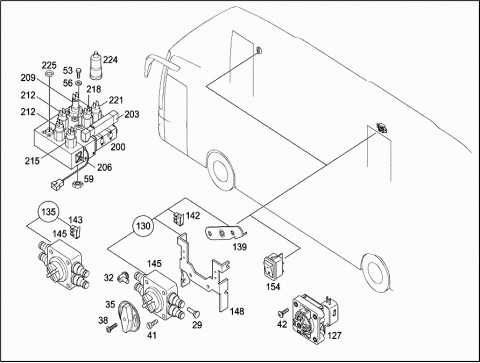

Grupė: 76 DOOR AND WINDOW ACCESSORIES - 060 DOOR CONTROL

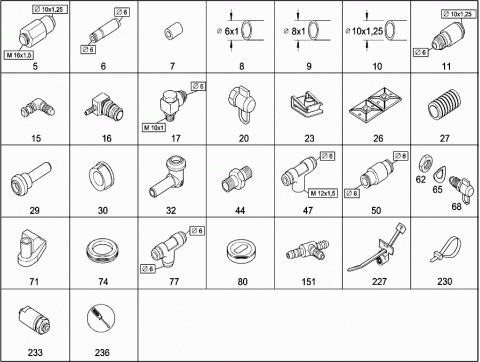

| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0059974036 | VALVE |
| 005 | A 0059974036 | VALVE |
| 006 | A 0007605278 | VALVE |
| 007 | A 0005503956 | PIPE LINE |
| 008 | A 0009872627 | PLASTIC PIPE |
| 6X1MM | ||
| 008 | A 0009872627 | PLASTIC PIPE |
| 6X1MM | ||
| 009 | A 0009872727 | PLASTIC PIPE |
| 8X1MM | ||
| 010 | A 0009873927 | PLASTIC PIPE |
| 10X1.25MM | ||
| 011 | A 0009974475 | NOZZLE RESTRICTOR |
| 015 | A 0039976689 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1 | ||
| 015 | A 0039976789 | COUPLING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/8X1 | ||
| 015 | A 0049977889 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/6X1 | ||
| 016 | A 0039977289 | ELBOW FITTING |
| 017 | A 0039907068 | FITTING |
| OUTLET THROTTLE | ||
| 017 | A 0039907068 | FITTING |
| OUTLET THROTTLE | ||
| 020 | A 0029901978 | CONNECTOR |
| 023 | A 0049941645 | SPRING NUT |
| M6 | ||
| 026 | A 0005730042 | RETAINING PLATE |
| 027 | A 0001530064 | INSULATING HOSE |
| 029 | A 0009973101 | PLUG |
| 030 | A 0019981050 | PLUG |
| 032 | A 0049904271 | ELBOW FITTING |
| 032 | A 0049904271 | ELBOW FITTING |
| 035 | A 0009977077 | ROTARY KNOB |
| 035 | A 0009977077 | ROTARY KNOB |
| 035 | A 0009977177 | ROTARY KNOB |
| WITH HEX.SOCKET | ||
| 038 | N 000000007000 | SCREW |
| M5X10 | ||
| 038 | N 000000002208 | SCREW |
| M5X16 | ||
| 038 | N 000000007001 | SCREW |
| M5X12 | ||
| 038 | N 000000003146 | SCREW |
| M5X25 | ||
| 041 | N 000000007002 | SCREW |
| M6X10 | ||
| 042 | N 000000001474 | HEXALOBULAR BOLT |
| M6X10 | ||
| 044 | A 0009972071 | FITTING |
| 047 | A 0009907470 | T-FITTING |
| 050 | A 0009972107 | NON-RETURN VALVE |
| 053 | N 304017006028 | HEXAGON HEAD BOLT |
| M6X50 | ||
| 053 | N 910105006013 | HEXAGON HEAD BOLT |
| M6X50 | ||
| 056 | N 000125006449 | WASHER |
| 6MM | ||
| 059 | N 910112006001 | NUT |
| M6 | ||
| 062 | A 0049906051 | NUT |
| M16X1.5 RAUFOSS | ||
| 065 | A 0009943810 | LOCK |
| 068 | A 0014312331 | TEST CONNECTION |
| PNEUMATIC | ||
| M16X1.5/M16X1.5 | ||
| 071 | A 0109883378 | RETAINING CLIP |
| 074 | A 0099978581 | GROMMET |
| 074 | A 0099978581 | GROMMET |
| 077 | A 0049907170 | T-FITTING |
| 080 | A 0009876441 | GROMMET |
| 080 | A 0009876441 | GROMMET |
| 081 | A 0007600761 | ACTUATION |
| 082 | N 000000007113 | CAP BOLT |
| M5X60 | ||
| 083 | A 6297500514 | BRACKET |
| 17 X 40MM | ||
| 083 | A 6297500514 | BRACKET |
| 083 | A 6327500114 | BRACKET |
| 086 | A 6297500414 | BRACKET |
| Repalced by: A 6327630414 | ||
| 086 | A 6327630414 | BRACKET |
| 086 | A 6327500014 | BRACKET |
| 089 | A 6297660219 | PLATE |
| 092 | A 6297570098 | SEAL |
| Repalced by: A 6327570078 | ||
| 092 | A 6327570078 | SEAL |
| 095 | A 0039971686 | PLUG |
| 098 | N 913023006002 | NUT |
| M6 | ||
| 101 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 101 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 104 | A 6297540097 | PAD |
| 107 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 110 | A 0007609078 | AERATION VALVE |
| 113 | A 0007630410 | SWITCH |
| 116 | A 0005452710 | SWITCH |
| 119 | A 0007630964 | DAMPER |
| 121 | A 0079970289 | RIGHT-ANGLE PLUG |
| 8 | ||
| 124 | N 000000001144 | HEXALOBULAR BOLT |
| M6X10 | ||
| 127 | A 0007605857 | EMERGENCY VALVE |
| INSIDE | ||
| 130 | A 6277600857 | EMERGENCY COCK |
| 135 | A 0007604457 | EMERGENCY VALVE |
| STANDARD | ||
| 139 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 139 | A 0007663224 | ACTUATING LEVER |
| 142 | A 0055458714 | SWITCH |
| MICRO-SWITCH | ||
| 143 | A 0138208510 | QUICK BREAK SWITCH |
| 145 | A 6287602157 | CONTROL COCK |
| 145 | A 6287602157 | CONTROL COCK |
| 148 | A 0007661469 | BRACKET |
| 151 | A 0029901470 | T-FITTING |
| 6-4-6 | ||
| 154 | A 0118201210 | ROCKER SWITCH |
| SERVICE | ||
| 200 | A 0007606178 | VALVE |
| DOOR CONTROL | ||
| 200 | A 0007608378 | VALVE |
| DOOR CONTROL | ||
| IP5 | ||
| 200 | A 0007608378 | VALVE |
| DOOR CONTROL | ||
| IP5 | ||
| 203 | A 0009971712 | DIRECTIONAL CONTROL VALVE |
| 5/2 | ||
| 206 | A 0008201085 | CONTROL ELECTRONICS |
| 209 | A 0008005878 | VALVE |
| ADJUSTABLE | ||
| 4,2BAR | ||
| 212 | A 0065452714 | SWITCH |
| BREAK PULSE | ||
| 4,5BAR | ||
| 215 | A 0065453014 | SWITCH |
| MAKE PULSE | ||
| 4,5BAR | ||
| 218 | A 0065452814 | SWITCH |
| MAKE PULSE | ||
| 2,0BAR | ||
| 221 | A 0065452914 | SWITCH |
| MAKE PULSE | ||
| 3,0BAR | ||
| 224 | A 0009983323 | PROTECTIVE CAP |
| 225 | A 0209976645 | O-RING |
| 227 | A 2105461943 | BRACKET |
| 227 | A 2105461943 | BRACKET |
| 230 | A 0029972390 | CABLE TIE |
| 4.5-5.2X186-200 | ||
| 230 | A 0029972390 | CABLE TIE |
| 4.5-5.2X186-200 | ||
| 230 | A 0019978390 | CABLE TIE |
| 279MM | ||
| 230 | A 0079975690 | CABLE STRAP |
| 230 | A 0079975690 | CABLE STRAP |
| 233 | A 0008053169 | FILTER |
| 236 | A 0055840238 | ADHESIVE LABEL |
| LOCKING SEAL | ||
| 236 | A 0055840238 | ADHESIVE LABEL |
| LOCKING SEAL | ||
| 239 | A 0007605957 | EMERGENCY VALVE |
| OUTSIDE | ||
| 242 | A 0029872460 | RUBBER PAD |
