Transporto priemonė: TRAVEGO RHD-L; VIN numerio dalis: 632247

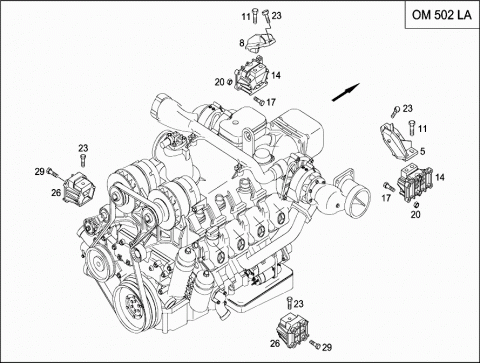

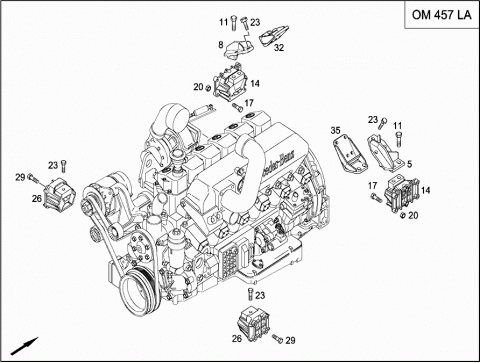

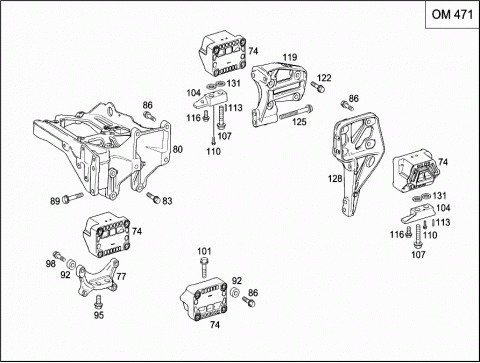

Grupė: 24 ENGINE SUSPENSION

#	Kodas	Pavadinimas
005	A 6292411101	ENGINE SUPPORT
		RIGHT FRONT
008	A 6292411001	ENGINE SUPPORT
		LEFT FRONT
011	N 000000005562	HEXAGON HEAD BOLT
		M18X1,5X40
014	A 6292400217	RUBBER MOUNTING
		FRONT
017	N 000000005718	HEXAGON HEAD BOLT
		M14X1,5X45
020	N 000000005733	HEXAGON NUT
		M14X1,5
023	N 000000005563	SCREW
		M18X1,5X50
	Repalced by: A 0179901201
023	A 0179901201	BOLT AND WASHER ASSY.
		M18X1,5X50
023	N 000000005565	HEXAGON HEAD BOLT
023	N 000000005561	HEXAGON HEAD BOLT
		M18X1,5X35
023	N 000000005559	HEXAGON HEAD BOLT
		M18X1,5X45
026	A 6292400218	RUBBER MOUNTING
		REAR
026	A 9402401318	ENGINE MOUNTING
		REAR
029	N 000000005515	HEXAGON HEAD BOLT
		M14X1,5X25
032	A 6292401501	ENGINE SUPPORT
		RIGHT FRONT
035	A 6292401601	ENGINE SUPPORT
		LEFT FRONT
	N 000000005534	SCREW
		M16X1,5X35
	N 000000005734	HEXAGON NUT
		M16X1,5
	N 000000005562	SCREW
		WITH FLANGE
		M 18X1.5X40
	N 000000005515	HEXAGON HEAD BOLT
		M 14X1.5X25
	N 000000005566	HEXAGON HEAD BOLT
		M 18X1.5X100
074	A 6292410213	ENGINE SUPPORT
		LEFT AND RIGHT,FRONT AND REAR
077	A 0002420040	BRACKET
		REAR LEFT
080	A 6292420202	CONSOLE
		REAR LEFT
083	N 000000005545	HEXAGON HEAD BOLT
		M 16X1,5X65
086	N 000000005536	HEXAGON HEAD BOLT
089	N 000000005539	HEXAGON HEAD BOLT
		M16X1.5X90
092	A 0059921101	BUSH WITHOUT CHAMFER
		REAR
095	N 000000005563	HEXAGON HEAD BOLT
098	N 000000005542	HEXAGON HEAD BOLT
101	N 000000005565	HEXAGON HEAD BOLT
104	A 6292410026	INTERMEDIATE LAYER
		FRONT
107	N 000000005724	HEXAGON HEAD BOLT
110	N 910143008002	HEXALOBULAR BOLT
113	N 000000001090	ROLL PIN
		FRONT
116	N 000000005518	HEXAGON HEAD BOLT
		M14X1.5X30
119	A 6292411801	ENGINE MOUNT
		LEFT FRONT
122	N 000000005544	HEXAGON HEAD BOLT
		LEFT FRONT
125	A 0169909101	BOLT AND WASHER ASSY.
		LEFT FRONT
128	A 6292411901	ENGINE MOUNT
		RIGHT FRONT
131	A 4102410031	COVER PLATE
