Transporto priemonė: TRAVEGO RHD-L; VIN numerio dalis: 632247

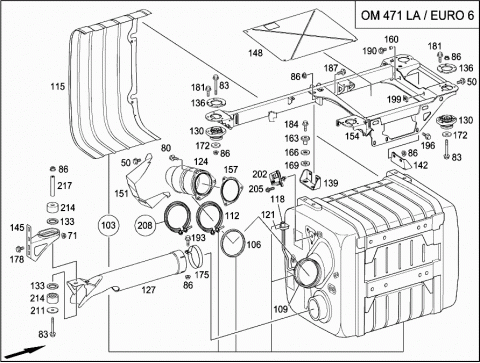

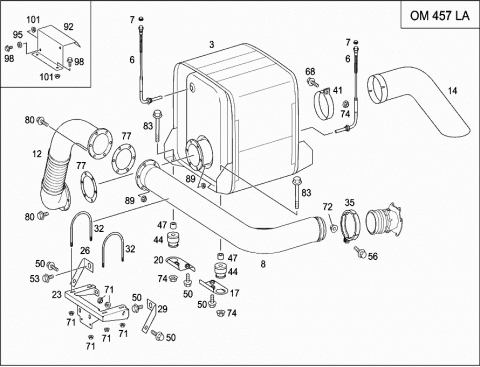

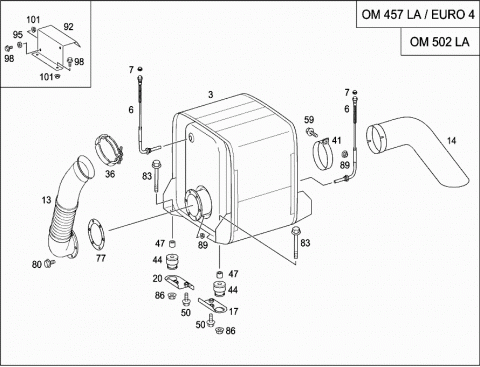

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0024902314 | CATALYST |
| FOR NOX SENSOR | ||
| 003 | A 0024904814 | CATALYST |
| 006 | A 0061530428 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 007 | A 0005460522 | CLAMPING RING |
| 008 | A 6324900410 | EXHAUST PIPE |
| 012 | A 6324920004 | REAR EXHAUST PIPE |
| Repalced by: A 6324900810 | ||
| 012 | A 6324900810 | EXHAUST PIPE |
| 013 | A 6324900010 | EXHAUST PIPE |
| Repalced by: A 6324900910 | ||
| 013 | A 6324900910 | EXHAUST PIPE |
| 014 | A 6324900310 | EXHAUST PIPE |
| TAIL PIPE | ||
| 017 | A 6324900417 | ANGLE |
| 020 | A 6324900517 | ANGLE |
| 023 | A 6324910315 | CONSOLE |
| 026 | A 6324910417 | ANGLE |
| 029 | A 6324910517 | ANGLE |
| 032 | A 6324910027 | CLAMP |
| 035 | A 9429970290 | CLAMP |
| 036 | A 0009958602 | CLAMP |
| D=148 | ||
| 041 | A 6344920740 | CLAMP |
| EXHAUST SYSTEM | ||
| D=143,5 | ||
| 044 | A 0009980846 | DASHPOT |
| 047 | A 0005040153 | SPACER TUBE |
| 050 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 050 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 053 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16 | ||
| 056 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40 | ||
| 059 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40 | ||
| 068 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 071 | N 910112008000 | NUT |
| M8 | ||
| 071 | N 910112008000 | NUT |
| M8 | ||
| 072 | N 913023008003 | NUT |
| M8 | ||
| 074 | N 910112010000 | HEXAGON NUT |
| M10 | ||
| 077 | A 0004920780 | FLANGE GASKET |
| D=129 | ||
| 077 | A 0004920780 | FLANGE GASKET |
| D=129 | ||
| 080 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35 | ||
| Repalced by: A 0189901101 | ||
| 080 | A 0189901101 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 080 | A 0189901101 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 083 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80 | ||
| 083 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80 | ||
| 086 | N 910112010001 | NUT |
| M10 | ||
| 086 | N 910112010001 | NUT |
| M10 | ||
| 089 | N 913023010002 | NUT |
| M10 | ||
| Repalced by: A 0009902852 | ||
| 089 | A 0009902852 | NUT FOR TAPPING SCREW |
| M10 | ||
| 092 | A 6294910030 | PROTECTIVE PLATE |
| FOR NOX SENSOR | ||
| 095 | A 6299910040 | SPACER SLEEVE |
| 098 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 101 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 103 | A 0034907612 | EXHAUST AFTERTREATMENT |
| 106 | A 0004911280 | SEAL. RING F EXHAUST SYS. |
| 109 | A 0019954444 | CLAMPING COLLAR |
| 112 | A 0009951833 | PROFILE CLAMP F EXHAUST |
| 115 | A 0004910630 | COVER |
| 118 | A 0085421218 | TEMPERATURE SENSOR |
| 570MM | ||
| 118 | A 0085421118 | TEMPERATURE SENSOR |
| 900MM | ||
| 121 | A 0005452186 | MOUNTING BRACKET |
| 124 | A 6294903610 | EXHAUST PIPE |
| 127 | A 6294900427 | TAILPIPE |
| 130 | A 0009981946 | DAMPER ELEMENT |
| 133 | A 6294930062 | THRUST WASHER |
| 136 | A 6294911595 | REINFORCEMENT |
| 139 | A 6294910817 | ATTACHMENT ANGLE BRACKET |
| 142 | A 6294910717 | ATTACHMENT ANGLE BRACKET |
| 145 | A 6294900040 | BRACKET |
| 148 | A 6294910130 | HEAT SHIELD |
| 151 | A 4104910230 | HEAT SHIELD |
| 154 | A 6294900434 | BEAM |
| 157 | A 4711420580 | MULTI-LAYER METAL SEAL |
| 160 | A 0019926450 | SPACER SLEEVE |
| 163 | A 0019921510 | COLLARED BUSHING |
| 166 | A 0069909182 | SHIM |
| 169 | N 000000007068 | DISK SPRING |
| 172 | A 3209906040 | WASHER |
| 175 | A 9424920140 | CLAMP |
| 178 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 181 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||
| 184 | N 910105008018 | HEXAGON HEAD BOLT |
| M8X40 | ||
| 187 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 190 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 193 | N 910105010008 | HEXAGON HEAD BOLT |
| M10X45 | ||
| 196 | N 000000005518 | HEXAGON HEAD BOLT |
| M14X1.5X30 | ||
| 199 | A 0049941845 | SPRING-THREAD NUT |
| M8 | ||
| 202 | A 0001402339 | METERING EQUIPMENT |
| ADBLUE | ||
| 205 | A 0019907103 | SCREW W RND. HEXAL. HEAD |
| M6X20 | ||
| 208 | A 0029952302 | TS PIPE CLAMP |
| 211 | A 0069905640 | WASHER |
| 214 | A 0004920087 | BUFFER |
| 217 | A 0004910053 | SPACER TUBE |
