Transporto priemonė: 190; VIN numerio dalis: 201023

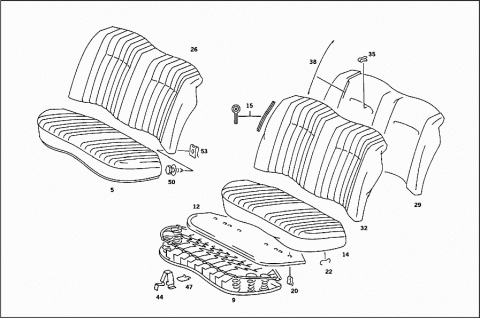

Grupė: 92 REAR SEAT BENCH - 015 REAR SEAT CUSHION,REAR BACKREST
| # | Kodas | Pavadinimas |
|---|---|---|
| A 2019200021 | SEAT CUSHION | |
| Repalced by: A 2019201121 | ||
| 005 | A 2019201121 | SEAT CUSHION |
| 005 | A 2019201121 | SEAT CUSHION |
| A 2019200022 | CUSHION FRAME | |
| Repalced by: A 2019200122 | ||
| 009 | A 2019200122 | CUSHION FRAME |
| A 2019200150 | PAD | |
| Repalced by: A 2019200550 | ||
| 012 | A 2019200550 | PAD |
| 014 | A 2019200046 | COVER |
| 014 | A 2019201546 | COVER |
| 014 | A 2019201546 | COVER |
| 015 | A 0019870230 | WELT |
| 015 | A 0019870230 | WELT |
| 020 | A 2019882278 | CLIP |
| SEAT COVER MOUNTING,TRANSVERSE | ||
| 022 | A 0009842061 | CLIP |
| COVER TO PAD | ||
| 026 | A 2019200130 | BACKREST |
| 026 | A 2019200130 | BACKREST |
| 029 | A 2019200030 | BACKREST |
| COMPLETE,BUT LESS COVER | ||
| 032 | A 2019200047 | COVER |
| 032 | A 2019200047 | COVER |
| 035 | A 1239884078 | CLIP |
| Repalced by: A 1409883778 | ||
| 035 | A 1409883778 | CLIP |
| SEAT COVER MOUNTING,TRANSVERSE | ||
| 035 | A 1409883778 | CLIP |
| SEAT COVER MOUNTING,LONGITUDINAL | ||
| 038 | A 1239241729 | BRACKET |
| SEAT COVER MOUNTING,LONGITUDINAL | ||
| 044 | A 2019220036 | SPRING |
| SEAT CUSHION TO SEAT FRAMEWORK | ||
| 047 | A 2019220136 | SPRING |
| SEAT CUSHION TO SEAT FRAMEWORK | ||
| A 0009908236 | SCREW | |
| Repalced by: A 0019901236 | ||
| 050 | A 0019901236 | SCREW |
| REAR BACKREST TO REAR BODY PANEL | ||
| A 1239940645 | LOCK | |
| Repalced by: A 1239941845 | ||
| 053 | A 1239941845 | LOCK |
| REAR BACKREST TO REAR BODY PANEL | ||
| 053 | A 1239941845 | LOCK |
| REAR BACKREST TO REAR BODY PANEL | ||
