Transporto priemonė: 190 E 2.3; VIN numerio dalis: 201028
Grupė: 31 HITCHING MECHANISM - 015 TRAILER COUPLING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

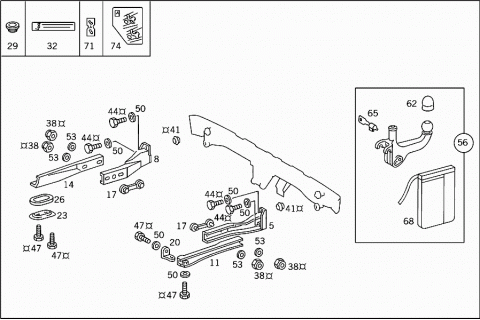

| TRAILER COUPLING,MECHANICAL PART | ||
| 005 | A 2013100291 | STIFFENING |
| LEFT | ||
| 008 | A 2013100391 | STIFFENING |
| RIGHT | ||
| 011 | A 2013100257 | PLATE |
| LEFT | ||
| 014 | A 2013100357 | PLATE |
| RIGHT | ||
| 017 | A 2013100160 | SHACKLE |
| Repalced by: A 2103100360 | ||
| 017 | A 2103100360 | SHACKLE |
| 020 | A 2013150221 | PLATE |
| LEFT | ||
| 023 | A 2013150321 | PLATE |
| RIGHT | ||
| 026 | A 2013150180 | GASKET |
| 029 | A 1109870844 | EXPANSION PLUG |
| REAR END FLOOR | ||
| 032 | A 1245843917 | GUIDE SIGN |
| FIFTH-WHEEL LOAD AND TRAILED LOAD | ||

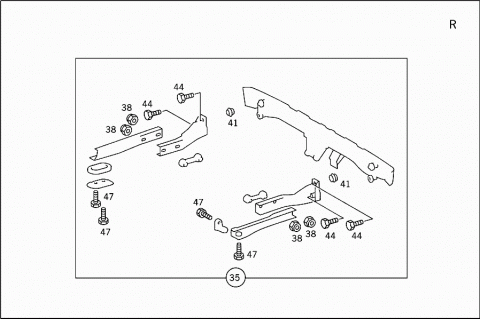

| 035 | A 0003150471 | MOUNTING MATERIAL |
| 038 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 038 | N 910113010000 | NUT |
| 041 | A 1263150180 | GASKET |
| 044 | N 914141010118 | SCREW |
| 047 | N 914125010308 | SCREW |
| Repalced by: N 910106010031 | ||
| 047 | N 910106010031 | SCREW |
| 050 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 050 | N 007349010007 | WASHER |
| 053 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 053 | N 000125010532 | WASHER |
| 056 | A 2013100556 | BALL HEAD |
| 062 | A 0003150629 | CAP |
| 065 | A 2015830095 | PADLOCK |
| 068 | A 1245850103 | PROTECTIVE WRAPPER |
| 071 | A 1265845221 | GUIDE SIGN |
| AT BALL HEAD | ||
| 074 | A 1265845121 | GUIDE SIGN |
| ON REAR LID,RIGHT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

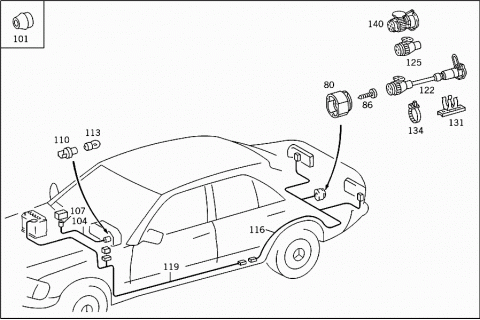

| TRAILER COUPLING,ELECTRICAL PART | ||
| 080 | A 0005406481 | PLUG SOCKET |
| Repalced by: A 0015407581 | ||
| 080 | A 0015407581 | PLUG SOCKET |
| 13-POLE | ||
| 086 | N 007981004357 | SHEET METAL SCREW |
| PLUG SOCKET TO BRACKET | ||
| 101 | A 2019974081 | GROMMET |
| 104 | A 2015404709 | CABLE HARNESS |
| BLINKER CONTROL | ||
| 107 | A 0035450626 | ROUND PIN BUSHING |
| BLINKER CONTROL | ||
| 110 | A 0005453219 | SOCKET |
| BLINKER CONTROL | ||
| 113 | N 072601012230 | BULB |
| CLEAR GLASS BULB | ||
| W5/1,2-12V 1,2W | ||
| 113 | A 2015440094 | BULB |
| GREEN GLASS BULB | ||
| 116 | A 2015404435 | ELECTRIC CABLE |
| Repalced by: A 2015405935 | ||
| 116 | A 2015405935 | ELECTRIC CABLE |
| REAR | ||
| 116 | A 2015404535 | ELECTRIC CABLE |
| Repalced by: A 2015406035 | ||
| 116 | A 2015406035 | ELECTRIC CABLE |
| REAR | ||
| 119 | A 2015401335 | ELECTRIC CABLE |
| FRONT | ||
| 119 | A 2015401835 | ELECTRIC CABLE |
| FRONT | ||
| 122 | A 1245409035 | ELECTRIC CABLE |
| 125 | A 0255451728 | PLUG |
| 13-POLE | ||
| 131 | A 0005452840 | BRACKET |
| 134 | A 0019974390 | LOOM TIE |
| 140 | A 0005401074 | CONNECTOR |
| ADAPTER FROM 13-PIN TO 7-PIN | ||
