Transporto priemonė: 200; VIN numerio dalis: 115015

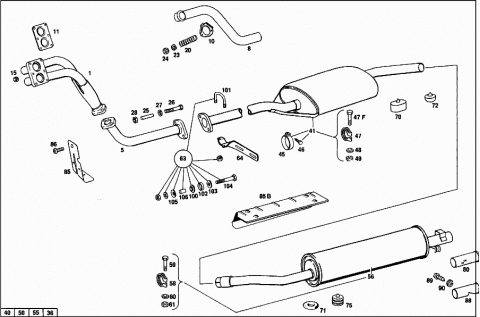

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1154900220 | EXHAUST PIPE | |
| Repalced by: A 1154901020 | ||
| A 1154900220 | EXHAUST PIPE | |
| Repalced by: A 1154900720 | ||
| A 1154900820 | EXHAUST PIPE | |
| Repalced by: A 1154901020 | ||
| 001 | A 1154901020 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 1154900720 | EXHAUST PIPE |
| FRONT | ||
| A 1154900620 | EXHAUST PIPE | |
| Repalced by: A 1154901019 | ||
| A 1154901019 | EXHAUST PIPE | |
| FRONT | ||
| 008 | A 1154900519 | EXHAUST PIPE |
| FRONT | ||
| A 1154901320 | EXHAUST PIPE | |
| FRONT | ||
| A 1154900619 | EXHAUST PIPE | |
| Repalced by: A 1154900819 | ||
| A 1154900819 | EXHAUST PIPE | |
| FRONT | ||
| A 1154901319 | EXHAUST PIPE | |
| FRONT | ||
| A 1154901919 | EXHAUST PIPE | |
| FRONT | ||
| 010 | A 1154920345 | FLANGE |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | A 1104920280 | FLANGE GASKET |
| A 1104920380 | FLANGE GASKET | |
| Repalced by: A 1104920580 | ||
| A 1104920580 | FLANGE GASKET | |
| 015 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 015 | A 0009903250 | NUT |
| COLLECTOR PIPE TO EXHAUST MANIFOLD | ||
| N 000931008046 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 1159939002 | SPRING | |
| Repalced by: A 1169937801 | ||
| 020 | A 1169937801 | SPRING |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | A 1169937801 | SPRING |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 000931008244 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 304014008004 | SCREW | |
| Repalced by: N 304014008001 | ||
| N 304014008001 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 304014008001 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 023 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 023 | N 000125008443 | WASHER |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 023 | N 000125008443 | WASHER |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 024 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 024 | A 0009903250 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 024 | A 0009903250 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 1159939302 | SPRING | |
| Repalced by: A 0004920153 | ||
| A 0004920053 | SPACER TUBE | |
| Repalced by: A 0004920153 | ||
| 025 | A 0004920153 | SPACER TUBE |
| A 1159939302 | SPRING | |
| 026 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 026 | N 304014008001 | SCREW |
| 027 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 027 | N 000125008443 | WASHER |
| 028 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 028 | A 0009903250 | NUT |
| 040 | A 1154900421 | EXHAUST PIPE |
| Repalced by: A 1154900515 | ||
| 040 | A 1154900515 | EXHAUST MUFFLER WITH PIPE |
| WELDED VERSION | ||
| 040 | A 1154900515 | EXHAUST MUFFLER WITH PIPE |
| WELDED VERSION | ||
| A 1154902221 | EXHAUST PIPE | |
| Repalced by: A 1154900515 | ||
| 041 | A 1154900515 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL,CLAMP-ON VERSION | ||
| 041 | A 1154900515 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL,CLAMP-ON VERSION | ||
| A 1154900321 | EXHAUST PIPE | |
| Repalced by: A 1154900115 | ||
| A 1154900115 | EXHAUST MUFFLER WITH PIPE | |
| WELDED VERSION | ||
| A 1154900115 | EXHAUST MUFFLER WITH PIPE | |
| WELDED VERSION | ||
| A 1154901821 | EXHAUST PIPE | |
| Repalced by: A 1154900115 | ||
| A 1154900115 | EXHAUST MUFFLER WITH PIPE | |
| CENTRAL,CLAMP-ON VERSION | ||
| A 1154900115 | EXHAUST MUFFLER WITH PIPE | |
| CENTRAL,CLAMP-ON VERSION | ||
| A 1154900921 | EXHAUST PIPE | |
| Repalced by: A 1154900215 | ||
| A 1154900215 | EXHAUST MUFFLER WITH PIPE | |
| WELDED VERSION | ||
| A 1154901921 | EXHAUST PIPE | |
| Repalced by: A 1154900215 | ||
| A 1154900215 | EXHAUST MUFFLER WITH PIPE | |
| CENTRAL,CLAMP-ON VERSION | ||
| A 1154901221 | EXHAUST PIPE | |
| Repalced by: A 1154902021 | ||
| A 1154902021 | EXHAUST PIPE | |
| WELDED VERSION | ||
| A 1154902021 | EXHAUST PIPE | |
| Repalced by: A 1154900315 | ||
| A 1154900315 | EXHAUST MUFFLER WITH PIPE | |
| CENTRAL,CLAMP-ON VERSION | ||
| A 1154901521 | EXHAUST PIPE | |
| Repalced by: A 1154902121 | ||
| A 1154902121 | EXHAUST PIPE | |
| WELDED VERSION | ||
| A 1154902121 | EXHAUST PIPE | |
| Repalced by: A 1154900415 | ||
| A 1154900415 | EXHAUST MUFFLER WITH PIPE | |
| CENTRAL,CLAMP-ON VERSION | ||
| 045 | A 1159950435 | CLAMP |
| 046 | N 007976005201 | SHEET METAL SCREW |
| A 1114920240 | CLAMP | |
| Repalced by: A 1074920340 | ||
| A 1074920140 | CLAMP | |
| Repalced by: A 1074920340 | ||
| 047 | A 1074920340 | CLAMP |
| Repalced by: A 1074900141 | ||
| 047 | A 1074900141 | CLAMP |
| Repalced by: A 1074900041 | ||
| 047 | A 1074900041 | CLAMP |
| 047 | A 1074900041 | CLAMP |
| 047F | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 047F | N 304017008043 | HEXAGON HEAD BOLT |
| 047F | N 304017008043 | HEXAGON HEAD BOLT |
| 048 | N 000433008406 | WASHER |
| 048 | N 000433008406 | WASHER |
| 049 | N 000934008013 | NUT |
| 049 | N 000934008013 | NUT |
| 050 | A 1144900421 | EXHAUST PIPE |
| WELDED VERSION | ||
| A 1144911001 | MUFFLER | |
| Repalced by: A 1144911501 | ||
| 055 | A 1144911501 | MUFFLER |
| WELDED VERSION | ||
| A 1144911101 | MUFFLER | |
| Repalced by: A 1144911701 | ||
| A 1144911701 | MUFFLER | |
| WELDED VERSION | ||
| A 1144902921 | EXHAUST PIPE | |
| Repalced by: A 1144900515 | ||
| 056 | A 1144900515 | EXHAUST MUFFLER WITH PIPE |
| REAR;CLAMP-ON VERSION | ||
| A 1154902521 | EXHAUST PIPE | |
| Repalced by: A 1154900715 | ||
| A 1154900715 | EXHAUST MUFFLER WITH PIPE | |
| REAR;CLAMP-ON VERSION | ||
| A 1154910101 | MUFFLER | |
| Repalced by: A 1154900615 | ||
| A 1154900615 | EXHAUST MUFFLER WITH PIPE | |
| WELDED VERSION | ||
| A 1154910301 | MUFFLER | |
| Repalced by: A 1154900615 | ||
| A 1154900615 | EXHAUST MUFFLER WITH PIPE | |
| WELDED VERSION | ||
| A 1154902421 | EXHAUST PIPE | |
| Repalced by: A 1154900615 | ||
| A 1154900615 | EXHAUST MUFFLER WITH PIPE | |
| REAR;CLAMP-ON VERSION | ||
| A 1074920140 | CLAMP | |
| Repalced by: A 1074920340 | ||
| 058 | A 1074920340 | CLAMP |
| Repalced by: A 1074900141 | ||
| 058 | A 1074900141 | CLAMP |
| Repalced by: A 1074900041 | ||
| 058 | A 1074900041 | CLAMP |
| 059 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 059 | N 304017008043 | HEXAGON HEAD BOLT |
| 060 | N 000433008406 | WASHER |
| 061 | N 000934008013 | NUT |
| A 1155860049 | REPAIR KIT | |
| Repalced by: A 1155860149 | ||
| A 1155860149 | REPAIR KIT | |
| Repalced by: A 1145860349 | ||
| 063 | A 1145860349 | REPAIR KIT |
| Repalced by: A 1265860149 | ||
| 063 | A 1265860149 | REPAIR KIT |
| Repalced by: A 1264900237 | ||
| 063 | A 1264900237 | SUSPENSION |
| Repalced by: A 1264900337 | ||
| 063 | A 1264900337 | REPAIR KIT |
| FRONT EXHAUST PIPE SUSPENSION | ||
| A 1155860249 | REPAIR KIT | |
| FROM FLANGED CONNECTION | ||
| A 1155860349 | REPAIR KIT | |
| FROM PLUG CONNECTION | ||
| A 1155860449 | REPAIR KIT | |
| FROM PLUG CONNECTION | ||
| A 1154920041 | BRACKET | |
| Repalced by: A 1154920141 | ||
| 064 | A 1154920141 | BRACKET |
| A 1159870440 | RUBBER BUFFER | |
| Repalced by: A 1159870540 | ||
| 070 | A 1159870540 | RUBBER BUFFER |
| 071 | A 1124920282 | DAMPING PAD |
| Repalced by: A 1164920182 | ||
| 071 | A 1164920182 | DAMPING PAD |
| Repalced by: A 1074920082 | ||
| 071 | A 1074920082 | DAMPING PAD |
| EXHAUST PIPE SUSPENSION | ||
| 072 | A 1149870139 | RUBBER BUFFER |
| Repalced by: A 1079870840 | ||
| 072 | A 1079870840 | RUBBER BUFFER |
| Repalced by: A 1079871140 | ||
| 072 | A 1079871140 | RUBBER BUFFER |
| IN FRONT OF POSTERIOR MUFFLER | ||
| A 1149870039 | RUBBER BUFFER | |
| Repalced by: A 1129870140 | ||
| A 1129870140 | RUBBER BUFFER | |
| Repalced by: A 1239870940 | ||
| 075 | A 1239870940 | RUBBER BUFFER |
| BEHIND POSTERIOR MUFFLER | ||
| A 1004920014 | END PIECE | |
| Repalced by: A 1234920714 | ||
| A 1154920014 | END PIECE | |
| Repalced by: A 1234920714 | ||
| 080 | A 1234920714 | END PIECE |
| A 1154920214 | END PIECE | |
| A 1144920530 | PROTECTIVE PLATE | |
| Repalced by: A 1144920830 | ||
| A 1144900130 | PROTECTIVE PLATE | |
| Repalced by: A 1144920830 | ||
| 085 | A 1144920830 | PROTECTIVE PLATE |
| 085B | A 1144920630 | PROTECTIVE PLATE |
| 086 | A 0009902036 | SCREW |
| 086 | A 0009902036 | SCREW |
| A 1154920614 | END PIECE | |
| Repalced by: A 1154920914 | ||
| 088 | A 1154920914 | END PIECE |
| 089 | N 007981003335 | SHEET METAL SCREW |
| Repalced by: N 007981003203 | ||
| 089 | N 007981003203 | SHEET METAL SCREW |
| 090 | N 000127004203 | LOCK WASHER |
| Repalced by: N 912004004102 | ||
| 090 | N 912004004102 | LOCK WASHER |
| 100 | A 1211550181 | RUBBER RING |
| 101 | A 1154920027 | CLAMPING BRACKET |
| Repalced by: A 1234920027 | ||
| 101 | A 1234920027 | CLAMPING BRACKET |
| N 999901008005 | NUT | |
| Repalced by: A 0009903250 | ||
| A 0009903250 | NUT | |
| A 1084920176 | WASHER | |
| Repalced by: N 000440009103 | ||
| 102 | N 000440009103 | WASHER |
| 103 | A 1089900340 | WASHER |
| 104 | N 000931008244 | SCREW |
| 105 | N 002093016100 | DISC SPRING |
| 106 | A 1084920053 | SPACER TUBE |
