Transporto priemonė: 200; VIN numerio dalis: 115015

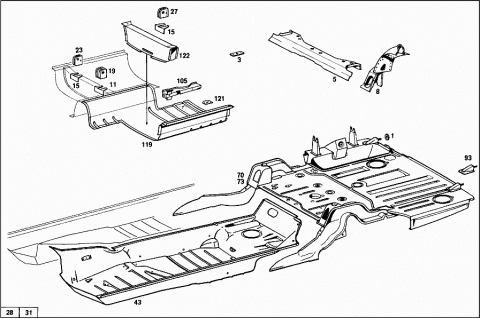

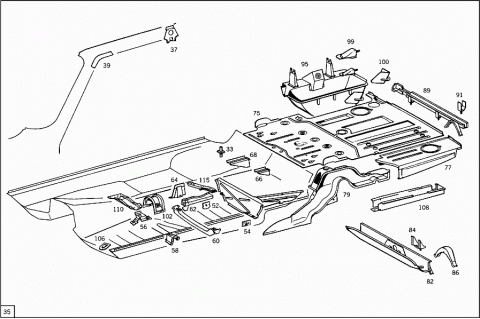

Grupė: 61 SUBSTRUCTURE
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1159971240 | SEAL RING |
| 003 | A 1106100211 | PLATE |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| A 1156180016 | REINFORCEMENT | |
| Repalced by: A 1156180716 | ||
| 005 | A 1156180716 | REINFORCEMENT |
| A 1156180316 | REINFORCEMENT | |
| Repalced by: A 1156100125 | ||
| A 1156180516 | REINFORCEMENT | |
| Repalced by: A 1156100125 | ||
| 008 | A 1156100125 | REINFORCEMENT |
| LEFT | ||
| A 1156180416 | REINFORCEMENT | |
| Repalced by: A 1156100225 | ||
| A 1156180616 | REINFORCEMENT | |
| Repalced by: A 1156100225 | ||
| A 1156100225 | REINFORCEMENT | |
| RIGHT | ||
| 011 | A 1106120711 | PLATE |
| CENTRAL | ||
| 015 | A 1106121011 | PLATE |
| OUTSIDE TOP | ||
| 019 | A 1106120553 | MOUNTING |
| 023 | A 1106120453 | MOUNTING |
| 027 | A 1106120353 | MOUNTING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 63,FIG.NO.: | ||
| 11 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 63,FIG.NO.: | ||
| 10 | ||
| 033 | A 1156120017 | THREADED BUSHING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP: | ||
| 62 | ||
| 037 | A 1156371616 | REINFORCEMENT |
| 039 | A 1156371716 | REINFORCEMENT |
| A 1156261114 | BRACKET | |
| LEFT FRONT SIDE MEMBER; FOR ENGINE SHOCK ABSORBER | ||
| A 1156261214 | BRACKET | |
| RIGHT FRONT SIDE MEMBER;FOR ENGINE SHOCK ABSORBER | ||
| A 1156221914 | BRACKET | |
| RIGHT FRONT SIDE MEMBER;FOR AIR CLEANER | ||
| A 1156160167 | FLOOR | |
| Repalced by: A 1156160967 | ||
| 043 | A 1156160967 | FLOOR |
| LEFT | ||
| A 1156160267 | FLOOR | |
| Repalced by: A 1156161067 | ||
| A 1156161067 | FLOOR | |
| RIGHT | ||
| A 1156100136 | BRACKET | |
| Repalced by: A 1156100336 | ||
| A 1156100336 | BRACKET | |
| (REST),REAR SEAT,LEFT | ||
| A 1156100236 | BRACKET | |
| Repalced by: A 1156100436 | ||
| A 1156100436 | BRACKET | |
| (REST),REAR SEAT,RIGHT | ||
| A 1156100521 | CROSS MEMBER | |
| Repalced by: A 1156100336 | ||
| A 1156100621 | CROSS MEMBER | |
| Repalced by: A 1156100436 | ||
| 052 | A 1106100311 | PLATE |
| Repalced by: A 1269840125 | ||
| 052 | A 1269840125 | THREADED CHUCK |
| Repalced by: A 1269840025 | ||
| 052 | A 1269840025 | THREADED CHUCK |
| A 1156100511 | PLATE | |
| Repalced by: A 1156100811 | ||
| 054 | A 1156100811 | PLATE |
| Repalced by: A 1106100311 | ||
| 056 | A 1156100536 | BRACKET |
| (REST),FRONT SEAT,LEFT INSIDE FRONT | ||
| A 1156100636 | BRACKET | |
| (REST),FRONT SEAT,RIGHT INSIDE FRONT | ||
| 058 | A 1156160736 | COVERING |
| LEFT OUTSIDE FRONT | ||
| A 1156160836 | COVERING | |
| RIGHT OUTSIDE FRONT | ||
| 060 | A 1156160936 | COVERING |
| REAR | ||
| 062 | A 1156100122 | RAIL |
| 064 | A 1156160320 | MOUNTING |
| 066 | A 1156161414 | BRACKET |
| MAIN FLOOR,REAR LEFT;FOR BRAKE CABLE | ||
| 068 | A 1156162014 | BRACKET |
| MAIN FLOOR,REAR RIGHT;FOR BRAKE CABLE | ||
| A 1156100061 | FLOOR | |
| Repalced by: A 1156100261 | ||
| A 1156100261 | FLOOR | |
| Repalced by: A 1156100661 | ||
| 070 | A 1156100661 | FLOOR |
| A 1156100161 | FLOOR | |
| Repalced by: A 1156100461 | ||
| 073 | A 1156100461 | FLOOR |
| A 1156180061 | REAR END FLOOR | |
| Repalced by: A 1156180761 | ||
| 075 | A 1156180761 | REAR END FLOOR |
| CENTRAL | ||
| A 1156180161 | REAR END FLOOR | |
| Repalced by: A 1156180561 | ||
| 077 | A 1156180561 | REAR END FLOOR |
| LEFT OUTSIDE | ||
| 079 | A 1156100110 | SIDE MEMBER |
| REAR LEFT | ||
| A 1156100210 | SIDE MEMBER | |
| REAR RIGHT | ||
| 082 | A 1156100604 | CROSS MEMBER |
| 084 | A 1156100014 | BRACKET |
| FUEL TANK | ||
| 086 | A 1156120714 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| A 1156100616 | CROSS MEMBER | |
| Repalced by: A 1156100916 | ||
| 089 | A 1156100916 | CROSS MEMBER |
| REAR | ||
| A 1156120714 | BRACKET | |
| EXHAUST PIPE SUSPENSION | ||
| 091 | A 1156100114 | BRACKET |
| FUEL TANK | ||
| 093 | A 1156100331 | CONSOLE |
| A 1156100086 | PIPE SOCKET | |
| Repalced by: A 1156100475 | ||
| A 1156100175 | SPARE WHEEL WELL | |
| Repalced by: A 1156100475 | ||
| 095 | A 1156100475 | SPARE WHEEL WELL |
| A 1156100275 | SPARE WHEEL WELL | |
| Repalced by: A 1156100375 | ||
| 095 | A 1156100375 | SPARE WHEEL WELL |
| 099 | A 1156100431 | CONSOLE |
| 100 | A 1156100531 | CONSOLE |
| A 1156100021 | CROSS MEMBER | |
| Repalced by: A 1156160221 | ||
| 102 | A 1156160221 | SEAT |
| A 1156101121 | CROSS MEMBER | |
| Repalced by: A 1156160321 | ||
| A 1156160321 | SEAT | |
| 105 | A 1156100222 | RAIL |
| 106 | A 1156160030 | COVERING |
| 108 | A 1156100143 | STAY |
| LEFT,BUMPER TO REAR END FLOOR | ||
| A 1156160044 | WEB | |
| Repalced by: A 1156160844 | ||
| 110 | A 1156160844 | WEB |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 000127008203 | LOCK WASHER | |
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| Repalced by: N 000000003250 | ||
| N 000000003250 | WASHER | |
| A 1156100344 | FRAME GIRDER | |
| Repalced by: A 1156160344 | ||
| 115 | A 1156160344 | WEB |
| N 000933010238 | SCREW | |
| Repalced by: N 304017010028 | ||
| N 304017010028 | HEXAGON HEAD BOLT | |
| N 912004010102 | LOCK WASHER | |
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| 119 | A 1156100160 | FLOOR |
| LEFT | ||
| A 1156100260 | FLOOR | |
| RIGHT | ||
| 121 | A 1106100311 | PLATE |
| Repalced by: A 1269840125 | ||
| 121 | A 1269840125 | THREADED CHUCK |
| Repalced by: A 1269840025 | ||
| 121 | A 1269840025 | THREADED CHUCK |
| A 1156160520 | MOUNTING | |
| ACCELERATOR PEDAL, AT FRONT FLOOR | ||
| 122 | A 1156101304 | CROSS MEMBER |
| LEFT | ||
| A 1156101404 | CROSS MEMBER | |
| RIGHT | ||
