Transporto priemonė: 200 D; VIN numerio dalis: 110116
Grupė: 88 ATTACHMENT SHEET METAL - 001 ATTACHMENT PARTS

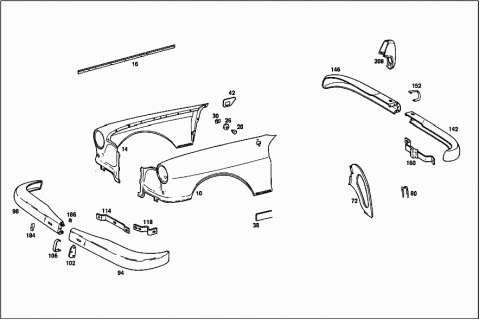

121354
121355
# Kodas Pavadinimas
A 1108801718 FRONT FENDER
Repalced by: A 1108802318
A 1108801818 FRONT FENDER
Repalced by: A 1108802418
010 A 1108802318 FRONT FENDER
LEFT
014 A 1108802418 FRONT FENDER
RIGHT
A 1108802718 FRONT FENDER
Repalced by: A 1105860088
A 1105860088 REPAIR KIT
FRONT FENDER
A 1108802818 FRONT FENDER
Repalced by: A 1105860188
A 1105860188 REPAIR KIT
Repalced by: A 1115860188
A 1115860188 REPAIR KIT
FRONT FENDER
A 1108810095 INTERMEDIATE LAYER
Repalced by: A 0039895485
016 A 0039895485 ADHESIVE TAPE
020 N 000933006102 SCREW
Repalced by: N 304017006016
020 N 304017006016 SCREW
N 000933006130 SCREW
A 0009900848 WASHER
Repalced by: A 1119903640
026 A 1119903640 WASHER
A 0009840522 SHEET METAL NUT
Repalced by: N 913008006300
030 N 913008006300 SHEET METAL NUT
N 007976006205 SHEET METAL SCREW
N 007976006208 SHEET METAL SCREW
A 0009943845 LOCK
A 0009875851 RUBBER SEAL
Repalced by: A 1108810395
038 A 1108810395 INTERMEDIATE LAYER
Repalced by: A 1158810997
038 A 1158810997 PAD
700 MM LONG
A 1108810082 WASHER
Repalced by: A 0009878651
042 A 0009878651 RUBBER SEAL
N 000933006102 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
A 1119903640 WASHER
A 1108810395 INTERMEDIATE LAYER
Repalced by: A 1158810997
A 1158810997 PAD
FRONT FENDER TO SIDE MEMBER
N 007985006128 SCREW
FRONT FENDER TO SIDE MEMBER
N 007981005212 SHEET METAL SCREW
FRONT FENDER TO SIDE MEMBER
A 0009871115 PLUG
Repalced by: A 0009974886
A 0009974886 PLUG
AT FIRE WALL
N 000137006204 SPRING WASHER
FRONT FENDER TO SIDE MEMBER
A 0009904291 NUT RETAINER
FRONT FENDER TO SIDE MEMBER
A 0009944745 LOCK
A 0009903330 SCREW
FRONT FENDER TO FRONT STIFFENING
A 0009904291 NUT RETAINER
FRONT FENDER TO FRONT STIFFENING
N 000933006102 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
FRONT FENDER TO CROSS MEMBER FRONT
A 1119903640 WASHER
FRONT FENDER TO CROSS MEMBER FRONT
072 A 1108840335 PARTITION PANEL
LEFT
A 1108840435 PARTITION PANEL
RIGHT
A 1118840035 PARTITION PANEL
RIGHT
A 0009871651 RUBBER SEAL
Repalced by: A 1108840098
080 A 1108840098 SEAL
770 MM
N 007976005202 SHEET METAL SCREW
FRONT FENDER PARTITION PANEL TO WHEELHOUSE
N 007976005202 SHEET METAL SCREW
FRONT FENDER PARTITION PANEL TO WHEELHOUSE
N 007976004205 SHEET METAL SCREW
FRONT FENDER PARTITION PANEL TO WHEELHOUSE
N 009021006103 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
FRONT FENDER PARTITION PANEL TO WHEELHOUSE
N 009021006208 WASHER
FRONT FENDER PARTITION PANEL TO WHEELHOUSE
A 0009941345 LOCK
FRONT FENDER PARTITION PANEL TO WHEELHOUSE
A 0009894585 ADHESIVE TAPE
Repalced by: A 0019875646
A 0029894185 ADHESIVE TAPE
Repalced by: A 0019875646
A 0019875646 SEALING CORD
FRONT FENDER PARTITION PANEL TO WHEELHOUSE
094 A 1108800370 FRONT BUMPER FACE BAR
LEFT
098 A 1108800470 FRONT BUMPER FACE BAR
RIGHT
102 A 1108850016 REINFORCEMENT
106 A 1108850123 BUMPER JOINT COVER
N 000933008145 SCREW
N 000137008204 SPRING WASHER
Repalced by: N 000137008212
N 000137008212 SPRING WASHER
N 000934008010 NUT
Repalced by: N 304032008006
N 304032008006 NUT
114 A 1108850140 BRACKET
118 A 1108850040 BRACKET
N 000933010164 SCREW
N 000933010105 SCREW
N 000125010504 WASHER
N 009021010202 WASHER
Repalced by: N 009021010209
N 009021010209 WASHER
N 912004010102 LOCK WASHER
N 000933010105 SCREW
BUMPER TO CROSS MEMBER
N 009021010202 WASHER
Repalced by: N 009021010209
N 009021010209 WASHER
BUMPER TO CROSS MEMBER
N 000125010504 WASHER
BUMPER TO CROSS MEMBER
N 912004010102 LOCK WASHER
BUMPER TO CROSS MEMBER
A 1109840156 WASHER
A 1109840356 WASHER
142 A 1108800371 REAR BUMPER FACE BAR
LEFT
146 A 1108800471 REAR BUMPER FACE BAR
RIGHT
A 1108800971 REAR BUMPER FACE BAR
LEFT
A 1108801071 REAR BUMPER FACE BAR
RIGHT
152 A 1108850122 BUMPER JOINT COVER
N 000933008131 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
N 000137008204 SPRING WASHER
Repalced by: N 000137008212
N 000137008212 SPRING WASHER
N 000934008010 NUT
Repalced by: N 304032008006
N 304032008006 NUT
160 A 1108800114 BRACKET
LEFT
A 1108800214 BRACKET
RIGHT
N 000933010105 SCREW
N 000933010105 SCREW
N 000125010504 WASHER
N 000125010504 WASHER
N 009021010202 WASHER
Repalced by: N 009021010209
N 009021010209 WASHER
N 009021010209 WASHER
N 912004010102 LOCK WASHER
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
N 304032010003 NUT
N 000933010105 SCREW
N 000125010504 WASHER
N 009021010202 WASHER
Repalced by: N 009021010209
N 009021010209 WASHER
N 912004010102 LOCK WASHER
184 A 1108850097 PAD
LICENSE PLATE TO FRONT BUMPER
186 A 1108850197 PAD
LICENSE PLATE TO FRONT BUMPER
N 000085005133 SCREW
LICENSE PLATE TO FRONT BUMPER
N 000125005306 WASHER
LICENSE PLATE TO FRONT BUMPER
N 000934005008 NUT
LICENSE PLATE TO FRONT BUMPER
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
BUMPER TO BODY
N 009021010202 WASHER
Repalced by: N 009021010209
N 009021010209 WASHER
BUMPER TO BODY
N 912004010102 LOCK WASHER
BUMPER TO BODY
N 000085005111 SCREW
LICENSE PLATE TO FLAP
A 0009873741 RUBBER RING
LICENSE PLATE TO FLAP
N 000125005306 WASHER
LICENSE PLATE TO FLAP
N 000934005008 NUT
LICENSE PLATE TO FLAP
208 A 1108800355 BUMPER GUARD
FRONT LEFT AND REAR RIGHT
A 1108800455 BUMPER GUARD
FRONT RIGHT AND REAR LEFT
A 1208800155 BUMPER GUARD
REAR LEFT
A 1208800255 BUMPER GUARD
REAR RIGHT
N 000933008145 SCREW
N 000125008407 WASHER
N 000127008203 LOCK WASHER
222 A 1108800157 ENGINE HOOD
A 1108800580 LEVER
Repalced by: A 1108870574
226 A 1108870574 LEVER
LEFT
A 1108800480 LEVER
RIGHT
A 1108800680 LEVER
Repalced by: A 1108870674
A 1108870674 LEVER
RIGHT
N 000933006121 SCREW
Repalced by: N 304017006020
N 304017006020 SCREW
N 009021006103 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
N 912004006102 LOCK WASHER
N 000934006007 NUT
A 1108800560 ENGINE HOOD CATCH
Repalced by: A 1158870006
240 A 1158870006 ENGINE HOOD CATCH
Repalced by: A 1078800060
240 A 1078800060 ENGINE HOOD CATCH
UPPER PART
N 009021006106 WASHER
N 912004006102 LOCK WASHER
N 000933006102 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
A 1109840233 SCREW
HINGE LEVER TO COWL
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
HINGE LEVER TO COWL
N 900055012001 SPRING WASHER
HINGE LEVER TO COWL
N 000125008407 WASHER
HINGE LEVER TO COWL
256 A 1108870149 BUSHING
HINGE LEVER TO COWL
260 A 1108800017 STOP SCREW
Repalced by: A 1269900015
260 A 1269900015 SCREW
Repalced by: A 2019880211
260 A 2019880211 BUFFER
Repalced by: A 2019880511
260 A 2019880511 BUFFER
N 000934006007 NUT
A 1108800860 ENGINE HOOD CATCH
Repalced by: A 1158800160
264 A 1158800160 ENGINE HOOD CATCH
LOWER PART
268 N 007987006127 SCREW
A 1108800059 ENGINE HOOD RELEASE CABLE
Repalced by: A 1108800359
A 1108800359 ENGINE HOOD RELEASE CABLE
Repalced by: A 1108800559
272 A 1108800559 ENGINE HOOD RELEASE CABLE
276 A 1875270072 NUT
280 A 1109971181 GROMMET
A 1203021001 KNOB
284 A 1108800020 HANDLE
Repalced by: A 9703100173
284 A 9703100173 LEVER
288 N 918001005001 PIN
N 007976004207 SHEET METAL SCREW
ENGINE HOOD RELEASE CABLE TO FRONT PANEL,BOTTOM
N 006797005132 TOOTHED WASHER
ENGINE HOOD RELEASE CABLE TO FRONT PANEL,BOTTOM
A 0009972281 GROMMET
ENGINE HOOD RELEASE CABLE THRU FIRE WALL
296 A 0009972781 GROMMET
ENGINE HOOD RELEASE CABLE THRU FIRE WALL
300 A 1108800177 SUPPORT
LEFT
A 1108800277 SUPPORT
RIGHT
304 A 1209840033 SCREW
308 A 0009900048 WASHER
312 N 000125010504 WASHER
316 A 0009900448 WASHER
320 A 1108870179 SPRING
324 A 1109870541 RUBBER RING
A 1108800064 SAFETY HOOK
Repalced by: A 1108800264
328 A 1108800264 SAFETY HOOK
N 000933006130 SCREW
N 912004006102 LOCK WASHER
334 A 1108870309 GARNISH MOULDING
338 A 0009901533 SCREW
N 000127003206 LOCK WASHER
N 000934003002 NUT
344 A 1119870340 RUBBER BUFFER
348 A 1119870240 RUBBER BUFFER
Repalced by: A 1119870340
348 A 1119870340 RUBBER BUFFER
N 000125004504 WASHER
N 007981003327 SHEET METAL SCREW
354 A 1108870125 COVERING
LEFT ENGINE HOOD SUPPORT
A 1108870225 COVERING
RIGHT ENGINE HOOD SUPPORT
N 007982002222 SHEET METAL SCREW
360 A 1108880015 RADIATOR GRILLE SHELL
H 101808880109 MERCEDES STAR
Repalced by: A 1808880109
364 A 1808880109 MERCEDES STAR
368 A 1108880017 ESCUTCHEON
H 101808880034 SPRING
Repalced by: A 1808880034
372 A 1808880034 SPRING
376 A 0009940121 LOCK
380 A 1108800088 MERCEDES BADGE
Repalced by: A 1088800088
A 1088800088 MERCEDES BADGE
392 A 0009902048 WASHER
396 N 000934004006 NUT
A 1108800185 RADIATOR GRILLE
Repalced by: A 1108800085
400 A 1108800085 RADIATOR GRILLE
404 A 1108880034 SPRING
TOP
408 A 1108880134 SPRING
CENTRAL
N 007985004125 SCREW
Repalced by: N 007985004107
N 007985004107 SCREW
A 0009902045 PLATE
Repalced by: A 0009902048
A 0009902048 WASHER
N 000125004311 WASHER
Repalced by: N 000125004319
N 000125004319 WASHER
N 000934004006 NUT
422 A 1108880021 GARNISH MOULDING
ALONGSIDE
426 A 1088880122 GARNISH MOULDING
TRANSVERSE
430 A 0019885678 CLIP
434 A 0019887478 CLIP
438 A 0009940545 LOCK
RADIATOR GRILLE SHELL TO ENGINE HOOD
442 A 1118885098 SEAL
RADIATOR GRILLE SHELL TO ENGINE HOOD
N 007981004322 SHEET METAL SCREW
Repalced by: N 007981004233
N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
N 000000000460 SHEET METAL SCREW
RADIATOR GRILLE SHELL TO ENGINE HOOD
A 0009900348 WASHER
RADIATOR GRILLE SHELL TO ENGINE HOOD
448 A 0009871840 RUBBER BUFFER
RADIATOR GRILLE SHELL TO ENGINE HOOD
