Transporto priemonė: 200 D; VIN numerio dalis: 110116
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
41928
41929
41930
41931

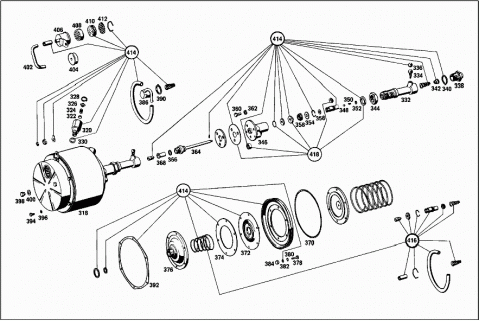

41932
41933
41934
41935
41936
# Kodas Pavadinimas

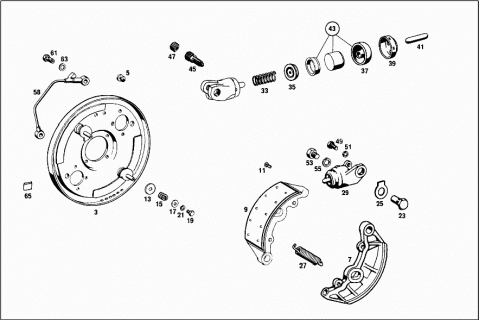

X XXXXXXXXXXXX PART NAME MISSING
FRONT WHEEL BRAKE
Y YYYYYYYYYYYY PART NAME MISSING
003 A 1214200016 BRAKE ANCHOR PLATE
LEFT
A 1214200116 BRAKE ANCHOR PLATE
RIGHT
005 A 1119970086 PLUG
N 000660009002 RIVET
BRAKE ANCHOR PLATE TO STEERING KNUCKLE
007 A 1104201120 BRAKE SHOE
Repalced by: A 1104202520
007 A 1104202520 BRAKE SHOE
WITH LINING
009 A 1804210710 BRAKE LINING
Repalced by: A 1804211010
009 A 1804211010 BRAKE LINING
011 A 1839900295 RIVET
013 A 1109900540 WASHER
015 A 1809931801 SPRING
017 N 009021005100 WASHER
019 N 000933005011 SCREW
021 N 000127005200 LOCK WASHER
023 A 1104210218 PIVOT PIN
025 A 1109940116 LOCK
027 A 1809932510 SPRING
029 A 0014203318 WHEEL BRAKE CYLINDER
LEFT
A 0014203418 WHEEL BRAKE CYLINDER
RIGHT
033 A 0004211090 SPRING
035 A 0004211489 FILLER
037 A 0004211087 PROTECTIVE CAP
039 A 0004211687 PROTECTIVE CAP
041 A 0004210988 THRUST PIN
043 A 0005869142 REPAIR KIT
045 A 0004200855 BLEEDER VALVE
047 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
047 A 0004210887 PROTECTIVE CAP
049 N 000933008131 SCREW
Repalced by: N 304017008016
049 N 304017008016 SCREW
051 N 000127008200 LOCK WASHER
053 N 000961012003 SCREW
055 N 000127012000 LOCK WASHER
058 A 1114202328 LINE
LEFT
A 1114202428 LINE
RIGHT
061 A 0004280426 HOLLOW SCREW
063 N 007603010107 SEAL RING
065 A 1109870037 MOLDED PIECE

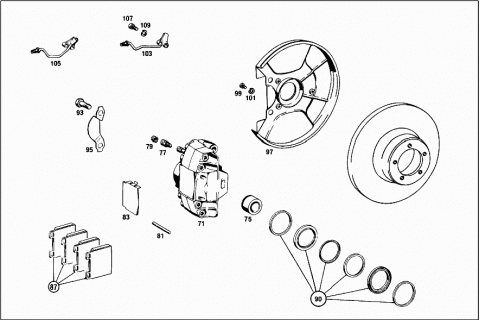

X XXXXXXXXXXXX PART NAME MISSING
FRONT WHEEL BRAKE
065 A 1109870037 MOLDED PIECE
A 0004212498 CALIPER
Repalced by: A 0014210298
A 0004215998 CALIPER
Repalced by: A 0014210298
A 0004217198 CALIPER
Repalced by: A 0014210298
A 0014210098 CALIPER
Repalced by: A 0014210298
A 0004216498 CALIPER
Repalced by: A 0014210298
A 0004219798 CALIPER
Repalced by: A 0014210298
A 0014210298 CALIPER
Repalced by: A 0014218198
071 A 0014218198 CALIPER
LEFT;TEVES;LESS LINING; IN PAIRS OPTIONAL WITH
A 0004212598 CALIPER
Repalced by: A 0014210398
A 0004216098 CALIPER
Repalced by: A 0014210398
A 0004217298 CALIPER
Repalced by: A 0014210398
A 0014210198 CALIPER
Repalced by: A 0014210398
A 0004216598 CALIPER
Repalced by: A 0014210398
A 0004219898 CALIPER
Repalced by: A 0014210398
A 0014210398 CALIPER
Repalced by: A 0014218298
A 0014218298 CALIPER
RIGHT,TEVES,LESS LINING; IN PAIRS OPTIONAL WITH
A 0004213283 PISTON
Repalced by: A 0004213583
A 0004213583 PISTON
075 A 0004213383 PISTON
A 0004213483 PISTON
A 0004214083 PISTON
077 A 0004201755 BLEEDER VALVE
M 8
A 0004211665 BLEEDER VALVE
M 8
079 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
079 A 0004210887 PROTECTIVE CAP
081 A 0009910260 DOWEL PIN
A 0009910360 DOWEL PIN
A 0004210874 PIN
A 0004210573 LOCK
083 A 0004210220 PROTECTIVE PLATE
A 0004210020 PROTECTIVE PLATE
A 0004210120 PROTECTIVE PLATE
A 0004210320 PROTECTIVE PLATE
A 0014217398 CALIPER
LEFT,BENDIX,LESS LINING; IN PAIRS OPTIONAL WITH
A 0014217498 CALIPER
RIGHT,BENDIX,LESS LINING; IN PAIRS OPTIONAL WITH
A 0004214483 PISTON
A 0009911860 DOWEL PIN
Repalced by: A 0009912660
A 0009912660 DOWEL PIN
A 0004211291 SPRING
A 0004210273 LOCK
Repalced by: A 0004210573
A 0004210573 LOCK
A 0004210373 LOCK
Repalced by: A 0004210573
A 0004210573 LOCK
A 0004210520 PROTECTIVE PLATE
A 0004204655 BLEEDER VALVE
087 A 0014207720 BRAKE PAD
PARTS KIT
087 A 0014207720 BRAKE PAD
PARTS KIT
087 A 0014208220 BRAKE PAD
PARTS KIT
090 A 0005866442 REPAIR KIT
A 0005868642 REPAIR KIT
A 0005862443 REPAIR KIT
A 0015860042 REPAIR KIT
"BENDIX"
093 A 1114210371 SCREW
095 A 1159940732 LOCK
A 1114200044 PROTECTIVE PLATE
Repalced by: A 1114200444
097 A 1114200444 PROTECTIVE PLATE
LEFT
A 1114200144 PROTECTIVE PLATE
Repalced by: A 1114200544
A 1114200544 PROTECTIVE PLATE
RIGHT
A 0049973245 SEAL RING
099 N 000912006024 SCREW
101 N 007980006000 LOCK WASHER
103 A 1114206228 LINE
LEFT
105 A 1114206328 LINE
RIGHT
107 N 000912006024 SCREW
N 000912006064 SCREW
109 N 007980006000 LOCK WASHER

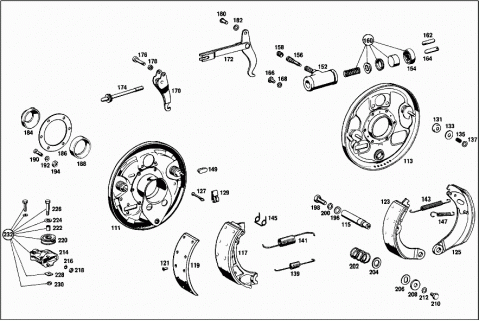

X XXXXXXXXXXXX PART NAME MISSING
REAR WHEEL BRAKE
111 A 1104202617 BRAKE ANCHOR PLATE
LEFT
113 A 1104203017 BRAKE ANCHOR PLATE
LEFT
A 1104202717 BRAKE ANCHOR PLATE
RIGHT
A 1104203117 BRAKE ANCHOR PLATE
RIGHT
115 A 1104230118 PIVOT PIN
117 A 1104201920 BRAKE SHOE
WITH LINING
119 A 1804210710 BRAKE LINING
Repalced by: A 1804211010
119 A 1804211010 BRAKE LINING
121 A 1839900295 RIVET
123 A 1104201820 BRAKE SHOE
Repalced by: A 1104202720
123 A 1104202720 BRAKE SHOE
WITH LINING
125 A 1104201720 BRAKE SHOE
Repalced by: A 1104202620
125 A 1104202620 BRAKE SHOE
WITH LINING
127 A 1104230474 PIN
129 A 1109930630 SPRING
131 A 1104230377 RETAINER
133 A 1109900540 WASHER
PISTON ROD TO BRAKE PEDAL
135 A 1209930601 SPRING
PISTON ROD TO BRAKE PEDAL
137 N 000433008406 WASHER
PISTON ROD TO BRAKE PEDAL
N 000094003000 COTTER PIN
139 A 1219930310 SPRING
BOTTOM
141 A 1109930910 SPRING
TOP
143 A 1109931210 SPRING
BOTTOM
145 A 1109930620 SPRING
147 A 1364230092 SPRING
149 A 1104230187 PROTECTIVE CAP
A 0014200418 WHEEL BRAKE CYLINDER
23.81 MM
A 0004211190 SPRING
A 0004230989 FILLER
A 0004210087 PROTECTIVE CAP
A 0004200855 BLEEDER VALVE
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0015869342 REPAIR KIT
152 A 0024204918 WHEEL BRAKE CYLINDER
19.05 MM
152 A 0024204918 WHEEL BRAKE CYLINDER
19.05 MM
154 A 0004211587 PROTECTIVE CAP
Repalced by: A 0004210348
154 A 0004210348 DUST CAP
156 A 0004310265 VALVE
Repalced by: A 3075530107
156 A 3075530107 VALVE
158 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
158 A 0004210887 PROTECTIVE CAP
160 A 0005861242 REPAIR KIT
160 A 0005861242 REPAIR KIT
A 0024204318 WHEEL BRAKE CYLINDER
22,2 MM
A 0004310265 VALVE
Repalced by: A 3075530107
A 3075530107 VALVE
A 0004211587 PROTECTIVE CAP
Repalced by: A 0004210348
A 0004210348 DUST CAP
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0005869542 REPAIR KIT
Repalced by: A 0015869242
A 0015869242 REPAIR KIT
162 A 0004210988 THRUST PIN
164 A 0004210488 THRUST PIN
166 N 000933008130 SCREW
Repalced by: N 304017008039
166 N 304017008039 SCREW
168 N 000127008203 LOCK WASHER
170 A 1104200942 BRAKE LEVER
LEFT
172 A 1104201342 BRAKE LEVER
LEFT
A 1104201042 BRAKE LEVER
RIGHT
A 1104201242 BRAKE LEVER
RIGHT
174 A 1104200074 ROD
176 A 1104230074 PIN
178 A 1104230151 SPACER RING
180 A 1834230674 PIN
182 N 000125008407 WASHER
N 000094003000 COTTER PIN
184 A 0019973446 SEAL RING
186 A 1104230079 GASKET
188 A 0019974746 SEAL RING
190 A 1083570071 SCREW
192 N 000127008203 LOCK WASHER
194 N 000934008010 NUT
Repalced by: N 304032008006
194 N 304032008006 NUT
196 A 1119900840 WASHER
0.50 MM
A 1119900940 WASHER
1.00 MM
A 1119903840 WASHER
1.50 MM
198 A 1819900014 SCREW
200 N 912004012100 LOCK WASHER
202 A 1109930401 SPRING
204 A 1209900640 WASHER
206 A 1204230156 RING
208 A 1209900740 WASHER
210 N 000933008131 SCREW
Repalced by: N 304017008016
210 N 304017008016 SCREW
212 N 000127008200 LOCK WASHER
214 A 1104200790 GUIDE
216 N 912004006102 LOCK WASHER
218 N 000934006007 NUT
A 1104270242 CABLE PULLEY
Repalced by: A 1104270442
220 A 1104270442 CABLE PULLEY
A 1874270153 SPACER TUBE
Repalced by: A 1104270253
222 A 1104270253 SPACER TUBE
224 A 1874270052 SPACER WASHER
226 A 1104270074 PIN
228 A 1109940101 LOCK
230 N 000934006007 NUT
232 A 1114200079 REPAIR KIT

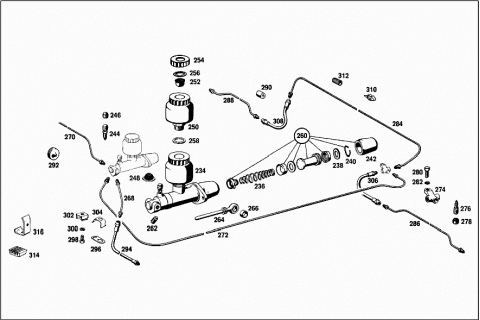

X XXXXXXXXXXXX PART NAME MISSING
SINGLE CIRCUIT BRAKE
232 A 1114200079 REPAIR KIT
234 A 0004309301 BRAKE MASTER CYLINDER
23,81 MM
236 A 0004315293 SPRING
238 A 0004311776 WASHER
240 A 0009941835 SNAP RING
242 A 0004311887 PROTECTIVE CAP
244 A 0004201055 BLEEDER VALVE
246 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
246 A 0004210887 PROTECTIVE CAP
248 A 0004310834 STRAINER
250 A 0004312102 RESERVOIR
0.26 L
252 A 0004314334 STRAINER
254 A 0004315433 FILLER CAP
256 A 0009972940 SEAL RING
258 N 007603022100 SEAL RING
A 0015862143 REPAIR KIT
260 A 0015862043 REPAIR KIT
262 A 0004280132 SCREW PLUG
264 A 1114300682 PISTON ROD
266 A 1112950150 BUSHING
268 A 1234205428 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT BRACKET
A 1234206528 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT DISTRIBUTOR
A 1234205428 LINE
FROM DISTRIBUTOR TO LEFT FRONT WHEEL
270 A 1234206928 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT BRACKET
A 1234205328 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT BRACKET
272 A 1234208328 LINE
FROM BRAKE MASTER CYLINDER TO REAR DISTRIBUTOR
A 1234208228 LINE
FROM FRONT LEFT DISTRIBUTOR TO REAR DISTRIBUTOR
274 A 0004283624 DISTRIBUTOR
276 A 0004310265 VALVE
Repalced by: A 3075530107
276 A 3075530107 VALVE
DISTRIBUTOR
278 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
278 A 0004210887 PROTECTIVE CAP
280 N 000933008116 SCREW
Repalced by: N 000933008337
280 N 000933008337 SCREW
Repalced by: A 0099900101
280 A 0099900101 SCREW
282 N 000127008203 LOCK WASHER
A 1104280740 BRACKET
DISTRIBUTOR
N 000933006103 SCREW
Repalced by: N 304017006018
N 304017006018 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
N 912004006102 LOCK WASHER
BRACKET TO BATTERY/APPARATUS SUPPORT
N 000934006007 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
N 000127008200 LOCK WASHER
BRACKET TO BATTERY/APPARATUS SUPPORT
N 000934008010 NUT
Repalced by: N 304032008006
N 304032008006 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
284 A 1234206228 LINE
FROM REAR DISTRIBUTOR TO REAR DISTRIBUTOR TO REAR BRACKET
286 A 1234205928 LINE
288 A 1234205728 LINE
290 A 1263280181 BUFFER
20 MM
N 900262009100 LOOM TIE
BRAKE LINE TO AXLE TUBE
N 900263009000 STRAP
BRAKE LINE TO AXLE TUBE
292 A 1119970581 GROMMET
294 A 0004286735 BRAKE HOSE
296 A 1104280073 LOCK
298 N 000933006103 SCREW
Repalced by: N 304017006018
298 N 304017006018 SCREW
300 N 000137006204 SPRING WASHER
302 A 0009902291 NUT RETAINER
Repalced by: A 0019906791
302 A 0019906791 NUT RETAINER
WITH NUT
304 A 0004280673 RETAINING SPRING
306 A 0004283035 BRAKE HOSE
REAR LEFT
A 0004280673 RETAINING SPRING
REAR LEFT
308 A 0004283135 BRAKE HOSE
Repalced by: A 0004282635
308 A 0004282635 BRAKE HOSE
REAR RIGHT
A 0004280673 RETAINING SPRING
REAR RIGHT
310 A 0009883378 CLIP
312 A 0009870932 HOSE
25 MM
314 A 1104280185 DAMPING STRIP
BRAKE LINE TO FIRE WALL
N 072571001035 CLAMP
Repalced by: A 1279950020
A 1279950020 CLAMP
BRAKE LINE TO FIRE WALL
316 A 2014280040 BRACKET
BRAKE LINE TO FIRE WALL
N 007981004245 SHEET METAL SCREW
Repalced by: N 007981004339
N 007981004339 SHEET METAL SCREW
Repalced by: N 000000000459
N 000000000459 SHEET METAL SCREW
BRAKE LINE TO FIRE WALL
N 000137005203 SPRING WASHER
BRAKE LINE TO FIRE WALL
X XXXXXXXXXXXX PART NAME MISSING
ATE BRAKE BOOSTER TO SINGLE-CIRCUIT BRAKE,ON SPECIAL REQUEST
N 000137005203 SPRING WASHER
BRAKE LINE TO FIRE WALL
318 A 0004302930 BRAKE BOOSTER ASSEMBLY
T 50/24
320 A 0004302281 VALVE
Repalced by: A 0004313507
320 A 0004313507 VALVE
322 A 0004351480 GASKET
324 A 0004350884 SPRING
326 A 0004350389 SPRING RETAINER
328 N 000472017000 LOCK RING
330 N 007603014106 SEAL RING
332 A 0004350705 HOUSING
15,87 MM
334 A 0004201055 BLEEDER VALVE
336 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
336 A 0004210887 PROTECTIVE CAP
338 A 0004311475 THREADED UNION
340 N 007603026104 SEAL RING
342 A 0004302681 VALVE
A 0004351384 SPRING
A 0019975540 SEAL RING
344 N 000936027000 NUT
346 A 0004350158 SEAL HOLDER
A 0009974646 SEAL RING
A 0004350207 PISTON
A 0004350786 CUP
348 N 005401307000 BALL
350 A 0004350684 SPRING
352 N 000472010000 LOCK RING
354 A 0009906140 WASHER
356 A 0009907740 WASHER
A 0009942135 SNAP RING
358 A 0004350289 FILLER
A 0004350486 CUP
A 0009902640 WASHER
A 0009976945 SEAL RING
A 0004350980 GASKET
360 N 000933008145 SCREW
362 N 000127008200 LOCK WASHER
364 A 0004350131 ROD
366 N 007603014100 SEAL RING
368 A 0004350306 HOUSING
A 0004300983 PISTON
A 0004350607 PISTON
Repalced by: A 0004350907
A 0004350907 PISTON
370 A 0009930725 SPRING
372 A 0004300168 REPAIR KIT
374 A 0004351080 GASKET
376 A 0004350833 VALVE HOUSING
A 0004351484 SPRING
378 N 000933005066 SCREW
Repalced by: N 304017005011
378 N 304017005011 SCREW
380 N 006798005000 SERRATED WASHER
382 N 007603005100 SEAL RING
384 N 000917005000 NUT
386 A 0004350281 CONNECTOR
A 0004351184 SPRING
390 N 915035000025 SEAL RING
A 0004352082 HOSE
320 MM
392 A 0004351180 GASKET
394 N 000933006103 SCREW
Repalced by: N 304017006018
394 N 304017006018 SCREW
396 N 006798006000 SERRATED WASHER
A 0009975030 SCREW PLUG
Repalced by: N 007604010102
398 N 007604010102 SCREW PLUG
Repalced by: N 007604010108
398 N 007604010108 SCREW PLUG
400 N 007603010107 SEAL RING
A 0004350125 LINE
Repalced by: A 0004350325
402 A 0004350325 LINE
404 A 0004350114 PLUG
406 A 0004350213 FILTER HOUSING
A 0004352082 HOSE
28 MM
408 A 0004350013 FILTER ELEMENT
410 A 0004350312 FILTER
412 A 0004350076 WASHER
A 0009942035 SNAP RING
414 A 0015863043 REPAIR KIT
416 A 0005863443 REPAIR KIT
418 A 0005862943 REPAIR KIT

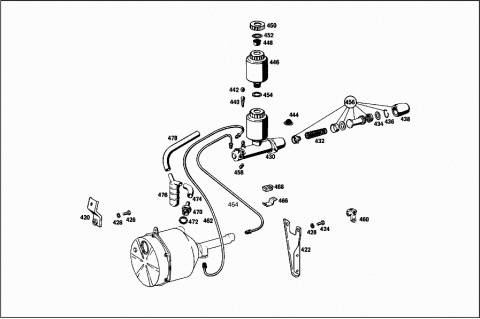

420 A 1104300010 BRACKET
N 000933008131 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
N 009021008000 WASHER
N 000127008200 LOCK WASHER
N 000934008010 NUT
Repalced by: N 304032008006
N 304032008006 NUT
422 A 1104310040 BRACKET
N 000933006183 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
N 912004006102 LOCK WASHER
A 0009905991 NUT RETAINER
424 A 0009906001 SCREW
426 N 000933008147 SCREW
Repalced by: N 304017008021
426 N 304017008021 SCREW
428 N 000127008200 LOCK WASHER
A 1209910940 SPACER TUBE
430 A 0014300301 BRAKE MASTER CYLINDER
28,57 MM
432 A 0004314193 SPRING
WITH SPRING RETAINER
434 A 0004312076 WASHER
436 A 0009943135 SNAP RING
438 A 0004311887 PROTECTIVE CAP
440 A 0004201055 BLEEDER VALVE
442 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
442 A 0004210887 PROTECTIVE CAP
444 A 0004310834 STRAINER
446 A 0004312102 RESERVOIR
448 A 0004314334 STRAINER
450 A 0004315433 FILLER CAP
452 A 0009972940 SEAL RING
454 N 007603022100 SEAL RING
456 A 0015862243 REPAIR KIT
458 A 0004280132 SCREW PLUG
460 A 0004282624 DISTRIBUTOR
A 0004310265 VALVE
Repalced by: A 3075530107
A 3075530107 VALVE
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
462 A 1234206428 LINE
A 1104201928 LINE
Repalced by: A 1114201928
A 1114201928 LINE
464 A 1234206128 LINE
A 1234205728 LINE
A 1263280181 BUFFER
(PROTECTIVE HOSE),20 MM
466 A 1809950022 CLAMP
468 A 1124760184 DAMPING STRIP
470 A 1119970472 FITTING
472 N 007603022101 SEAL RING
474 A 0004351482 HOSE
60 MM
476 A 1114350227 TRAP
478 A 0004352182 HOSE
240 MM
N 900288018002 CLAMP
X XXXXXXXXXXXX PART NAME MISSING
ATE BRAKE BOOSTER TWO-CIRCUIT BRAKE
N 900288018002 CLAMP

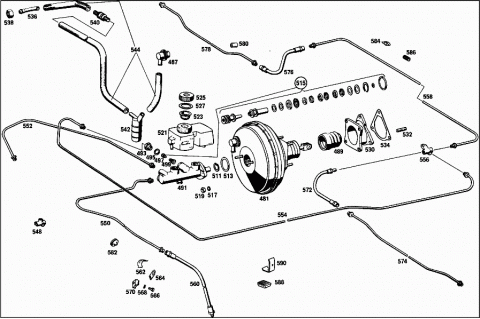

A 0004304830 BRAKE BOOSTER ASSEMBLY
Repalced by: A 0004307530
A 0004304830 BRAKE BOOSTER ASSEMBLY
481 A 0004307530 BRAKE BOOSTER ASSEMBLY
T 51/100
481 A 0004307530 BRAKE BOOSTER ASSEMBLY
T 51/100
A 0015864143 REPAIR KIT
A 0004303181 VALVE
Repalced by: A 0004303681
A 0004303181 VALVE
487 A 0004303681 CONNECTION HOUSING
487 A 0004303681 CONNECTION HOUSING
489 A 0004312987 PROTECTIVE CAP
A 0004305530 BRAKE BOOSTER ASSEMBLY
T 51/200
A 0014305201 BRAKE MASTER CYLINDER
Repalced by: A 0014306301
A 0014305201 BRAKE MASTER CYLINDER
491 A 0014306301 BRAKE MASTER CYLINDER
23,81 MM
491 A 0014306301 BRAKE MASTER CYLINDER
23,81 MM
493 A 0004310722 THREADED UNION
495 N 007603018100 SEAL RING
497 A 0004302481 VALVE
499 A 0004315593 SPRING
511 N 000472028000 LOCK RING
N 007603006106 SEAL RING
FOR SCREW PLUG
513 A 0049973245 SEAL RING
A 0015863443 REPAIR KIT
A 0015863443 REPAIR KIT
515 A 0005860643 REPAIR KIT
515 A 0005860643 REPAIR KIT
517 N 000127008200 LOCK WASHER
519 N 000934008013 NUT
521 A 0004314502 RESERVOIR
523 A 0004314334 STRAINER
525 A 0004315433 FILLER CAP
527 A 0009972940 SEAL RING
A 0009870345 LOCKING CAP
N 900288010001 CLAMP
A 0005860143 REPAIR KIT
RESERVOIR TO MASTER CYLINDER
A 1104300045 FLANGE
Repalced by: A 1084300145
530 A 1084300145 FLANGE
A 1104300145 FLANGE
532 N 000835008003 STUD
N 000137008200 SPRING WASHER
N 000934008010 NUT
Repalced by: N 304032008006
N 304032008006 NUT
534 A 1084310080 GASKET
A 1104310380 GASKET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRAKE BOOSTER ASSEMBLY TO FIRE WALL
N 000137008200 SPRING WASHER
BRAKE BOOSTER ASSEMBLY TO FIRE WALL
N 000934008010 NUT
Repalced by: N 304032008006
N 304032008006 NUT
BRAKE BOOSTER ASSEMBLY TO FIRE WALL
N 304032008006 NUT
BRAKE BOOSTER ASSEMBLY TO FIRE WALL
A 1104300029 LINE
536 A 1104300229 LINE
A 1104300129 LINE
538 N 915017012200 UNION NUT
540 A 0004313607 VALVE
540 A 0004313607 VALVE
542 A 1114350227 TRAP
544 A 0004352182 HOSE
N 900262005100 LOOM TIE
N 900263005003 STRAP
A 0009950065 CLAMP
A 1104350425 LINE
FROM VACUUM PUMP TO BRAKE BOOSTER
A 1104350625 LINE
A 0004352182 HOSE
N 900262005100 LOOM TIE
N 900263005003 STRAP
N 072571001025 CLAMP
VACUUM LINE TO SIDE MEMBER
N 007976005203 SHEET METAL SCREW
VACUUM LINE TO SIDE MEMBER
A 0009950065 CLAMP
A 1234205328 LINE
A 1234205628 LINE
548 A 0004283524 DISTRIBUTOR
FRONT
A 0004283724 DISTRIBUTOR
FRONT
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
N 000127008203 LOCK WASHER
N 000934008010 NUT
Repalced by: N 304032008006
N 304032008006 NUT
A 1234205028 LINE
TO LEFT FRONT WHEEL
180 MM
A 1234207028 LINE
TO LEFT FRONT WHEEL
550 A 1234205728 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
A 1234207028 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
A 1234205528 LINE
A 1234207028 LINE
TO RIGHT FRONT WHEEL
A 1234205128 LINE
TO RIGHT FRONT WHEEL
552 A 1234206828 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
A 1234206028 LINE
A 1234206928 LINE
A 1234208428 LINE
554 A 1234208528 LINE
A 1234206728 LINE
FROM MASTER CYLINDER TO COUPLING
A 1234206728 LINE
FROM MASTER CYLINDER TO COUPLING
A 1214290134 ADAPTER FITTING
A 1104203428 LINE
FROM COUPLING TO REAR DISTRIBUTOR
A 1104204628 LINE
Repalced by: A 1234208928
A 1234208928 LINE
556 A 0004283624 DISTRIBUTOR
REAR
N 000933008116 SCREW
Repalced by: N 000933008337
N 000933008337 SCREW
Repalced by: A 0099900101
A 0099900101 SCREW
N 000127008203 LOCK WASHER
558 A 1234206228 LINE
560 A 1234280535 BRAKE HOSE
562 A 0004280673 RETAINING SPRING
564 A 1104280073 LOCK
566 N 000933006103 SCREW
Repalced by: N 304017006018
566 N 304017006018 SCREW
568 N 000137006204 SPRING WASHER
570 A 0009902291 NUT RETAINER
Repalced by: A 0019906791
570 A 0019906791 NUT RETAINER
WITH NUT
572 A 0004283035 BRAKE HOSE
LEFT
A 0004280673 RETAINING SPRING
574 A 1234205928 LINE
TO LEFT REAR WHEEL
576 A 0004283135 BRAKE HOSE
Repalced by: A 0004282635
576 A 0004282635 BRAKE HOSE
RIGHT
A 0004280673 RETAINING SPRING
578 A 1234205728 LINE
TO RIGHT REAR WHEEL
580 A 1263280181 BUFFER
20 MM
N 900262009100 LOOM TIE
BRAKE LINE TO AXLE TUBE
N 900263009000 STRAP
BRAKE LINE TO AXLE TUBE
582 A 1119970581 GROMMET
584 A 0009883378 CLIP
BRAKE LINE TO FRAME
584 A 0009883378 CLIP
BRAKE LINE TO FRAME
N 072571001035 CLAMP
Repalced by: A 1279950020
A 1279950020 CLAMP
BRAKE LINE TO FRAME
586 A 0009870932 HOSE
BRAKE LINE TO FRAME,25 MM
586 A 0009870932 HOSE
BRAKE LINE TO FRAME
588 A 1104280185 DAMPING STRIP
BRAKE LINE TO FRAME
590 A 2014280040 BRACKET
BRAKE LINE TO FRAME
N 007981004245 SHEET METAL SCREW
Repalced by: N 007981004339
N 007981004339 SHEET METAL SCREW
Repalced by: N 000000000459
N 000000000459 SHEET METAL SCREW
BRAKE LINE TO FRAME
N 000000000459 SHEET METAL SCREW
BRAKE LINE TO FRAME
N 000137005203 SPRING WASHER
BRAKE LINE TO FRAME
X XXXXXXXXXXXX PART NAME MISSING

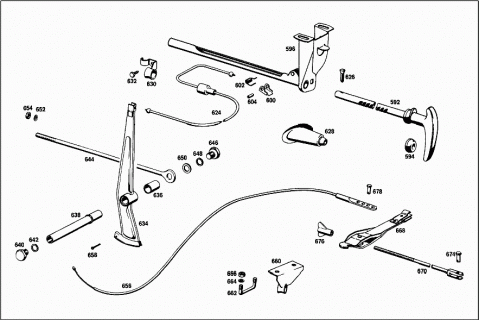

PISTOL-GRIP HAND BRAKE
592 A 1084200188 RATCHET ROD
594 A 1124270086 DAMPING RING
A 1124200077 GUIDE
596 A 1104200477 GUIDE
598 A 1124200477 GUIDE
600 A 1204270115 PAWL
602 A 1209930020 SPRING
604 A 0009910081 CLINCH-BOLT
606 A 1104271381 HOUSING
N 000933006130 SCREW
CABLE PULLEY BEARING TO FIRE WALL
N 000137006204 SPRING WASHER
CABLE PULLEY BEARING TO FIRE WALL
A 0009905991 NUT RETAINER
CABLE PULLEY BEARING TO FIRE WALL
A 0009902791 NUT RETAINER
Repalced by: A 0009902291
A 0009902291 NUT RETAINER
Repalced by: A 0019906791
A 0019906791 NUT RETAINER
CABLE PULLEY BEARING TO FIRE WALL

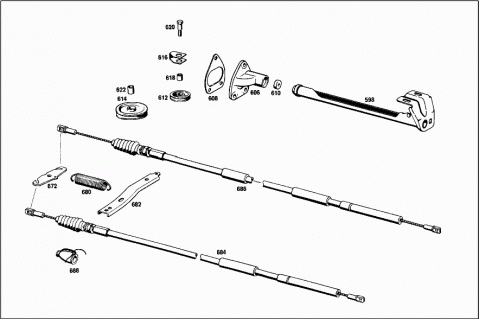

608 A 1104270384 SHIM
CABLE PULLEY BEARING TO FIRE WALL
610 A 1214270059 SEAL WASHER
612 A 1104270242 CABLE PULLEY
614 A 1104270142 CABLE PULLEY
616 A 1104270246 GUIDE PLATE
618 A 1874270153 SPACER TUBE
620 A 1804270174 PIN
N 000137008100 SPRING WASHER
622 A 1104270153 SPACER TUBE
N 000931006016 SCREW
N 912004006102 LOCK WASHER
N 000934006007 NUT
A 1104202785 BRAKE CABLE
624 A 1104203185 BRAKE CABLE
A 1104202685 BRAKE CABLE
626 A 1209910061 DOWEL PIN
N 000933006183 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
GUIDE TO COWL
N 912004006102 LOCK WASHER
GUIDE TO COWL
N 000125006407 WASHER
GUIDE TO COWL
N 009021006103 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
GUIDE TO COWL
628 A 1104270096 CUP
GUIDE TO COWL
630 A 1124200490 GUIDE
632 N 007976005203 SHEET METAL SCREW
A 1104201212 BRAKE LEVER
Repalced by: A 1124200412
634 A 1124200412 BRAKE LEVER
636 A 1104270050 BUSHING
A 1104270212 GUIDE
Repalced by: A 1104270312
A 1104270051 SPACER RING
Repalced by: A 1104270312
A 1104270112 GUIDE
Repalced by: A 1104270312
A 1104270312 GUIDE
A 1104270412 GUIDE
638 A 1104270712 GUIDE
A 1104270712 GUIDE
A 1109900601 SCREW
N 000127012200 LOCK WASHER
640 N 000961010012 SCREW
642 N 912004010102 LOCK WASHER
A 1104270131 ROD
Repalced by: A 1104270231
A 1104270231 ROD
A 1104270231 ROD
644 A 1104270431 ROD
A 1109900601 SCREW
N 000127012200 LOCK WASHER
646 N 000961010012 SCREW
648 N 912004010102 LOCK WASHER
650 N 000125010504 WASHER
N 009021008205 WASHER
Repalced by: N 009021008213
N 009021008213 WASHER
652 N 000127008203 LOCK WASHER
654 N 000934008010 NUT
Repalced by: N 304032008006
654 N 304032008006 NUT
A 1104202585 BRAKE CABLE
656 A 1104203485 BRAKE CABLE
A 1104203785 BRAKE CABLE
658 N 000094003000 COTTER PIN
660 A 1124200090 GUIDE
662 A 1114270240 SCREW
664 N 912004006102 LOCK WASHER
666 N 000934006007 NUT
A 1124200242 BRAKE LEVER
Repalced by: A 1124101801
A 1124101801 PROPELLER SHAFT
668 A 1104201442 BRAKE LEVER
A 1104200673 SCREW
BRAKE READJUSTMENT
670 A 1084200673 SCREW
BRAKE READJUSTMENT
672 A 1104270113 LEVER
674 N 001434008031 PIN
N 000094002059 COTTER PIN
676 A 1084270072 NUT
N 000094002059 COTTER PIN
678 N 001434006034 PIN
N 000094001502 COTTER PIN
N 000094003005 COTTER PIN
INTERMEDIATE LEVER TO TROUGH-LINE GUIDE
N 000094003004 COTTER PIN
TO SECURE BRAKE CABLE
680 A 1109931110 SPRING
A 1109930810 SPRING
682 A 1104270941 BRACKET
N 000933006102 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
RELEASE SPRING BRACKET TO TUNNEL
N 912004006102 LOCK WASHER
RELEASE SPRING BRACKET TO TUNNEL
N 000934006007 NUT
RELEASE SPRING BRACKET TO TUNNEL
684 A 1104202385 BRAKE CABLE
REAR LEFT
686 A 1104202485 BRAKE CABLE
REAR RIGHT
688 A 1804200176 END PIECE
REPAIR SIZE
N 000931006027 SCREW
BRAKE CABLE TO BRACKET
N 000137006204 SPRING WASHER
BRAKE CABLE TO BRACKET
N 000934006007 NUT
BRAKE CABLE TO BRACKET
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
