Transporto priemonė: 200 D; VIN numerio dalis: 110116

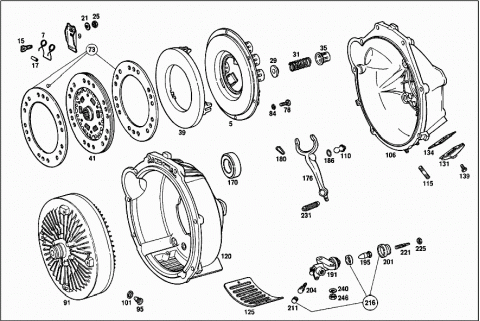

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1802500704 | CLUTCH PRESSURE PLATE |
| A 0002509604 | CLUTCH PRESSURE PLATE | |
| A 0002509604 | CLUTCH PRESSURE PLATE | |
| 007 | A 0002520427 | SPRING |
| 009 | A 0002520913 | RELEASE LEVER |
| A 0002524213 | RELEASE LEVER | |
| A 0002524213 | RELEASE LEVER | |
| 015 | A 0002520374 | PIN |
| 017 | N 001481006003 | CLAMPING SLEEVE |
| N 001481006002 | CLAMPING SLEEVE | |
| N 001481006002 | CLAMPING SLEEVE | |
| 021 | A 0002520151 | SPACER RING |
| 025 | A 0002521472 | NUT |
| Repalced by: A 0002522772 | ||
| 025 | A 0002522772 | NUT |
| 029 | A 0002520678 | WASHER |
| 031 | A 0002521620 | PRESSURE SPRING |
| 50 MM LONG | ||
| A 0002521820 | PRESSURE SPRING | |
| 55 MM LONG | ||
| A 0002521820 | PRESSURE SPRING | |
| 55 MM LONG | ||
| 035 | A 0002520235 | SLEEVE |
| A 0002520335 | SLEEVE | |
| A 0002520335 | SLEEVE | |
| 039 | A 0002521506 | CLUTCH PRESSURE PLATE |
| A 0002522106 | CLUTCH PRESSURE PLATE | |
| A 0002522106 | CLUTCH PRESSURE PLATE | |
| 041 | A 0102501203 | CLUTCH DISC |
| A 0002506703 | CLUTCH DISC | |
| Repalced by: A 0092509203 | ||
| A 0092509203 | CLUTCH DISC | |
| Repalced by: A 0102504903 | ||
| A 0102504903 | CLUTCH DISC | |
| Repalced by: A 0182508903 | ||
| A 0182508903 | CLUTCH DISC | |
| A 0102502603 | CLUTCH DISC | |
| A 1102520010 | CLUTCH LINING | |
| A 0002521610 | CLUTCH LINING | |
| A 0002521910 | CLUTCH LINING | |
| Repalced by: A 1085860025 | ||
| A 1085860025 | REPAIR KIT | |
| ON CLUTCH END | ||
| A 0002522120 | PRESSURE SPRING | |
| ON FLYWHEEL END | ||
| A 1369900095 | RIVET | |
| A 0002521275 | RIVET | |
| A 0002521075 | RIVET | |
| 073 | A 1105860025 | REPAIR KIT |
| CLUTCH LINING | ||
| A 1155860025 | REPAIR KIT | |
| CLUTCH LINING | ||
| A 1085860025 | REPAIR KIT | |
| CLUTCH LINING | ||
| A 1085860025 | REPAIR KIT | |
| CLUTCH LINING | ||
| A 1145860025 | REPAIR KIT | |
| CLUTCH LINING | ||
| 078 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 078 | N 304017008021 | SCREW |
| 084 | N 000127008203 | LOCK WASHER |
| 091 | A 1112501602 | HYDRAULIC CLUTCH |
| 091 | A 1112501602 | HYDRAULIC CLUTCH |
| A 1112501502 | HYDRAULIC CLUTCH | |
| A 1112501502 | HYDRAULIC CLUTCH | |
| 095 | A 1809970530 | SCREW PLUG |
| 101 | N 007603012104 | SEAL RING |
| 101 | N 007603012104 | SEAL RING |
| N 007603010100 | SEAL RING | |
| N 007603010100 | SEAL RING | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BELL HOUSING | ||
| A 1112500505 | HOUSING | |
| Repalced by: A 1112502005 | ||
| A 1112501605 | HOUSING | |
| Repalced by: A 1112502005 | ||
| 106 | A 1112502005 | HOUSING |
| 106 | A 1112502005 | HOUSING |
| 110 | A 1119910120 | BALL PIVOT |
| N 000835008061 | STUD | |
| 115 | N 000835008062 | STUD |
| 120 | A 1112502205 | HOUSING |
| HYDRAULIC CLUTCH | ||
| 125 | A 1122570590 | COVER PLATE |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| 131 | A 1202540097 | BOOT |
| 134 | A 1202540058 | SEAL HOLDER |
| 139 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 139 | N 304017006018 | SCREW |
| N 000931012132 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000125013003 | WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 912004012100 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933012050 | SCREW | |
| Repalced by: N 304017012002 | ||
| N 304017012002 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| RELEASE PARTS | ||
| A 1102500015 | RELEASE BEARING | |
| A 1102500115 | RELEASE BEARING | |
| Repalced by: A 1102500015 | ||
| A 1102500015 | RELEASE BEARING | |
| A 1112500115 | RELEASE BEARING | |
| A 1112500115 | RELEASE BEARING | |
| A 1112500215 | RELEASE BEARING | |
| A 1112500215 | RELEASE BEARING | |
| A 1212540010 | RELEASE COLLAR | |
| A 1272540120 | RELEASE BEARING | |
| Repalced by: A 1112500115 | ||
| A 1112500115 | RELEASE BEARING | |
| 170 | A 0009814325 | BALL BEARING |
| 170 | A 0009814325 | BALL BEARING |
| A 0019815225 | BALL BEARING | |
| A 0019815225 | BALL BEARING | |
| 176 | A 1112930211 | RELEASE YOKE |
| 180 | A 3199930025 | SPRING |
| 186 | N 071805016301 | SNAP RING |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SLAVE CYLINDER | ||
| 191 | A 0002952007 | SLAVE CYLINDER |
| A 0002950530 | PISTON | |
| 195 | A 0002950474 | PIN |
| 201 | A 0002950883 | BOOT |
| A 0002951883 | BOOT | |
| 204 | A 0004201055 | BLEEDER VALVE |
| 211 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 211 | A 0004210887 | PROTECTIVE CAP |
| A 0002951907 | SLAVE CYLINDER | |
| A 0002950374 | PIN | |
| A 0002950583 | BOOT | |
| A 0002951683 | BOOT | |
| A 0002950120 | VALVE | |
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0005860429 | REPAIR KIT | |
| A 0005860929 | REPAIR KIT | |
| 216 | A 0005861429 | REPAIR KIT |
| A 0005861329 | REPAIR KIT | |
| 221 | A 1112950733 | ROD |
| 225 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 225 | N 304035008001 | NUT |
| 231 | A 1119931010 | SPRING |
| A 1119931110 | SPRING | |
| 240 | N 000127008203 | LOCK WASHER |
| 246 | N 000934008013 | NUT |
| A 1104920016 | SUPPORT | |
