Transporto priemonė: 200 D; VIN numerio dalis: 110116

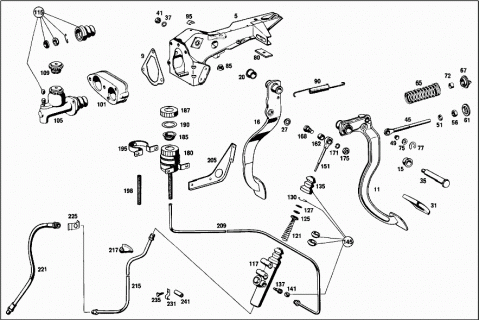

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1102900231 | BEARING | |
| 005 | A 1102900931 | BEARING |
| A 1092900031 | BEARING | |
| 009 | A 1084310080 | GASKET |
| A 1104310380 | GASKET | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CLUTCH PEDAL | ||
| A 1102902416 | PEDAL | |
| 011 | A 1102905216 | PEDAL |
| A 1072910182 | PAD | |
| 015 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 015 | A 1242920050 | BUSHING |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BRAKE PEDAL | ||
| A 1102902718 | PEDAL | |
| A 1072910182 | PAD | |
| A 1102910550 | BUSHING | |
| Repalced by: A 1242920050 | ||
| A 1242920050 | BUSHING | |
| 016 | A 1102903518 | PEDAL |
| 020 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 020 | A 1242920050 | BUSHING |
| 027 | A 1102920150 | BUSHING |
| 031 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 031 | A 1072910182 | PAD |
| BRAKE PEDAL | ||
| A 1112910250 | BUSHING | |
| CLUTCH PEDAL | ||
| A 1112920150 | BUSHING | |
| BRAKE PEDAL | ||
| N 000931012081 | SCREW | |
| PEDAL TO SUPPORT | ||
| N 000931012055 | SCREW | |
| PEDAL TO SUPPORT | ||
| N 000125013000 | WASHER | |
| Repalced by: N 000125013008 | ||
| N 000125013008 | WASHER | |
| PEDAL TO SUPPORT | ||
| N 000127012200 | LOCK WASHER | |
| PEDAL TO SUPPORT | ||
| N 000936012007 | NUT | |
| PEDAL TO SUPPORT | ||
| 035 | A 1102910674 | PIN |
| PEDAL TO SUPPORT | ||
| A 1102910574 | PIN | |
| PEDAL TO SUPPORT | ||
| 037 | N 000127010200 | LOCK WASHER |
| PEDAL TO SUPPORT | ||
| 041 | N 000936010010 | NUT |
| PEDAL TO SUPPORT | ||
| A 1112910233 | ROD | |
| 045 | A 1102901939 | ROD |
| 049 | A 1102910750 | BUSHING |
| 051 | N 007967010000 | NUT |
| 056 | N 070615010001 | NUT |
| 061 | A 1112910491 | SPRING RETAINER |
| 065 | A 1109930501 | SPRING |
| 067 | A 1072910091 | SPRING RETAINER |
| A 1072910091 | SPRING RETAINER | |
| 072 | A 1109910007 | PIN |
| PUSH ROD TO PEDAL | ||
| N 000433008406 | WASHER | |
| PUSH ROD TO PEDAL | ||
| N 000094002002 | COTTER PIN | |
| PUSH ROD TO PEDAL | ||
| 075 | A 1109901740 | WASHER |
| PUSH ROD TO PEDAL | ||
| 077 | A 0009940410 | LOCK |
| PUSH ROD TO PEDAL | ||
| 080 | A 1114620075 | WASHER |
| 2.0 MM | ||
| A 1102900133 | BRACKET | |
| Repalced by: A 1102910140 | ||
| A 1102910140 | BRACKET | |
| CLUTCH PEDAL STOP | ||
| 085 | A 1112910086 | STOP |
| CLUTCH PEDAL | ||
| A 1112910186 | STOP | |
| BRAKE PEDAL | ||
| N 000933007013 | SCREW | |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| N 000137007200 | SPRING WASHER | |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 090 | A 1079930410 | SPRING |
| A 1102910087 | PROTECTIVE PLATE | |
| AT PEDAL ASSEMBLY BEARING BRACKET | ||
| A 1102910187 | PROTECTIVE PLATE | |
| N 000933004003 | SCREW | |
| N 000127004200 | LOCK WASHER | |
| N 000934004006 | NUT | |
| N 007976005200 | SHEET METAL SCREW | |
| 095 | A 0019881078 | CLIP |
| A 0009883478 | CLIP | |
| A 0009881878 | CLIP | |
| A 0009883378 | CLIP | |
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| PEDAL ASSEMBLY TO CROSS MEMBER | ||
| N 000433008406 | WASHER | |
| PEDAL ASSEMBLY TO CROSS MEMBER | ||
| N 000137008200 | SPRING WASHER | |
| PEDAL ASSEMBLY TO CROSS MEMBER | ||
| N 000936008000 | NUT | |
| PEDAL ASSEMBLY TO CROSS MEMBER | ||
| 101 | A 1102950045 | FLANGE |
| A 1102950145 | FLANGE | |
| A 1105420140 | BRACKET | |
| OIL PRESSUR GAUGE LINES | ||
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| MASTER CYLINDER TO FIRE WALL | ||
| N 000127008200 | LOCK WASHER | |
| MASTER CYLINDER TO FIRE WALL | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| MASTER CYLINDER TO FIRE WALL | ||
| 105 | A 0002951506 | MASTER CYLINDER |
| A 0009931605 | SPRING | |
| A 0009931905 | SPRING | |
| A 0002950730 | PISTON | |
| A 0002950730 | PISTON | |
| A 0002950085 | RING | |
| A 0009905740 | WASHER | |
| A 0009942935 | SNAP RING | |
| A 0002950083 | BOOT | |
| A 0002951283 | BOOT | |
| 109 | A 0002950037 | SCREW PLUG |
| A 0004201055 | BLEEDER VALVE | |
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0005860329 | REPAIR KIT | |
| 115 | A 0005860229 | REPAIR KIT |
| 117 | A 0002952306 | MASTER CYLINDER |
| 121 | A 0009931905 | SPRING |
| 125 | A 0002950085 | RING |
| 127 | A 0009905740 | WASHER |
| 130 | A 0009942935 | SNAP RING |
| 135 | A 0002951383 | BOOT |
| 137 | A 0004201055 | BLEEDER VALVE |
| 141 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 141 | A 0004210887 | PROTECTIVE CAP |
| 145 | A 0005860129 | REPAIR KIT |
| A 0002952406 | MASTER CYLINDER | |
| A 0002952906 | MASTER CYLINDER | |
| A 0009932105 | SPRING | |
| A 0009907040 | WASHER | |
| A 0009943335 | SNAP RING | |
| A 0002950983 | BOOT | |
| A 0002951583 | BOOT | |
| N 000470020000 | EXPANSION PLUG | |
| A 0004201055 | BLEEDER VALVE | |
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0005860629 | REPAIR KIT | |
| A 0005861129 | REPAIR KIT | |
| A 1082950040 | BRACKET | |
| Repalced by: A 1152950340 | ||
| A 1152950340 | BRACKET | |
| CLUTCH MASTER CYLINDER | ||
| A 1082950140 | BRACKET | |
| Repalced by: A 1152950340 | ||
| A 1152950340 | BRACKET | |
| CLUTCH MASTER CYLINDER | ||
| A 1082950050 | BUSHING | |
| FOR CLUTCH MASTER CYLINDER | ||
| A 1082950076 | WASHER | |
| FOR CLUTCH MASTER CYLINDER | ||
| N 900055034101 | LOCK RING | |
| FOR CLUTCH MASTER CYLINDER | ||
| A 1112901639 | ROD | |
| A 1112950150 | BUSHING | |
| 151 | A 1102901839 | ROD |
| 162 | A 1102950250 | BUSHING |
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| MASTER CYLINDER TO FIRE WALL | ||
| N 000931008244 | SCREW | |
| MASTER CYLINDER TO FIRE WALL | ||
| N 000127008200 | LOCK WASHER | |
| MASTER CYLINDER TO FIRE WALL | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| MASTER CYLINDER TO FIRE WALL | ||
| N 000931006115 | SCREW | |
| Repalced by: N 000933006151 | ||
| N 000933006151 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| N 000934006007 | NUT | |
| A 1102950071 | SCREW | |
| PISTON ROD TO CLUTCH PEDAL | ||
| N 000127010200 | LOCK WASHER | |
| PISTON ROD TO CLUTCH PEDAL | ||
| N 000936010010 | NUT | |
| PISTON ROD TO CLUTCH PEDAL | ||
| A 1102950071 | SCREW | |
| MASTER BRAKE CYLINDER PISTON ROD TO BRAKE PEDAL | ||
| N 000127010200 | LOCK WASHER | |
| MASTER BRAKE CYLINDER PISTON ROD TO BRAKE PEDAL | ||
| N 000936010010 | NUT | |
| MASTER BRAKE CYLINDER PISTON ROD TO BRAKE PEDAL | ||
| 168 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| 168 | A 1152950172 | NUT |
| 171 | N 000127008200 | LOCK WASHER |
| 175 | N 000936008003 | NUT |
| 180 | A 1112900215 | RESERVOIR |
| 180 | A 1112900215 | RESERVOIR |
| 185 | A 0004314334 | STRAINER |
| 187 | A 0004315433 | FILLER CAP |
| 190 | A 0009972940 | SEAL RING |
| 195 | A 0004311840 | BRACKET |
| 198 | A 0059978382 | HOSE |
| 90 MM | ||
| A 1112900215 | RESERVOIR | |
| A 0004314334 | STRAINER | |
| A 0002950237 | SCREW PLUG | |
| Repalced by: A 0004315433 | ||
| A 0004315433 | FILLER CAP | |
| A 0009976841 | SEAL RING | |
| A 0059978382 | HOSE | |
| 90 MM | ||
| 205 | A 1102950340 | BRACKET |
| N 000933006010 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| EXPANSION TANK TO BRACKET | ||
| N 000934006007 | NUT | |
| EXPANSION TANK TO BRACKET | ||
| N 007976005202 | SHEET METAL SCREW | |
| RESERVOIR TO FIRE WALL | ||
| N 000125006407 | WASHER | |
| RESERVOIR TO FIRE WALL | ||
| 209 | A 1102901513 | LINE |
| Repalced by: A 1112901313 | ||
| 209 | A 1112901313 | LINE |
| 209 | A 1112901313 | LINE |
| A 1102901613 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| A 1102901813 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| A 1102902713 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| A 1102903413 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| A 1102903613 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| A 1112900013 | LINE | |
| Repalced by: A 1093207753 | ||
| A 1093207753 | LINE | |
| FROM MASTER CYLINDER TO HOSE | ||
| A 1112900113 | LINE | |
| Repalced by: A 1003204053 | ||
| A 1003204053 | LINE | |
| FROM MASTER CYLINDER TO HOSE | ||
| 215 | A 1102900013 | LINE |
| Repalced by: A 1003202153 | ||
| 215 | A 1003202153 | LINE |
| FROM MASTER CYLINDER TO HOSE | ||
| 215 | A 1003202153 | LINE |
| FROM MASTER CYLINDER TO HOSE | ||
| A 1102903013 | LINE | |
| FROM MASTER CYLINDER TO HOSE | ||
| A 1102900113 | LINE | |
| FROM MASTER CYLINDER TO HOSE | ||
| A 1102900113 | LINE | |
| FROM MASTER CYLINDER TO HOSE | ||
| A 1102903313 | LINE | |
| Repalced by: A 1093207653 | ||
| A 1093207653 | LINE | |
| FROM MASTER CYLINDER TO HOSE | ||
| 217 | A 0079975881 | GROMMET |
| A 0009870444 | EXPANSION PLUG | |
| HOSE THRU FIRE WALL | ||
| A 0002950035 | HOSE | |
| 221 | A 0002950235 | HOSE |
| 221 | A 0002950235 | HOSE |
| A 0002950635 | HOSE | |
| Repalced by: A 0002950735 | ||
| A 0002950735 | HOSE | |
| A 0002950135 | HOSE | |
| A 0002950535 | HOSE | |
| A 0002950735 | HOSE | |
| A 0002950040 | BRACKET | |
| 225 | A 0002950173 | LOCK |
| A 1989902140 | WASHER | |
| 231 | N 072571001034 | CLAMP |
| 235 | N 007976004216 | SHEET METAL SCREW |
| 241 | N 073379008200 | HOSE |
| A 1109970972 | FITTING | |
| FROM CONNECTING HOSE TO SLAVE CYLINDER | ||
| A 1102950640 | BRACKET | |
| FROM CONNECTING HOSE TO SLAVE CYLINDER | ||
| A 0002950073 | LOCK | |
| FROM CONNECTING HOSE TO SLAVE CYLINDER | ||
| A 1102900213 | LINE | |
| Repalced by: A 1123205753 | ||
| A 1123205753 | LINE | |
| FROM CONNECTING HOSE TO SLAVE CYLINDER | ||
| A 1112900613 | LINE | |
| FROM CONNECTING HOSE TO SLAVE CYLINDER | ||
| N 073379006101 | HOSE | |
| A 3129951401 | CLAMP | |
| A 0029884978 | CLIP | |
