Transporto priemonė: 200 D; VIN numerio dalis: 110116

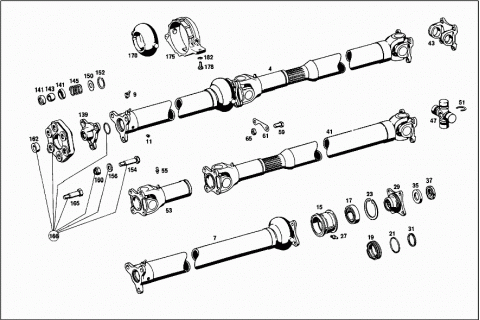

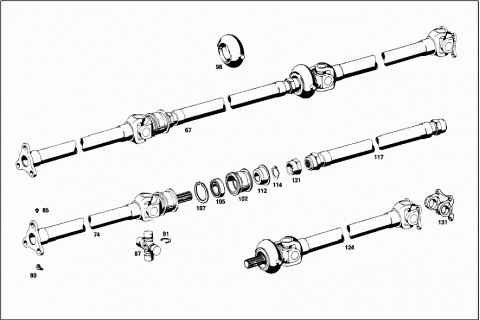

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1104101703 | PROPELLER SHAFT |
| TWO-PART | ||
| A 1104101803 | PROPELLER SHAFT | |
| Repalced by: A 1104101501 | ||
| A 1104101501 | PROPELLER SHAFT | |
| TWO-PART | ||
| 007 | A 1104101401 | PROPELLER SHAFT |
| 009 | N 071412006200 | GREASE NIPPLE |
| 011 | A 1229970087 | VALVE |
| A 1804130201 | HOUSING | |
| A 1804130201 | HOUSING | |
| 015 | A 1104130401 | HOUSING |
| Repalced by: A 1104100422 | ||
| 015 | A 1104100422 | INTERMEDIATE BEARING |
| 015 | A 1104100422 | INTERMEDIATE BEARING |
| 017 | A 0039812325 | BALL BEARING |
| A 1804130151 | SPACER RING | |
| Repalced by: A 1104130051 | ||
| 019 | A 1104130051 | SPACER RING |
| 019 | A 1104130051 | SPACER RING |
| 021 | A 1809970340 | SEAL RING |
| 021 | A 1809970340 | SEAL RING |
| 023 | N 000472055000 | LOCK RING |
| 023 | N 000472055000 | LOCK RING |
| 027 | N 071412006100 | GREASE NIPPLE |
| 027 | N 071412006100 | GREASE NIPPLE |
| A 1114110045 | FLANGE | |
| A 1114110045 | FLANGE | |
| 029 | A 1114110245 | FLANGE |
| 029 | A 1114110245 | FLANGE |
| 031 | A 1104130080 | SEAL RING |
| 031 | A 1104130080 | SEAL RING |
| 035 | A 1119940043 | LOCK |
| 037 | A 1119900060 | NUT |
| 041 | A 1114100202 | PROPELLER SHAFT |
| 043 | A 1114110044 | DRIVE FLANGE |
| 047 | A 1114100031 | UNIVERSAL JOINT CROSS |
| 051 | A 1889940534 | SNAP RING |
| 1.45 MM | ||
| A 1889940034 | SNAP RING | |
| 1.50 MM | ||
| A 1889940134 | SNAP RING | |
| 1.55 MM | ||
| A 1889940234 | SNAP RING | |
| 1.60 MM | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM | ||
| A 1889940434 | SNAP RING | |
| 1.70 MM | ||
| 053 | A 1114100228 | UNIVERSAL JOINT |
| A 1114110044 | DRIVE FLANGE | |
| A 1114100031 | UNIVERSAL JOINT CROSS | |
| A 1889940534 | SNAP RING | |
| 1.45 MM | ||
| A 1889940034 | SNAP RING | |
| 1.50 MM | ||
| A 1889940234 | SNAP RING | |
| 1.60 MM | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM | ||
| A 1889940434 | SNAP RING | |
| 1.70 MM | ||
| 055 | N 071412006100 | GREASE NIPPLE |
| 059 | A 1119900020 | SCREW |
| 061 | A 1119940209 | LOCK |
| 065 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 065 | N 304035010001 | NUT |
| A 0004110047 | VIBRATION DAMPER | |
| 067 | A 1104105103 | PROPELLER SHAFT |
| THREE-PART | ||
| A 1104104603 | PROPELLER SHAFT | |
| THREE-PART | ||
| A 1104105603 | PROPELLER SHAFT | |
| THREE-PART | ||
| A 1104104503 | PROPELLER SHAFT | |
| Repalced by: A 1104104001 | ||
| A 1104104403 | PROPELLER SHAFT | |
| Repalced by: A 1104103901 | ||
| A 1104104803 | PROPELLER SHAFT | |
| THREE-PART | ||
| A 1104105403 | PROPELLER SHAFT | |
| Repalced by: A 1104105801 | ||
| A 1104105801 | PROPELLER SHAFT | |
| THREE-PART | ||
| A 1104105803 | PROPELLER SHAFT | |
| THREE-PART | ||
| A 1104104703 | PROPELLER SHAFT | |
| THREE-PART | ||
| A 1104106103 | PROPELLER SHAFT | |
| THREE-PART | ||
| A 1104106003 | PROPELLER SHAFT | |
| TWO-PART | ||
| A 1104106203 | PROPELLER SHAFT | |
| Repalced by: A 1104105601 | ||
| A 1104105601 | PROPELLER SHAFT | |
| TWO-PART | ||
| A 1104104903 | PROPELLER SHAFT | |
| THREE-PART | ||
| A 1104106303 | PROPELLER SHAFT | |
| THREE-PART | ||
| 074 | A 1104105701 | PROPELLER SHAFT |
| WITH BEARING | ||
| A 1104102501 | PROPELLER SHAFT | |
| WITH BEARING | ||
| A 1104104001 | PROPELLER SHAFT | |
| LESS BEARING | ||
| A 1104102401 | PROPELLER SHAFT | |
| WITH BEARING | ||
| A 1104103901 | PROPELLER SHAFT | |
| LESS BEARING | ||
| A 1104104301 | PROPELLER SHAFT | |
| WITH BEARING | ||
| A 1104105801 | PROPELLER SHAFT | |
| WITH BEARING | ||
| A 1094100601 | PROPELLER SHAFT | |
| WITH BEARING | ||
| A 1104104401 | PROPELLER SHAFT | |
| WITH BEARING | ||
| A 1104103001 | PROPELLER SHAFT | |
| WITH BEARING | ||
| A 1104105501 | PROPELLER SHAFT | |
| LESS BEARING | ||
| A 1104103601 | PROPELLER SHAFT | |
| WITH BEARING | ||
| A 1104105601 | PROPELLER SHAFT | |
| LESS BEARING | ||
| A 1094100701 | PROPELLER SHAFT | |
| WITH BEARING | ||
| 080 | N 071412006200 | GREASE NIPPLE |
| 085 | A 1229970087 | VALVE |
| A 1104110072 | NUT | |
| Repalced by: A 1104110172 | ||
| A 1104110172 | NUT | |
| 087 | A 1114100031 | UNIVERSAL JOINT CROSS |
| 087 | A 1114100031 | UNIVERSAL JOINT CROSS |
| 091 | A 1889940534 | SNAP RING |
| 1.5 MM | ||
| 091 | A 1889940534 | SNAP RING |
| 1.5 MM | ||
| A 1889940034 | SNAP RING | |
| 1.5 MM | ||
| A 1889940034 | SNAP RING | |
| 1.5 MM | ||
| A 1889940234 | SNAP RING | |
| 1.6 MM | ||
| A 1889940234 | SNAP RING | |
| 1.6 MM | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM | ||
| A 1889940434 | SNAP RING | |
| 1.7 MM | ||
| A 1889940434 | SNAP RING | |
| 1.7 MM | ||
| 098 | A 1114130012 | RUBBER MOUNTING |
| 102 | A 1104130401 | HOUSING |
| Repalced by: A 1104100422 | ||
| 102 | A 1104100422 | INTERMEDIATE BEARING |
| 102 | A 1104100422 | INTERMEDIATE BEARING |
| 105 | A 0039812325 | BALL BEARING |
| 105 | A 0039812325 | BALL BEARING |
| 107 | N 000472055000 | LOCK RING |
| 107 | N 000472055000 | LOCK RING |
| A 1114110245 | FLANGE | |
| A 1114110245 | FLANGE | |
| A 1119940043 | LOCK | |
| A 1119940043 | LOCK | |
| A 1119900060 | NUT | |
| A 1119900060 | NUT | |
| 112 | A 1154110796 | PROTECTIVE CAP |
| 114 | N 900055030200 | LOCK RING |
| 117 | A 1154100305 | INTERMEDIATE SHAFT |
| 121 | A 1104110072 | NUT |
| Repalced by: A 1104110172 | ||
| 121 | A 1104110172 | NUT |
| 124 | A 1094100002 | PROPELLER SHAFT |
| WITH BEARING | ||
| A 1104101902 | PROPELLER SHAFT | |
| WITH BEARING | ||
| A 1104101902 | PROPELLER SHAFT | |
| WITH BEARING | ||
| A 1104102202 | PROPELLER SHAFT | |
| WITH BEARING | ||
| A 1104103202 | PROPELLER SHAFT | |
| WITH BEARING | ||
| A 1114100228 | UNIVERSAL JOINT | |
| A 1114100228 | UNIVERSAL JOINT | |
| A 1114110044 | DRIVE FLANGE | |
| A 1114110044 | DRIVE FLANGE | |
| A 1114100031 | UNIVERSAL JOINT CROSS | |
| A 1114100031 | UNIVERSAL JOINT CROSS | |
| A 1889940534 | SNAP RING | |
| 1.45 MM | ||
| A 1889940534 | SNAP RING | |
| 1.45 MM | ||
| A 1889940034 | SNAP RING | |
| 1.50 MM | ||
| A 1889940034 | SNAP RING | |
| 1.50 MM | ||
| A 1889940234 | SNAP RING | |
| 1.60 MM | ||
| A 1889940234 | SNAP RING | |
| 1.60 MM | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM | ||
| A 1889940434 | SNAP RING | |
| 1.70 MM | ||
| A 1889940434 | SNAP RING | |
| 1.70 MM | ||
| N 071412006100 | GREASE NIPPLE | |
| 131 | A 1114110044 | DRIVE FLANGE |
| 131 | A 1114110044 | DRIVE FLANGE |
| A 1114100031 | UNIVERSAL JOINT CROSS | |
| A 1114100031 | UNIVERSAL JOINT CROSS | |
| A 1114100031 | UNIVERSAL JOINT CROSS | |
| A 1114100031 | UNIVERSAL JOINT CROSS | |
| A 1114100031 | UNIVERSAL JOINT CROSS | |
| A 1114100031 | UNIVERSAL JOINT CROSS | |
| A 1889940534 | SNAP RING | |
| 1.45 MM | ||
| A 1889940534 | SNAP RING | |
| 1.45 MM | ||
| A 1889940034 | SNAP RING | |
| 1.50 MM | ||
| A 1889940034 | SNAP RING | |
| 1.50 MM | ||
| A 1889940234 | SNAP RING | |
| 1.60 MM | ||
| A 1889940234 | SNAP RING | |
| 1.60 MM | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM | ||
| A 1889940434 | SNAP RING | |
| 1.70 MM | ||
| A 1889940434 | SNAP RING | |
| 1.70 MM | ||
| A 1154110796 | PROTECTIVE CAP | |
| N 900055030200 | LOCK RING | |
| A 1104130401 | HOUSING | |
| Repalced by: A 1104100422 | ||
| A 1104100422 | INTERMEDIATE BEARING | |
| A 1104100422 | INTERMEDIATE BEARING | |
| A 0039812325 | BALL BEARING | |
| A 0039812325 | BALL BEARING | |
| N 000472055000 | LOCK RING | |
| N 000472055000 | LOCK RING | |
| A 1809971040 | SEAL RING | |
| 139 | A 1114100130 | CENTERING FLANGE |
| 141 | A 1364110118 | BALL SOCKET |
| 143 | A 1844110017 | CENTERING BALL |
| A 1849930401 | SPRING | |
| Repalced by: A 1109933701 | ||
| 145 | A 1109933701 | SPRING |
| 150 | A 1114110076 | WASHER |
| 152 | N 000472030000 | LOCK RING |
| N 900055030110 | LOCK RING | |
| A 1804110615 | FLEXIBLE JOINT DISC | |
| A 1864110571 | SCREW | |
| Repalced by: A 1104110171 | ||
| A 1864110571 | SCREW | |
| 154 | A 1104110171 | SCREW |
| 154 | A 1104110171 | SCREW |
| 156 | A 1879901440 | WASHER |
| 156 | A 1879901440 | WASHER |
| 160 | N 000985012005 | NUT |
| 160 | N 000985012005 | NUT |
| 162 | A 1204110060 | RUBBER RING |
| A 1864110171 | SCREW | |
| Repalced by: A 1104110071 | ||
| A 1864110171 | SCREW | |
| 165 | A 1104110071 | SCREW |
| A 1879901440 | WASHER | |
| N 000985012005 | NUT | |
| N 000094003005 | COTTER PIN | |
| N 000094003005 | COTTER PIN | |
| 166 | A 1084100115 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
| 170 | A 1114130012 | RUBBER MOUNTING |
| 175 | A 1104130429 | BEARING BRACKET |
| 178 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 178 | N 304017008021 | SCREW |
| 182 | N 000127008203 | LOCK WASHER |
| N 000557008002 | NUT | |
| A 1119900020 | SCREW | |
| A 1119940209 | LOCK | |
| N 913021010001 | NUT | |
| Repalced by: N 304035010001 | ||
| N 304035010001 | NUT | |
