Transporto priemonė: 200 D; VIN numerio dalis: 110116

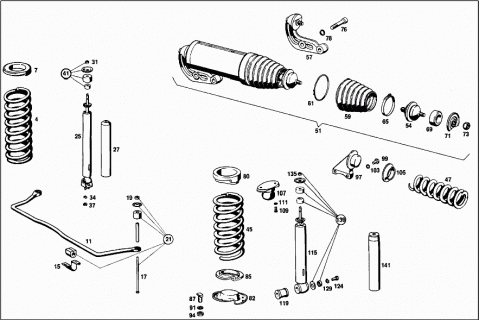

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1103210804 | FRONT SPRING |
| DIA.,15,60 MM | ||
| A 1113211504 | FRONT SPRING | |
| DIA., 15.75 MM | ||
| A 1103211004 | FRONT SPRING | |
| DIA.,16.50 MM | ||
| A 1113211904 | FRONT SPRING | |
| DIA., 16.50 MM | ||
| A 1103210904 | FRONT SPRING | |
| DIA., 16.50 MM | ||
| A 1083210404 | FRONT SPRING | |
| DIA.,16.70 MM | ||
| 007 | A 1113220385 | RUBBER MOUNTING |
| 20.0 MM | ||
| A 1113220485 | RUBBER MOUNTING | |
| 22.5 MM | ||
| A 1113220585 | RUBBER MOUNTING | |
| 25.0 MM | ||
| A 1113220685 | RUBBER MOUNTING | |
| 27.5 MM | ||
| A 1113220785 | RUBBER MOUNTING | |
| 30.0 MM | ||
| A 1113220885 | RUBBER MOUNTING | |
| 32.5 MM | ||
| 011 | A 1103230365 | TORSION BAR |
| A 1093230365 | TORSION BAR | |
| Repalced by: A 1093230465 | ||
| A 1093230465 | TORSION BAR | |
| A 1113231465 | TORSION BAR | |
| A 1103230485 | RUBBER MOUNTING | |
| A 1093230085 | RUBBER MOUNTING | |
| A 1113230985 | RUBBER MOUNTING | |
| 015 | A 1113231140 | BRACKET |
| A 1113230044 | RUBBER BUFFER | |
| A 1113230267 | RETAINER | |
| A 1119911040 | SPACER TUBE | |
| A 1083230073 | LOCK | |
| 017 | A 1119900501 | SCREW |
| 019 | N 000985008003 | NUT |
| 021 | A 1103200047 | REPAIR KIT |
| A 1103200147 | REPAIR KIT | |
| A 1115860132 | REPAIR KIT | |
| A 1095860032 | REPAIR KIT | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT SHOCK ABSORBERS | ||
| 025 | A 1113200030 | SHOCK ABSORBER |
| A 1083200030 | SHOCK ABSORBER | |
| A 1153230767 | RETAINER | |
| Repalced by: A 1233230367 | ||
| A 1233230367 | RETAINER | |
| A 0003231285 | RUBBER MOUNTING | |
| A 1803260168 | RUBBER BUFFER | |
| N 000934010015 | NUT | |
| Repalced by: N 308673010000 | ||
| N 308673010000 | NUT | |
| A 1803230485 | RUBBER MOUNTING | |
| 027 | A 1113230138 | DUST CAP |
| 031 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 031 | N 308673010000 | NUT |
| 034 | N 000127008203 | LOCK WASHER |
| 037 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 037 | N 304032008006 | NUT |
| 041 | A 1103200056 | REPAIR KIT |
| 045 | A 1103243004 | REAR SPRING |
| DIA.,15.40 MM | ||
| A 1083240204 | REAR SPRING | |
| DIA.,15.90 MM | ||
| A 1103242104 | REAR SPRING | |
| DIA.,16.80 MM | ||
| A 1103242804 | REAR SPRING | |
| DIA., 18.40 MM | ||
| A 1103243304 | REAR SPRING | |
| DIA.,16.80 MM | ||
| A 1103241204 | REAR SPRING | |
| DIA.,16.30 MM | ||
| 047 | A 1103290401 | COMPENSATING SPRING |
| DIA., 14.30 MM | ||
| A 1103290501 | COMPENSATING SPRING | |
| DIA., 14.80 MM | ||
| A 1103290601 | COMPENSATING SPRING | |
| DIA., 16.20 MM | ||
| A 1113200099 | HYDROPNEUM.COMPENS.SPRING | |
| 051 | A 1113200499 | HYD.PNEUM.SPRING LEG ASSY |
| A 1113200199 | HYD.PNEUM.SPRING LEG ASSY | |
| Repalced by: A 1113200399 | ||
| A 1113200399 | HYD.PNEUM.SPRING LEG ASSY | |
| 054 | A 0003290230 | BALL JOINT |
| LEFT | ||
| A 0003290630 | BALL JOINT | |
| LEFT | ||
| 057 | A 0003290030 | BALL JOINT |
| RIGHT | ||
| A 1103290292 | BOOT | |
| Repalced by: A 1103290392 | ||
| 059 | A 1103290392 | BOOT |
| 061 | A 0003230377 | LOCK WASHER |
| A 0009979090 | LOOM TIE | |
| Repalced by: N 900288062014 | ||
| N 916026050000 | CLAMP | |
| Repalced by: A 0069972690 | ||
| A 0069972690 | LOOM TIE | |
| 065 | N 900288062000 | CLAMP |
| N 000084002104 | SCREW | |
| 069 | A 1103290143 | BEARING RING |
| 071 | A 1103290276 | WASHER |
| 073 | N 000985012003 | NUT |
| 076 | A 1109900820 | SCREW |
| 078 | N 912004012100 | LOCK WASHER |
| 080 | A 1083250185 | BUSHING |
| 080 | A 1083250285 | BUSHING |
| 080 | A 1083250385 | BUSHING |
| 082 | A 1103250715 | SPRING CASE |
| 085 | A 1103250185 | BUSHING |
| 087 | A 1103250175 | SCREW |
| 091 | N 000127008203 | LOCK WASHER |
| 094 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 094 | N 304032008006 | NUT |
| 097 | A 1103202343 | BRACKET |
| RIGHT | ||
| 099 | A 1109900301 | SCREW |
| 103 | N 912004012100 | LOCK WASHER |
| 105 | A 1103290085 | RUBBER RING |
| A 1103290185 | RUBBER RING | |
| 107 | A 1103200544 | RUBBER BUFFER |
| A 1103200644 | RUBBER BUFFER | |
| A 1103250142 | SUPPORTING SHELL | |
| 109 | N 000933008145 | SCREW |
| 111 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 111 | N 000137008212 | SPRING WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR SHOCK ABSORBERS | ||
| A 1103261500 | SHOCK ABSORBER | |
| 115 | A 1083200131 | SHOCK ABSORBER |
| A 1153230767 | RETAINER | |
| Repalced by: A 1233230367 | ||
| A 1233230367 | RETAINER | |
| A 1103230585 | RUBBER MOUNTING | |
| BOTTOM | ||
| A 1103260067 | RETAINER | |
| A 1803260168 | RUBBER BUFFER | |
| TOP | ||
| A 1109900240 | WASHER | |
| N 000934010015 | NUT | |
| Repalced by: N 308673010000 | ||
| N 308673010000 | NUT | |
| 119 | A 1103260281 | RUBBER MOUNTING |
| 124 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 124 | N 304017010028 | SCREW |
| 129 | N 912004010102 | LOCK WASHER |
| 135 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 135 | N 308673010000 | NUT |
| 139 | A 1103200156 | REPAIR KIT |
| A 1103260059 | DUST CAP | |
| 141 | A 1103260259 | DUST CAP |
| N 916017040000 | CLAMP | |
| Repalced by: N 000000000671 | ||
| N 000000000671 | CLAMP | |
