Transporto priemonė: 220 SEB; VIN numerio dalis: 111014

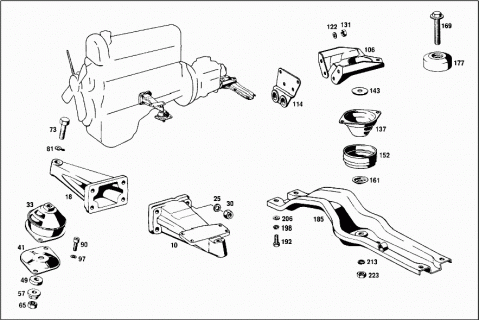

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| ENGINE FRONT SUSPENSION | ||
| 010 | A 1272230204 | ENGINE SUPPORT |
| LEFT | ||
| 018 | A 1802232504 | ENGINE SUPPORT |
| RIGHT | ||
| 025 | N 000125010500 | WASHER |
| 030 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 030 | N 304032010003 | NUT |
| 033 | A 1802230912 | RUBBER MOUNTING |
| LEFT | ||
| A 1802231112 | RUBBER MOUNTING | |
| LEFT | ||
| A 1802231012 | RUBBER MOUNTING | |
| RIGHT | ||
| A 1802231212 | RUBBER MOUNTING | |
| RIGHT | ||
| 041 | A 1212230331 | PLATE |
| 049 | A 1169870641 | RUBBER RING |
| A 1112200117 | REPAIR KIT | |
| A 1219900055 | NUT | |
| A 1105860322 | REPAIR KIT | |
| N 000094003004 | COTTER PIN | |
| 057 | A 1212200072 | NUT |
| Repalced by: A 1219900050 | ||
| 057 | A 1219900050 | NUT |
| 065 | N 000936012011 | NUT |
| Repalced by: N 304035012002 | ||
| 065 | N 304035012002 | NUT |
| 073 | N 000931012120 | SCREW |
| 081 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 081 | N 000137012206 | SPRING WASHER |
| 090 | N 000912008006 | SCREW |
| Repalced by: N 007984008003 | ||
| 090 | N 007984008003 | SCREW |
| 097 | N 000127008203 | LOCK WASHER |
| 106 | A 1112400402 | ENGINE SUPPORT |
| REAR | ||
| 114 | A 1104900244 | PLATE |
| A 1124900044 | PLATE | |
| 122 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 122 | N 000137008212 | SPRING WASHER |
| 131 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 131 | N 304032008006 | NUT |
| 137 | A 1202230412 | RUBBER MOUNTING |
| A 1202230612 | RUBBER MOUNTING | |
| 143 | A 1119900640 | WASHER |
| 152 | A 1112240082 | BOOT |
| 161 | A 1212240084 | RETAINER |
| 169 | A 1112400071 | SCREW |
| A 1112400371 | SCREW | |
| 177 | A 0002240082 | BOOT |
| N 000912008089 | SCREW | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| A 1112400118 | REPAIR KIT | |
| N 000127008203 | LOCK WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 185 | A 1112400702 | ENGINE SUPPORT |
| REAR | ||
| 192 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 192 | N 304017008021 | SCREW |
| 198 | N 000127008203 | LOCK WASHER |
| 206 | N 000125008407 | WASHER |
| 213 | N 912004012100 | LOCK WASHER |
| N 000125013003 | WASHER | |
| A 1869901640 | WASHER | |
| 223 | N 000936012011 | NUT |
| Repalced by: N 304035012002 | ||
| 223 | N 304035012002 | NUT |
