Transporto priemonė: 220 SEB; VIN numerio dalis: 111014

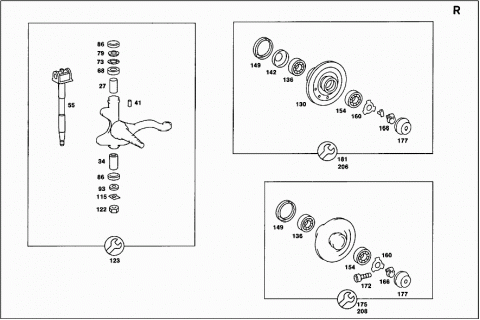

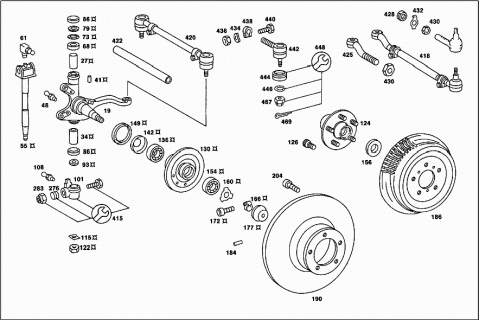

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1113302342 | FRONT SUBFRAME | |
| Repalced by: A 1113303442 | ||
| A 1113302742 | FRONT SUBFRAME | |
| Repalced by: A 1113303042 | ||
| 005 | A 1113303442 | FRONT SUBFRAME |
| 005 | A 1113303042 | FRONT SUBFRAME |
| 009 | A 1123330165 | RUBBER BUFFER |
| A 1113301298 | HALF FRONT AXLE | |
| LEFT; WITH DRUM BRAKE | ||
| A 1113302298 | HALF FRONT AXLE | |
| LEFT; WITH DRUM BRAKE | ||
| A 1113302698 | HALF FRONT AXLE | |
| Repalced by: A 1113302498 | ||
| A 1113302898 | HALF FRONT AXLE | |
| Repalced by: A 1113302498 | ||
| A 1113302498 | HALF FRONT AXLE | |
| Repalced by: A 1113303098 | ||
| A 1113303098 | HALF FRONT AXLE | |
| Repalced by: A 1103301498 | ||
| A 1103301498 | HALF FRONT AXLE | |
| LEFT; WITH DISC BRAKE | ||
| A 1113301398 | HALF FRONT AXLE | |
| RIGHT; WITH DRUM BRAKE | ||
| A 1113302398 | HALF FRONT AXLE | |
| RIGHT; WITH DRUM BRAKE | ||
| A 1113302798 | HALF FRONT AXLE | |
| Repalced by: A 1113302598 | ||
| A 1113302998 | HALF FRONT AXLE | |
| Repalced by: A 1113302598 | ||
| A 1113302598 | HALF FRONT AXLE | |
| Repalced by: A 1113303198 | ||
| A 1113303198 | HALF FRONT AXLE | |
| Repalced by: A 1103301598 | ||
| A 1103301598 | HALF FRONT AXLE | |
| RIGHT; WITH DISC BRAKE | ||
| A 1113300820 | STEERING KNUCKLE | |
| Repalced by: A 1113303020 | ||
| 019 | A 1113303020 | STEERING KNUCKLE |
| LEFT | ||
| 019 | A 1113302220 | STEERING KNUCKLE |
| LEFT | ||
| 019 | A 1113302420 | STEERING KNUCKLE |
| LEFT | ||
| 019 | A 1113303620 | STEERING KNUCKLE |
| LEFT | ||
| 019 | A 1113303820 | STEERING KNUCKLE |
| LEFT | ||
| A 1113300920 | STEERING KNUCKLE | |
| Repalced by: A 1113303120 | ||
| 019 | A 1113303120 | STEERING KNUCKLE |
| RIGHT | ||
| 019 | A 1113302320 | STEERING KNUCKLE |
| RIGHT | ||
| 019 | A 1113302520 | STEERING KNUCKLE |
| RIGHT | ||
| 019 | A 1113303720 | STEERING KNUCKLE |
| RIGHT | ||
| 019 | A 1113303920 | STEERING KNUCKLE |
| RIGHT | ||
| 027 | A 1803320148 | BUSHING |
| TOP | ||
| 034 | A 1113320148 | BUSHING |
| BOTTOM | ||
| 041 | N 000007002208 | CYLINDRICAL PIN |
| 048 | A 0009971488 | GREASE NIPPLE |
| 048 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 048 | N 071412008102 | GREASE NIPPLE |
| 055 | A 1113320106 | KINGPIN |
| 061 | N 071412008200 | GREASE NIPPLE |
| 068 | A 1203320051 | SPACER RING |
| 073 | A 1203320162 | THRUST WASHER |
| BOTTOM | ||
| 079 | A 1203320262 | THRUST WASHER |
| TOP | ||
| 086 | A 1203320260 | DUST CAP |
| 093 | A 1363320852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.7 MM | ||
| 093 | A 1363320952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.9 MM | ||
| 093 | A 1363321052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.1 MM | ||
| 093 | A 1363320052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.3 MM | ||
| 093 | A 1363320152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.5 MM | ||
| 093 | A 1363320252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.7 MM | ||
| 101 | A 1803330009 | STEERING KNUCKLE SUPPORT |
| 108 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 108 | N 071412008102 | GREASE NIPPLE |
| 115 | A 1819940015 | LOCK |
| 122 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 122 | N 308673014001 | NUT |
| 123 | A 1115860033 | REPAIR KIT |
| KINGPIN | ||
| 124 | A 1803300725 | FRONT WHEEL HUB |
| 124 | A 1103300325 | FRONT WHEEL HUB |
| A 1113300225 | FRONT WHEEL HUB | |
| Repalced by: A 1113300525 | ||
| 124 | A 1113300525 | FRONT WHEEL HUB |
| 126 | A 1204010171 | WHEEL MOUNTING BOLT |
| 126 | A 1124010171 | WHEEL MOUNTING BOLT |
| 130 | A 1123340501 | WHEEL HUB |
| 136 | A 0019816505 | TAPERED ROLLER BEARING |
| 136 | A 0009815805 | TAPERED ROLLER BEARING |
| 142 | A 1803340164 | RETAINER |
| 142 | A 1113340064 | RETAINER |
| 149 | A 0009971846 | SEAL RING |
| 149 | A 0039979346 | SEAL RING |
| 154 | N 000720032303 | TAPERED ROLLER BEARING |
| 154 | A 0009815905 | TAPERED ROLLER BEARING |
| 156 | A 1803340062 | THRUST WASHER |
| FRONT WHEEL HUB TO STEERING KNUCKLE LEFT | ||
| 156 | A 1803340162 | THRUST WASHER |
| FRONT WHEEL HUB TO STEERING KNUCKLE RIGHT | ||
| 160 | A 1153340315 | RING |
| 166 | A 1203340772 | NUT |
| 172 | A 1209901320 | SCREW |
| 175 | A 1115860333 | REPAIR KIT |
| 175 | A 1115860233 | REPAIR KIT |
| 175 | A 1115860133 | REPAIR KIT |
| 177 | A 1203300157 | HUB CAP |
| 177 | A 1123300057 | HUB CAP |
| Repalced by: A 1083340025 | ||
| 177 | A 1083340025 | HUB CAP |
| 181 | A 1113300051 | REPAIR KIT |
| Repalced by: A 1073300051 | ||
| 181 | A 1073300051 | REPAIR KIT |
| 184 | N 001474004001 | GROOVED PIN |
| ON SPECIAL REQUEST,INTERFERENCE SUPPRESSION FOR RADIO INSTALLATION | ||
| 186 | A 1134200005 | BRAKE DRUM |
| A 1114210212 | BRAKE DISC | |
| Repalced by: A 1104200072 | ||
| A 1114210412 | BRAKE DISC | |
| Repalced by: A 1104200072 | ||
| 190 | A 1104210112 | BRAKE DISC |
| A 1235860042 | REPAIR KIT | |
| BRAKE DISC TO WHEEL HUB | ||
| 204 | A 0009907212 | SCREW |
| 206 | A 1113300051 | REPAIR KIT |
| Repalced by: A 1073300051 | ||
| 206 | A 1073300051 | REPAIR KIT |
| 208 | A 1115860133 | REPAIR KIT |
| 208 | A 1115860233 | REPAIR KIT |
| 211 | A 1113302007 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| 211 | A 1113302907 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| 211 | A 1113302107 | TRANSVERSE CONTROL ARM |
| BOTTOM RIGHT | ||
| 211 | A 1113303007 | TRANSVERSE CONTROL ARM |
| BOTTOM RIGHT | ||
| 218 | A 1103330030 | PIN |
| 218 | A 1113330330 | PIN |
| 224 | A 1203330180 | SEAL RING |
| 231 | A 1113330548 | SCREW COLLAR |
| 29.9 MM | ||
| 236 | A 1113330448 | SCREW COLLAR |
| 30.9 MM | ||
| 238 | A 1103300118 | REPAIR KIT |
| 241 | A 1089900801 | SCREW |
| 241 | A 1089900801 | SCREW |
| 248 | N 912004012100 | LOCK WASHER |
| 255 | A 0009901651 | NUT |
| 262 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 262 | N 071412008102 | GREASE NIPPLE |
| A 1203330474 | PIN | |
| 276 | A 1813330180 | SEAL RING |
| 283 | A 1819900055 | NUT |
| N 000094003007 | COTTER PIN | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| UPPER TRANSVERSE CONTROL ARM | ||
| 290 | A 1123303107 | TRANSVERSE CONTROL ARM |
| TOP | ||
| 295 | A 1113330230 | PIN |
| 300 | A 1089900801 | SCREW |
| 309 | A 1109940010 | LOCK |
| 316 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 316 | N 000433013010 | WASHER |
| 323 | A 1203330180 | SEAL RING |
| 330 | A 1203330248 | SCREW COLLAR |
| 29.9 MM | ||
| 336 | A 1203330348 | SCREW COLLAR |
| 30.9 MM | ||
| 343 | N 071412008200 | GREASE NIPPLE |
| 349 | A 1203330548 | SCREW COLLAR |
| 354 | A 1203330374 | PIN |
| 359 | A 1209903240 | WASHER |
| 366 | A 1813330180 | SEAL RING |
| 373 | A 1209901340 | WASHER |
| 380 | A 1203300187 | ECCENTRIC BUSHING |
| 387 | N 000127010200 | LOCK WASHER |
| 393 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 393 | N 304032010003 | NUT |
| 399 | A 1203330073 | LOCK |
| 406 | N 000933006010 | SCREW |
| 413 | N 912004006102 | LOCK WASHER |
| 414 | A 1103300218 | REPAIR KIT |
| TOP | ||
| 415 | A 1103300318 | REPAIR KIT |
| BOTTOM | ||
| 416 | A 1103300018 | REPAIR KIT |
| TOP | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TIE ROD | ||
| A 1113300503 | TIE ROD | |
| Repalced by: A 1113300903 | ||
| A 1113300703 | TIE ROD | |
| Repalced by: A 1113300903 | ||
| 418 | A 1113300903 | TIE ROD |
| 420 | A 1103300003 | TIE ROD |
| Repalced by: A 1153300703 | ||
| A 1153300703 | TIE ROD | |
| Repalced by: A 1073300103 | ||
| A 1103300003 | TIE ROD | |
| Repalced by: A 1153300803 | ||
| A 1153300803 | TIE ROD | |
| Repalced by: A 1073300103 | ||
| 420 | A 1073300103 | TIE ROD |
| 422 | A 0003381015 | TIE ROD |
| TO 111 330 05 03 | ||
| 422 | A 0003381115 | TIE ROD |
| TO 111 330 07 03 | ||
| 422 | A 0003381415 | TIE ROD |
| Repalced by: A 1113300903 | ||
| 422 | A 1113300903 | TIE ROD |
| TO 111 330 09 03 | ||
| A 0003381515 | TIE ROD | |
| Repalced by: A 1153300703 | ||
| A 1153300703 | TIE ROD | |
| TO 111 330 00 03 | ||
| 425 | A 0003380037 | END PIECE |
| TO 111 330 05 03 | ||
| 425 | A 0003380137 | END PIECE |
| TO 111 330 07 03,111 330 09 03 | ||
| 428 | A 0003380763 | CLAMPING RING |
| Repalced by: A 0003380517 | ||
| 428 | A 0003380763 | CLAMPING RING |
| Repalced by: A 0003380617 | ||
| 430 | N 000936016001 | NUT |
| Repalced by: A 0003380517 | ||
| 430 | A 0003380517 | CLAMPING PIECE |
| R.H. THREAD | ||
| TO 111 330 05 03/07 03 | ||
| 430 | N 000936016004 | NUT |
| Repalced by: A 0003380617 | ||
| 430 | A 0003380617 | CLAMPING PIECE |
| L.H. THREAD | ||
| TO 111 330 05 03/07 03 | ||
| 432 | A 0003380273 | LOCK |
| Repalced by: A 0003380517 | ||
| 432 | A 0003380273 | LOCK |
| Repalced by: A 0003380617 | ||
| 434 | A 0009951444 | CLAMP |
| 434 | A 0009951844 | CLAMP |
| Repalced by: A 0003384245 | ||
| 434 | A 0003384245 | CLAMP |
| 434 | A 0003384245 | CLAMP |
| 436 | N 000960008001 | SCREW |
| FOR CLAMP | ||
| 436 | N 000960008011 | SCREW |
| FOR CLAMP | ||
| 436 | N 000960008011 | SCREW |
| FOR CLAMP | ||
| 438 | N 000127008200 | LOCK WASHER |
| FOR CLAMP | ||
| 438 | N 000127008200 | LOCK WASHER |
| FOR CLAMP | ||
| 440 | N 000934008007 | NUT |
| Repalced by: N 000934008020 | ||
| 440 | N 000934008020 | NUT |
| FOR CLAMP | ||
| 440 | N 000934008020 | NUT |
| FOR CLAMP | ||
| 442 | A 0003380510 | BALL JOINT |
| A 0003381910 | BALL JOINT | |
| Repalced by: A 0003385210 | ||
| 442 | A 0003385210 | BALL JOINT |
| R.H. THREAD | ||
| 442 | A 0003385510 | BALL JOINT |
| R.H. THREAD | ||
| A 0003382010 | BALL JOINT | |
| Repalced by: A 0003385010 | ||
| 442 | A 0003385010 | BALL JOINT |
| L.H. THREAD | ||
| 442 | A 0003385310 | BALL JOINT |
| L.H. THREAD | ||
| 444 | A 0003380297 | BOOT |
| Repalced by: A 0003381397 | ||
| 444 | A 0003381397 | BOOT |
| 444 | A 0003381397 | BOOT |
| 446 | A 0003380963 | CLAMPING RING |
| 446 | A 0003380963 | CLAMPING RING |
| 446 | A 0003381063 | CLAMPING RING |
| 448 | A 0003300485 | REPAIR KIT |
| TIE ROD BOOT | ||
| 467 | A 1209900155 | NUT |
| TO 115 330 07 03,08 03 | ||
| 467 | N 913002010010 | NUT |
| TO 107 330 01 03 | ||
| 469 | N 000094002008 | COTTER PIN |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE SUSPENSION | ||
| 475 | A 1113301075 | RUBBER MOUNTING |
| 475 | A 1113301175 | RUBBER MOUNTING |
| 475 | A 1113301075 | RUBBER MOUNTING |
| FRONT SUBFRAME | ||
| 475 | A 1113301575 | RUBBER MOUNTING |
| FRONT SUBFRAME | ||
| 477 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 477 | N 304017008034 | SCREW |
| RUBBER MOUNTING TO FRAME FLOOR UNIT | ||
| 477 | N 000933008145 | SCREW |
| RUBBER MOUNTING TO FRAME FLOOR UNIT | ||
| 479 | N 000127008203 | LOCK WASHER |
| RUBBER MOUNTING TO FRAME FLOOR UNIT | ||
| 481 | A 1089900340 | WASHER |
| RUBBER MOUNTING TO FRAME FLOOR UNIT | ||
| 482 | A 1113220584 | SHIM |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 483 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 483 | N 304017008016 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 484 | N 000127008200 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 485 | A 1113310645 | RETAINER |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 485 | A 1113310645 | RETAINER |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 487 | A 1115860633 | REPAIR KIT |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 489 | N 000960012095 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 489 | N 000960012095 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 495 | N 000127012200 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 495 | N 000127012200 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 502 | A 1113330265 | RUBBER BUFFER |
| LOWER CONTROL ARM | ||
| 502 | A 1113330765 | RUBBER BUFFER |
| LOWER CONTROL ARM | ||
| 510 | A 1113310712 | LEAF SPRING |
| TO 111 330 23 42 | ||
| 510 | A 1113311212 | LEAF SPRING |
| TO 111 330 34 42 | ||
| 510 | A 1113311112 | LEAF SPRING |
| 510 | A 1123310012 | STRUT |
| A 0009882910 | RUBBER MOUNTING | |
| Repalced by: A 1103220685 | ||
| A 0009883010 | RUBBER MOUNTING | |
| Repalced by: A 1103220685 | ||
| 517 | A 1103220685 | RUBBER MOUNTING |
| FOR LEAF SPRING | ||
| 517 | A 1103221585 | RUBBER MOUNTING |
| FOR LEAF SPRING | ||
| 517 | A 1123220385 | RUBBER MOUNTING |
| FOR LEAF SPRING | ||
| 524 | A 1103220176 | WASHER |
| 524 | A 1103220276 | WASHER |
| 531 | A 1103320053 | SPACER TUBE |
| 531 | A 1113320053 | SPACER TUBE |
| 533 | N 000933008145 | SCREW |
| RUBBER MOUNTING TO LEAF SPRING | ||
| 535 | N 000127008203 | LOCK WASHER |
| RUBBER MOUNTING TO LEAF SPRING | ||
| 537 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 537 | N 304032008006 | NUT |
| RUBBER MOUNTING TO LEAF SPRING | ||
| 538 | A 1113310474 | PIN |
| LEAF SPRING TO FRONT SUBFRAME | ||
| 539 | N 000985018000 | NUT |
| LEAF SPRING TO FRONT SUBFRAME | ||
| 540 | N 000960016105 | SCREW |
| LEAF SPRING TO FRONT SUBFRAME | ||
| 547 | N 000985016001 | NUT |
| LEAF SPRING TO FRONT SUBFRAME | ||
| 550 | A 1113300080 | PIN |
| CASTER ADJUSTMENT | ||
| 553 | N 000125013000 | WASHER |
| Repalced by: N 000125013008 | ||
| 553 | N 000125013008 | WASHER |
| CASTER ADJUSTMENT | ||
| 553 | N 000125015004 | WASHER |
| CASTER ADJUSTMENT | ||
| 555 | N 000127012200 | LOCK WASHER |
| CASTER ADJUSTMENT | ||
| 556 | N 000934012022 | NUT |
| CASTER ADJUSTMENT | ||
| 557 | N 000961012190 | SCREW |
| Repalced by: N 308676012012 | ||
| 557 | N 308676012012 | SCREW |
| LEAF SPRING AND TORSION BAR TO FRAME FLOOR UNIT | ||
| 558 | N 000127012000 | LOCK WASHER |
| LEAF SPRING AND TORSION BAR TO FRAME FLOOR UNIT | ||
| 559 | N 000961014112 | SCREW |
| LEAF SPRING AND TORSION BAR TO FRAME FLOOR UNIT | ||
| 560 | N 912004014100 | LOCK WASHER |
| LEAF SPRING AND TORSION BAR TO FRAME FLOOR UNIT | ||
| 560 | N 912004014100 | LOCK WASHER |
| LEAF SPRING AND TORSION BAR TO FRAME FLOOR UNIT | ||
| 567 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 567 | N 308673014001 | NUT |
| LEAF SPRING AND TORSION BAR TO FRAME FLOOR UNIT | ||
| 576 | A 1113300330 | GUIDE ROD |
| LATERAL SUPPORT | ||
| 585 | A 0009883310 | RUBBER MOUNTING |
| 588 | N 000960012225 | SCREW |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
| 591 | N 912004012100 | LOCK WASHER |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
| 594 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 594 | N 308673012002 | NUT |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
