Transporto priemonė: 220 SEB; VIN numerio dalis: 111014

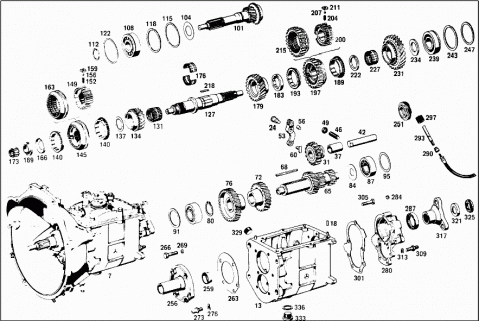

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 1112600904 | TRANSMISSION |
| WITH BELL HOUSING | ||
| A 1112601204 | TRANSMISSION | |
| WITH BELL HOUSING | ||
| A 1112601304 | TRANSMISSION | |
| WITH BELL HOUSING | ||
| A 1112601304 | TRANSMISSION | |
| WITH BELL HOUSING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRANSMISSION CASE | ||
| 013 | A 1112600411 | TRANSMISSION CASE |
| 018 | N 000007006205 | CYLINDRICAL PIN |
| A 1362620074 | PIN | |
| INTERMEDIATE LEVER | ||
| 024 | A 1112620074 | PIN |
| INTERMEDIATE LEVER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRANSMISSION GEARS | ||
| 031 | A 1202600325 | GEAR |
| 037 | A 1202630350 | BUSHING |
| 042 | A 1862630030 | REVERSE IDLER SHAFT |
| 046 | N 000417010006 | HEADLESS SETSCREW |
| Repalced by: A 1109900110 | ||
| 046 | A 1109900110 | SCREW |
| 049 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 049 | N 304032010003 | NUT |
| 053 | A 1362600037 | LEVER |
| REVERSE SPEED | ||
| 056 | N 900037008104 | DOWEL PIN |
| 060 | A 1212630123 | COLLAR |
| REVERSE IDLER GEAR | ||
| A 1802600624 | COUNTERSHAFT | |
| Repalced by: A 1112600324 | ||
| A 1112600324 | COUNTERSHAFT | |
| 065 | A 1102630702 | COUNTERSHAFT |
| 068 | A 1869910368 | KEY |
| A 1802630313 | GEAR | |
| 38 TEETH; 3RD SPEED | ||
| 072 | A 1112630013 | GEAR |
| 38 TEETH; 3RD SPEED | ||
| 076 | A 1802630410 | GEAR |
| 45 TEETH; 4TH SPEED | ||
| 080 | N 900055035300 | LOCK RING |
| 084 | A 1869901840 | WASHER |
| 087 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 087 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 091 | A 6022630452 | SPACER WASHER |
| 095 | A 1202630852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| A 6022630252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.10 MM | ||
| A 6022630352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 6022630452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.50 MM | ||
| A 1112600020 | DRIVE SHAFT | |
| Repalced by: A 1122600520 | ||
| 101 | A 1122600520 | DRIVE SHAFT |
| 104 | A 1862620066 | OIL RING |
| 108 | N 000625606306 | GROOVED BALL BEARING |
| 112 | A 1232620494 | SNAP RING |
| 115 | A 1862620451 | SPACER RING |
| 118 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.90 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.00 MM | ||
| A 1369940735 | SNAP RING | |
| Repalced by: A 1369940935 | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| 122 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.20 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.30 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MAIN SHAFT | ||
| 127 | A 1802620105 | MAIN SHAFT |
| 131 | A 0019816810 | NEEDLE BEARING |
| 134 | A 1112600344 | GEAR |
| 31 TEETH, 3RD SPEED | ||
| 137 | A 1202622362 | THRUST WASHER |
| 140 | A 1132620034 | SYNCHRONIZER RING |
| 3RD AND 4TH SPEED | ||
| 145 | A 1112600845 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| 149 | A 1112620435 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| 152 | A 1809934101 | SPRING |
| 156 | N 005401306500 | BALL |
| 159 | A 1212620040 | FOLLOWER |
| 163 | A 1112620423 | SLIDING COLLAR |
| 3RD AND 4TH SPEED | ||
| 166 | A 1209940115 | LOCK |
| 169 | A 1202620326 | GROOVED NUT |
| 173 | A 0009816312 | ROLLER ASSEMBLY |
| Repalced by: A 0029813412 | ||
| 173 | A 0029813412 | ROLLER ASSEMBLY |
| 176 | A 1209810312 | ROLLER ASSEMBLY |
| SPLIT | ||
| A 1802620612 | GEAR | |
| Repalced by: A 1102620212 | ||
| A 1102620212 | GEAR | |
| 179 | A 1102620212 | GEAR |
| 183 | A 1202621662 | THRUST WASHER |
| AS REQUIRED | ||
| 7.9 MM | ||
| A 1202621762 | THRUST WASHER | |
| Repalced by: A 1202621862 | ||
| A 1202621862 | THRUST WASHER | |
| AS REQUIRED | ||
| 7.95 MM | ||
| A 1202621862 | THRUST WASHER | |
| AS REQUIRED | ||
| 8.0 MM | ||
| A 1202621962 | THRUST WASHER | |
| Repalced by: A 1202622062 | ||
| A 1202622062 | THRUST WASHER | |
| AS REQUIRED | ||
| 8.0 MM | ||
| A 1202622062 | THRUST WASHER | |
| AS REQUIRED | ||
| 8.10 MM | ||
| 189 | A 1132620034 | SYNCHRONIZER RING |
| 1ST SPEED | ||
| 193 | A 1132620034 | SYNCHRONIZER RING |
| 2ND SPEED | ||
| 197 | A 1112600745 | SYNCHRONIZER BODY |
| 1ST AND 2ND SPEED | ||
| A 1112620335 | SYNCHRONIZER BODY | |
| 1ST AND 2ND SPEED | ||
| 200 | A 1112620335 | SYNCHRONIZER BODY |
| 1ST AND 2ND SPEED | ||
| 204 | A 1809934101 | SPRING |
| 207 | N 005401306500 | BALL |
| 211 | A 1212620040 | FOLLOWER |
| 215 | A 1112620323 | SLIDING COLLAR |
| 1ST AND 2ND SPEED | ||
| 218 | A 1202620081 | KEY |
| 222 | A 1202621162 | THRUST WASHER |
| AS REQUIRED | ||
| 4.40 MM | ||
| A 1202621262 | THRUST WASHER | |
| Repalced by: A 1202621362 | ||
| A 1202621362 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.45 MM | ||
| A 1202621362 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.50 MM | ||
| A 1202621462 | THRUST WASHER | |
| Repalced by: A 1202621562 | ||
| A 1202621562 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.50 MM | ||
| A 1202621562 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.60 MM | ||
| 227 | A 0019816910 | NEEDLE BEARING |
| A 1112620111 | GEAR | |
| 1ST SPEED | ||
| 231 | A 1102620111 | GEAR |
| 1ST SPEED | ||
| 234 | A 1862620162 | THRUST WASHER |
| AS REQUIRED | ||
| 3.80 MM | ||
| A 1862620262 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.90 MM | ||
| A 1862620362 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.00 MM | ||
| A 1862620462 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.10 MM | ||
| A 1862620562 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.20 MM | ||
| A 1862620622 | COVER | |
| AS REQUIRED | ||
| 4.30 MM | ||
| A 1862620762 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.40 MM | ||
| A 1862620862 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.50 MM | ||
| 239 | A 0029810625 | BALL BEARING |
| A 0029810725 | BALL BEARING | |
| 243 | A 0009941640 | SNAP RING |
| 247 | A 1362620452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620552 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620952 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 251 | A 1102640030 | DRIVE GEAR |
| SPEEDOMETER | ||
| A 1112600421 | TRANSMISSION CASE COVER | |
| Repalced by: A 1112600621 | ||
| A 1112600621 | TRANSMISSION CASE COVER | |
| FRONT | ||
| 256 | A 1112600821 | TRANSMISSION CASE COVER |
| FRONT | ||
| 259 | A 1862610060 | SEAL RING |
| A 0009874046 | SEALING CORD | |
| CASE COVER TO TRANSMISSION | ||
| A 0039971945 | SEAL RING | |
| CASE COVER TO TRANSMISSION | ||
| A 1112610279 | GASKET | |
| CASE COVER TO TRANSMISSION | ||
| 263 | A 1112610379 | GASKET |
| CASE COVER TO TRANSMISSION | ||
| A 1122610079 | GASKET | |
| TRANSMISSION CASE FRONT COVER | ||
| 266 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 266 | N 304017008018 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 269 | N 000137008200 | SPRING WASHER |
| CASE COVER TO TRANSMISSION | ||
| 273 | A 1119910015 | BALL PIVOT |
| RELEASE YOKE | ||
| 276 | N 000137010200 | SPRING WASHER |
| A 1115860126 | REPAIR KIT | |
| A 1112600068 | GASKET KIT | |
| 280 | A 1112600416 | TRANSMISSION CASE COVER |
| REAR | ||
| 284 | A 1532640055 | PLUG |
| 287 | A 0009971746 | SEAL RING |
| MAIN SHAFT | ||
| 290 | A 1152740060 | SEAL RING |
| 293 | A 1112640032 | SHAFT |
| SPEEDOMETER | ||
| 297 | A 1152600648 | DRIVE GEAR |
| SPEEDOMETER | ||
| 301 | A 1112610079 | GASKET |
| 305 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 305 | N 304017008018 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| 309 | A 1109900010 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| 313 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 313 | N 000137008212 | SPRING WASHER |
| REAR COVER TO TRANSMISSION | ||
| N 000931006021 | SCREW | |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| N 000137006204 | SPRING WASHER | |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 317 | A 1112620045 | FLANGE |
| 321 | A 1862620173 | LOCK |
| 325 | A 1862620226 | GROOVED NUT |
| 329 | A 1869970032 | SCREW PLUG |
| OIL FILLING | ||
| 333 | A 1159970032 | SCREW PLUG |
| Repalced by: A 2109970132 | ||
| 333 | A 2109970132 | SCREW PLUG |
| OIL DRAIN | ||
| 336 | N 007603024100 | SEAL RING |
| OIL DRAIN | ||
| N 000931010239 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000125010504 | WASHER | |
| SHIFT LEVER TO CAB FLOOR,TOP | ||
| N 000931010268 | SCREW | |
| Repalced by: N 304017010050 | ||
| N 304017010050 | SCREW | |
| SHIFT LEVER TO CAB FLOOR,TOP | ||
| N 000137010201 | SPRING WASHER | |
| SHIFT LEVER TO CAB FLOOR,TOP | ||
| N 000934010014 | NUT | |
| Repalced by: N 304032010003 | ||
| N 304032010003 | NUT | |
| SHIFT LEVER TO CAB FLOOR,TOP | ||

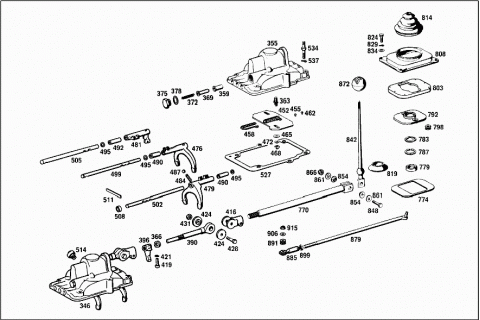

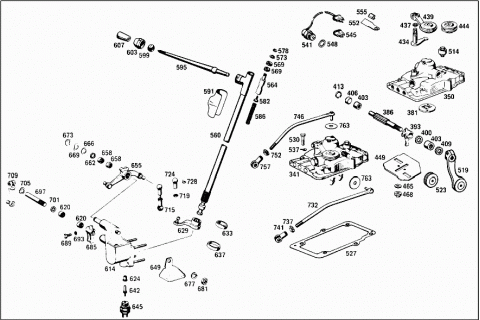

| X XXXXXXXXXXXX | PART NAME MISSING | |
| GEARSHIFT,TRANSMISSION | ||
| A 1112600614 | TRANSMISSION CASE COVER | |
| Repalced by: A 1112603114 | ||
| 341 | A 1112603114 | TRANSMISSION CASE COVER |
| LESS SHIFT LEVER | ||
| A 1112603314 | TRANSMISSION CASE COVER | |
| LESS SHIFT LEVER | ||
| A 1212600314 | TRANSMISSION CASE COVER | |
| Repalced by: A 1112601214 | ||
| 346 | A 1112601214 | TRANSMISSION CASE COVER |
| Repalced by: A 1112603414 | ||
| 346 | A 1112603414 | TRANSMISSION CASE COVER |
| 346 | A 1112603414 | TRANSMISSION CASE COVER |
| A 1112600414 | TRANSMISSION CASE COVER | |
| Repalced by: A 1112602314 | ||
| A 1862601214 | TRANSMISSION CASE COVER | |
| Repalced by: A 1112602314 | ||
| 350 | A 1112602314 | TRANSMISSION CASE COVER |
| Repalced by: A 1112603114 | ||
| A 1112603114 | TRANSMISSION CASE COVER | |
| TOP | ||
| A 1539920005 | BUSHING | |
| REVERSE SPEED | ||
| A 1982600314 | TRANSMISSION CASE COVER | |
| Repalced by: A 1982600914 | ||
| 355 | A 1982600914 | TRANSMISSION CASE COVER |
| TOP | ||
| 355 | A 1982600914 | TRANSMISSION CASE COVER |
| TOP | ||
| 359 | A 1539920005 | BUSHING |
| 359 | A 1539920005 | BUSHING |
| 363 | A 1362650247 | INTERLOCK PLUG |
| 363 | A 1362650247 | INTERLOCK PLUG |
| 366 | N 006503014100 | SEAL RING |
| SHIFTING SHAFT | ||
| 366 | N 006503014100 | SEAL RING |
| SHIFTING SHAFT | ||
| 369 | A 1362650048 | INTERLOCK PIN |
| A 1809932601 | SPRING | |
| 372 | A 1362650093 | PRESSURE SPRING |
| 372 | A 1362650093 | PRESSURE SPRING |
| A 1832610674 | PIN | |
| AS REQUIRED | ||
| 41 MM | ||
| A 0005450606 | SWITCH | |
| 375 | A 1219970130 | SCREW PLUG |
| 375 | A 1219970130 | SCREW PLUG |
| 378 | N 007603018104 | SEAL RING |
| 378 | N 007603018104 | SEAL RING |
| A 1362650247 | INTERLOCK PLUG | |
| 381 | A 1832650046 | DETENT PLATE |
| N 000933006130 | SCREW | |
| DETENT PLATE TO TRANSMISSION CASE TOP COVER | ||
| N 000137006204 | SPRING WASHER | |
| DETENT PLATE TO TRANSMISSION CASE TOP COVER | ||
| N 000934006007 | NUT | |
| DETENT PLATE TO TRANSMISSION CASE TOP COVER | ||
| 386 | A 3192680532 | SHAFT |
| 390 | A 1982680232 | SHAFT |
| Repalced by: A 1112600038 | ||
| 390 | A 1112600038 | SHAFT |
| 390 | A 1112600038 | SHAFT |
| 393 | A 1862680033 | SHIFTING FINGER |
| 396 | A 1982680033 | SHIFTING FINGER |
| 396 | A 1982680033 | SHIFTING FINGER |
| 400 | A 1832680052 | SPACER WASHER |
| 403 | A 0009810110 | NEEDLE BEARING |
| 406 | A 1869970120 | EXPANSION PLUG |
| 409 | N 006503012100 | SEAL RING |
| 413 | N 000472022000 | LOCK RING |
| 416 | A 1982680523 | YOKE |
| 416 | A 1982680523 | YOKE |
| 419 | A 1209901320 | SCREW |
| 419 | A 1209901320 | SCREW |
| 421 | N 000127007200 | LOCK WASHER |
| 421 | N 000127007200 | LOCK WASHER |
| 424 | A 1112670083 | SEAL |
| 424 | A 1112670083 | SEAL |
| A 1982680374 | PIN | |
| Repalced by: A 1112670074 | ||
| 428 | A 1112670074 | PIN |
| 428 | A 1112670074 | PIN |
| A 1119903240 | WASHER | |
| YOKE TO SHIFTING SHAFT | ||
| A 1119903340 | WASHER | |
| YOKE TO SHIFTING SHAFT | ||
| 431 | A 0019900151 | NUT |
| 431 | A 0019900151 | NUT |
| N 000094001503 | COTTER PIN | |
| N 000094001503 | COTTER PIN | |
| 434 | A 1112600179 | SHIFTING FINGER |
| 437 | A 1869971140 | SEAL RING |
| 439 | A 1102600137 | LEVER |
| A 1102600337 | LEVER | |
| A 0009920310 | BUSHING | |
| 18.2 MM | ||
| 444 | A 0009920110 | BUSHING |
| 35.2 MM | ||
| N 000931006096 | SCREW | |
| SELECTOR LEVER TO SELECTOR FINGER | ||
| N 912004006102 | LOCK WASHER | |
| SELECTOR LEVER TO SELECTOR FINGER | ||
| N 000934006007 | NUT | |
| SELECTOR LEVER TO SELECTOR FINGER | ||
| A 1862600128 | GUIDE PLATE | |
| 449 | A 1862600328 | GUIDE PLATE |
| 452 | A 1982600028 | GUIDE PLATE |
| 452 | A 1982600028 | GUIDE PLATE |
| 455 | A 1362650074 | PIN |
| 455 | A 1362650074 | PIN |
| 458 | A 1362650293 | PRESSURE SPRING |
| 458 | A 1362650293 | PRESSURE SPRING |
| 462 | N 000660004002 | RIVET |
| 462 | N 000660004002 | RIVET |
| 465 | A 1369908240 | WASHER |
| 468 | A 1362650272 | NUT |
| 472 | N 900055008000 | SPRING WASHER |
| 472 | N 900055008000 | SPRING WASHER |
| 476 | A 1862650001 | SHIFTING FORK |
| 1ST AND 2ND SPEED | ||
| A 1862650701 | SHIFTING FORK | |
| 1ST AND 2ND SPEED | ||
| 479 | A 3092650102 | SHIFTING FORK |
| 3RD AND 4TH SPEED | ||
| 481 | A 1802650107 | LEVER |
| REVERSE SPEED | ||
| 484 | A 1869931301 | SPRING |
| 487 | N 005401308000 | BALL |
| 490 | A 1362650053 | SPACER TUBE |
| 492 | A 1362650153 | SPACER TUBE |
| 495 | A 1119903440 | WASHER |
| AS REQUIRED | ||
| 0.3 MM | ||
| A 1119900940 | WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| A 1119900840 | WASHER | |
| AS REQUIRED | ||
| 1.0 MM | ||
| 499 | A 3092650305 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 502 | A 3092650405 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| 505 | A 1362650204 | SHIFTING ROD |
| REVERSE SPEED | ||
| 508 | A 1842650053 | SPACER TUBE |
| 511 | A 1362650081 | KEY |
| 514 | A 1112600058 | BREATHER |
| 519 | A 1102600437 | LEVER |
| SHIFTING SHAFT | ||
| A 1102600537 | LEVER | |
| SHIFTING SHAFT | ||
| A 0009920310 | BUSHING | |
| 18.2 MM | ||
| 523 | A 0009920110 | BUSHING |
| 35.2 MM | ||
| N 000931006096 | SCREW | |
| LEVER TO SHIFTING SHAFT | ||
| N 912004006102 | LOCK WASHER | |
| LEVER TO SHIFTING SHAFT | ||
| N 000934006007 | NUT | |
| LEVER TO SHIFTING SHAFT | ||
| A 1862610179 | GASKET | |
| 527 | A 1112610179 | GASKET |
| 530 | N 000931008171 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| N 000931008246 | SCREW | |
| Repalced by: N 304017008028 | ||
| N 304017008028 | SCREW | |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| A 1112680574 | PIN | |
| Repalced by: A 1112680774 | ||
| 534 | A 1112680774 | PIN |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 534 | A 1112680774 | PIN |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 537 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 537 | N 000137008212 | SPRING WASHER |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| A 0005451106 | SWITCH | |
| Repalced by: A 0005451206 | ||
| 541 | A 0005451206 | SWITCH |
| 545 | A 0005452428 | PLUG |
| 548 | N 007603018104 | SEAL RING |
| A 0005460035 | BOOT | |
| 552 | A 1115460143 | BRACKET |
| 555 | A 0009881678 | CLIP |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING COLUMN SHIFT | ||
| 560 | A 1112601382 | SHIFTING TUBE |
| A 1112602582 | SHIFTING TUBE | |
| A 1112602182 | SHIFTING TUBE | |
| A 1112680439 | GUIDE PIVOT | |
| Repalced by: A 1112680539 | ||
| 564 | A 1112680539 | GUIDE PIVOT |
| 569 | A 1119971240 | SEAL RING |
| A 1839903540 | WASHER | |
| 573 | A 1869906940 | WASHER |
| N 006799007000 | LOCK PLATE | |
| 578 | A 1862680273 | LOCK |
| 582 | A 1862680274 | PIN |
| 586 | A 1829930801 | SPRING |
| 591 | A 1112680397 | BOOT |
| SHIFTING TUBE | ||
| 595 | A 1802680524 | SHIFT LEVER |
| 599 | A 1112680392 | RUBBER PAD |
| 603 | A 1802680057 | COVER |
| 607 | A 1802680540 | KNOB |
| Repalced by: A 1082680242 | ||
| 607 | A 1082680242 | KNOB |
| DARK GRAPHITE GREY | ||
| A 1802680640 | KNOB | |
| Repalced by: A 1112680842 | ||
| A 1112680842 | KNOB | |
| IVORY-COLORED | ||
| A 1112601094 | BEARING BRACKET | |
| Repalced by: A 1112602894 | ||
| A 1112601394 | BEARING BRACKET | |
| Repalced by: A 1112602994 | ||
| A 1112602994 | BEARING BRACKET | |
| Repalced by: A 1112603794 | ||
| A 1112603794 | BEARING BRACKET | |
| 614 | A 1112602894 | BEARING BRACKET |
| A 1112603794 | BEARING BRACKET | |
| 620 | A 0009812110 | NEEDLE BEARING |
| 624 | A 1802680250 | BUSHING |
| BACK-UP LIGHT SWITCH | ||
| 629 | A 1112600415 | LEVER |
| 633 | A 1112681050 | BUSHING |
| 10.0 MM | ||
| 637 | A 1112680251 | SPACER RING |
| N 000137006204 | SPRING WASHER | |
| BEARING BRACKET TO FRAME | ||
| N 000934006007 | NUT | |
| BEARING BRACKET TO FRAME | ||
| 642 | A 1802680074 | PIN |
| 645 | A 0005450806 | SWITCH |
| 649 | A 1112680705 | COVER |
| A 1112680805 | COVER | |
| 655 | A 1112601381 | LEVER |
| A 1112602681 | LEVER | |
| 658 | A 0009812110 | NEEDLE BEARING |
| 662 | A 1809970840 | SEAL RING |
| 666 | A 3129900340 | WASHER |
| 669 | N 900055012001 | SPRING WASHER |
| 673 | N 006799010001 | LOCK PLATE |
| 677 | N 000127008203 | LOCK WASHER |
| 681 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 681 | N 304032008006 | NUT |
| 685 | A 1802680215 | LEVER |
| 689 | N 000933006130 | SCREW |
| 693 | N 912004006102 | LOCK WASHER |
| 697 | A 1802680032 | SHAFT |
| A 1112680532 | SHAFT | |
| 701 | A 1809970840 | SEAL RING |
| 705 | N 900055012001 | SPRING WASHER |
| 709 | A 1802600237 | LEVER |
| A 1112600137 | LEVER | |
| N 000931008171 | SCREW | |
| SELECTOR LEVER TO SELECTOR LEVER SHAFT | ||
| N 000127008203 | LOCK WASHER | |
| SELECTOR LEVER TO SELECTOR LEVER SHAFT | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| SELECTOR LEVER TO SELECTOR LEVER SHAFT | ||
| 715 | A 1112600066 | BALL SOCKET |
| 719 | N 000439006200 | NUT |
| 724 | N 071805010200 | BALL SOCKET |
| 728 | N 071805010401 | BALL SOCKET |
| 732 | A 1112604833 | SHIFTING ROD |
| A 1112605433 | SHIFTING ROD | |
| 737 | N 070616010000 | NUT |
| 741 | A 0009913822 | BALL SOCKET |
| 746 | A 1112605033 | SHIFTING ROD |
| A 1112603533 | SHIFTING ROD | |
| 752 | N 070616010000 | NUT |
| 757 | A 0009913822 | BALL SOCKET |
| A 1839904240 | WASHER | |
| 15 MM | ||
| 763 | A 1109901840 | WASHER |
| 22 MM | ||
| N 000094002059 | COTTER PIN | |
| 770 | A 1112603182 | SHIFTING TUBE |
| 770 | A 1112603182 | SHIFTING TUBE |
| A 1112680934 | BEARING COVER | |
| A 1112680934 | BEARING COVER | |
| 774 | A 1112680192 | RUBBER PAD |
| Repalced by: A 1112670086 | ||
| 774 | A 1112670086 | RUBBER RING |
| 779 | A 1112670086 | RUBBER RING |
| 779 | A 1112670086 | RUBBER RING |
| 779 | A 1112670086 | RUBBER RING |
| 783 | A 1989900048 | WASHER |
| 783 | A 1989900048 | WASHER |
| 783 | A 1989900048 | WASHER |
| 787 | A 0009947041 | LOCK |
| 787 | A 0009947041 | LOCK |
| 787 | A 0009947041 | LOCK |
| A 1112600295 | BEARING | |
| Repalced by: A 1112600395 | ||
| 792 | A 1112600395 | BEARING |
| 792 | A 1112600395 | BEARING |
| 792 | A 1112600395 | BEARING |
| 798 | A 1119920210 | BUSHING |
| 798 | A 1119920210 | BUSHING |
| 803 | A 1112680834 | BEARING COVER |
| 803 | A 1112680834 | BEARING COVER |
| 808 | A 1112680398 | COVER PLATE |
| 808 | A 1112680398 | COVER PLATE |
| 814 | A 1112680497 | BOOT |
| TOP | ||
| 814 | A 1112680497 | BOOT |
| TOP | ||
| 819 | A 1112680697 | BOOT |
| BOTTOM | ||
| 819 | A 1112680697 | BOOT |
| BOTTOM | ||
| 819 | A 1112680697 | BOOT |
| BOTTOM | ||
| 824 | N 000933006130 | SCREW |
| 824 | N 000933006130 | SCREW |
| 829 | N 000137006204 | SPRING WASHER |
| 829 | N 000137006204 | SPRING WASHER |
| 834 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 834 | N 006902007100 | WASHER |
| N 000931008172 | SCREW | |
| YOKE TO SHIFTING TUBE | ||
| N 000931008172 | SCREW | |
| YOKE TO SHIFTING TUBE | ||
| N 000127008203 | LOCK WASHER | |
| YOKE TO SHIFTING TUBE | ||
| N 000127008203 | LOCK WASHER | |
| YOKE TO SHIFTING TUBE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| YOKE TO SHIFTING TUBE | ||
| N 304032008006 | NUT | |
| YOKE TO SHIFTING TUBE | ||
| 842 | A 1272680024 | SHIFT LEVER |
| 842 | A 1272680024 | SHIFT LEVER |
| A 1119900901 | SCREW | |
| Repalced by: A 1119901001 | ||
| 848 | A 1119901001 | SCREW |
| 848 | A 1119901001 | SCREW |
| 854 | A 1982680150 | BUSHING |
| 854 | A 1982680150 | BUSHING |
| 861 | A 1119903540 | WASHER |
| 861 | A 1119903540 | WASHER |
| 866 | A 0019900151 | NUT |
| 866 | A 0019900151 | NUT |
| N 000094001503 | COTTER PIN | |
| N 000094001503 | COTTER PIN | |
| 872 | A 1112680942 | KNOB |
| 872 | A 1112680942 | KNOB |
| A 1112680342 | KNOB | |
| Repalced by: A 1112680742 | ||
| A 1112680742 | KNOB | |
| Repalced by: A 1112680942 | ||
| A 1112680942 | KNOB | |
| IVORY-COLORED | ||
| A 1112680942 | KNOB | |
| IVORY-COLORED | ||
| A 1112600089 | PULL ROD | |
| Repalced by: A 1112600389 | ||
| 879 | A 1112600389 | PULL ROD |
| 879 | A 1112600389 | PULL ROD |
| 885 | A 1112600253 | END PIECE |
| 885 | A 1112600253 | END PIECE |
| 891 | A 1119920210 | BUSHING |
| 891 | A 1119920210 | BUSHING |
| 899 | N 070616008003 | NUT |
| 899 | N 070616008003 | NUT |
| 906 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 906 | N 006902007100 | WASHER |
| 906 | N 006902007100 | WASHER |
| 915 | N 000985006000 | NUT |
| 915 | N 000985006000 | NUT |
| N 000094001503 | COTTER PIN | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
