Transporto priemonė: 220 SEB; VIN numerio dalis: 111023

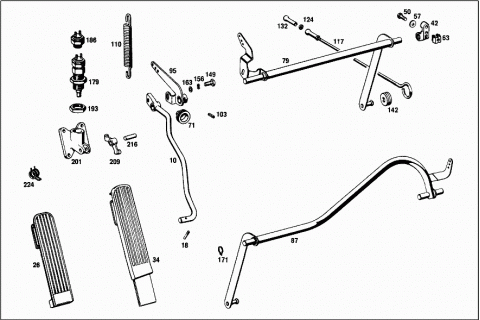

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1103000204 | ACCELERATOR PEDAL | |
| 010 | A 1103000304 | ACCELERATOR PEDAL |
| A 1113000104 | ACCELERATOR PEDAL | |
| A 1113000204 | ACCELERATOR PEDAL | |
| 018 | N 001472004002 | GROOVED PIN |
| 026 | A 1103010102 | PEDAL PLATE |
| Repalced by: A 1103000002 | ||
| 026 | A 1103000002 | PLATE |
| A 1103010183 | INSERT | |
| Repalced by: A 1103010083 | ||
| A 1103010083 | INSERT | |
| A 1103010582 | PAD | |
| Repalced by: A 1103000002 | ||
| A 1103000002 | PLATE | |
| A 1123000002 | PLATE | |
| A 0005453214 | SWITCH | |
| IDLING | ||
| A 0005469444 | CLAMPING PIECE | |
| N 000084003105 | SCREW | |
| N 000137003100 | SPRING WASHER | |
| N 000084003109 | SCREW | |
| SWITCH TO BRACKET | ||
| N 000137003100 | SPRING WASHER | |
| SWITCH TO BRACKET | ||
| A 1129970940 | SEAL RING | |
| 0.5 MM AS REQUIRED | ||
| A 1129971040 | SEAL RING | |
| 1.0 MM AS REQUIRED | ||
| A 1129971140 | SEAL RING | |
| 1.2 MM AS REQUIRED | ||
| A 1129971240 | SEAL RING | |
| 1.5 MM AS REQUIRED | ||
| N 000094001501 | COTTER PIN | |
| 034 | A 1103000002 | PLATE |
| A 1103010083 | INSERT | |
| A 1103010482 | PAD | |
| 042 | A 1103010018 | BEARING |
| CONTROL SHAFT | ||
| 050 | N 000931006082 | SCREW |
| BEARING TO FIRE WALL | ||
| 050 | N 000931006082 | SCREW |
| BEARING TO FIRE WALL | ||
| N 007985006131 | SCREW | |
| BEARING TO FIRE WALL | ||
| 057 | N 000125006407 | WASHER |
| BEARING TO FIRE WALL | ||
| 063 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 063 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 063 | A 0019906791 | NUT RETAINER |
| BEARING TO FIRE WALL | ||
| 071 | A 1839970081 | GROMMET |
| 079 | A 1113000420 | SHAFT |
| 079 | A 1113001720 | SHAFT |
| 079 | A 1113000620 | SHAFT |
| 079 | A 1113000720 | SHAFT |
| 087 | A 1113002120 | SHAFT |
| 095 | A 1103000025 | LEVER |
| 103 | N 001481004004 | CLAMPING SLEEVE |
| A 1103010332 | LEVER | |
| RELEASE SPRING | ||
| A 1809931710 | SPRING | |
| A 1809931710 | SPRING | |
| 110 | A 1219930010 | SPRING |
| 110 | A 1219930010 | SPRING |
| 117 | A 1113001215 | ROD |
| 124 | N 000934005008 | NUT |
| 124 | N 000934005008 | NUT |
| A 0009911622 | BALL SOCKET | |
| Repalced by: A 0009918922 | ||
| 132 | A 0009918922 | BALL SOCKET |
| 132 | A 0009918922 | BALL SOCKET |
| A 1113010014 | END PIECE | |
| A 1113010014 | END PIECE | |
| N 001479006000 | TURNBUCKLE | |
| N 001479006000 | TURNBUCKLE | |
| N 000934006007 | NUT | |
| N 000934006007 | NUT | |
| N 000934006012 | NUT | |
| N 000934006012 | NUT | |
| A 1273000086 | END PIECE | |
| A 1273000086 | END PIECE | |
| N 071805008300 | SNAP RING | |
| N 071805008300 | SNAP RING | |
| N 000934005008 | NUT | |
| N 000934005008 | NUT | |
| 142 | A 1213010097 | BOOT |
| Repalced by: A 1803010097 | ||
| 142 | A 1803010097 | BOOT |
| A 1809900017 | SCREW | |
| LEVER TO SHAFT | ||
| A 1809900017 | SCREW | |
| LEVER TO SHAFT | ||
| N 000934006007 | NUT | |
| LEVER TO SHAFT | ||
| N 000934006007 | NUT | |
| LEVER TO SHAFT | ||
| 149 | N 000933008113 | SCREW |
| 149 | N 000933008113 | SCREW |
| 156 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 156 | N 000137008212 | SPRING WASHER |
| 156 | N 000137008212 | SPRING WASHER |
| 163 | N 000125008407 | WASHER |
| 163 | N 000125008407 | WASHER |
| 171 | N 900055012402 | LOCK RING |
| 179 | A 1123000241 | STOP |
| A 1123000341 | STOP | |
| LESS HOUSING | ||
| 186 | A 0005451706 | SWITCH |
| KICK-DOWN SWITCH | ||
| 193 | A 1129900151 | NUT |
| 201 | A 1123040027 | HOUSING |
| 209 | A 1123040120 | LEVER |
| 216 | A 1129970010 | PIN |
| 224 | A 1129930020 | SPRING |
| N 912004006102 | LOCK WASHER | |
| N 007985006131 | SCREW | |
