Transporto priemonė: 220 SEB; VIN numerio dalis: 111023

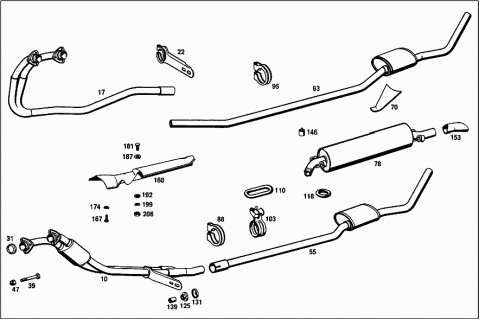

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| EXHAUST LINES | ||
| 010 | A 1114902820 | EXHAUST PIPE |
| FRONT | ||
| A 1114902920 | EXHAUST PIPE | |
| FRONT | ||
| 017 | A 1114902320 | EXHAUST PIPE |
| FRONT | ||
| A 1114903020 | EXHAUST PIPE | |
| FRONT | ||
| 022 | A 1114920619 | BRACKET |
| 031 | A 1214920180 | FLANGE GASKET |
| Repalced by: A 1214920281 | ||
| 031 | A 1214920281 | SEAL RING |
| 039 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 039 | N 304017008043 | SCREW |
| 047 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 047 | A 0009903250 | NUT |
| N 000931008248 | SCREW | |
| Repalced by: N 304017008053 | ||
| N 304017008053 | SCREW | |
| BRACKET TO EXHAUST PIPE | ||
| N 304017008053 | SCREW | |
| BRACKET TO EXHAUST PIPE | ||
| N 304017008053 | SCREW | |
| BRACKET TO EXHAUST PIPE | ||
| N 304014008004 | SCREW | |
| Repalced by: N 304014008001 | ||
| N 304014008001 | SCREW | |
| BRACKET TO EXHAUST PIPE | ||
| N 000125008407 | WASHER | |
| BRACKET TO EXHAUST PIPE | ||
| N 000127008203 | LOCK WASHER | |
| BRACKET TO EXHAUST PIPE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| BRACKET TO EXHAUST PIPE | ||
| 055 | A 1114900115 | EXHAUST MUFFLER WITH PIPE |
| REAR | ||
| 063 | A 1114900215 | EXHAUST MUFFLER WITH PIPE |
| REAR | ||
| 070 | A 1114910091 | PROTECTIVE PLATE |
| 078 | A 1114913801 | MUFFLER |
| A 1114914101 | MUFFLER | |
| A 1114912601 | MUFFLER | |
| Repalced by: A 1114913201 | ||
| A 1114913201 | MUFFLER | |
| A 1114913201 | MUFFLER | |
| 088 | A 1124920240 | CLAMP |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| A 1804920040 | CLAMP | |
| Repalced by: A 1074900141 | ||
| 095 | A 1074900141 | CLAMP |
| Repalced by: A 1074900041 | ||
| 095 | A 1074900041 | CLAMP |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000931008207 | SCREW | |
| Repalced by: N 304014008007 | ||
| N 304014008007 | SCREW | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000931008251 | SCREW | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000931008251 | SCREW | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000125008407 | WASHER | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000127008203 | LOCK WASHER | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 103 | A 1114920040 | CLAMP |
| EXHAUST PIPE SUSPENSION | ||
| A 1114900041 | CLAMP | |
| EXHAUST PIPE SUSPENSION | ||
| 110 | A 1114920082 | DAMPING PAD |
| EXHAUST PIPE SUSPENSION | ||
| N 000933008130 | SCREW | |
| Repalced by: N 304017008039 | ||
| N 304017008039 | SCREW | |
| EXHAUST PIPE SUSPENSION | ||
| N 000125008407 | WASHER | |
| EXHAUST PIPE SUSPENSION | ||
| N 000127008203 | LOCK WASHER | |
| EXHAUST PIPE SUSPENSION | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| EXHAUST PIPE SUSPENSION | ||
| 118 | A 1074920082 | DAMPING PAD |
| EXHAUST PIPE SUSPENSION REAR | ||
| 125 | A 1211550181 | RUBBER RING |
| CENTRAL EXHAUST PIPE | ||
| 131 | N 000440009103 | WASHER |
| CENTRAL EXHAUST PIPE | ||
| 139 | A 1084920053 | SPACER TUBE |
| CENTRAL EXHAUST PIPE | ||
| A 1104920027 | CLAMPING BRACKET | |
| CENTRAL EXHAUST PIPE | ||
| A 1089900340 | WASHER | |
| TO 108 586 02 49 | ||
| N 000931008244 | SCREW | |
| CENTRAL EXHAUST PIPE | ||
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| CENTRAL EXHAUST PIPE | ||
| N 000127008203 | LOCK WASHER | |
| CENTRAL EXHAUST PIPE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| CENTRAL EXHAUST PIPE | ||
| 146 | A 1129870140 | RUBBER BUFFER |
| AT CROSS MEMBER | ||
| 153 | A 1114920314 | END PIECE |
| Repalced by: A 1114920814 | ||
| 153 | A 1114920814 | END PIECE |
| A 1114920414 | END PIECE | |
| A 1114920614 | END PIECE | |
| N 007974003311 | SHEET METAL SCREW | |
| CHROMIUM JACKET TO REAR EXHAUST PIPE | ||
| N 000127003205 | LOCK WASHER | |
| CHROMIUM JACKET TO REAR EXHAUST PIPE | ||
| 160 | A 1114920030 | PROTECTIVE PLATE |
| Repalced by: A 1044920030 | ||
| 160 | A 1044920030 | PROTECTIVE PLATE |
| A 1114920230 | PROTECTIVE PLATE | |
| AT EXHAUST PIPE TRIANGULAR FLANGE;FOR SERVO STEERING | ||
| 167 | N 007976006203 | SHEET METAL SCREW |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| 174 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| 181 | A 1204200227 | SCREW |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| 187 | A 0009873841 | RUBBER RING |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| 192 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 192 | N 009021006208 | WASHER |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| 199 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| 206 | N 000934006007 | NUT |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| A 1105860149 | REPAIR KIT | |
| Repalced by: A 1085860249 | ||
| A 1085860249 | REPAIR KIT | |
| EXHAUST PIPE SUSPENSION | ||
| A 1084900037 | REPAIR KIT | |
| EXHAUST PIPE SUSPENSION | ||
| A 1084920027 | CLAMPING BRACKET | |
| Repalced by: A 1104920027 | ||
| A 1104920027 | CLAMPING BRACKET | |
| N 000440009103 | WASHER | |
| A 1211550181 | RUBBER RING | |
| A 1084920053 | SPACER TUBE | |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 912004008102 | LOCK WASHER | |
| N 000931008244 | SCREW | |
| N 000934008013 | NUT | |
| A 1089900340 | WASHER | |
| N 999901008005 | NUT | |
| Repalced by: A 0009903250 | ||
| A 0009903250 | NUT | |
| A 1085860349 | REPAIR KIT | |
| EXHAUST PIPE SUSPENSION | ||
